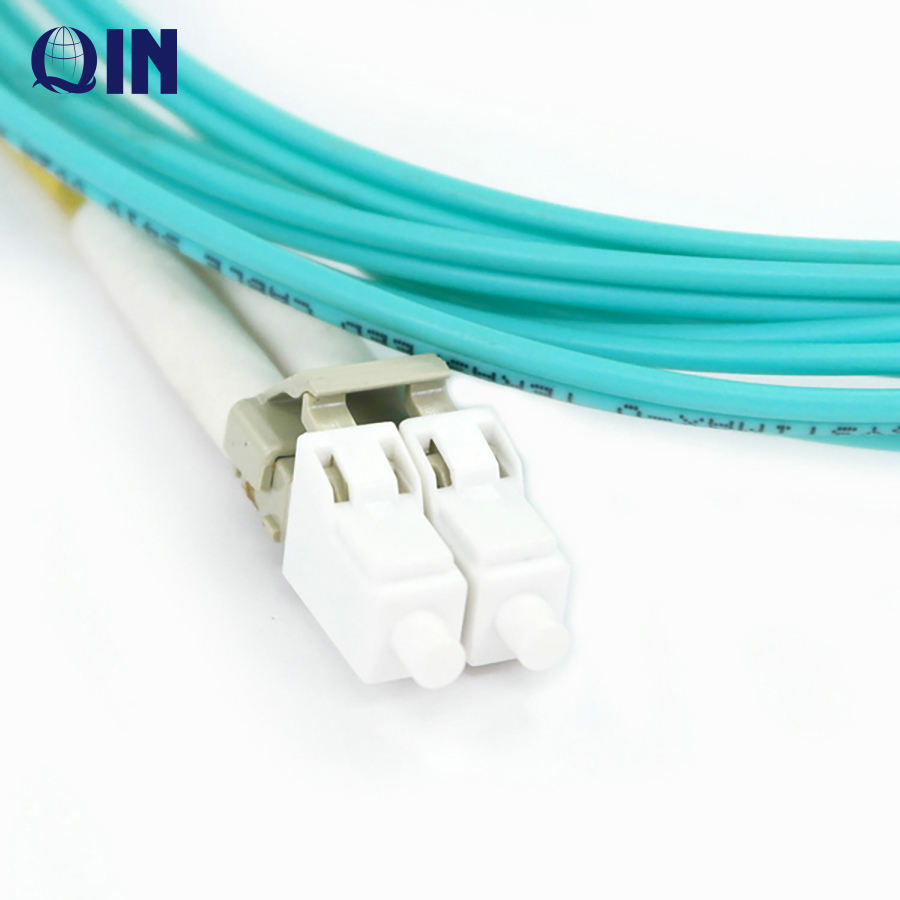

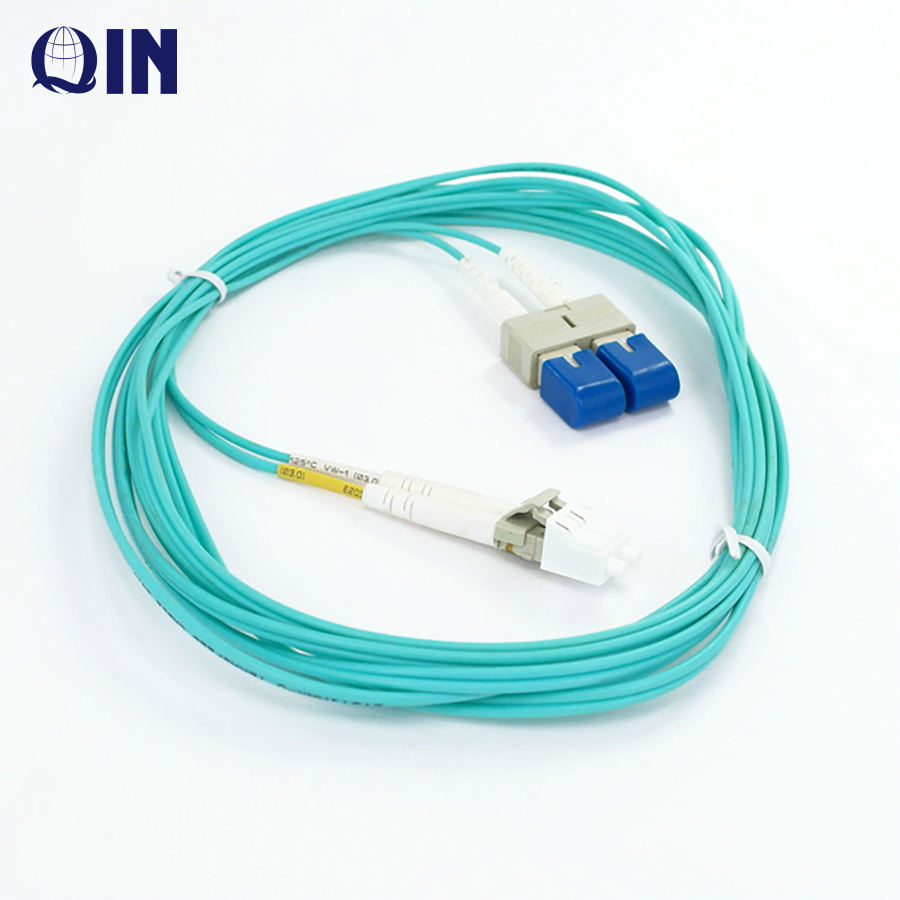

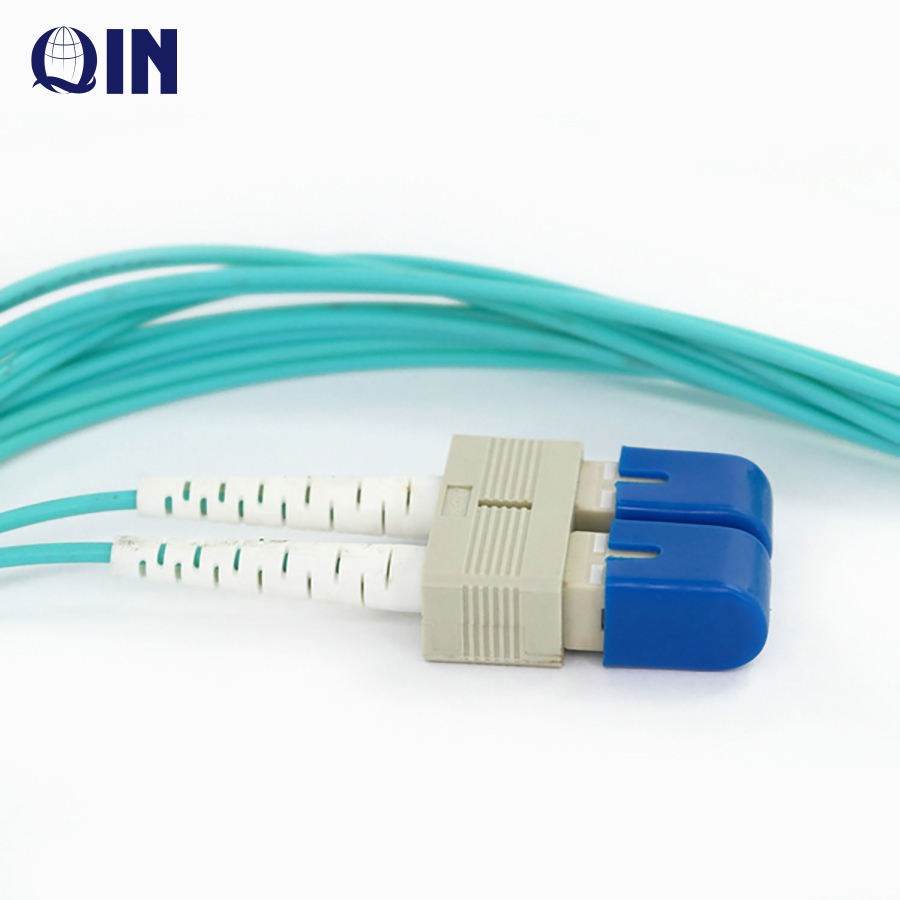

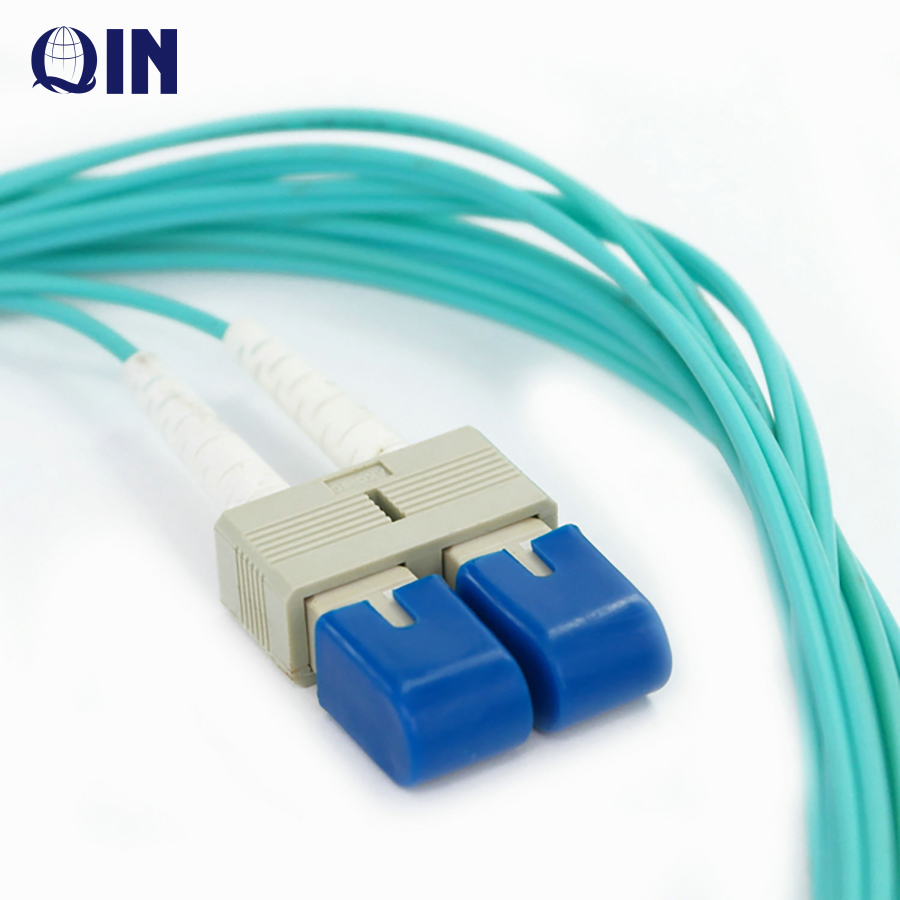

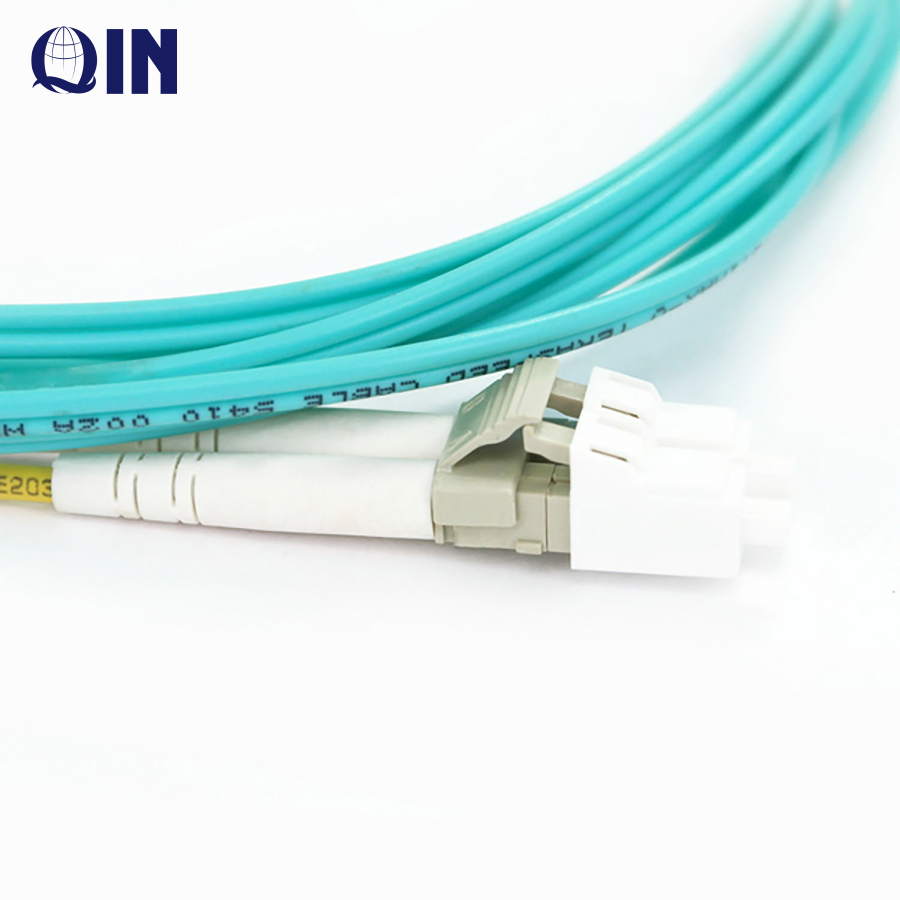

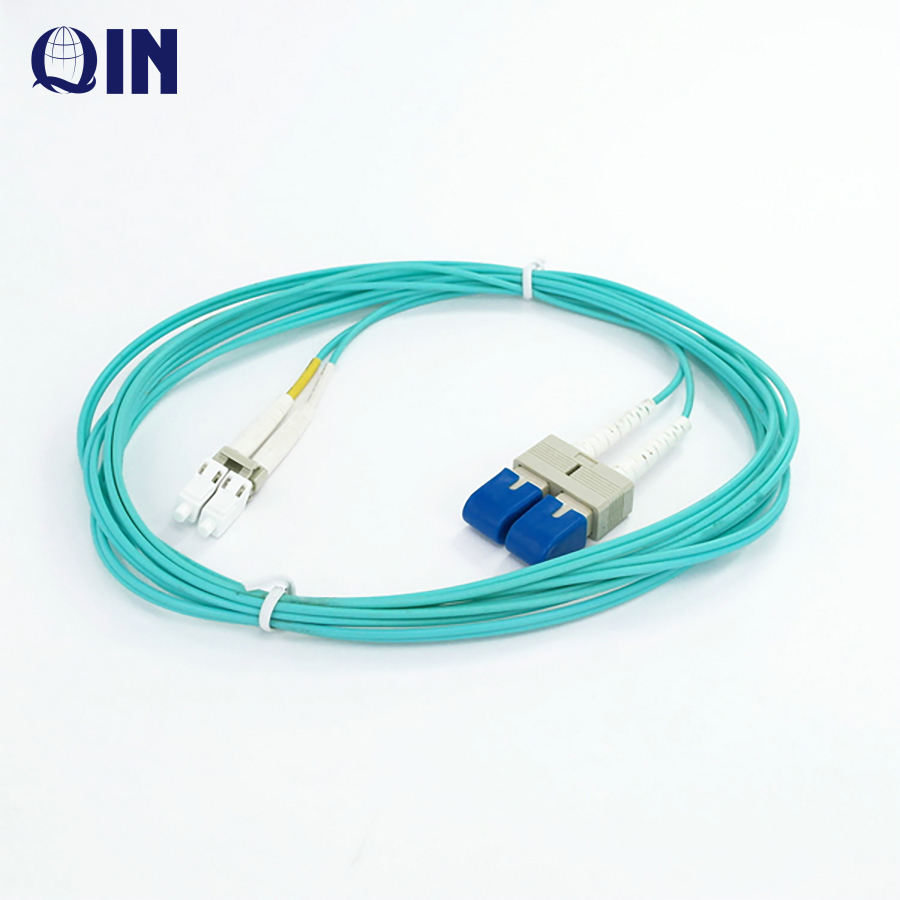

LC SC FC ST PC UPC APC fiber optic patch cord OM3 OM4 jumper wire
Hot
Hot
US$0.00
Industry-specific attributes
| Type | Fiber optic patch cord |
Other attributes
| Model Number | OM3 fiber optic patch cable |
| Place of Origin | Guangdong, China |
| Brand Name | QIN / RUBY / OEM |
| Dimension | 0.3mm |
| Length | As Customer Request |
| Color | Aqua or customizable |
| Certification | ROHS/CE |
| Type | Multimode Duplex |
| Application | Telecommunication |
Features
Features:
•Good Durability
•Good Exchangeability
•High Temperature Stability
•Low Insertion Loss and Back Reflection Loss
•Superior Quality Standard PC/UPC/APC polishing
•Standard : Telcordia GR-326-CORE, TIA/EIA and IEC
Applications:
Gigabit Ethernet
Active Device Termination
Telecommunication Networks
Video
Multimedia
Premise Installation
Local Area networks
FTTH and FTTX Applications
CATV
Parameters Table:
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB(1000 Times) | ||
| Vibration | ≤0.2dB (550HZ 1.5mm) | ||
| Temperature | ≤0.2dB (-40+80 Sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H 100 hours) | ||
| Appex Offset | 0μm-50μm | ||
| Radius of Curvator | 7mm~25mm | ||
| XB/ | / | PC | - | / | PC | / | SM | - | SX | / | 2.0 | - | 3M | ||
| 1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | ||||||||
| 1 | Connector No.:1 LC,SC,FC,ST,E2000,DIN, D4, MU, MTRJ,etc | ||||||||||||||
| 2 | Lapping Way PC&APC (For MTRJ F=Female, M=Male) | ||||||||||||||
| 3 | Connector No.: 2 LC,SC, FC,ST,E2000,DIN,D4,MU,MTRJ,Pigtail,etc | ||||||||||||||
| 4 | Cable Type SM(9/125μm), MM(50/125μm & 62.5/125μm) | ||||||||||||||
| 5 | Fiber Number SX(Simplex) or DX(Duplex) | ||||||||||||||
| 6 | Cable Diameter 2.0=Ø2.0mm 3.0=Ø3.0mm 0.9=Ø0.9mm , etc | ||||||||||||||
Our Services:
1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
3) All message will be replied within 48 hours.
