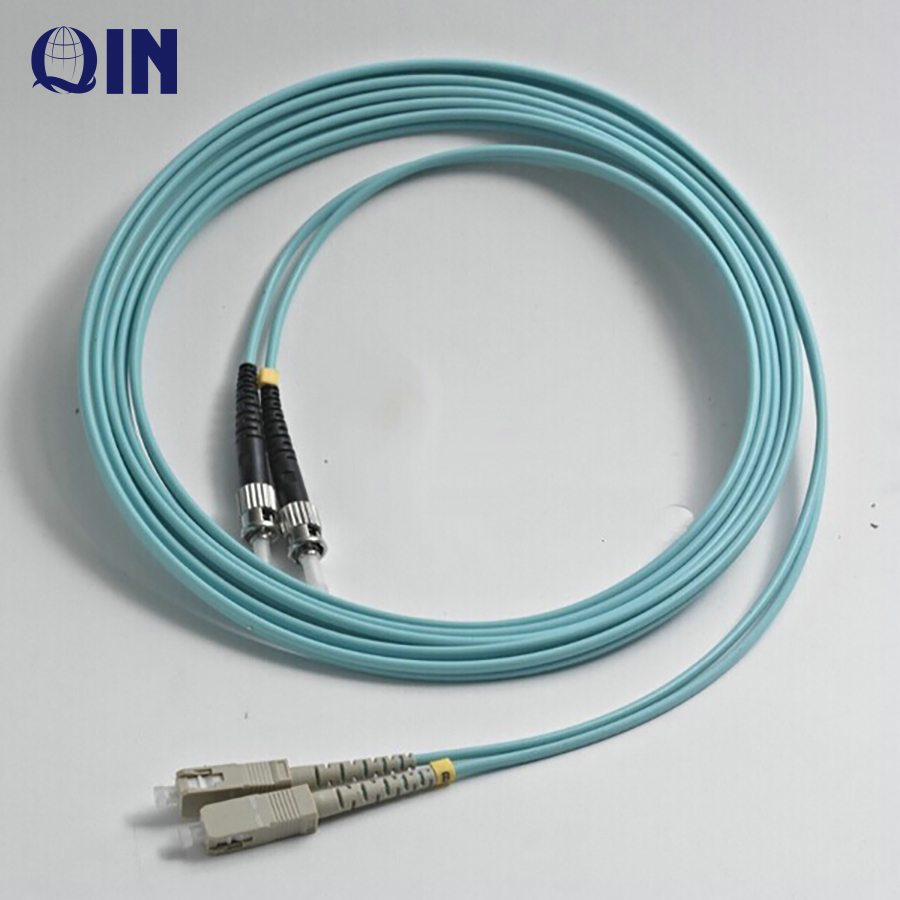

ST/UPC to SC/UPC Duplex 3.0mm LSZH 62.5/125 Multimode Fiber Optic Patch Cord
Industry-specific attributes
| Type | Fiber optic patch cord |
Other attributes
| Model Number | OM3 fiber optic patch cable |
| Place of Origin | Guangdong, China |
| Brand Name | QIN / RUBY / OEM |
| Fiber Count | DUPLEX |
| Length | Optional |
| Polish Type | UPC to UPC |
| Fiber Type | 62.5/125um |
| Jacket OD | 3.0mm |
| Jacket Material | PVC |
| Return Loss | ≥50dB |
| Insertion loss | ≤0.3dB |
| Fiber Grade | G652D |
| Operating Temperature | -40~75°C |
Technical parameters :

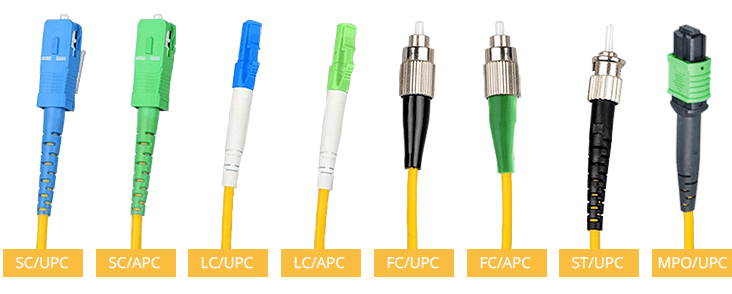

1. connector types: FC, SC, LC, STand etc
2. The min bending radius: 3.8 cm
3. Operating temperature range: - 40 ~ 85 °C
4.connector materials: ceramic plug core
5. Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm
6. Repeat plug: < 0.2 dB, each 500 times plug
7. Min reflection loss: 20 db
8. Max return loss:-50dB
Specification：
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Environmental Reliability Test
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
Our Services:
1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
3) All message will be replied within 48 hours.
