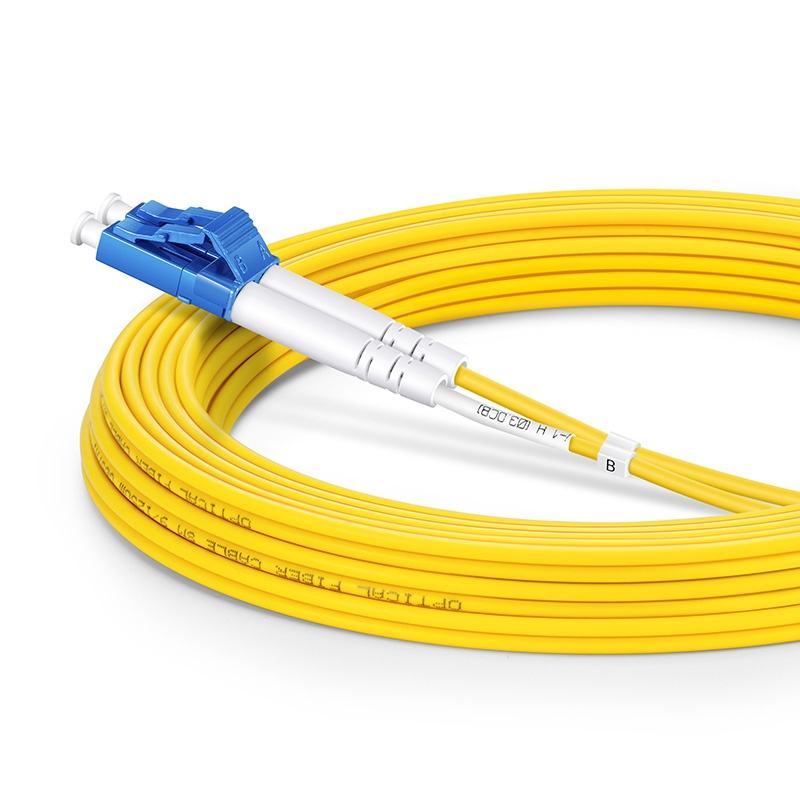

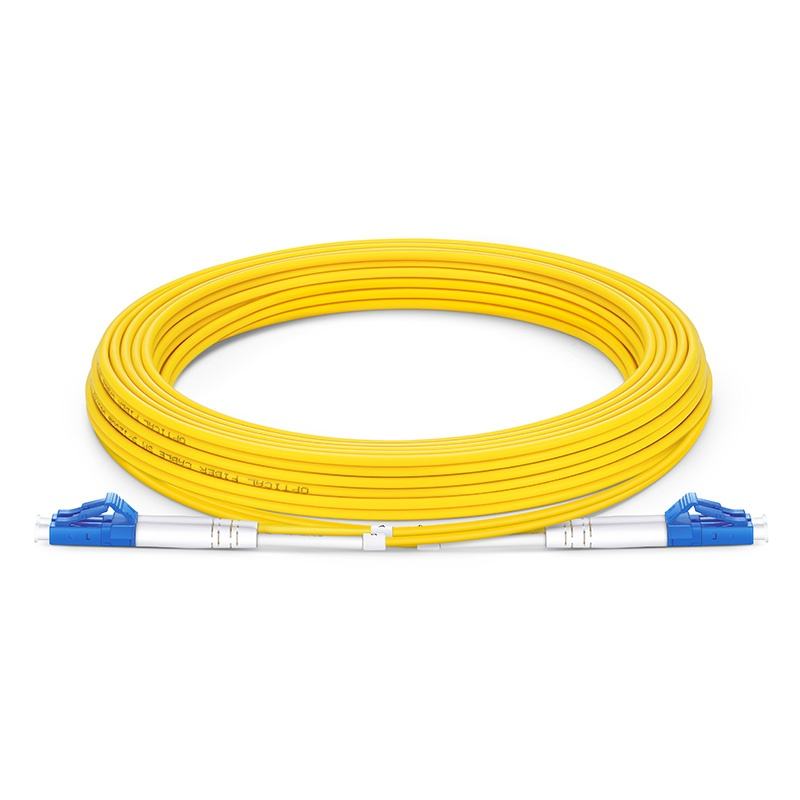

Single Mode (OS2) Riser (OFNR) 2.0mm Tight-Buffered Fiber Optic Equipment 5m (16ft) LC UPC Duplex 2 Fibers FTTH Patch Cable
Industry-specific attributes
| Type | Fiber optic patch cord |
Other attributes
| Model Number | LC-LC |
| Place of Origin | Guangdong, China |
| Brand Name | QIN / RUBY / OEM |
| Use | FTTH |
| Warranty Time | 12Month |
| Network | Fiber |
Product Highlights

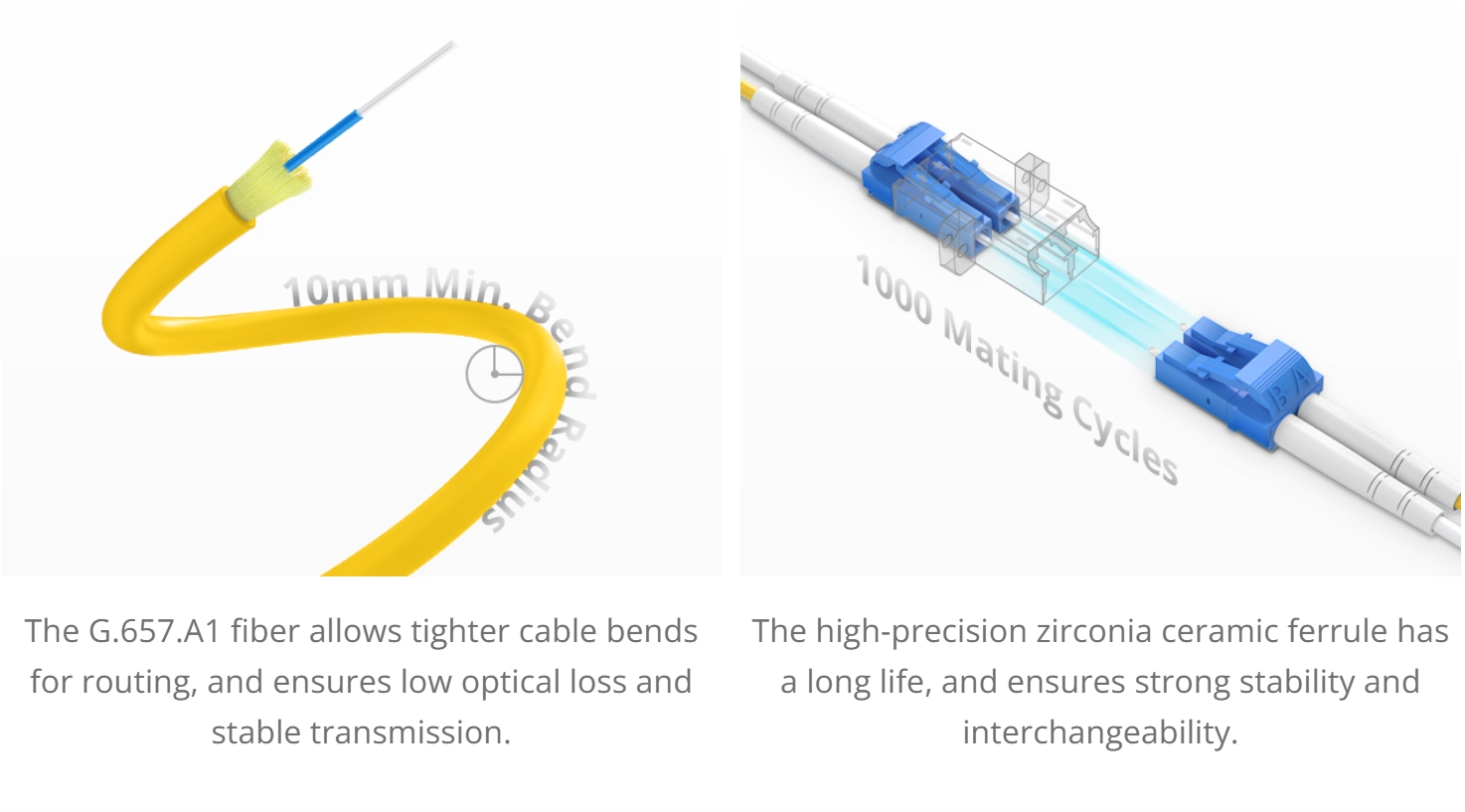

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius

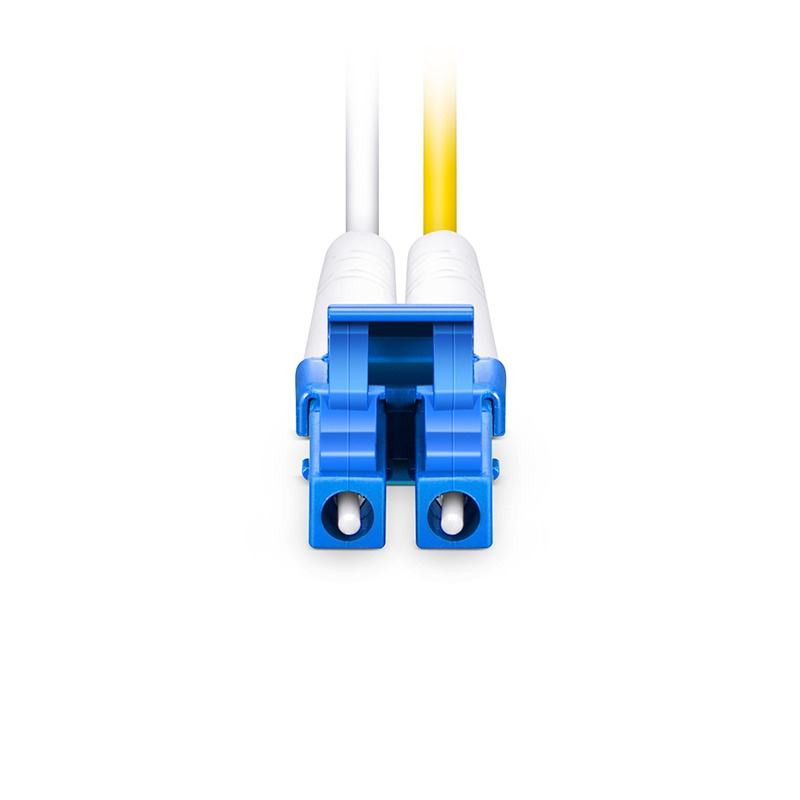

Precision Zirconia Ferrule Connectors Ensure Low Loss
Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Zipcord Reinforced Fiber and Reduces Crimping Risk

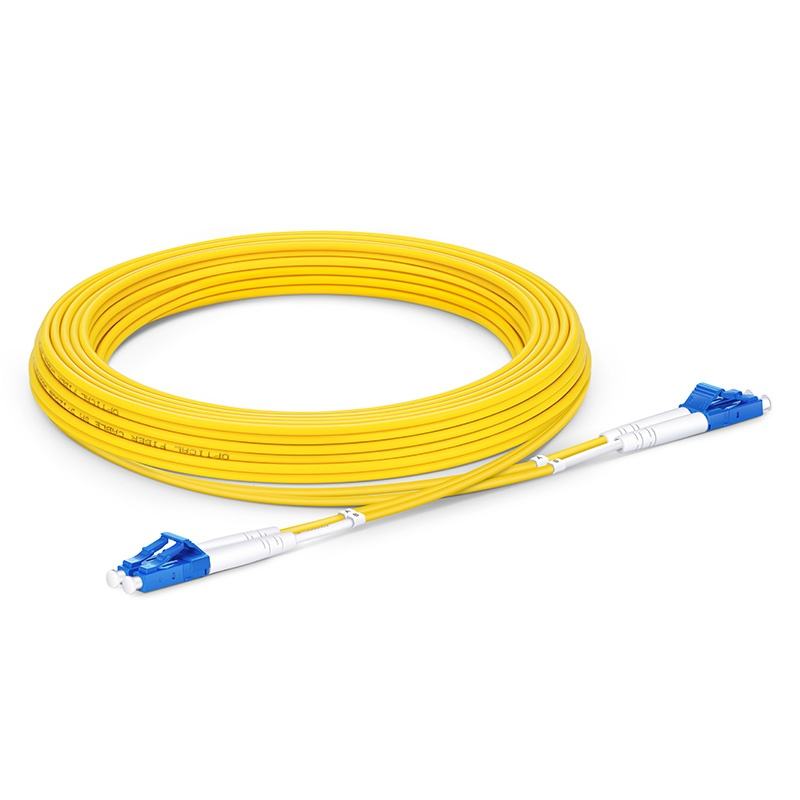

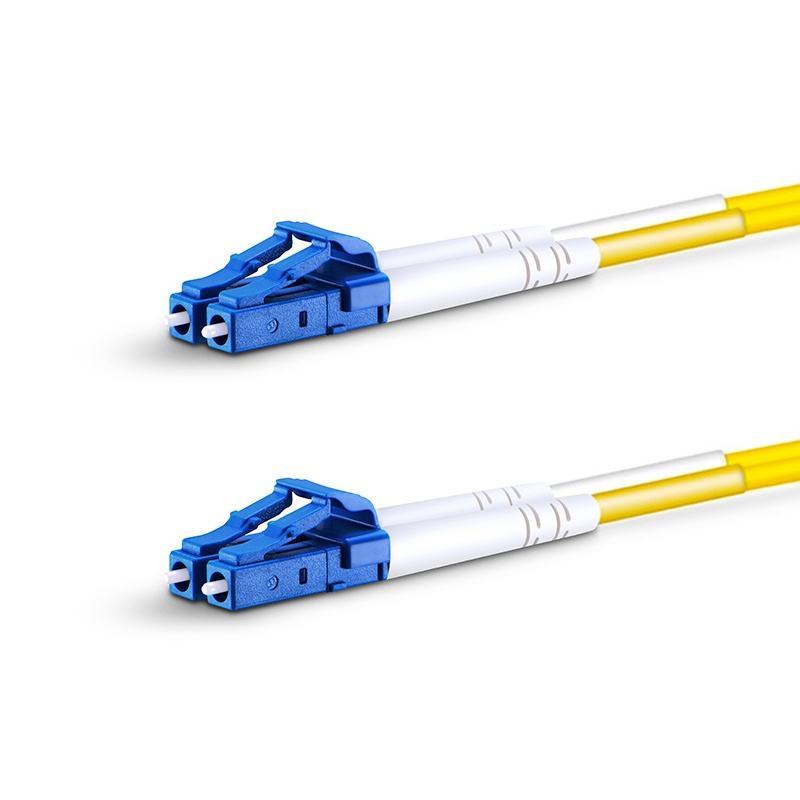

Fiber Patch Cable, LC UPC to LC UPC, Duplex, 2F, OS2, Riser (OFNR), 2.0mm
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
| Connector A | LC UPC Duplex | Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1(Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Cable Jacket | PVC/LSZH |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 Times | Tensile Strength (Long/Short Term) | 90/150N |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310 nm | 0.36dB/km | Attenuation at 1550 nm | 0.22dB/km |
| Operating Temperature | -40 to 70°C (-40 to 158℉) | Storage Temperature | -45 to 80°C (-49 to 176℉) |
Build a Stable and Robust Fiber Optic Network

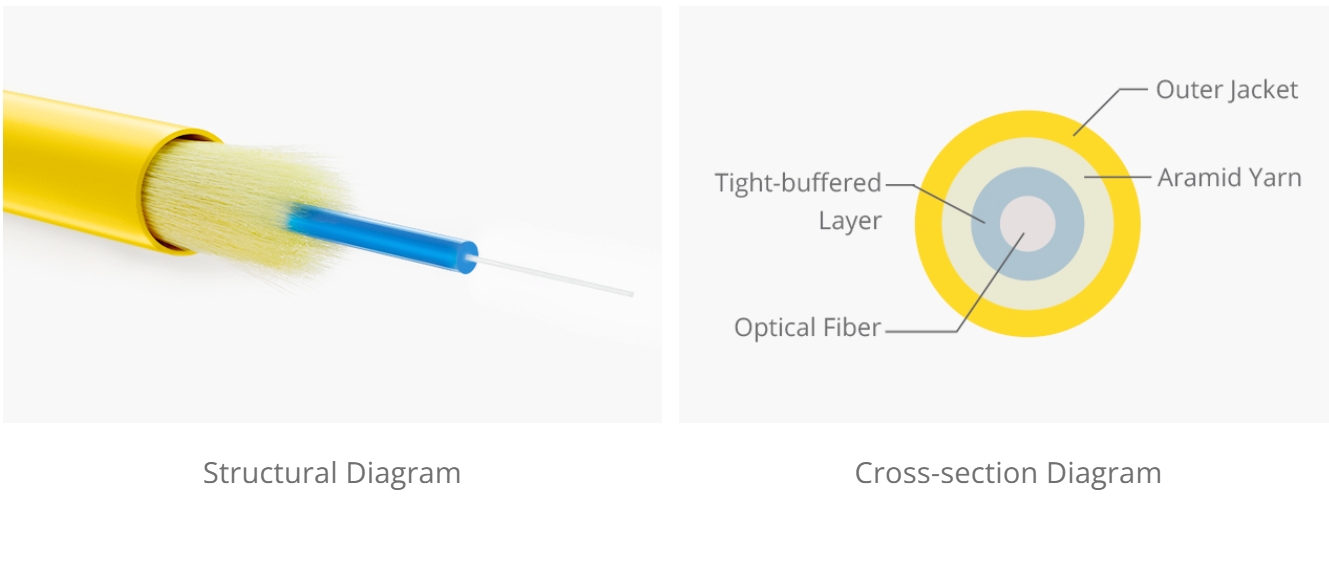

High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

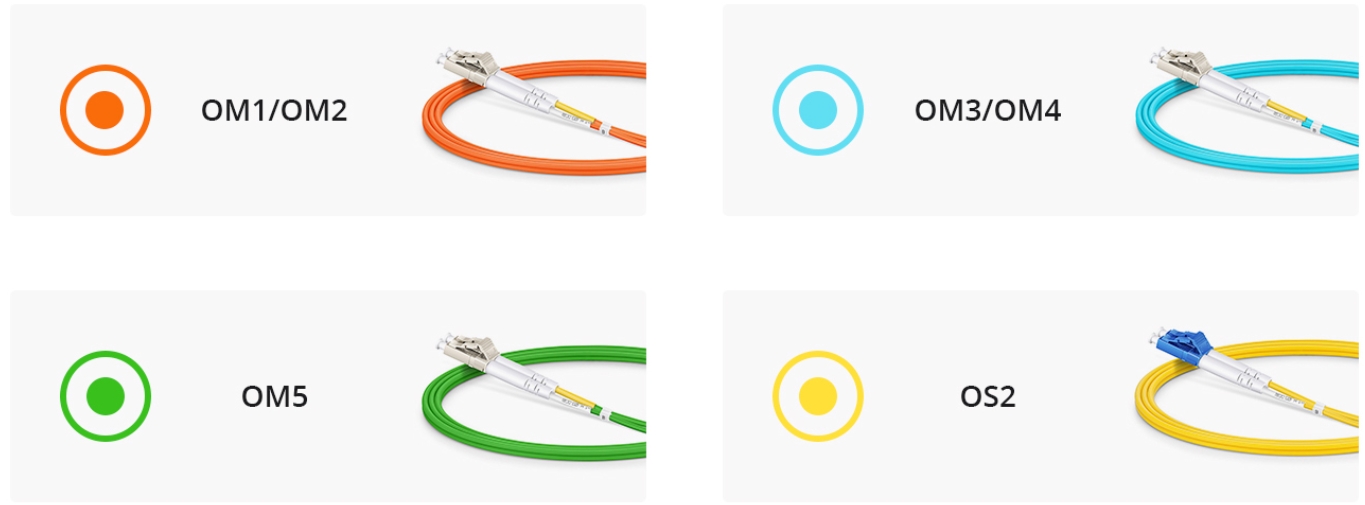

Color-Coded Cable Jacket for Easy Identification
A fiber cable's jacket color is typically defined by the fiber type, and can differ based on mode and performance level.

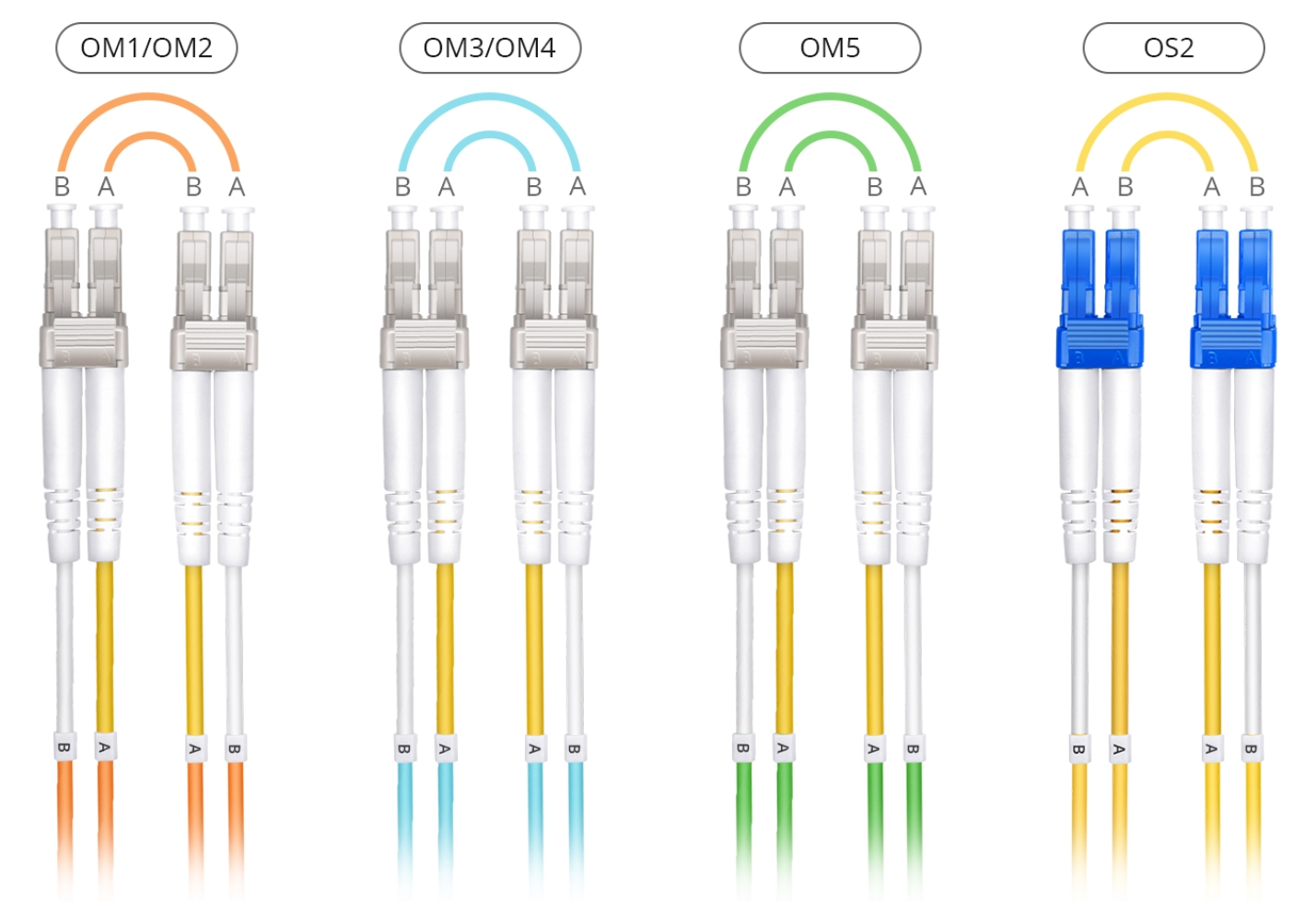

A-to-B Fiber Polarity Commonly Used in Fiber Applications
To help the industry select and install the right components to maintain proper polarity, TIA-568-C standards recommend the A-B polarity scenario for duplex patch cords.

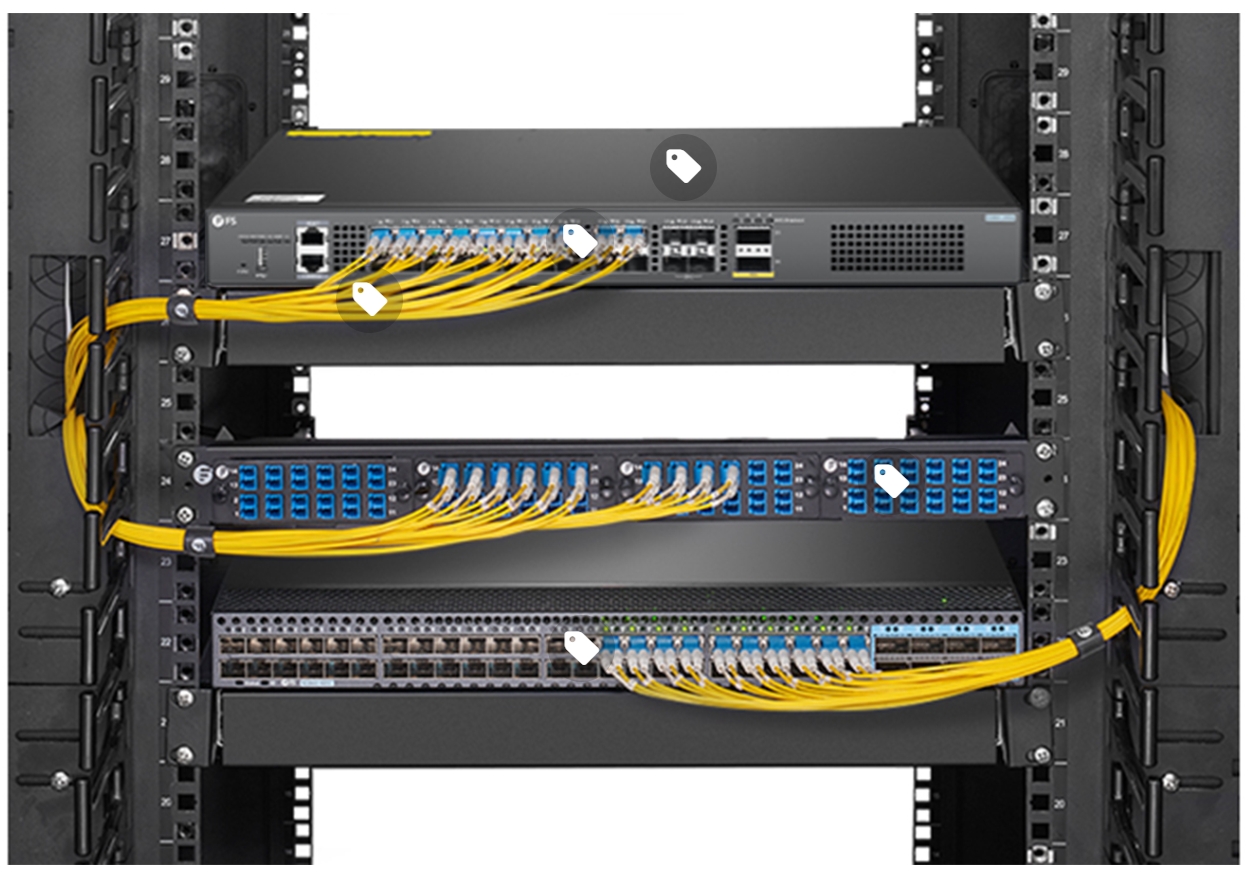

Provide Interconnect and Cross-connect of Application
Designed for high-density applications in entrance facilities, telecommunications rooms, data centers, at the desk, and network applications.

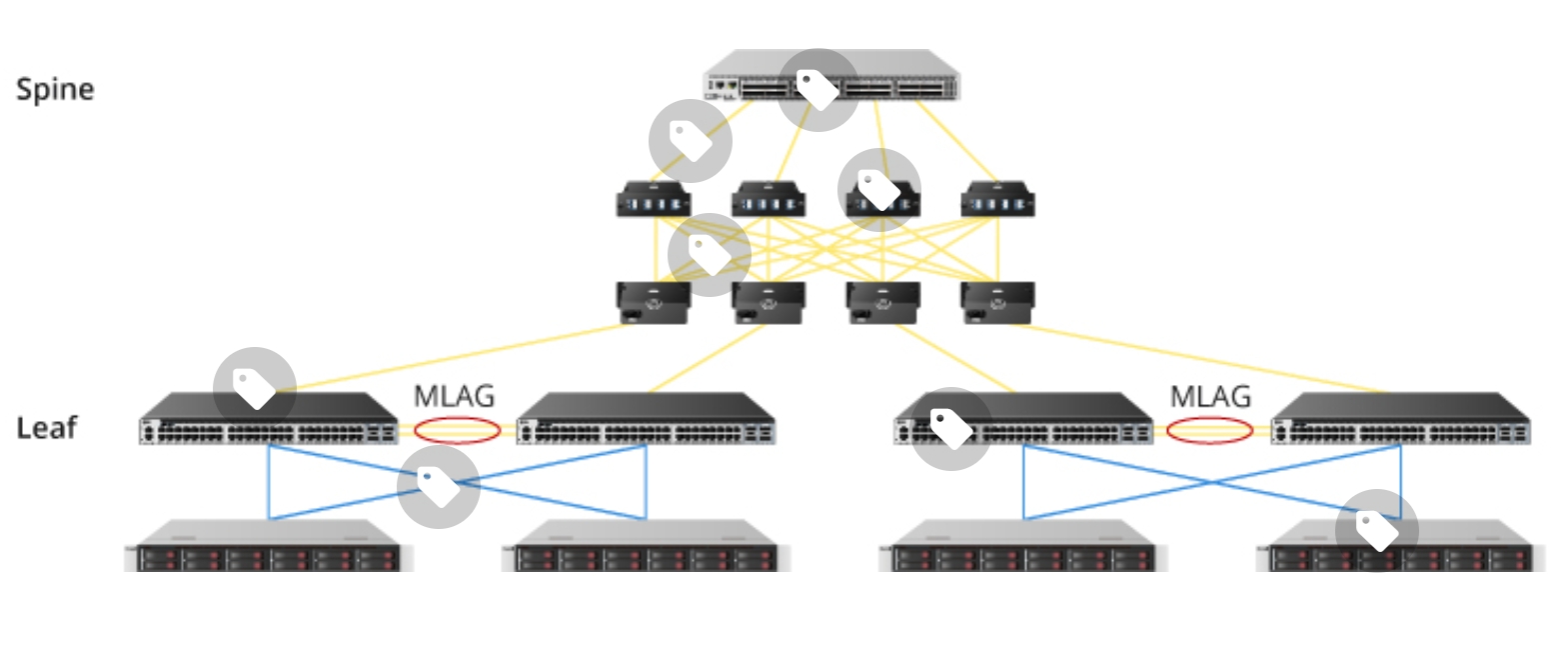

Spine-Leaf Architecture Achieve Larger Network Scale
Reduce latency times of east-west traffic and provide a redundant path.

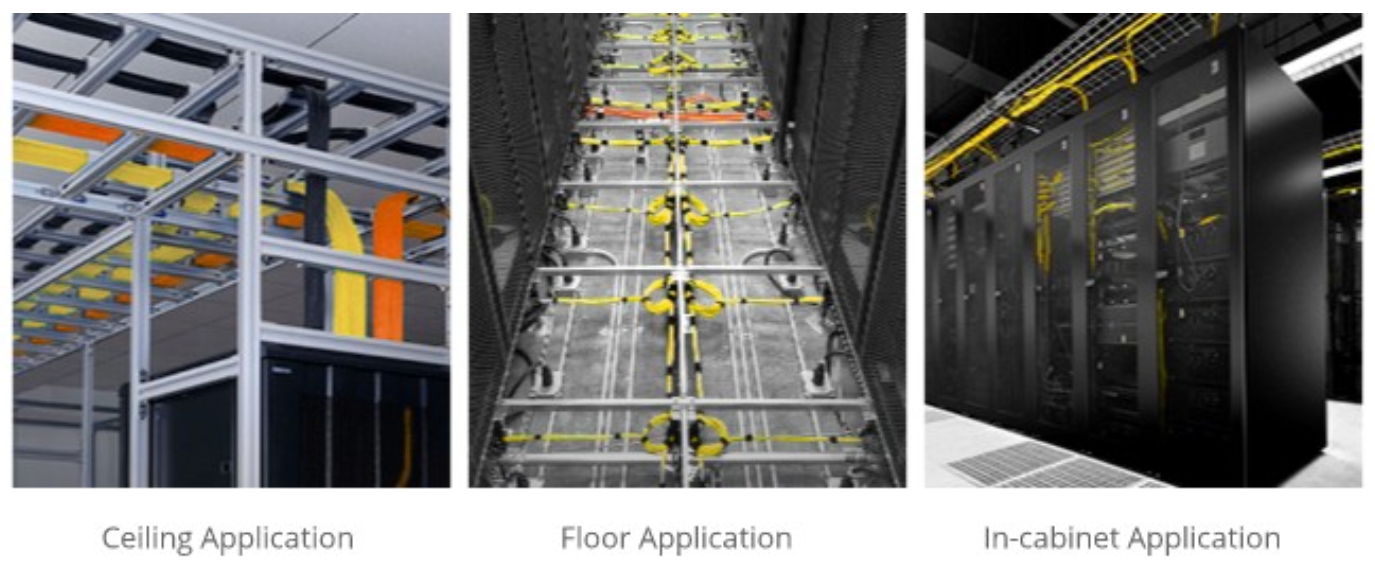

Meet the Various Indoor Installation Needs
Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.
