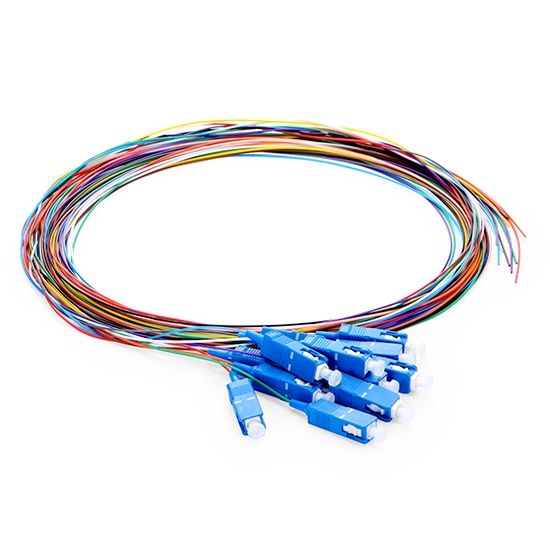

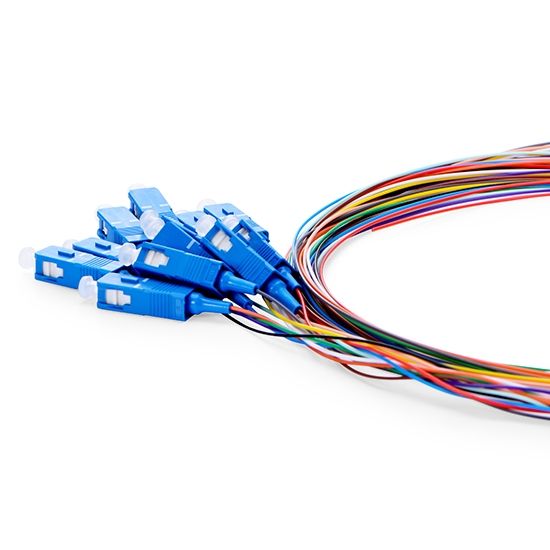

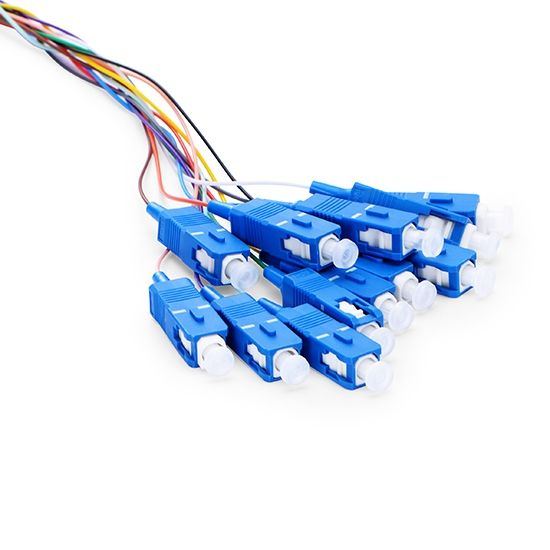

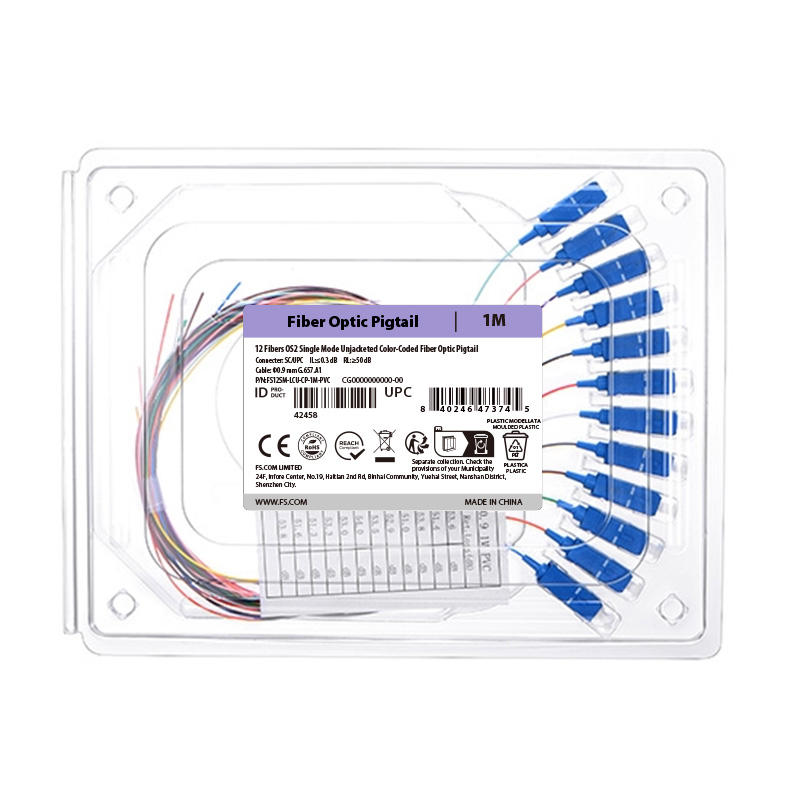

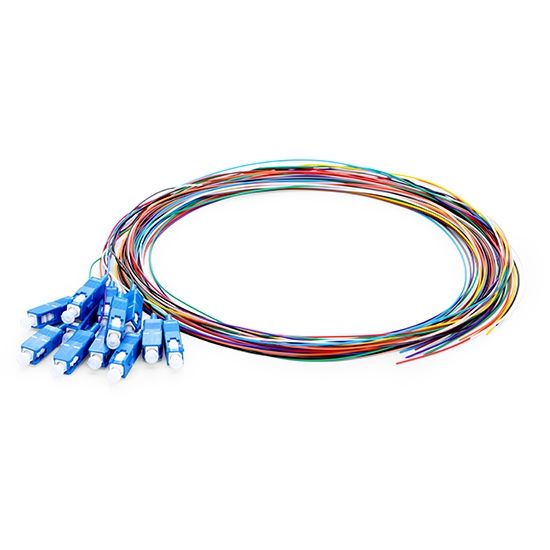

12-Color Optical Fiber Pigtail 1.5m LSZH G.652D SC/UPC 0.9mm Optic Pigtail Single Mode OS2 for Fiber Optic Equipment
Industry-specific attributes
| Type | Fiber Pigtails |
Other attributes
| Model Number | 12-Colors Pigtail |
| Place of Origin | Guangdong, China |
| Brand Name | QIN/OEM |
| Use | Fiber Cabling |
| Warranty Time | 15 years |
| Name | 12-Colors Pigtail |
| Jacket Material | PVC, LSZH |
| Connect PIN | SC UPC |
| Fiber Type | OS2 Single Mode |
| Cable number | 12 |
| Length | 1m,2m,3m or Customized |
| Network | None |
Product Highlights

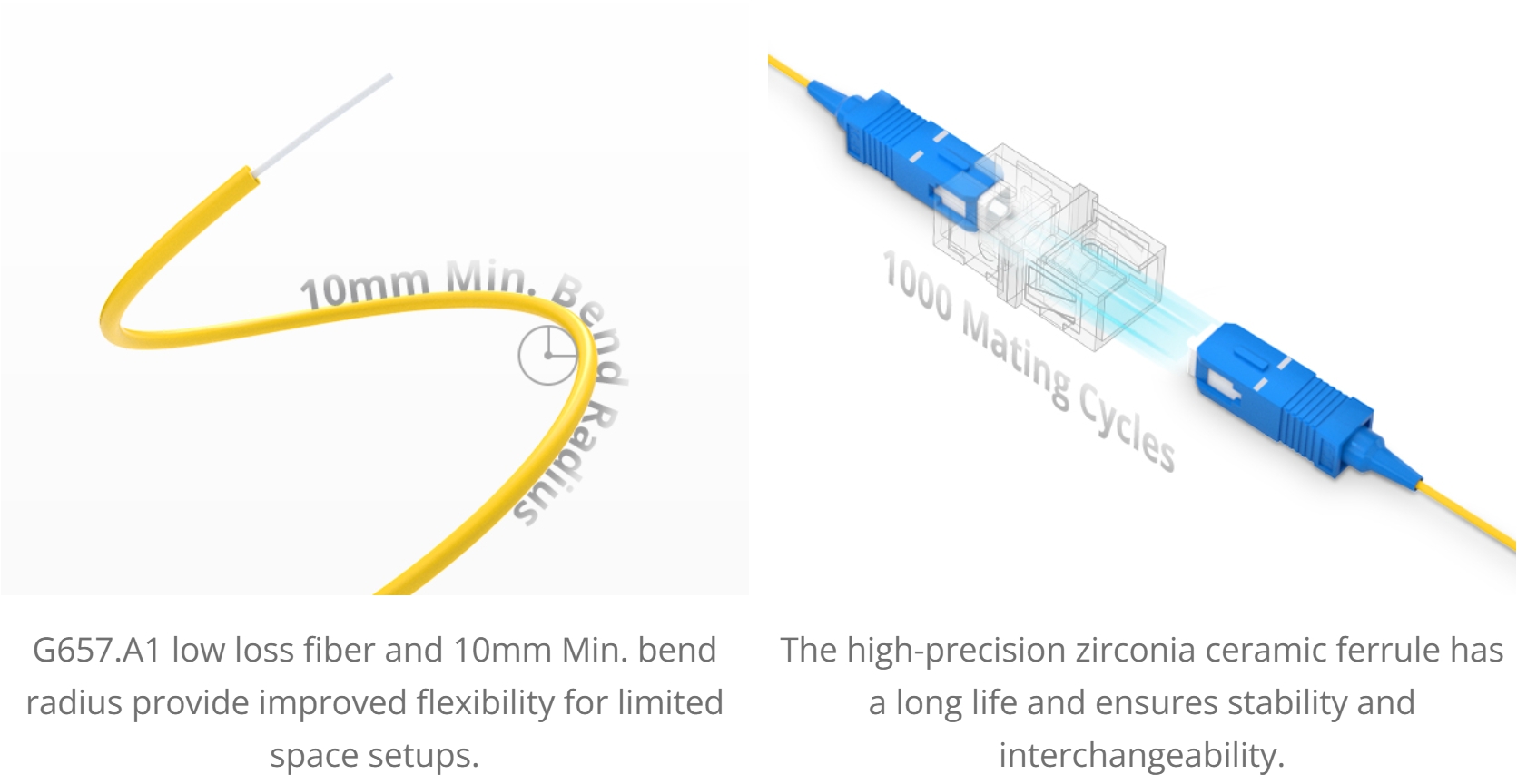

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced
Easy-strip 900µm Tight-buffered Coating
Industry Standard PVC Flame-retardant Cable Jacket
Support Both Fusion and Mechanical Splicing
12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.
The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.
| Connector A | SC UPC Simplex | Connector B | Unterminated |
| Fiber Count | 12 Fibers | Fiber Grade | G.657.A1 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Jacket Color | 12-Color | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 0.9mm | Cable Jacket | PVC (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 Times | Standard | RoHS Compliant |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Vibration | ≤0.2dB | Interchangeability | ≤0.2dB |
| Operating Temperature | -40 to 75°C (-40 to 167℉) | Storage Temperature | -45 to 85°C (-49 to 185℉) |
Build a Stable and Robust Fiber Optic Network

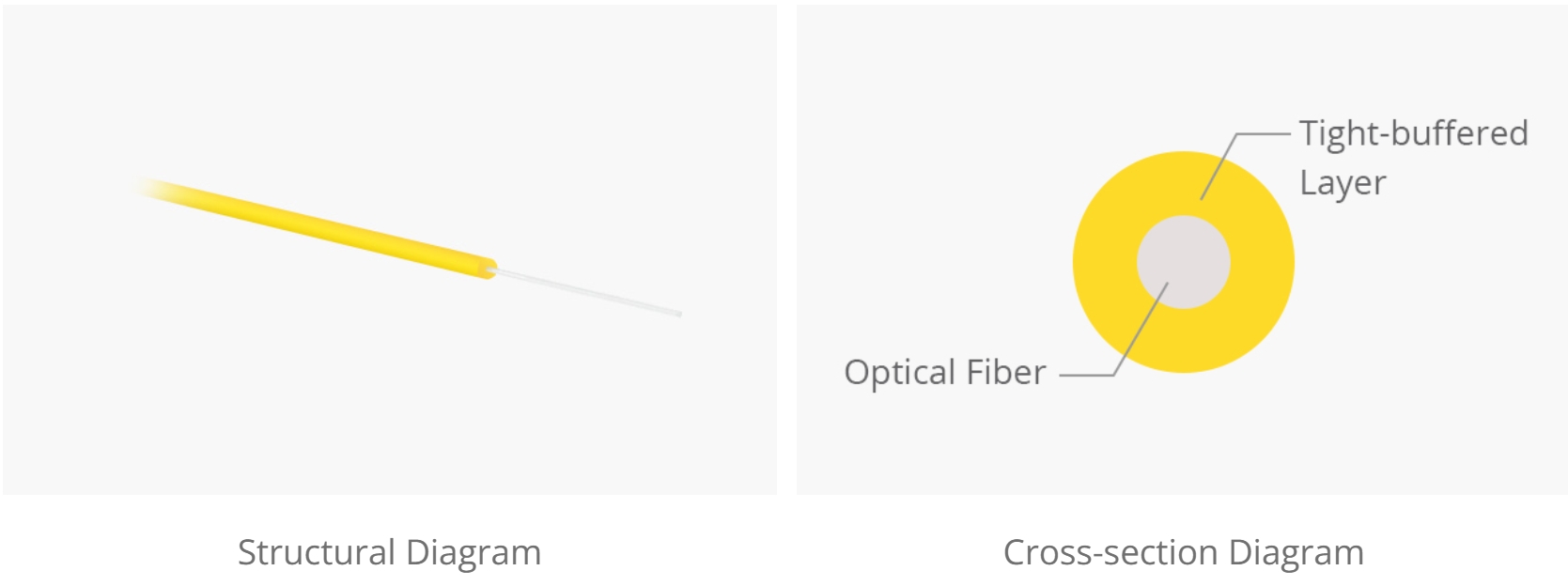

High-quality tight-buffered fiber optic pigtail protects the fiber optic core, and is easy to strip for splicing.
High-precision Components Guarantee Reliable Transmission
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

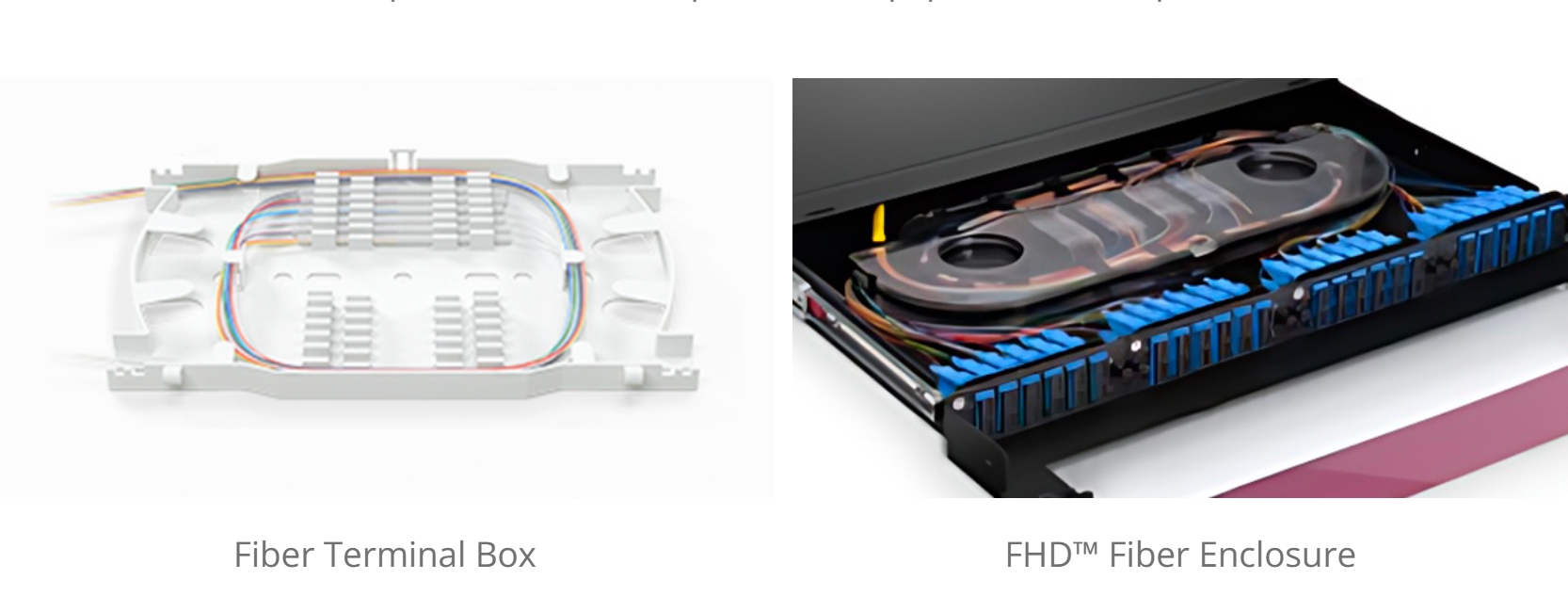

A Variety of Applications of Different Equipments
Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc.

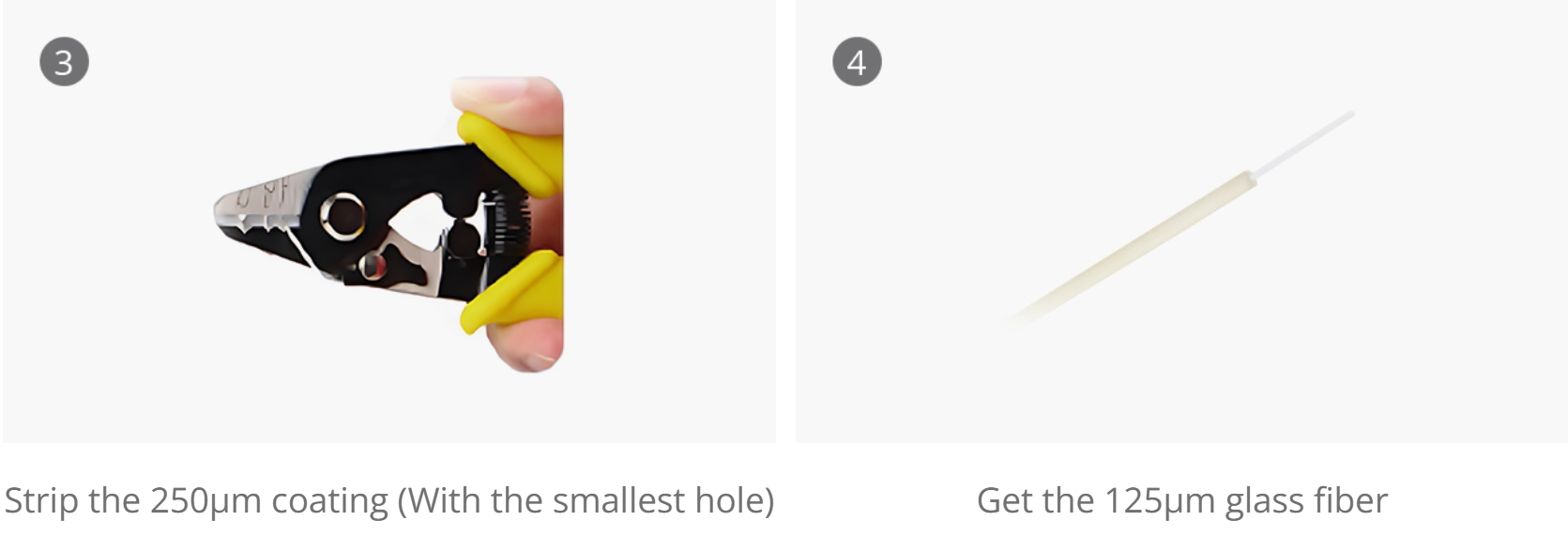

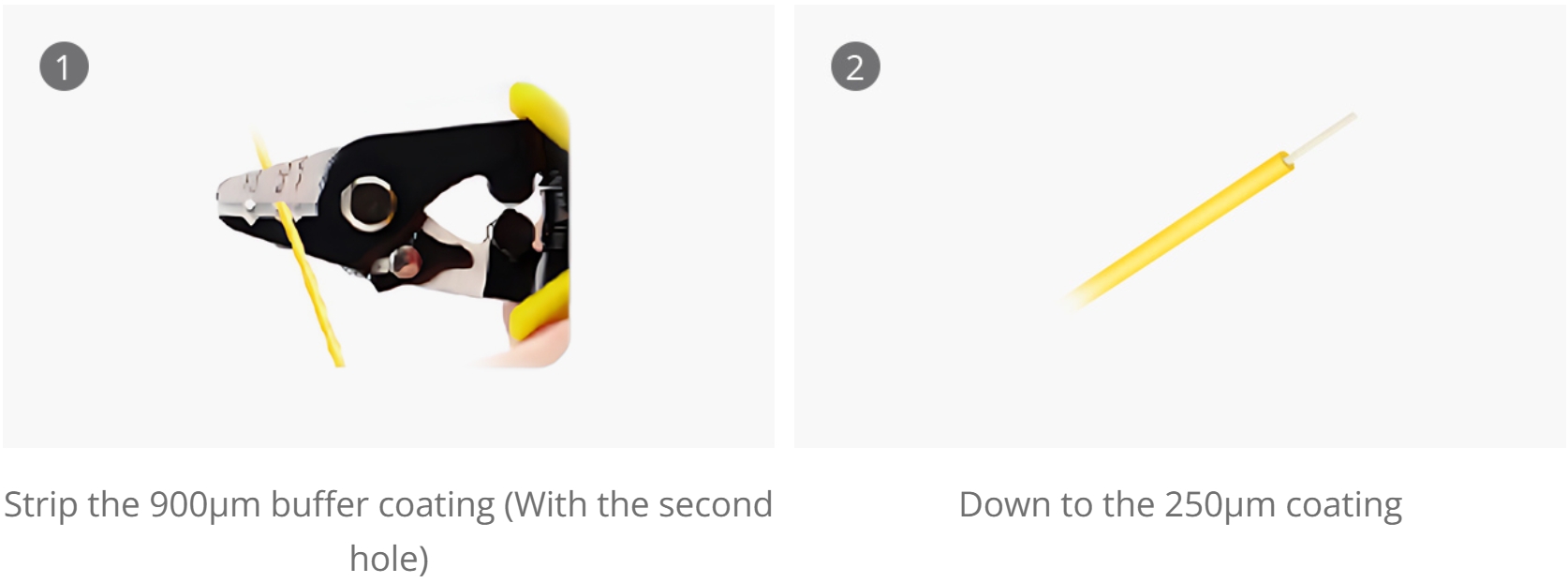

How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper
A fiber cable's jacket color is typically defined by the fiber type, and can differ based on mode and performance level.

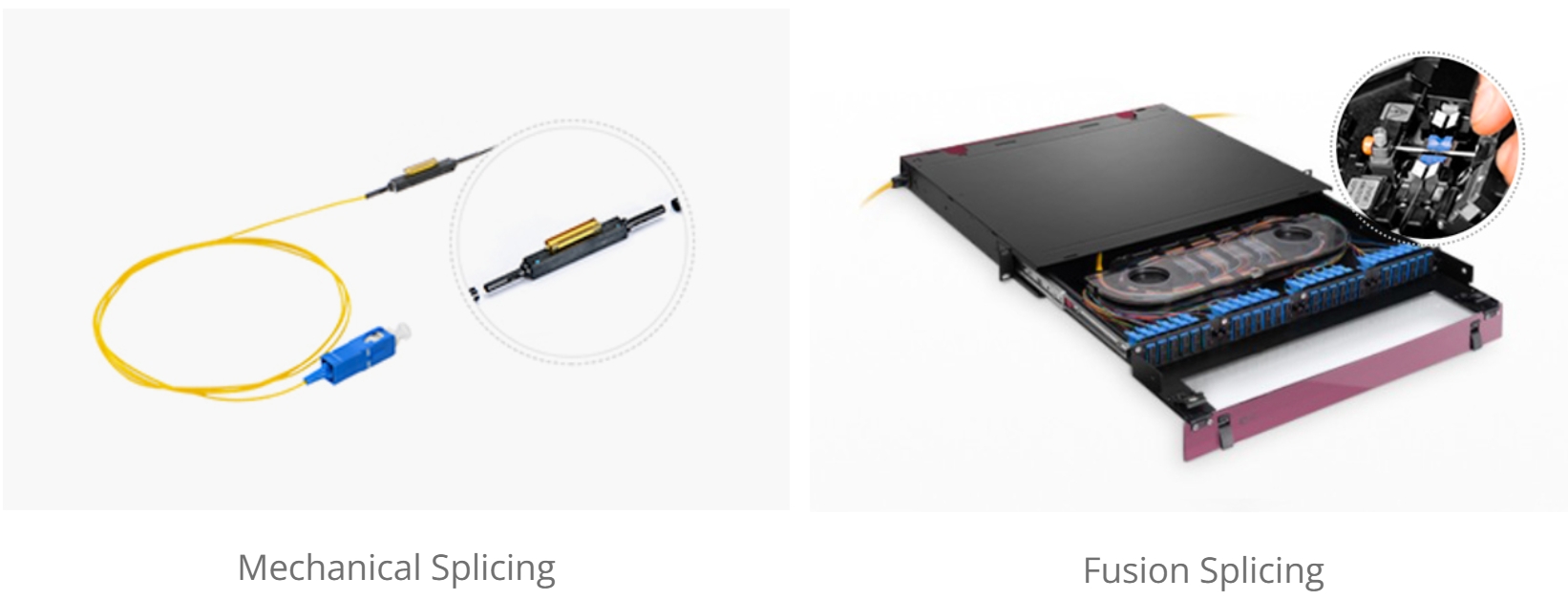

Two Important Methods for Fiber Optic Pigtail Splicing
Fiber optic pigtail assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing.
