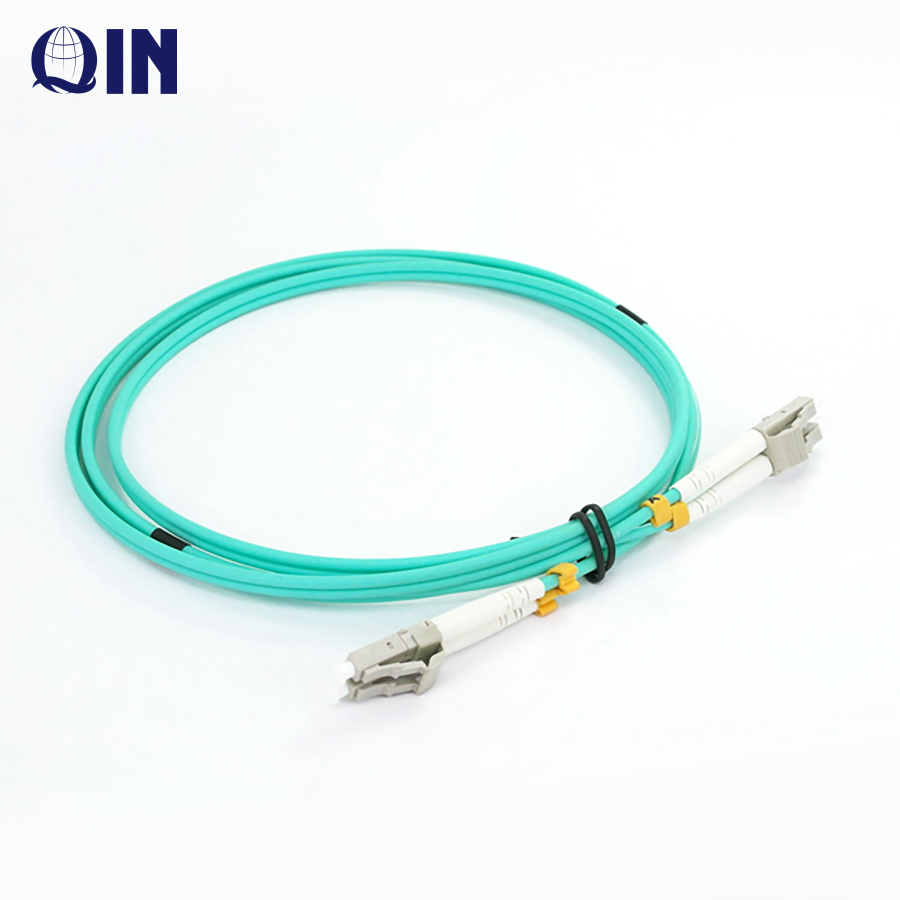

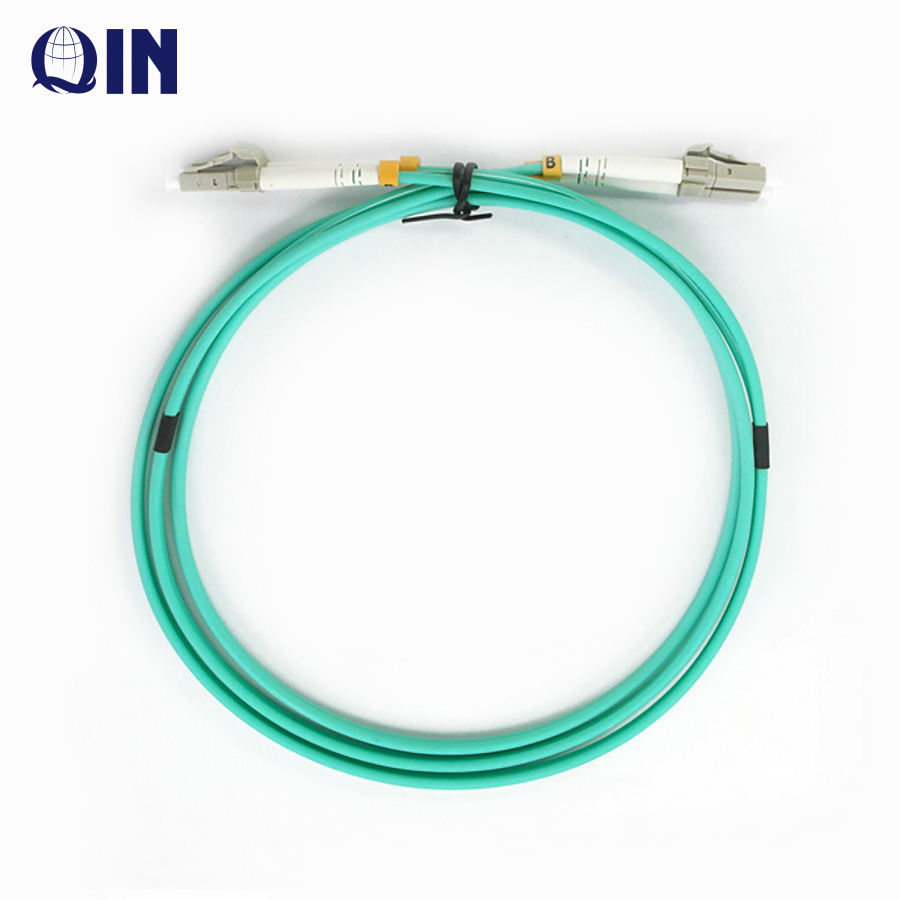

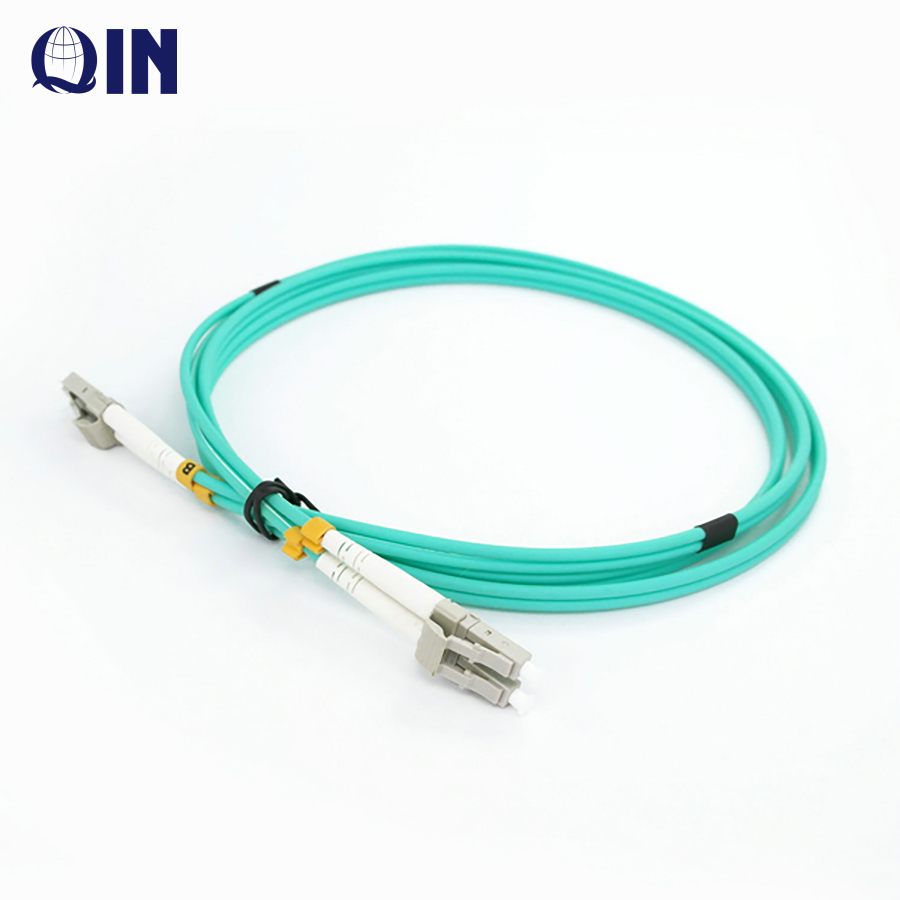

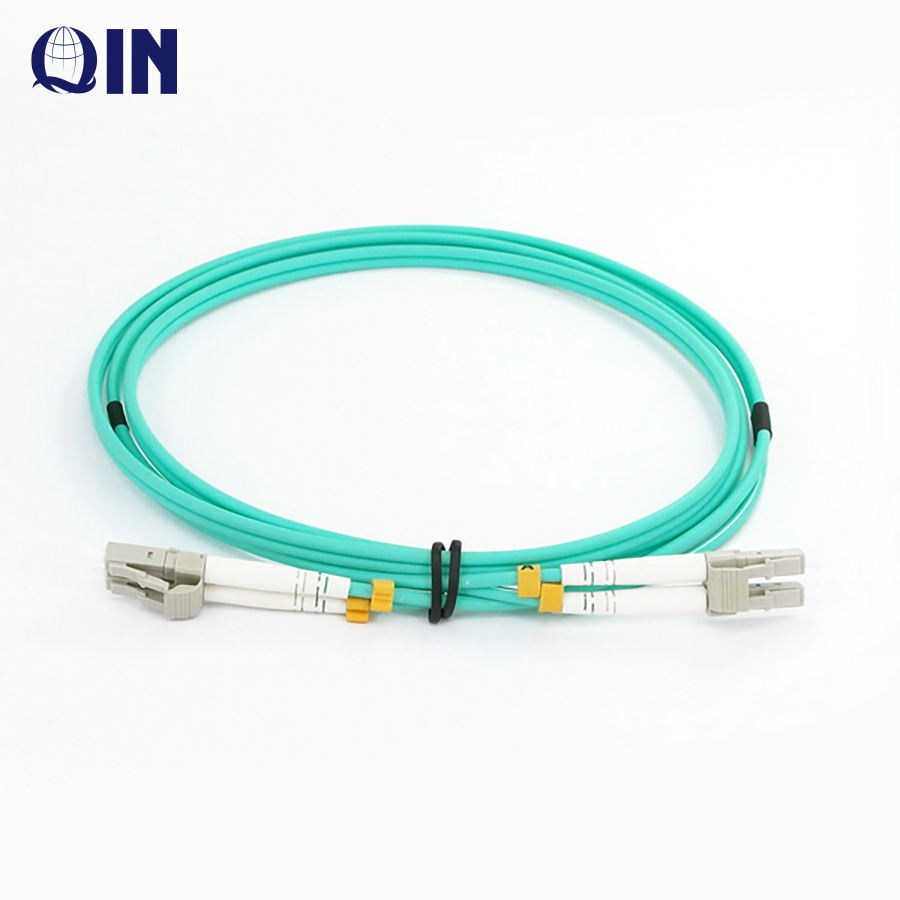

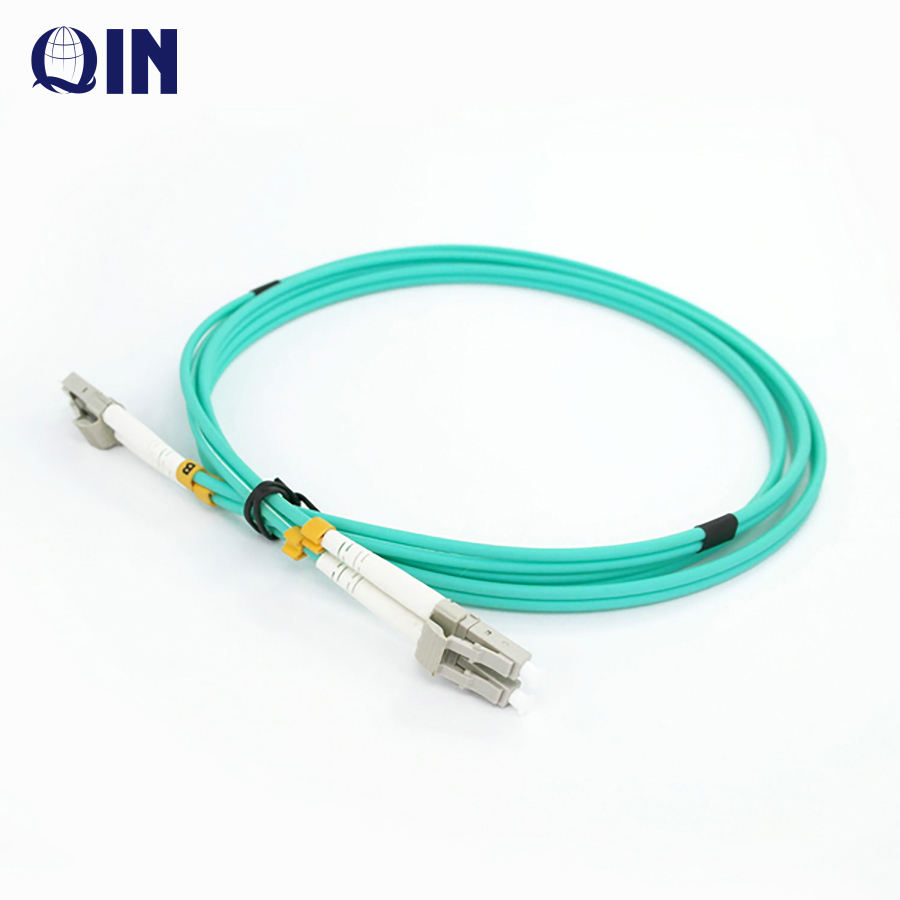

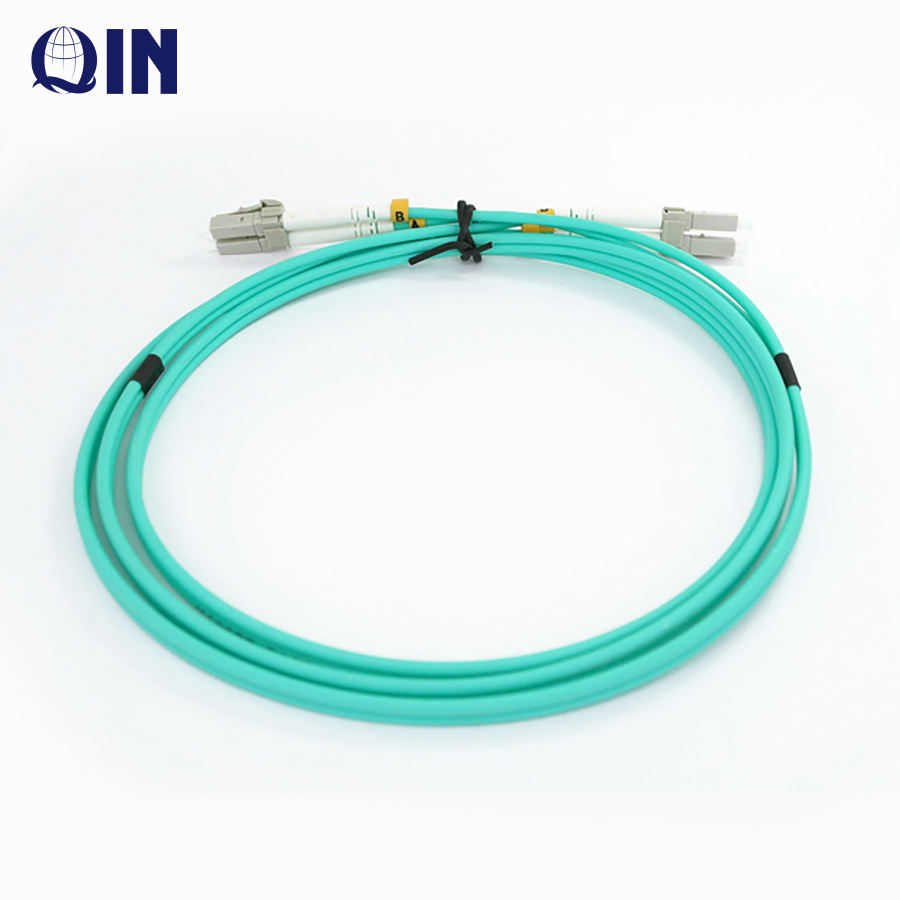

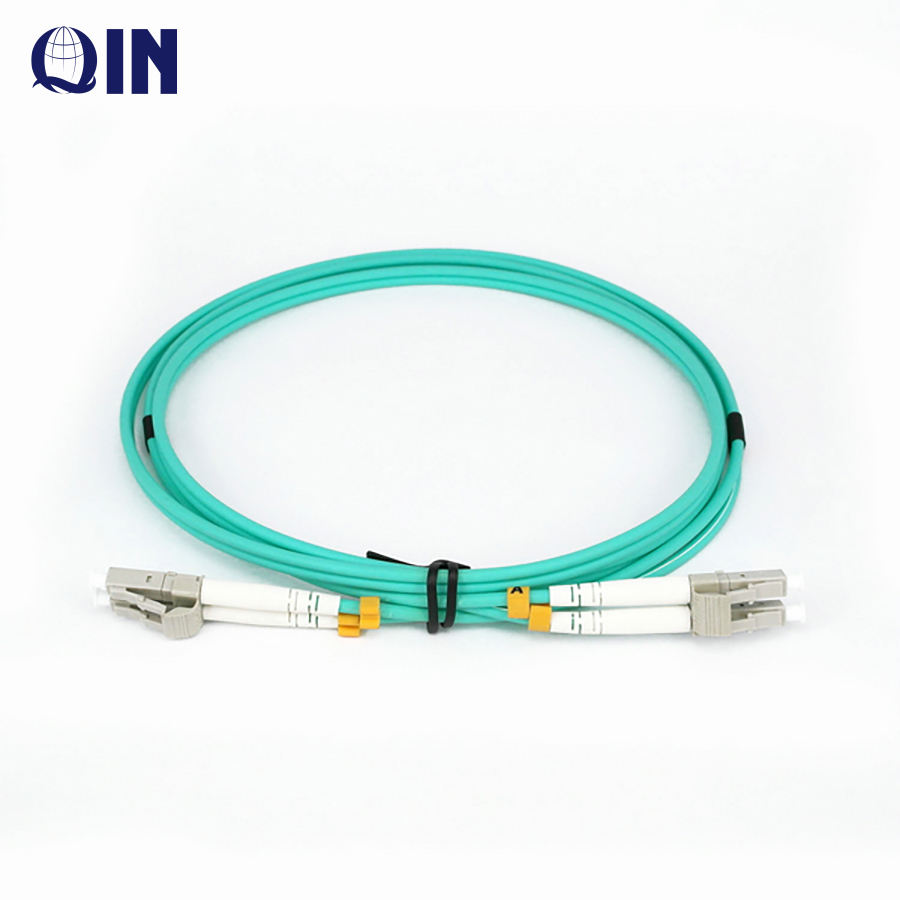

Strand Fiber LC Multimode 125 OM3 10 Gig Color Coded Multi Fiber Optic Pigtail Cable with 18 inch break-out
Hot
Hot
US$0.00
Industry-specific attributes
| Type | Fiber optic patch cord |
Other attributes
| Model Number | Fiber Optic patch cable |
| Place of Origin | Guangdong, China |
| Brand Name | QIN/RUBY/OEM |
| Connector | SC LC ST FC MTRJ |
| Jacket OD | 1.0 / 2.0 / 3.0 mm |
| Type | 9/125um |
| Jacket Color | Yellow/Orrange/Green/White... |
| Polish | PC / UPC / APC |
| wavelength | 1310/1550nm |
| Mode | Singlemode / Multimode |
| Jacket Material | LSZH |
| Insertion Loss | ≤0.2dB |
| Name | OM3 Fiber Optic Cable |
Features
Features:
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH and FTTX applications; CATV.
Parameter table:
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Apex Offset | 0μm ~ 50μm | ||
| Radius of Curvature | 7mm ~ 25mm | ||
