Single Jacket ADSS Cable For 50M to 200M Span 4-288 Cores

Single Jacket ADSS Cable For 50M to 200M Span  4-288 Cores

Description:

Mini Span ADSS fiber optic cables are installed in distribution and transmission environments. No supporting messenger wires are required and the all-dielectric structure can be installed along with the transmission lines.  It has the advantages of low engineering cost, convenient construction, high safety and easy maintenance. Power communication cable ADSS all-media self-supporting cable is a popular cable that used all over the world.

Cable Section:

Application:

·The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied.

·For power lines 110kV and 220KV, AT outer sheath is applied.

·The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Characteristics:

1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting

2. HDPE outer jacket available for the high voltage line where space potentials up to 35kv

3. The inside of the loose tube is filled with gel to block water

4. Aramid yarn replaces messenger wire, has a full dielectric structure and has higher tensile strength. It is usually used in lines with a span range from 50 meters to 200 meters

5. The fiber counts from 2-144 fibers

Features:

·Can be installed without shutting off the power

·Adopt AT performance, excellent dielectric performance

·Light weight and small diameter reducing the load caused by ice and wind and the load on towers

·Large span lengths and the largest span is over 1000m

·Good performance of tensile strength and temperature

·The design life span is 30 years

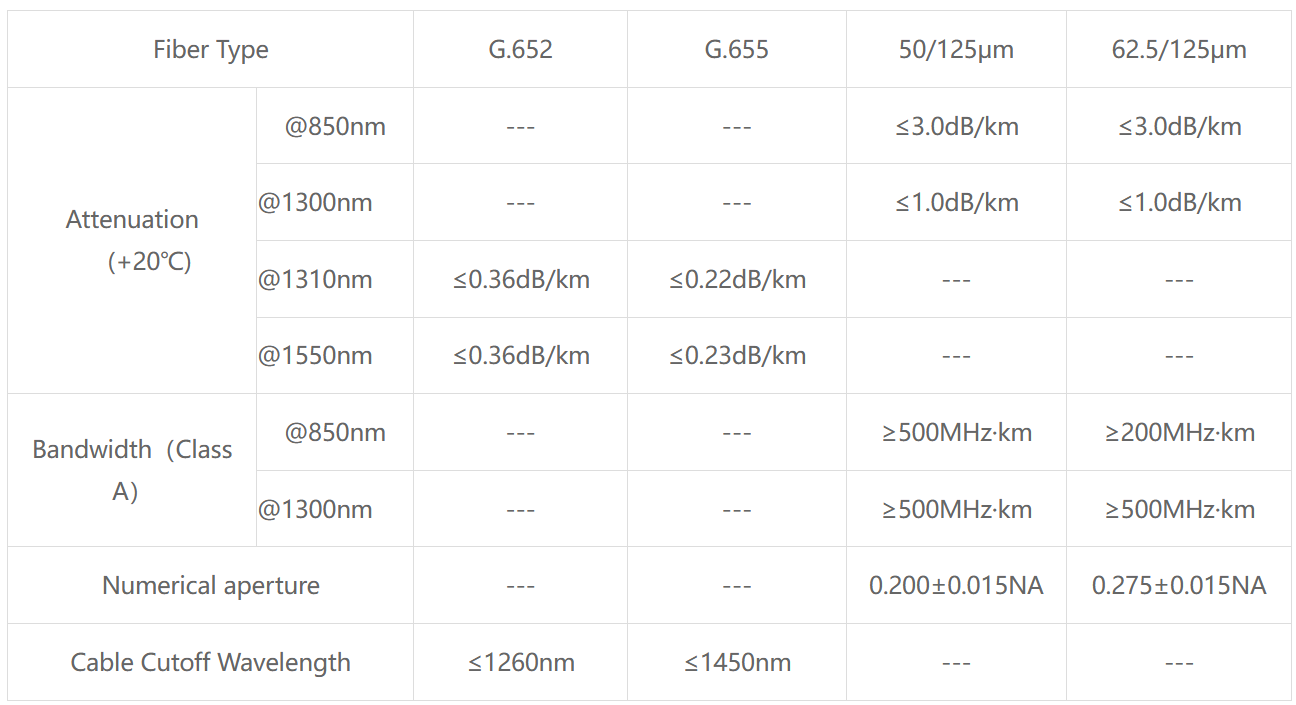

Product Characteristics

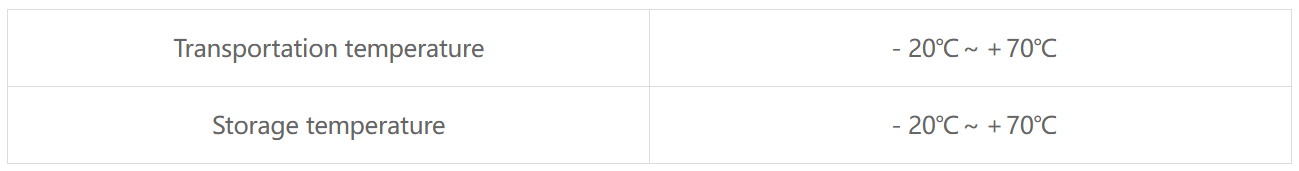

Environment  Performance

Packing & Shipping

We provides a full range of customized ADSS fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. With 20 years of export experience, our mature logistics team can not only help customers correctly calculate the number of containers to be loaded, but also effectively help customers save shipping costs and ensure that the fiber optic cables arrive in a timely and safe. Our logistics services have been well received by customers.

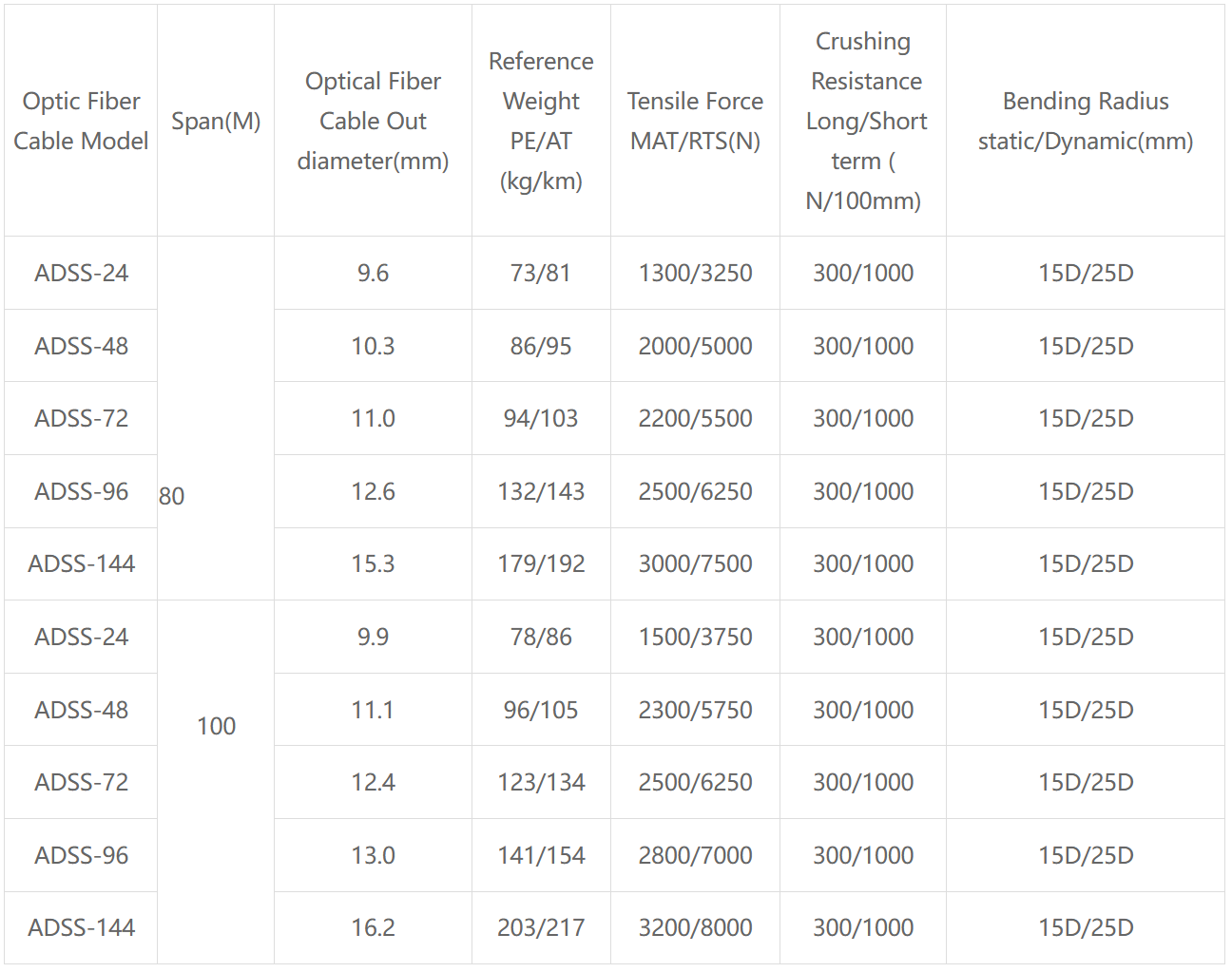

The reference cable diameter is 10.0MM and the span is 100M. For specific specifications, please ask the sales department.
