GYFTY63 Outdoor Non-Metallic Anti-Rodent Fiber Optic Cable Singlemode 4-288 Cores
Product Description:

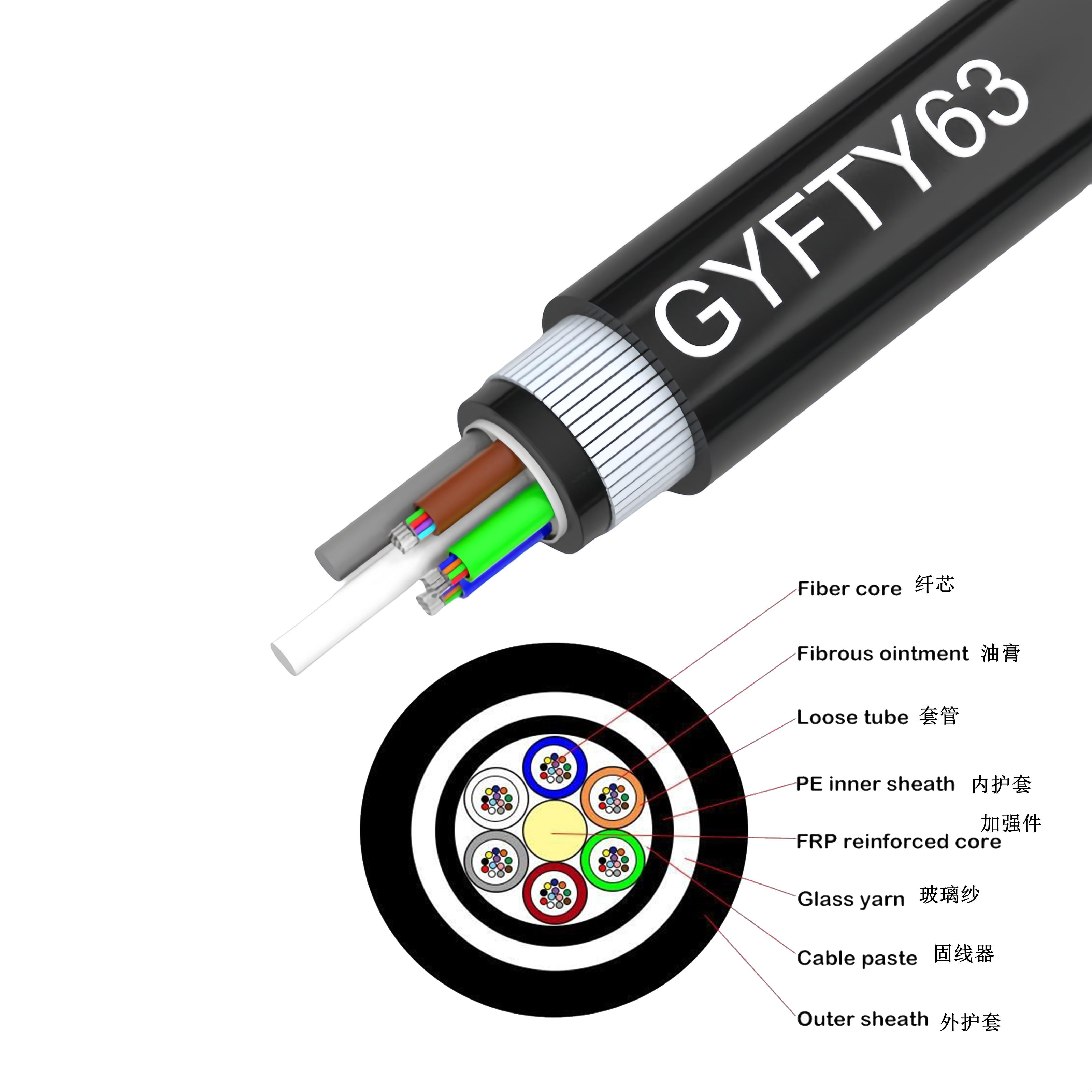

The structure of GYFTY63 optical fiber cable 250µm fiber is positioned in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metallic Fiber Reinforced Plastic (FRP)，for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside the metallic central strength member. The tubes (and filling rope) is stranded around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water-blocking fillers, and a layer of polyethylene (PE) inner sheath is extruded. After the glass yarns covered over the inner sheath, the cable is completed with a PE outer sheath.
GYFTY63 Outdoor Non-Metallic Anti-Rodent Fiber Optic Cable Singlemode 4-288 Cores
Product Description:
The structure of GYFTY63 optical fiber cable 250µm fiber is positioned in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metallic Fiber Reinforced Plastic (FRP)，for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside the metallic central strength member. The tubes (and filling rope) is stranded around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water-blocking fillers, and a layer of polyethylene (PE) inner sheath is extruded. After the glass yarns covered over the inner sheath, the cable is completed with a PE outer sheath.
Product Details
GYFTY63 Single Jacket None Metallic optical fiber cable are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
Product Construction:
Fiber: 2-288 fibers loose tube gel-filled
Central Strength Member: FRP (Fiber reinforce plastic)
Armor: Corrugated steel tape
Inner Sheath: Black UV and moisture-resistant polyethylene (PE).
Outer Sheath: Black UV and moisture-resistant polyethylene (PE).
Application:
– Laying modes: Aerial & Duct
– Outdoor distribution
– Access network and local network
Characteristics:
1. Non-metal reinforcement and layer design ensure that the cable has good mechanical and temperature characteristics.
2. The casing is filled with buffer grease to protect the optical fiber and waterproof.
3. High-strength non-metallic reinforcement and glass yarn bear axial load.
4. The cable core filled with water blocking ointment can effectively waterproof.
5. It can effectively prevent rats from breaking the cable.
Optical Characteristics

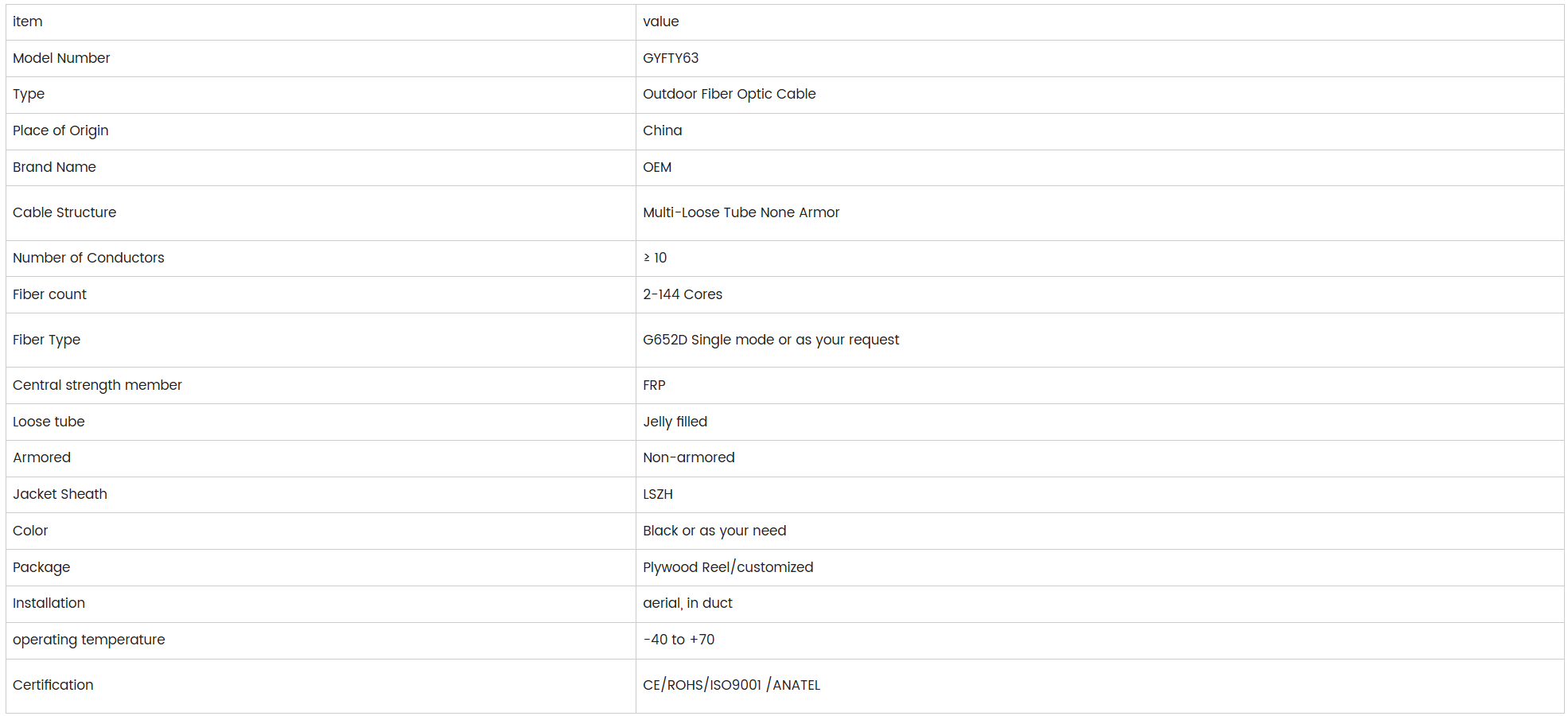

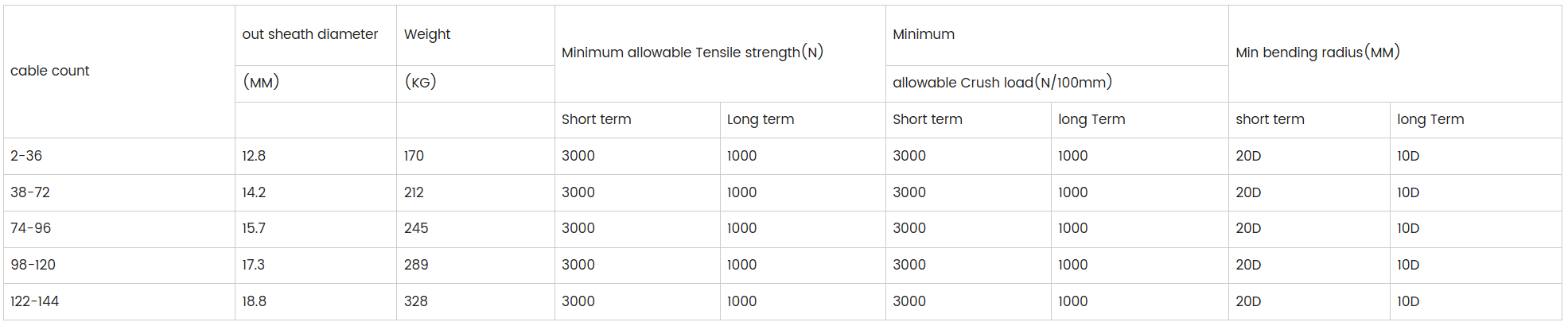

Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
