No Metal FRP ADSS Fiber Optic Cable 300m 400m Span 4-288 Cores
Description:
Double jackets ADSS cable is designed for self-supporting and duct applications for cable spans up to 1500m span, Allowing an easy and cost-effective one-step installation using standard hardware and installation methods. Reduced weight design and smaller diameter allows the usage of smaller ducts.
No Metal FRP ADSS Fiber Optic Cable 300m 400m Span 4-288 Cores
Description:
1. Characteristic: All Dielectric
2. Cable Type: Stranded Loose tube ADSS Cable
3. Fiber Type: G.652.D
4. Jacket Material: Polyethylene (PE) | AT(anti-tracking)Sheath
5. Total Fiber Count: 6-48,60-96,74-144 F
6. Subunit Type: Gel-filled
7. Environmental Space: Self-supporting Aerial
8. Armor: Aramid Yarn| KEVLAR

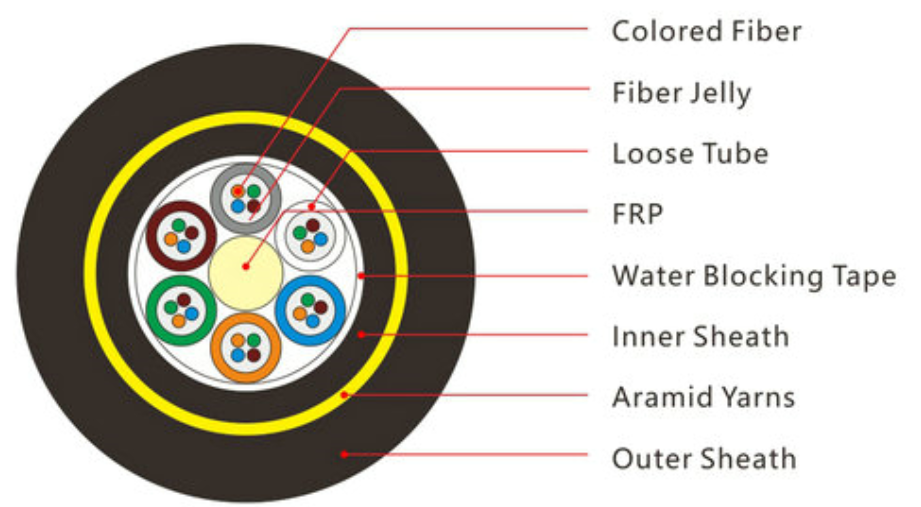

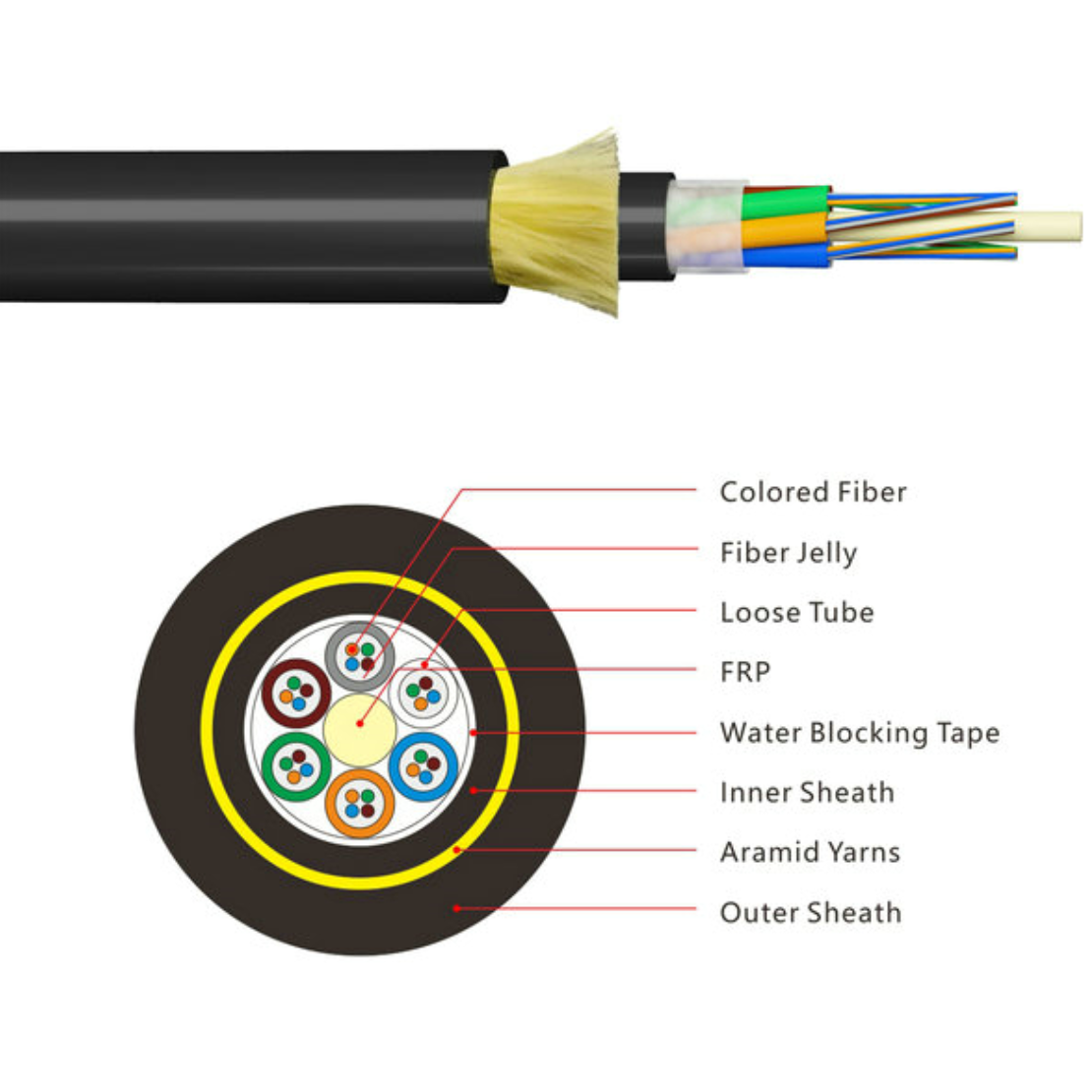

Cable Section:
Application:
Adopted to outdoor areial self-supporting installation
Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications
Ethernet LAN Network, CCTV, Network Camera, PLC
Mechanically, rugged, cable design for : Aerial, duct
Features:
1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting
2. HDPE/Track-resistant outer jacket available for the high voltage line where space potentials up to 35kv
3. The inside of the loose tube is filled with gel to block water
4. Aramid yarn replaces messenger wire, has a full dielectric structure and has higher tensile strength. It is usually used in lines with a span up to 1500 meters
5. The fiber counts from 2-288 fibers

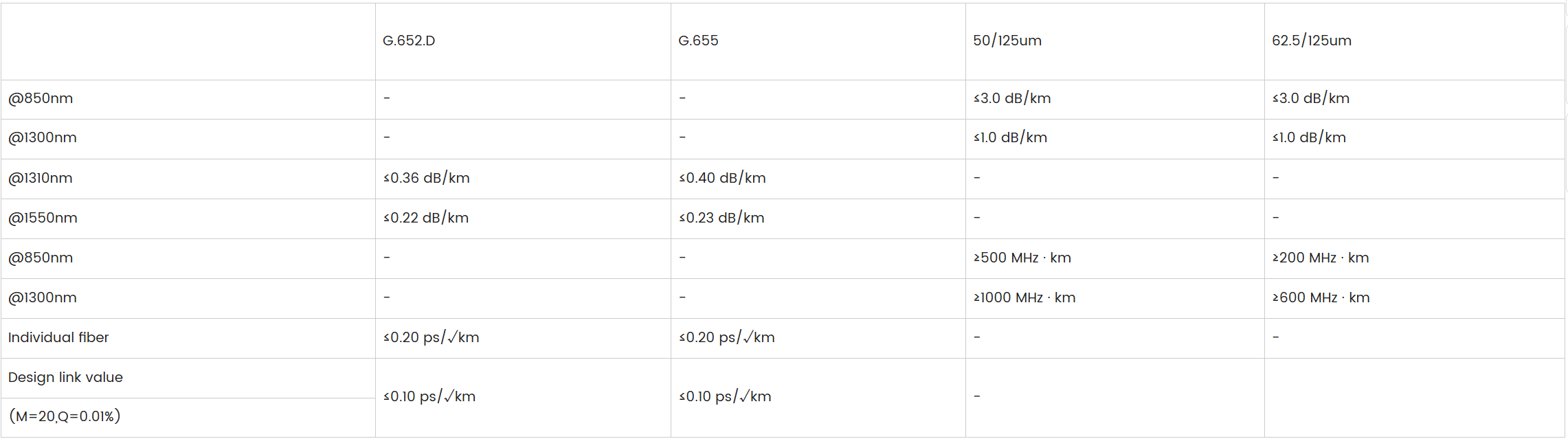

Product Characteristics

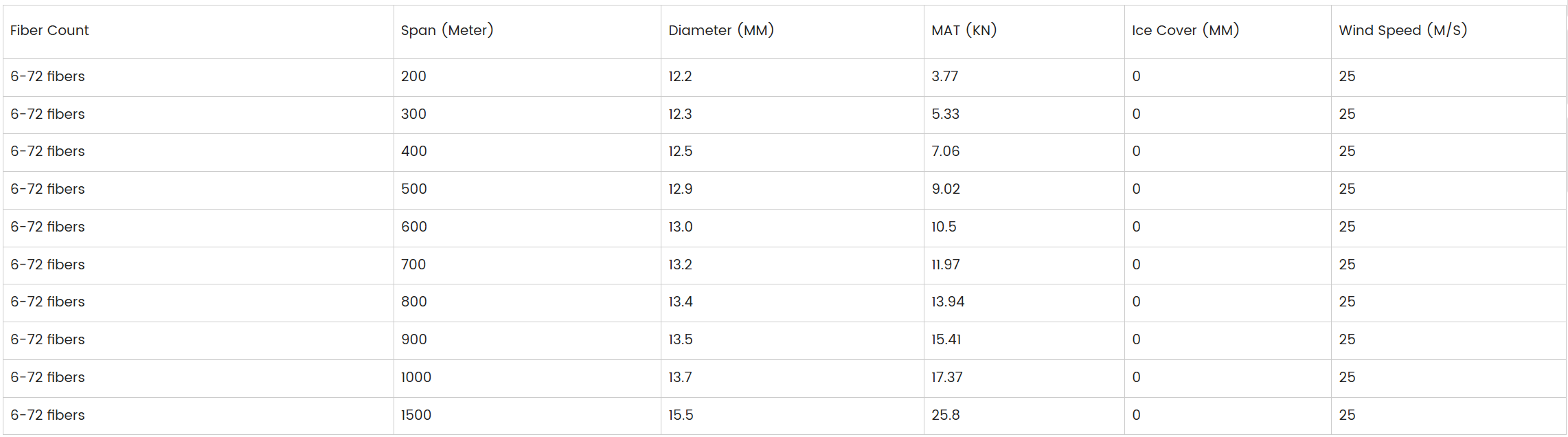

ADSS Cable Technical Data
Packing & Shipping
We provides a full range of customized ADSS fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. With 20 years of export experience, our mature logistics team can not only help customers correctly calculate the number of containers to be loaded, but also effectively help customers save shipping costs and ensure that the fiber optic cables arrive in a timely and safe. Our logistics services have been well received by customers.
The reference cable diameter is 10.0MM and the span is 100M. For specific specifications, please ask the sales department.
