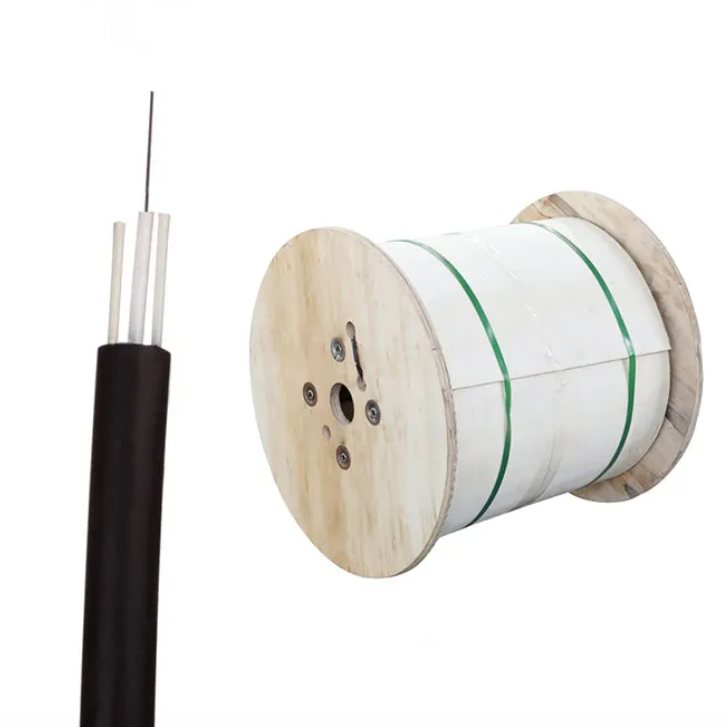

GYXY Non Armored Central Tube Optical Fiber Cable Singlemode 4-12 Cores
Product Description:
The structure of GYXY optical cable consists of 250µm optical fibers encased in a loose tube made of high-modulus material, with a waterproof compound filling the loose tube. Waterproof materials are added to the outside of the loose tube to ensure longitudinal waterproofing of the cable, and two parallel steel wires are placed on both sides, which are then extruded with a polyethylene sheath to form the cable.
Optical fibers, with their advantages of high bandwidth, low loss, long-distance transmission capability, and resistance to electromagnetic interference, have become an indispensable part of modern communication infrastructure. With the development of technologies such as 5G, the Internet of Things (IoT), and cloud computing, optical fibers are playing an increasingly important role in building high-speed and reliable communication networks.
GYXY Non Armored Central Tube Optical Fiber Cable Singlemode 4-12 Cores
Product Description:
The structure of GYXY optical cable consists of 250µm optical fibers encased in a loose tube made of high-modulus material, with a waterproof compound filling the loose tube. Waterproof materials are added to the outside of the loose tube to ensure longitudinal waterproofing of the cable, and two parallel steel wires are placed on both sides, which are then extruded with a polyethylene sheath to form the cable.
Optical fibers, with their advantages of high bandwidth, low loss, long-distance transmission capability, and resistance to electromagnetic interference, have become an indispensable part of modern communication infrastructure. With the development of technologies such as 5G, the Internet of Things (IoT), and cloud computing, optical fibers are playing an increasingly important role in building high-speed and reliable communication networks.

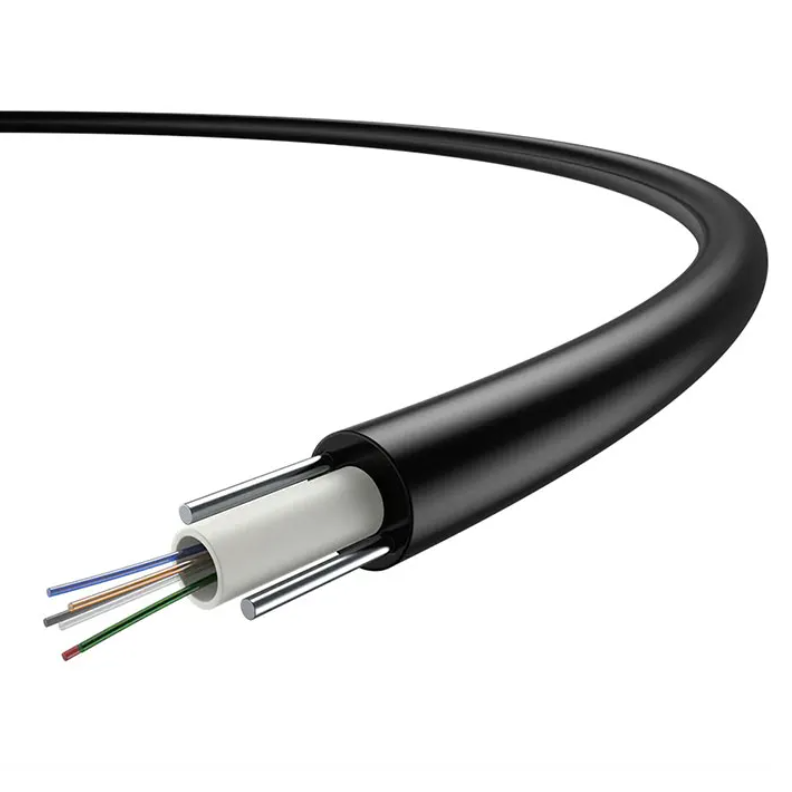

Cable Section:
Main Features
It has excellent mechanical properties and temperature characteristics.
The loose tube material itself has good hydrolysis resistance and high strength.
Special oil paste is filled inside the tube, providing critical protection for the optical fibers.
Two parallel steel wires ensure the tensile strength of the optical cable.
The PE sheath has excellent resistance to ultraviolet radiation.
Small diameter, light weight, and easy to lay.
Longer delivery length.
Characteristic:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Two parallel steel wires ensure tensile strength
PE sheath protects cable from ultraviolet radiation
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Product Applications
Long-Distance Communication: Used for long-distance data transmission between countries and internationally.
Metropolitan Area Network: Connects different network nodes within a city.
Local Area Network: Used for high-speed data transmission in local networks such as enterprises, schools, and homes.
Data Center: Connects servers, storage devices, and networking devices to achieve high-speed internal communication.
Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
