GYFTY Non-metallic & Non-armored Aerial Duct Fiber Optic Cable Singlemode 2-288Cores
Product Description:
The GYFTY optical cable is designed with a specific structure. It consists of 250μm optical fibers that are placed inside a loose tube made of high modulus material. The loose tube is then filled with a waterproof compound. In the center of the cable core, there is a glass fiber reinforced plastic (FRP) for additional strength. Around this central strengthening core, the loose tube (along with the filling rope) is stranded, creating a compact and circular cable core. To prevent water penetration, the gaps within the cable core are filled with water-blocking fillers. Finally, a layer of polyethylene sheath is extruded onto the cable core, forming a protective outer coating.
GYFTY Non-metallic & Non-armored Aerial Duct Fiber Optic Cable Singlemode 2-288 Cores
Product Description:
The GYFTY optical cable is designed with a specific structure. It consists of 250μm optical fibers that are placed inside a loose tube made of high modulus material. The loose tube is then filled with a waterproof compound. In the center of the cable core, there is a glass fiber reinforced plastic (FRP) for additional strength. Around this central strengthening core, the loose tube (along with the filling rope) is stranded, creating a compact and circular cable core. To prevent water penetration, the gaps within the cable core are filled with water-blocking fillers. Finally, a layer of polyethylene sheath is extruded onto the cable core, forming a protective outer coating.

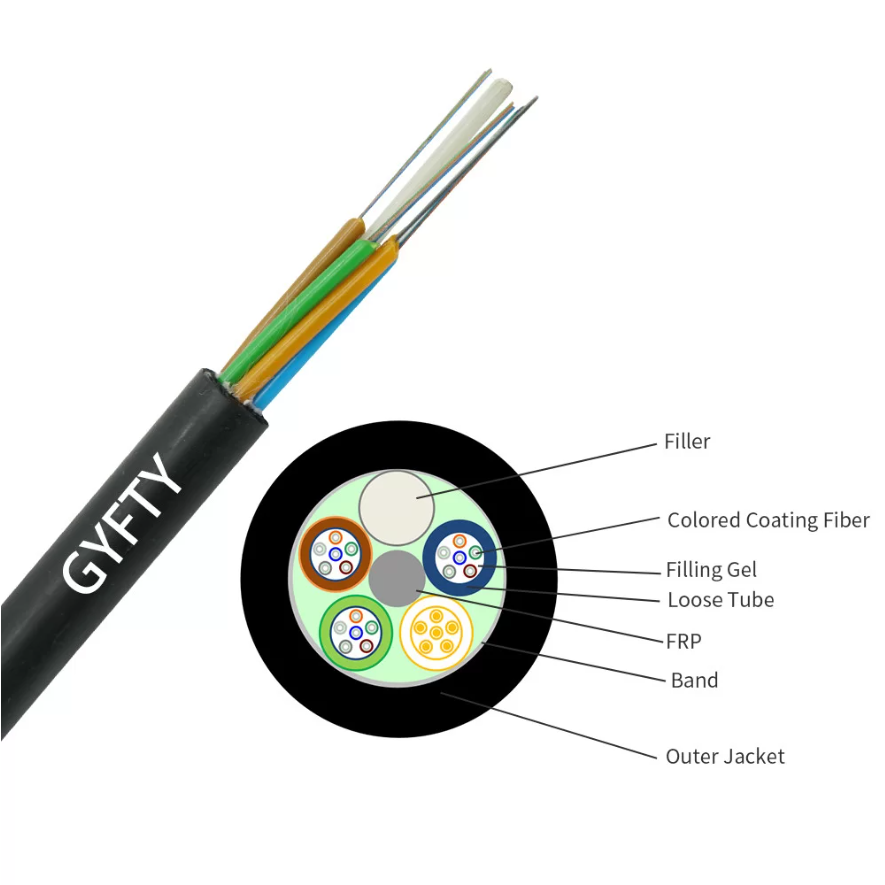

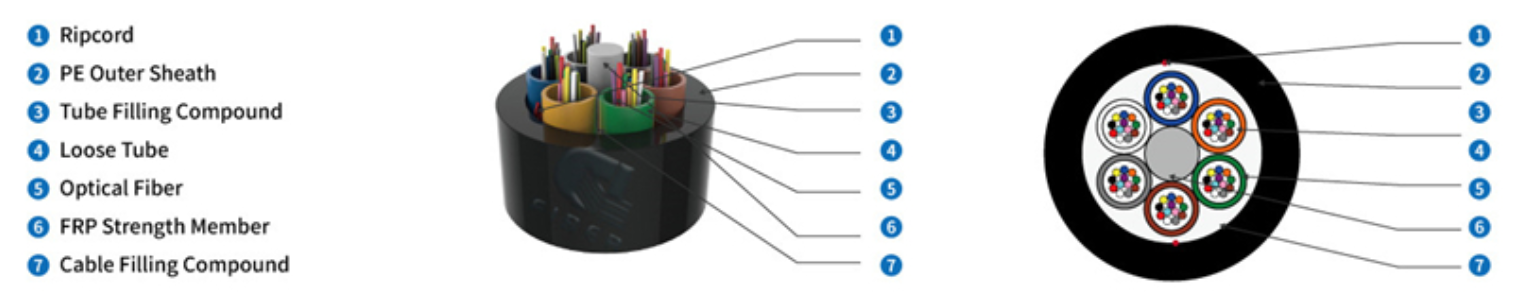

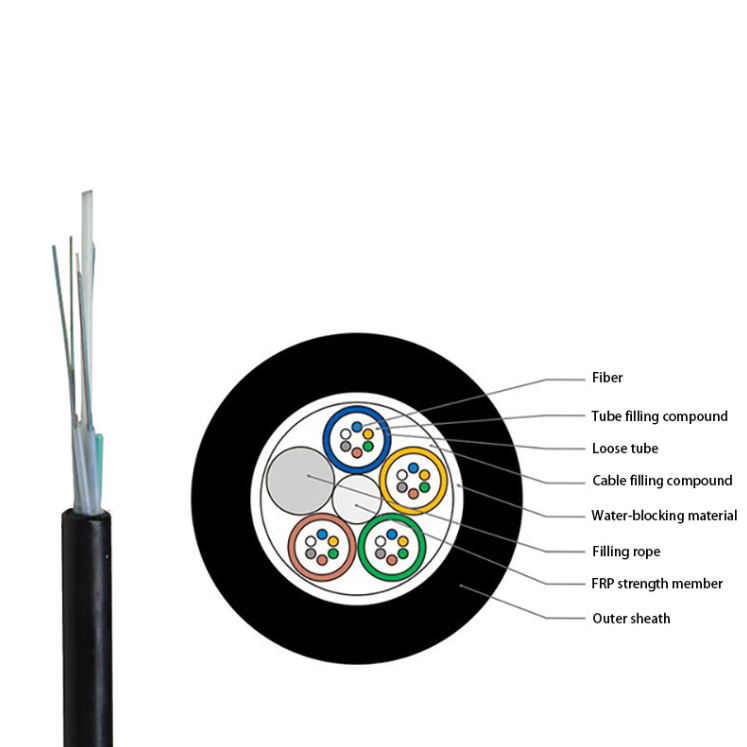

Cable Section:
Main Features
The GYFTY optical cable exhibits excellent mechanical properties and temperature characteristics. The loose tube material used in its construction possesses exceptional hydrolysis resistance and high strength, ensuring durability. Moreover, the tube is filled with a special ointment that provides critical protection to the optical fibers.
To ensure the optical cable's waterproof performance, the following measures are taken:
Incorporation of a single non-metallic central reinforcement core.
The loose tube is filled with a specially designed waterproof compound.
Complete core filling is carried out to further enhance the cable's resistance to water penetration.
In addition to its mechanical properties, the cable demonstrates good compression resistance and flexibility, making it suitable for various installation scenarios.
Characteristic:
1. Excellent mechanical and temperature Performance. Critical protection to fibers
2. Excellent ultraviolet prevention with PE sheath, excellent crush resistance and flexibility

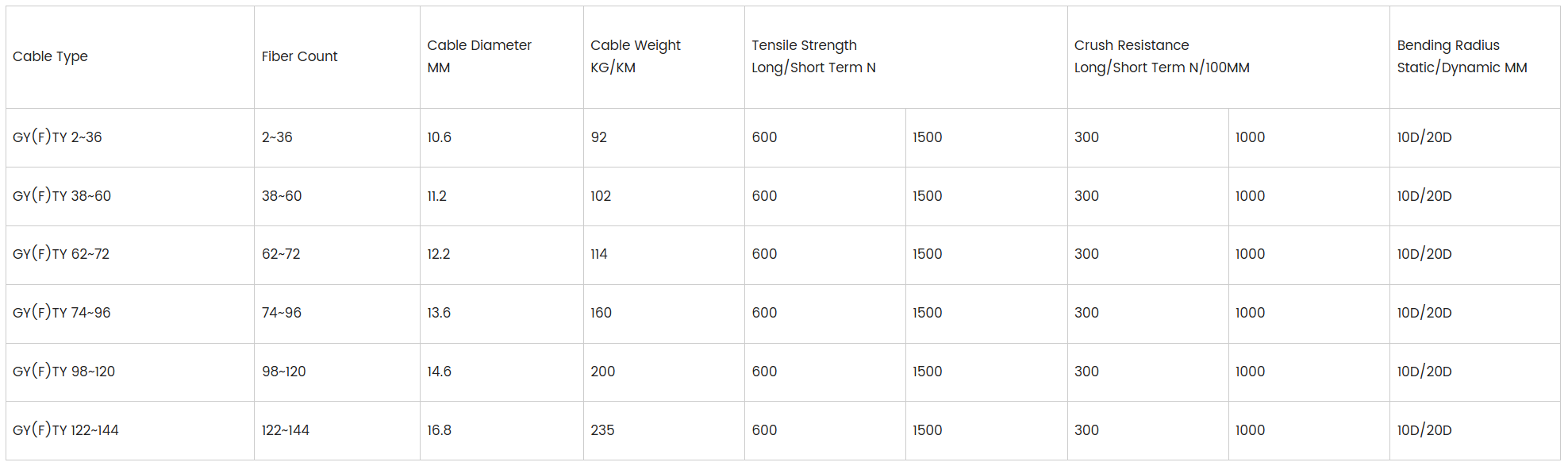

Technical Parameters

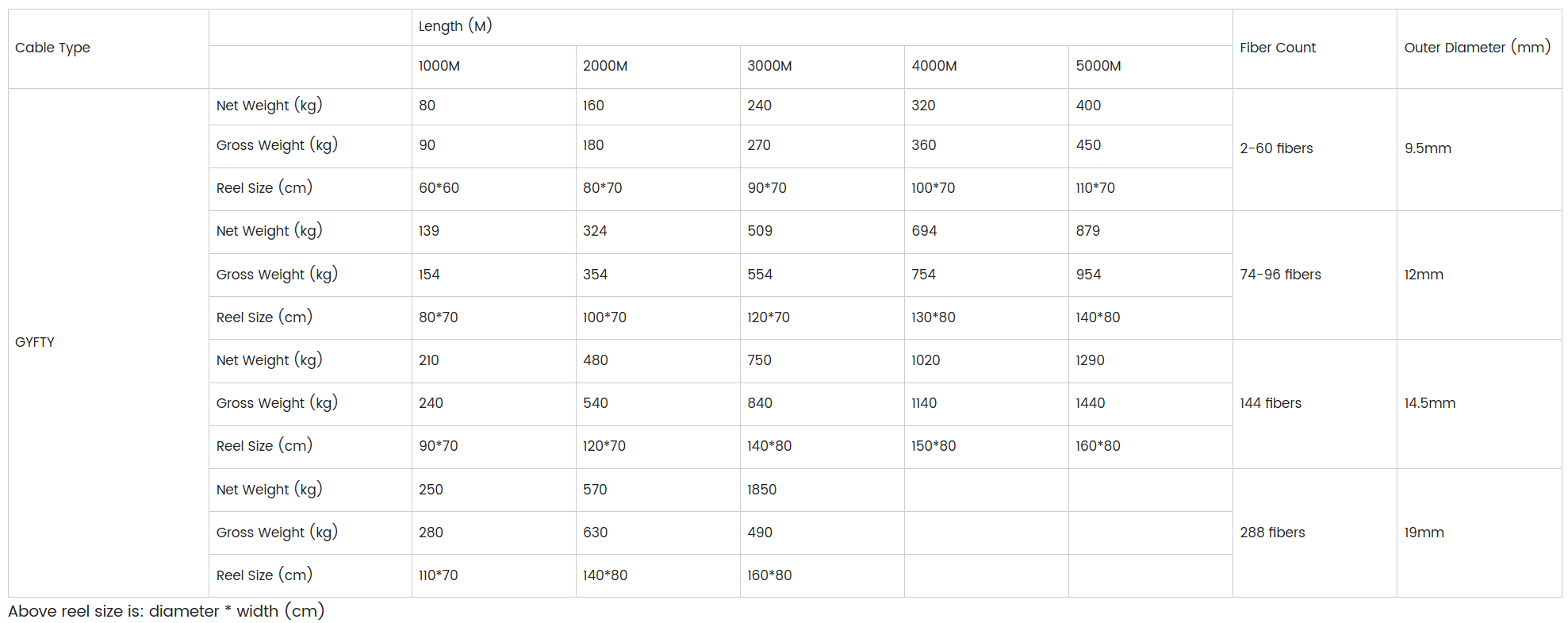

Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
