FTTH Couble-fly Indoor Cable

FTTH Couble-fly Indoor Cable

Description:

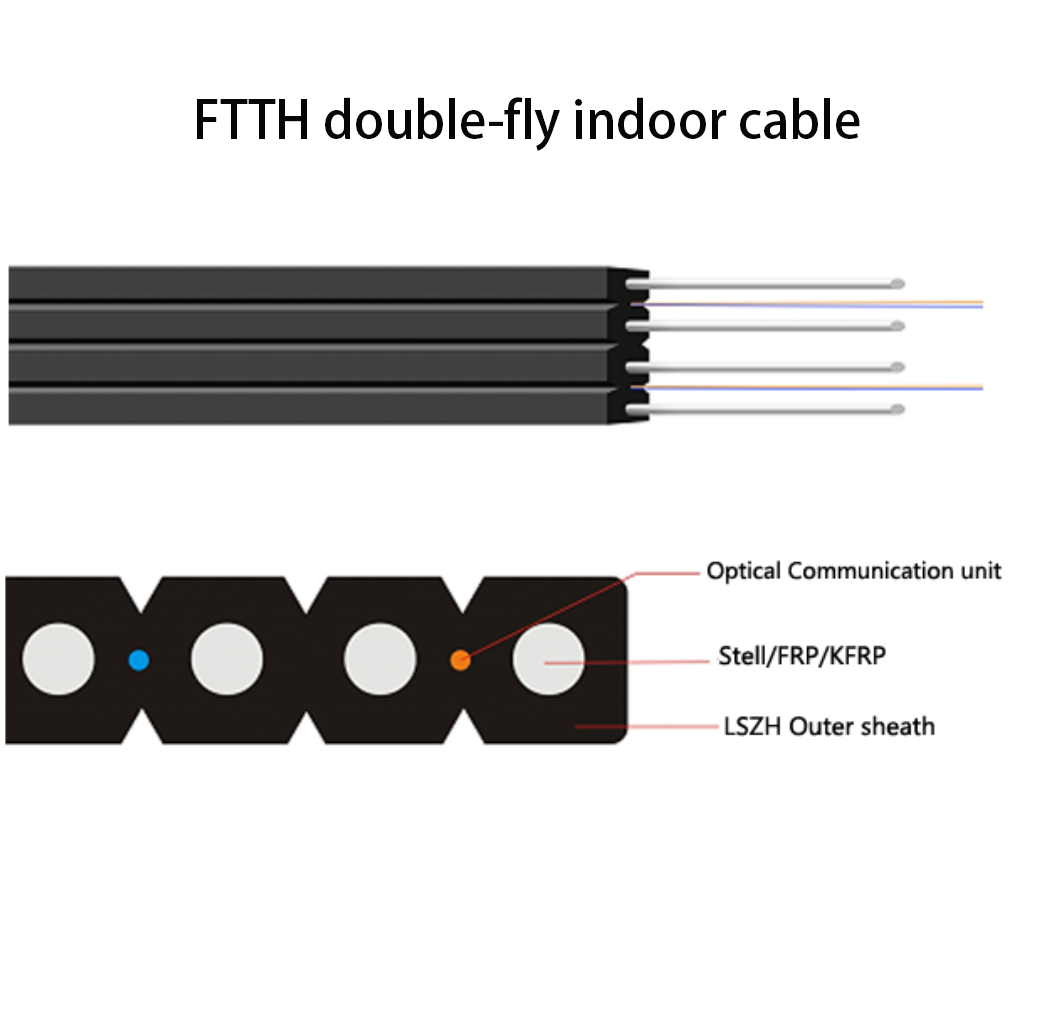

FTTH double-fly indoor cable, in the center there are two optical fiber units, Two parallel FRP/KFRP or steel wire are placed at the two sides of the optical fiber units separately. Then the cable is completed with a black or color LSZH sheath.

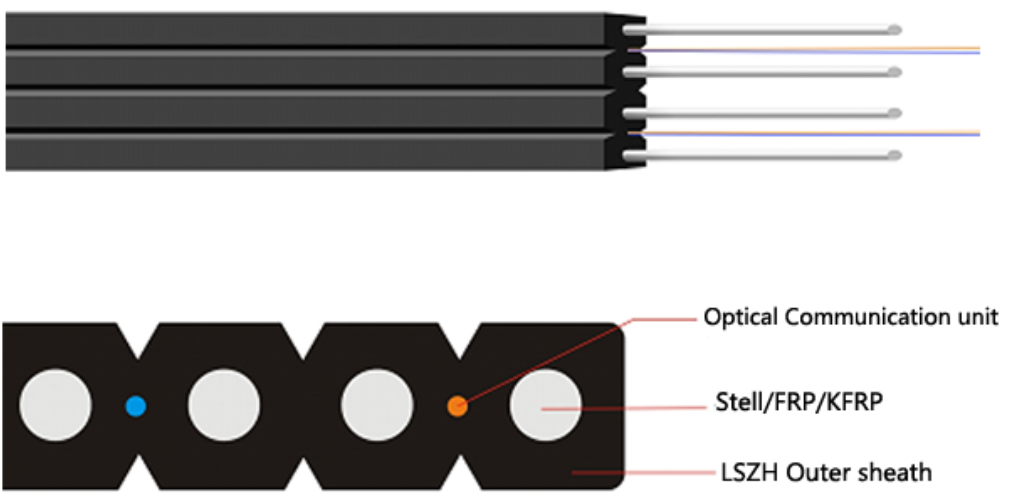

Cable Section:

Application:

Construction and maintenance of urban pipeline skin line；

Can meet a certain span rod and wire laying, compared with the ordinary self-supporting cable erection distance farther；

Products are widely used in FTTH introduction；

Features:

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

·Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;

·Simple structure, light weight and high practicability;

·special tube filling compound ensure a critical protection of fiber.

·Single steel wire or stranded steel wires together with the strength member ,  ensure good tensile properties of the fiber cable;

·Novel flute design, easily strip and splice, simplify the installation and maintenance;

·Low smoke, zero halogen and flame retardant sheath.

·Unique double-fly design make the installation more simple, time-saving and cut down cost.

Technical Parameters

Packing & Shipping

We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.

*Standard length:1000m; Other length is also availabe

*The above is just advice for container loading, please consult our sales department for the specific quantity
