Mini ADSS(ASU) Aerial Self-Support Fiber Optic Cable Span 80M 100M 120M

Mini ADSS(ASU) Aerial Self-Support Fiber Optic Cable Span 80M 100M 120M

Description:

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication

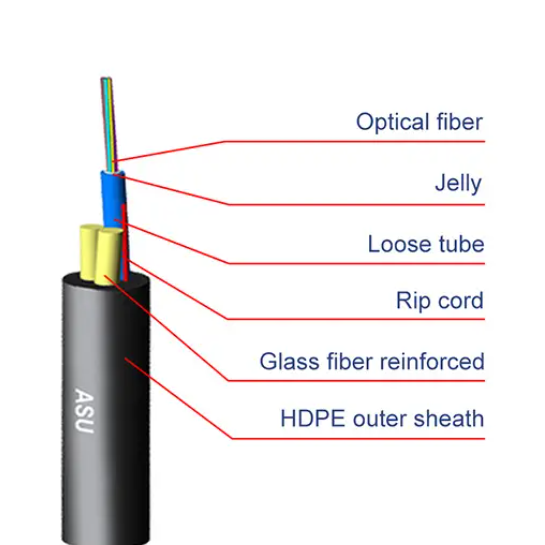

Structure: Single loose tube construction, jelly compound filled, then PE outer sheath with two non-metallic strength members combined.

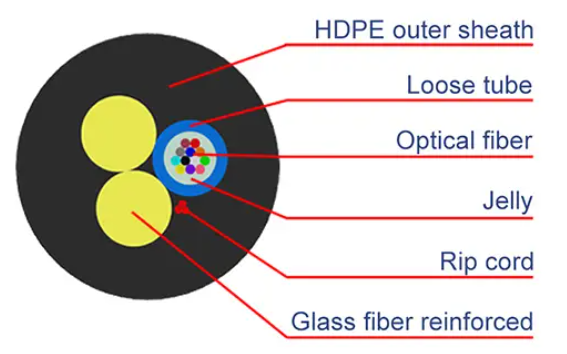

Cable Section:

Application:

Adopted to outdoor areial self-supporting installation

Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications

Ethernet LAN Network, CCTV, Network Camera, PLC

Mechanically, rugged, cable design for : Aerial, duct

Features:

ASU 80

The ASU80 optical cables are self-supporting in spans of up to 80 meters, therefore, they are indicated for cable passage in urban centers, as within cities the poles are usually, on average, 40 meters apart, which guarantees a good support for this cable.

ASU 100

ASU100 optical cables are self-supporting in spans of up to 100meters, therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.

ASU 120

ASU120 optical cables are self-supporting in spans of up to 120 meters, therefore, they are indicated for the passage of cables in environments where the poles are far apart, such as on roads and crossings over rivers and bridges.

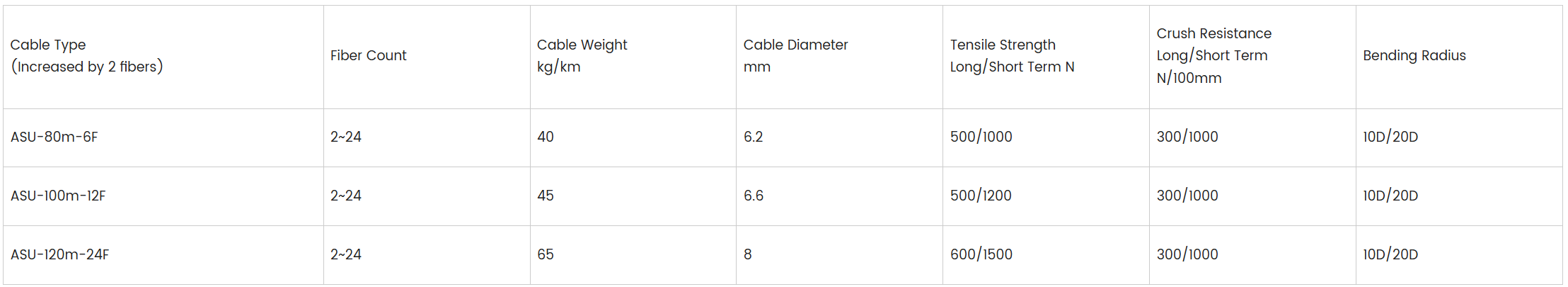

Product Characteristics

Packing & Shipping

We provides a full range of customized ADSS fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. With 20 years of export experience, our mature logistics team can not only help customers correctly calculate the number of containers to be loaded, but also effectively help customers save shipping costs and ensure that the fiber optic cables arrive in a timely and safe. Our logistics services have been well received by customers.

The reference cable diameter is 10.0MM and the span is 100M. For specific specifications, please ask the sales department.
