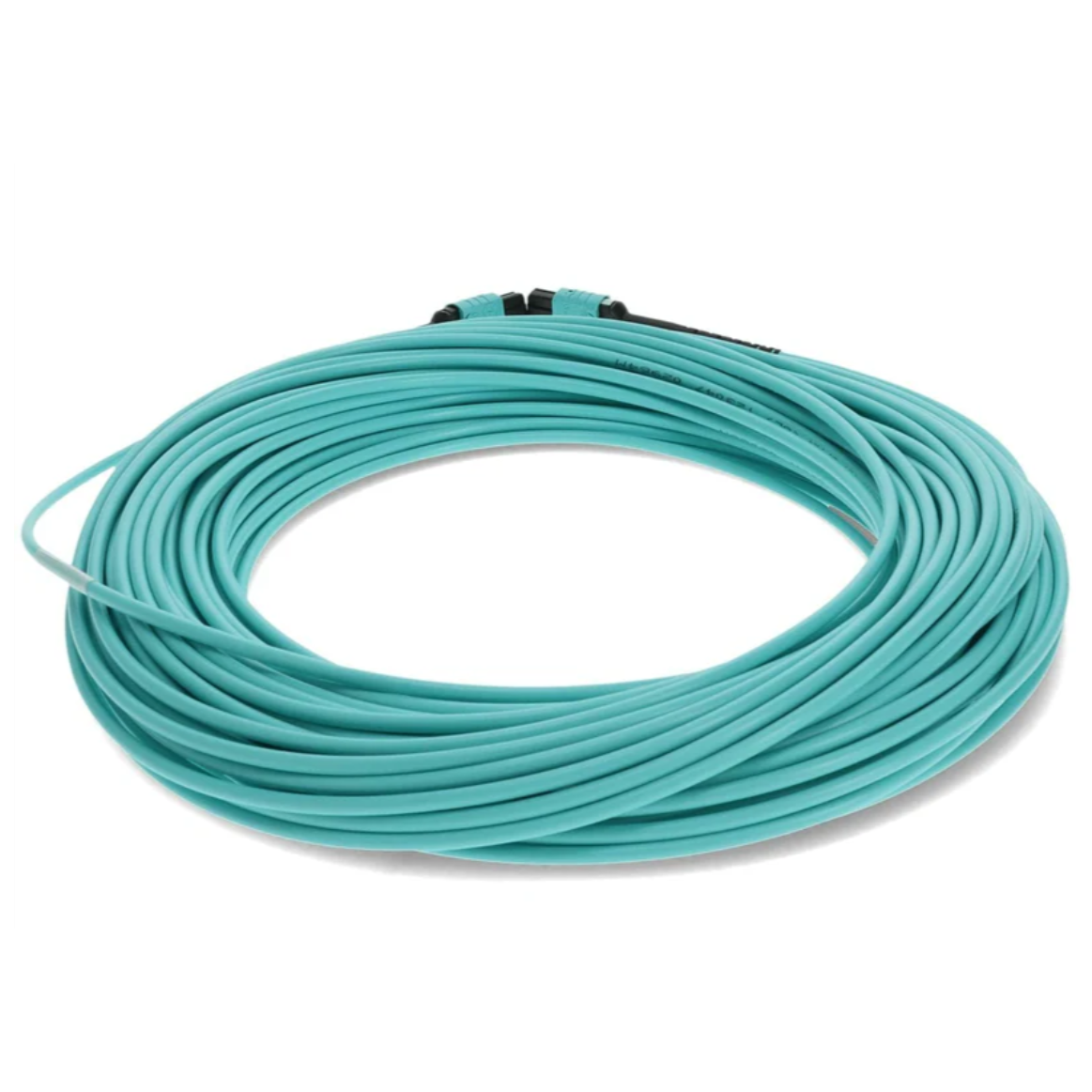

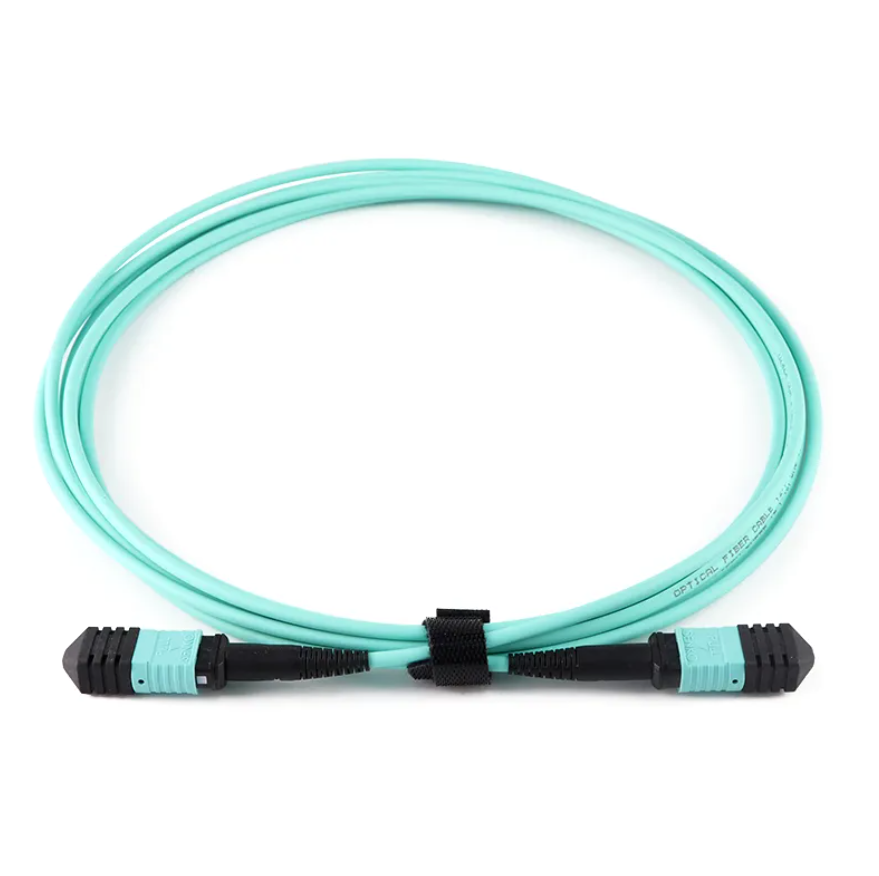

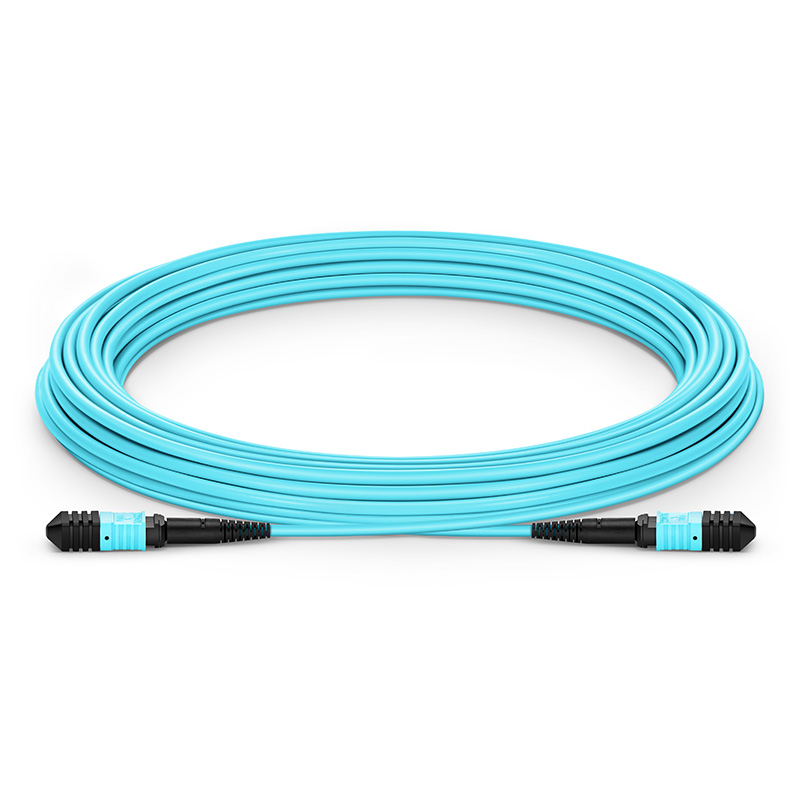

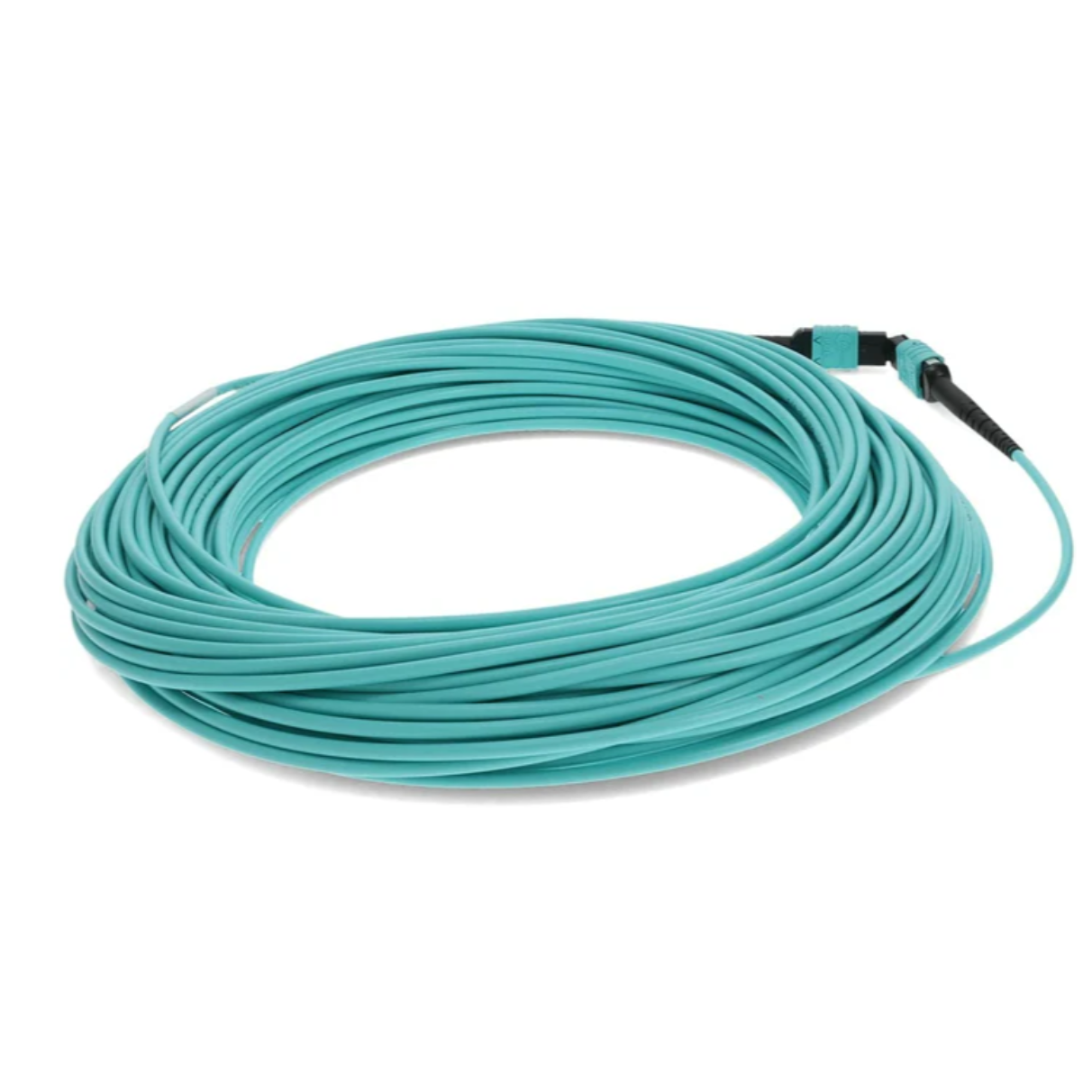

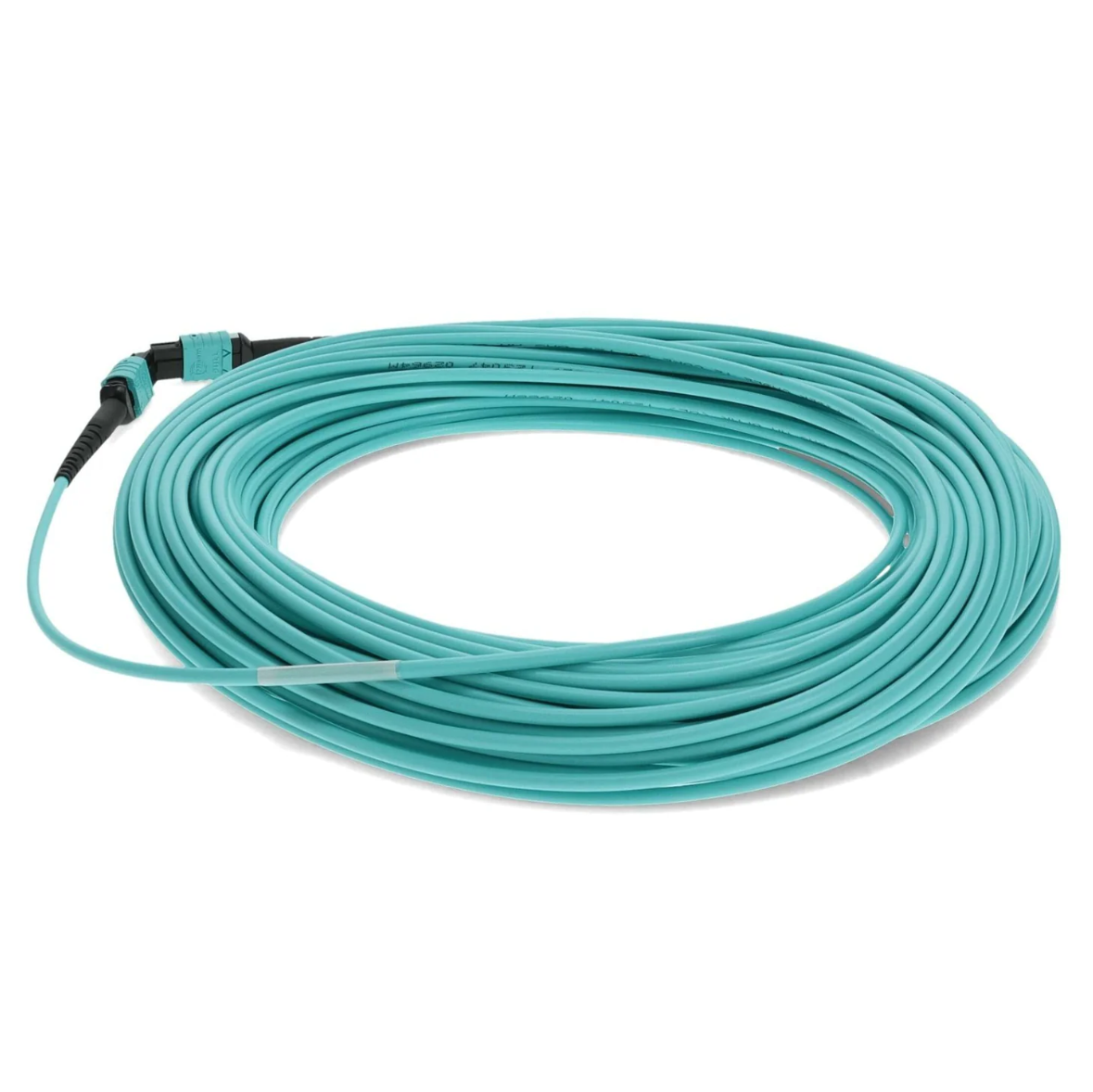

1~20m MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable ,Aqua

Features and Benefits

High Quality: CommScope ensures top-notch quality and reliability.

Multiple Fiber Counts: Available in various fiber counts (e.g., 8, 16, 24, 48, 72, 96, 144, 192).

Plenum Rated: Suitable for plenum spaces.

Low Smoke Zero Halogen (LSZH): Ensures safety in indoor environments.

Color-Coded and Keyed Connectors: Prevent improper connections.

G.657.A2 Singlemode Fiber: Ideal for long-distance transmission.

Method A Polarity: Ensures consistent connectivity.

Applications

Data Centers - Huge fiber connectivity of 40G/100G/400G.

Fiber to the Building (FTTB) - Sustainable cable supply.

Optical Equipment - Internal ones for transceivers.

Choosing Proper MPO/MTP Connections

Step-by-Step Selection Guide

Firstly, Validate What Type.

Patch cord / Trunk cable / Fan-out cable / Harness / Loopback cable

Lay Out Parameters

Fiber Type: Single-mode (SM) or Multimode (OM3/OM4/OM5)

Fiber Count: 12, 24, 48, 72, 96, or 144 dense les

Connector Gender: Male (it has pins) or Female (it doesn't)

Polish Type: PC (UPC) or APC (angled retail) Single Mode, Flat Polish for Multimode

Jacket Material: Low Smoke Zero Halogen (LSZH) versus Polyvinyl Chloride (PVC)

Attenuation Requirements

Standard Loss (≤0.75dB for SM, ≤0.6dB for MM),

Super Low Loss (≤0.35dB for both SM & MM)

Packaging Preferences

PE bag, blister box, cartons, and custom packaging
