Double Jackets ADSS Cable For 200M to 1500M Span 4-288 Cores

Double Jackets ADSS Cable For 200M to 1500M Span 4-288 Cores

Description:

ADSS fiber cables are ideal for placement on either overhead transmission towers, and can be designed to be placed in conduit when transitioning from power poles to the last miles in FTTH application and are impervious to ice, wind, moisture, corrosion and electromagnetic interference (EMI). ADSS Fiber Cable is fitted with specifically-designed kevlar armored jackets to withstand high mechanical stress, ADSS loose tube cable is commonly used in cross-country applications where extra high voltage is present. Lightweight and small in diameter, ADSS cable reduces the load caused by ice and wind, as well as the load on towers and back props.

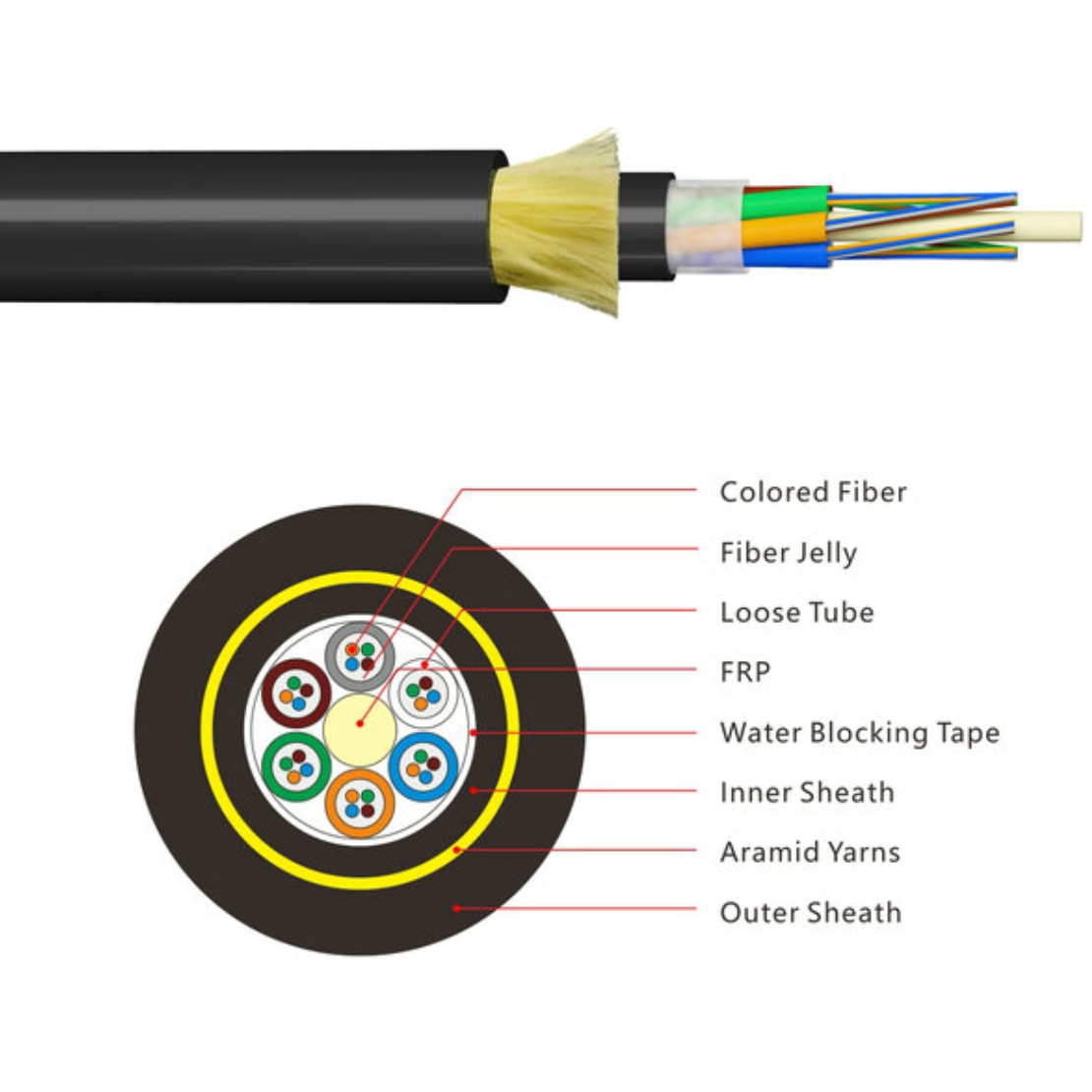

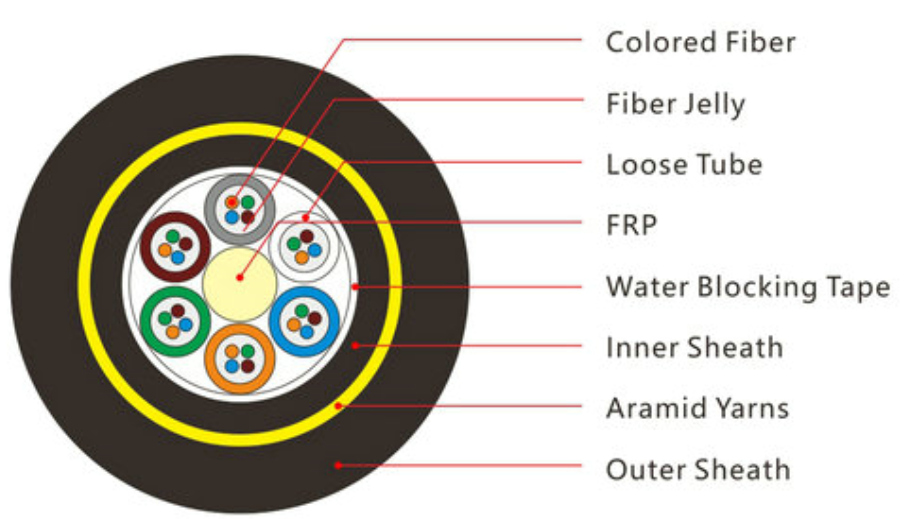

Cable Section:

Application:

·The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied.

·For power lines 110kV and 220KV, AT outer sheath is applied.

·The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Characteristics:

1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting

2. HDPE outer jacket available for the high voltage line where space potentials up to 35kv

3. The inside of the loose tube is filled with gel to block water

4. Aramid yarn replaces messenger wire, has a full dielectric structure and has higher tensile strength. It is usually used in lines with a span range from 50 meters to 200 meters

5. The fiber counts from 2-144 fibers

Features:

·Can be installed without shutting off the power

·Adopt AT performance, excellent dielectric performance

·Light weight and small diameter reducing the load caused by ice and wind and the load on towers

·Large span lengths and the largest span is over 1000m

·Good performance of tensile strength and temperature

·The design life span is 30 years

Product Characteristics

Environment  Performance

Packing & Shipping

We provides a full range of customized ADSS fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. With 20 years of export experience, our mature logistics team can not only help customers correctly calculate the number of containers to be loaded, but also effectively help customers save shipping costs and ensure that the fiber optic cables arrive in a timely and safe. Our logistics services have been well received by customers.

The reference cable diameter is 10.0MM and the span is 100M. For specific specifications, please ask the sales department.
