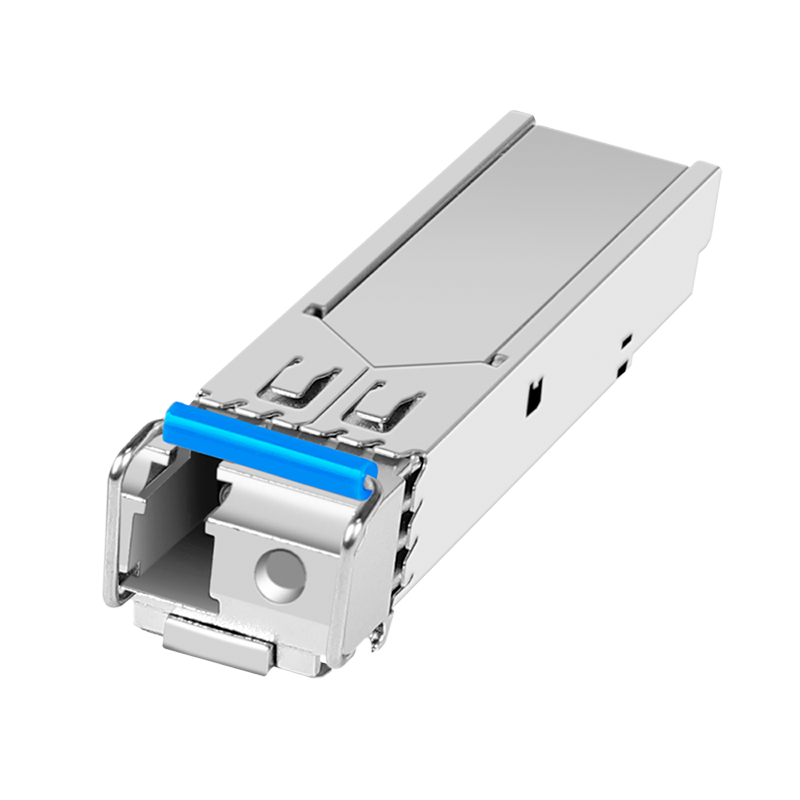

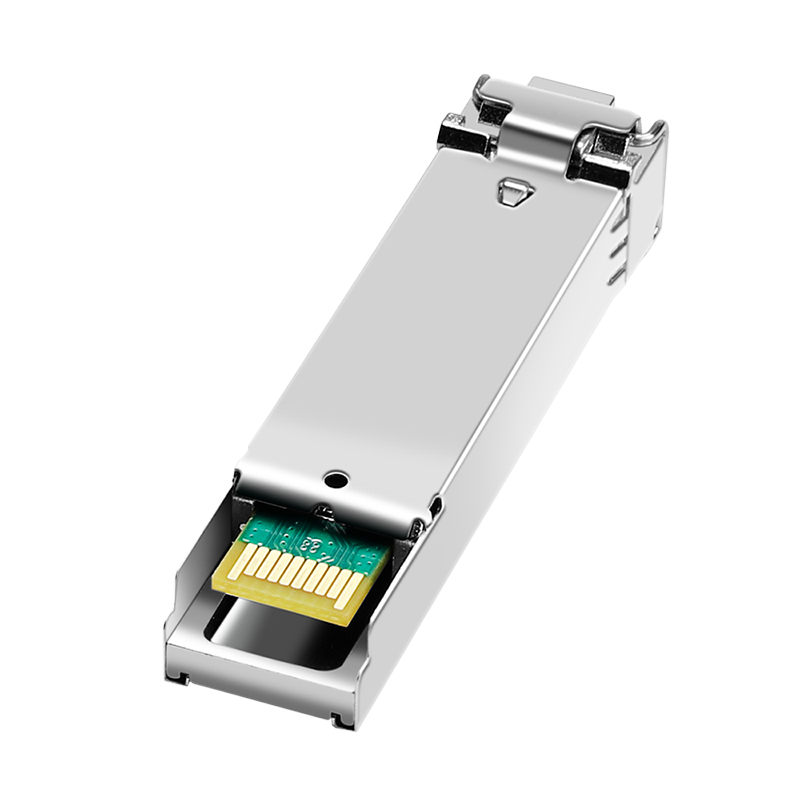

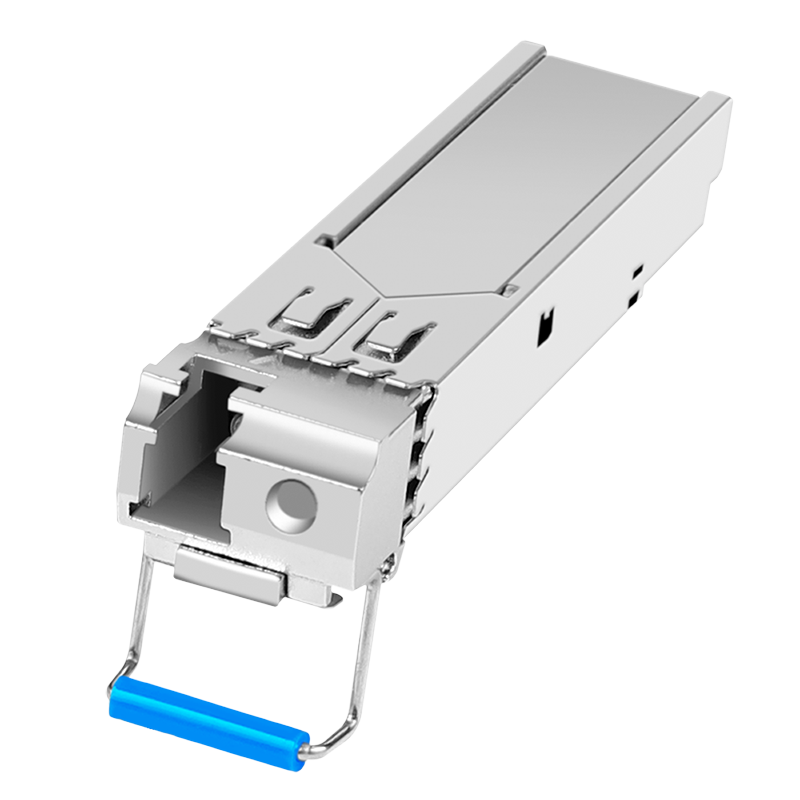

1.25Gbit/s BiDi SFP Transceiver Module 1000BASE-BX-U SM 20km LC
Product Highlights
Fits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
Data transfer rate: 1000 Mbps
One 1000Base-LX single-mode Fiber LC duplex port
1.25Gbit/s BiDi SFP Transceiver Module 1000BASE-BX-U SM 20km LC
DESCRIPTION:
The Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE802. 3 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
ADVANTAGES:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (0℃ to +70℃)
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
SPECIFICATION:
Gigabit Fiber SFP Optical Transceiver Module
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability.
Small Size for High-Density Fiber Connections
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fiber connections by taking up less space in your cabinet and/or computer room.
Compatibility
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545013) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-LH-SM, compatibility to your Cisco gear is provided.
Hot-Pluggable
The Intellinet Network Solutions Gigabit Fiber SFP Optical Transceiver Module (model 545013) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.
Digital Diagnostics Monitoring (DDM)
The Intellinet Network Solutions Gigabit Fiber SFP Optical Transceiver Module (model 545013) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
Fits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
Data transfer rate: 1000 Mbps
One 1000Base-LX single-mode Fiber LC duplex port
Fiber distance support: up to 10 km (6.2 mi.)
Wavelength: 1310 nm
Compliant with the SFP Multi-Source Agreement (MSA)
Equivalent to the Cisco GLC-LH-SM transceiver
SFP standard form factor
Supports digital diagnostics monitoring (DDM)
Low EMI due to fully metallic housing
Supports hot-plugging
Fully NDAA-compliant
