FTTH Indoor Butterfly Drop Cable
Description:
FTTH indoor butterfly cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
FTTH Indoor Butterfly Drop Cable
Description:
FTTH indoor butterfly cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

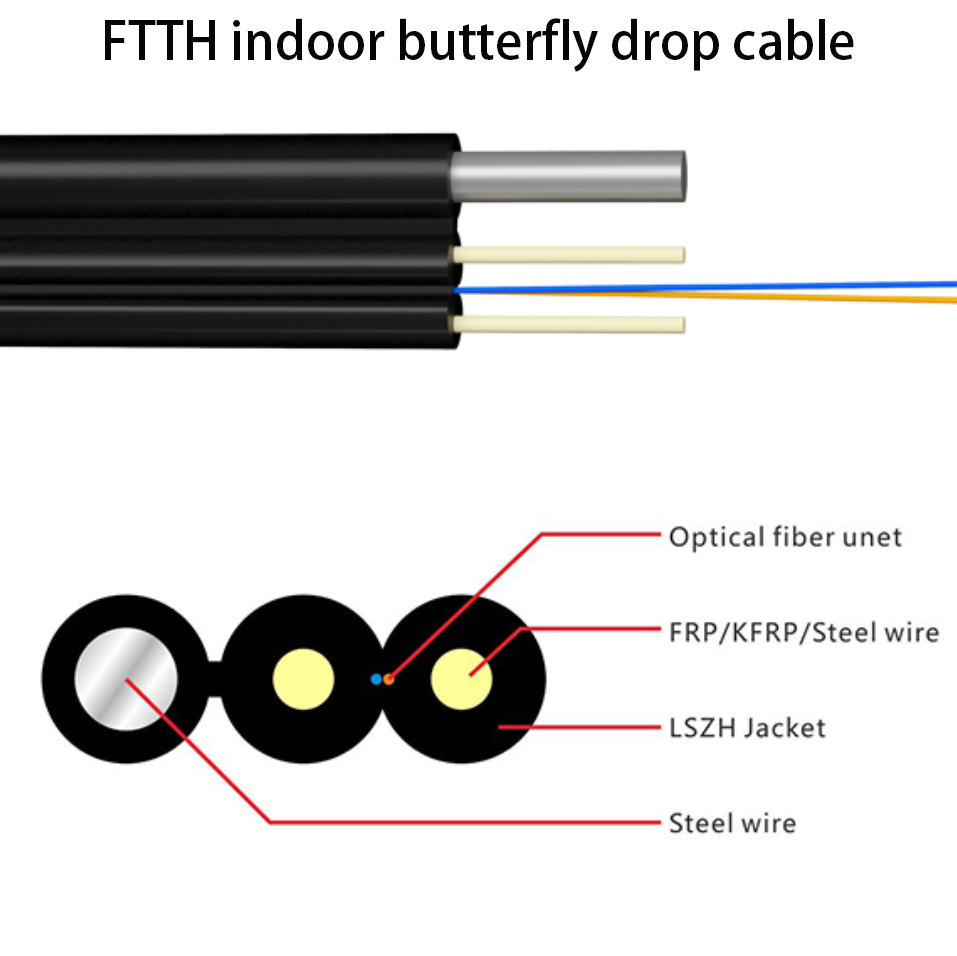

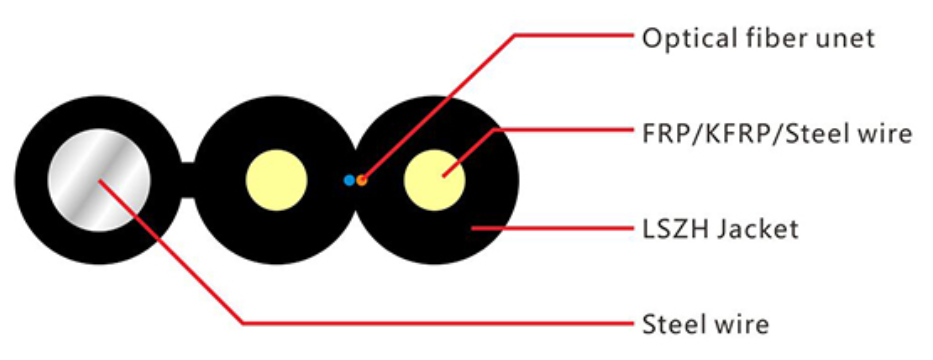

Cable Section:
Application:
Construction and maintenance of urban pipeline skin line；
Can meet a certain span rod and wire laying, compared with the ordinary self-supporting cable erection distance farther；
Products are widely used in FTTH introduction；
Features:
·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
·Simple structure, light weight and high practicability;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.
Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
*Standard length:1000m; Other length is also availabe
*The above is just advice for container loading, please consult our sales department for the specific quantity
