4-6-8-12-24-Core GJFJV Indoor Fiber Optic Cable OM1 OM2 OM3 OM4
4-6-8-12-24-Core GJFJV Indoor Fiber Optic Cable OM1 OM2 OM3 OM4 Multimode Multi-Core Tight Buffered PVC LSZH Plenum Distribution Indoor optical Fiber Cable This kind of GJFJV cable is ideal for indoor cabling, and interconnect between equipment.
What is 4-6-8-12-24-Core GJFJV Indoor Fiber Optic Cable OM1 OM2 OM3 OM4 Multimode Multi-Core Tight Buffered PVC LSZH Plenum Distribution Indoor optical Fiber Cable?

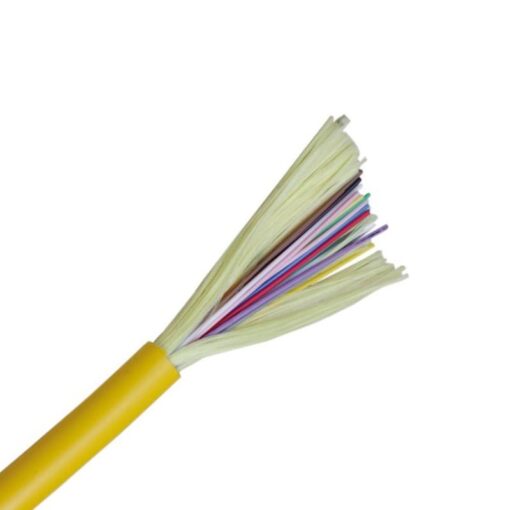

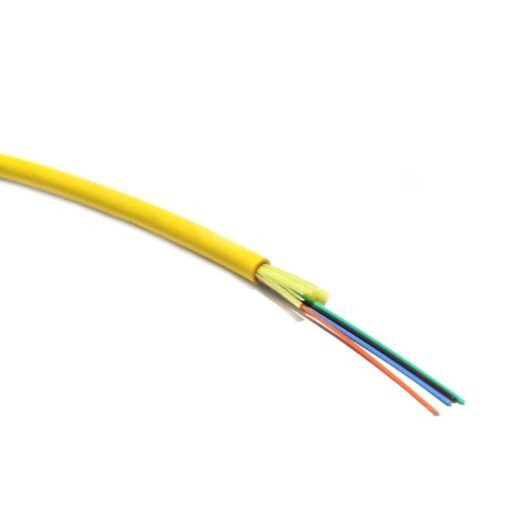

4-6-8-12-24-Core GJFJV Indoor Fiber Optic Cable OM1 OM2 OM3 OM4 Multimode Multi-Core Tight Buffered PVC LSZH Plenum Distribution Indoor optical Fiber Cable is made of multi-strand aramid yarn, this yarn is reinforced evenly on the outside of the single-mode tight sleeve optical fiber, and then extruded flame-retardant outer sheath. This cable adapts to indoor distribution mostly, as well as outdoor but with PE tube only. This cable has characters of soft, easy to peel, to facilitate follow, circular structure, small size, lightweight.
Model:GJFJV
Fiber:SM/MM/OM3/OM4
Fiber Core:2-48 cores
Jacket:PVC/LSZH
Temperature range:-40℃~+70℃
GJFJV Indoor Optic Fiber Cable
GJ —– Indoor optical cable for communication
F —– Non-metallic reinforcing member
J —– Coated structure of optical cable tight sleeve
V —– PVC sheath
The full name of fiber cable is optical fiber cable or optic fiber cable. They are made of pure quartz, and change into a very tiny thin wire by a special process. The diameter of the optical fiber is even thinner than the hair.
The characteristics of optical fiber are: fast transmission speed, long-distance, many contents, and are not subject to electromagnetic interference, not afraid of thunder and lightning, difficult to eavesdrop on the outside, non-conductive, and no trouble of grounding between devices.
Features:
– Soft,flexible and easy to do stripping, splicing and cabling
– Good mechanical and environmental characteristics
– The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards
– Kevlar yarn material ensure a good performance of tensile strength
900µm tight buffer protect the fiber well
Application:
Single core round tight buffered indoor fiber optical cable applications
Used in patch cords and pigtails
Interconnection of fiber optic equipment
Distribution cable
Indoor cabling, for FTTx
Data center
Multi cores pigtails and patch-cords, upto 48 cores per cable
Small diameter, light weight,flame retardant,excellent strippability
Low-attenuation, High flexibility
No need for transition connector box or pigtail between tight buffer fiber and cable, low cost with installation cause to it’s no needs to clean the water-proofing ointment.
The fiber optic cable complies with Standard GJFJV cable complies with Standard YD/T1258.2-2009,ICEA-596,GR-409,IEC794
Storage/Operating Temperature: -20°C to + 60°C
Technical Specifications:
