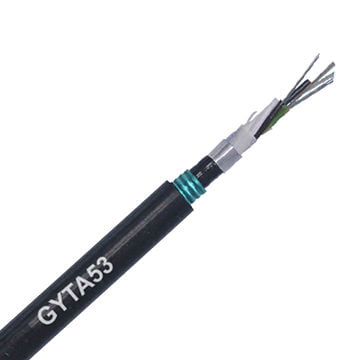

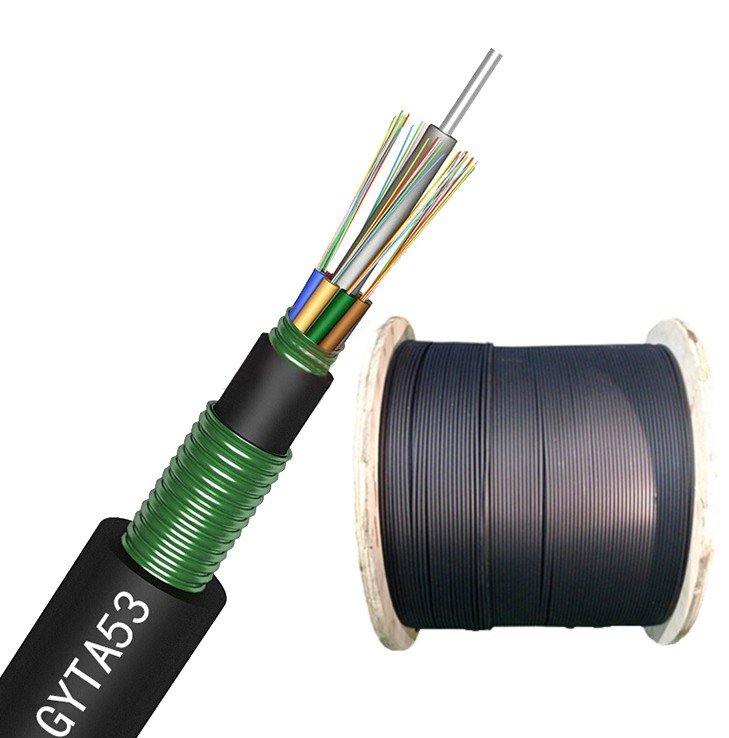

GYTA53 Singlemode Outdoor Fiber Optic Cable Direct Buried 144 Cores

GYTA53 Singlemode Outdoor Fiber Optic Cable Direct Buried  144 Cores

Product Overview

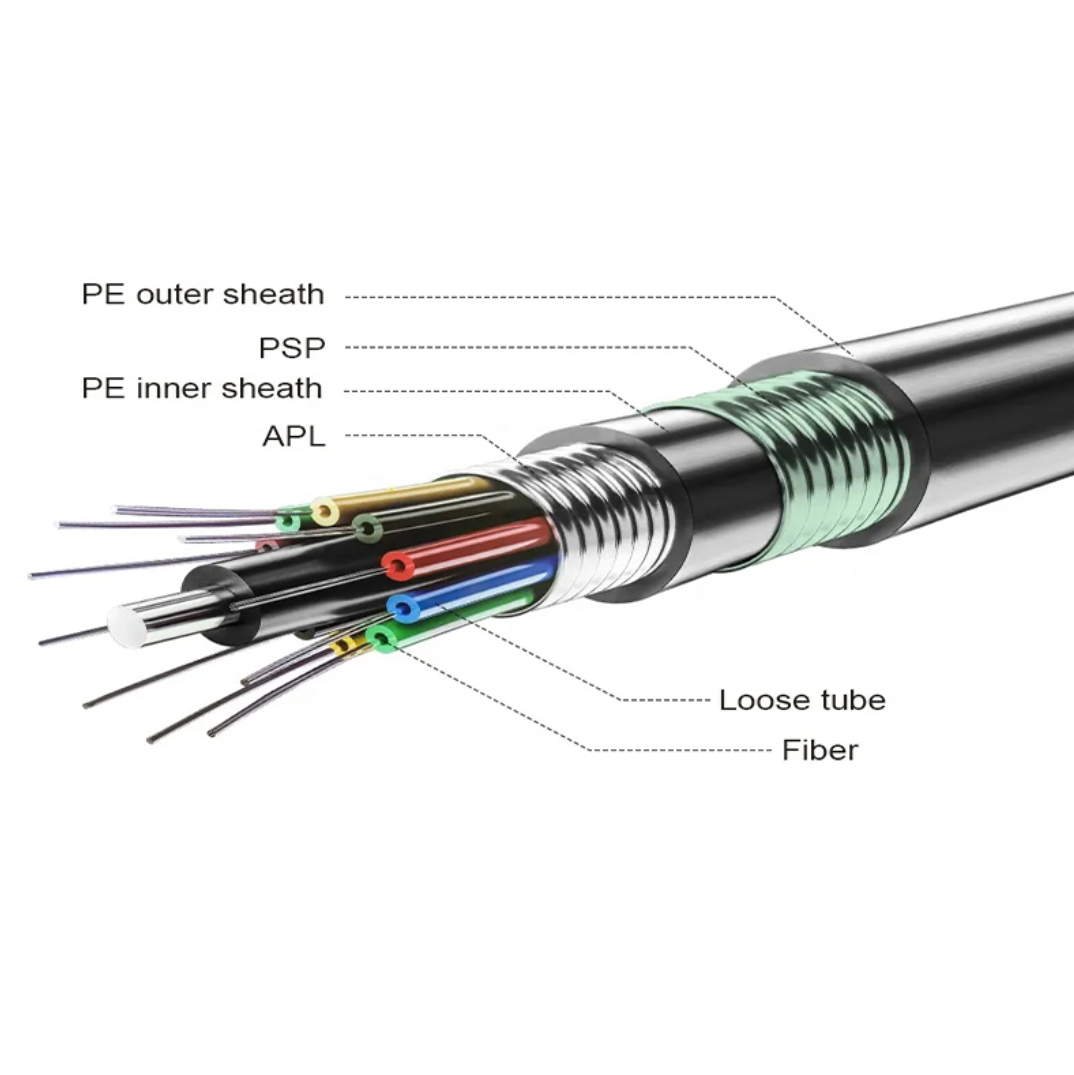

The GYTA53 fiber cable features 250µm fibers housed in gel-filled PBT (Polybutylene Terephthalate) loose tubes. These tubes are wrapped around a phosphatized steel wire central strength member, which provides crucial support. To ensure waterproofing, the loose tubes contain a waterproof compound. Additionally, some variations of the optical fiber cable include a layer of polyethylene (PE) extruded around the metal-reinforced core. The loose tubes and filler ropes twist around the central reinforcing core, creating a compact and rounded cable core. Water-blocking fillers fill any gaps within the core. Lastly, a polyethylene sheath encases the entire structure and extrudes into a plastic-coated aluminum tape (APL) longitudinally, completing the cable.

Structure

GY — Represents an outdoor optic communication cable.

T — Indicates a filled structure.

A — Refers to the aluminum-polyethylene bonded sheath (A sheath).

5 — Denotes the use of a wrinkled steel belt.

3 — Indicates a polyethylene protective sleeve.

Characteristics of Optical Fiber

Optical fiber cables, also known as fiber optic cables, consist of pure quartz transformed into extremely thin fibers, even thinner than a human hair. These fibers offer several significant advantages. Firstly, they enable fast transmission speeds and support long-distance data transfer. Additionally, optical fibers can carry large amounts of information simultaneously. Importantly, they are resistant to electromagnetic interference, ensuring clear and stable signal transmission. They also withstand environmental factors such as thunder and lightning. Furthermore, these fibers are difficult to eavesdrop on, providing enhanced communication security. Being non-conductive, optical fibers eliminate grounding issues between devices. Consequently, they are ideal for various modern communication applications.

Conclusion

In conclusion, the GYTA53 fiber cable’s robust design ensures both high performance and durability. Its multi-layer construction, including gel-filled loose tubes, polyethylene sheath, and aluminum tape, offers comprehensive protection and reliable operation. The characteristics of optical fiber, such as fast transmission speeds and resistance to interference, make it an excellent choice for diverse networking needs. By combining these features, the GYTA53 cable provides a dependable solution for outdoor communication systems.

Application

A). Adapted to outdoor distribution.

B). Suitable for aerial, pipeline laying method, direct burial.

C). Long distance and local area network communication.

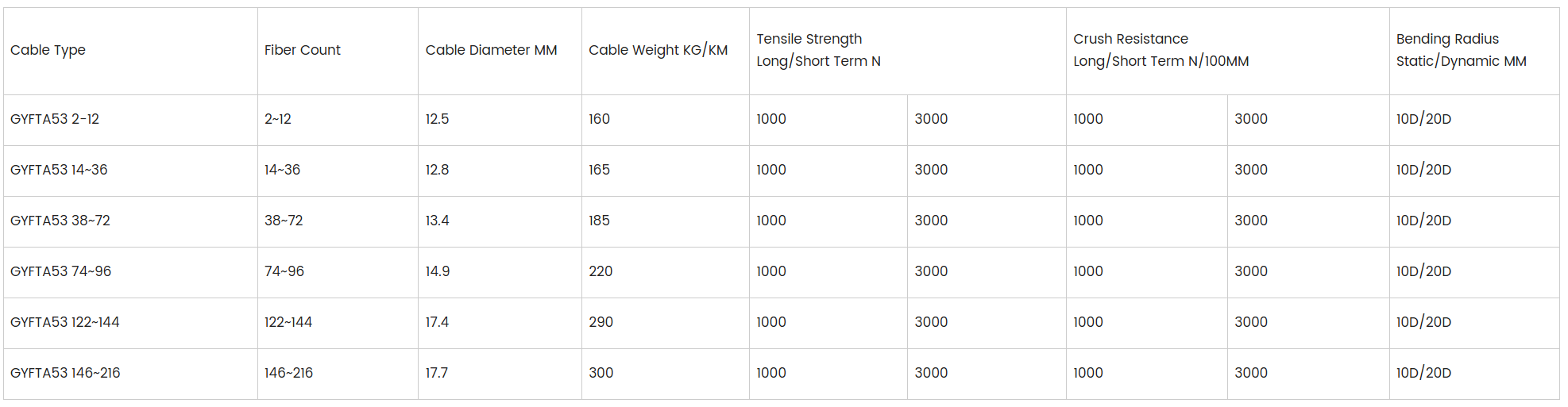

Technical Parameters

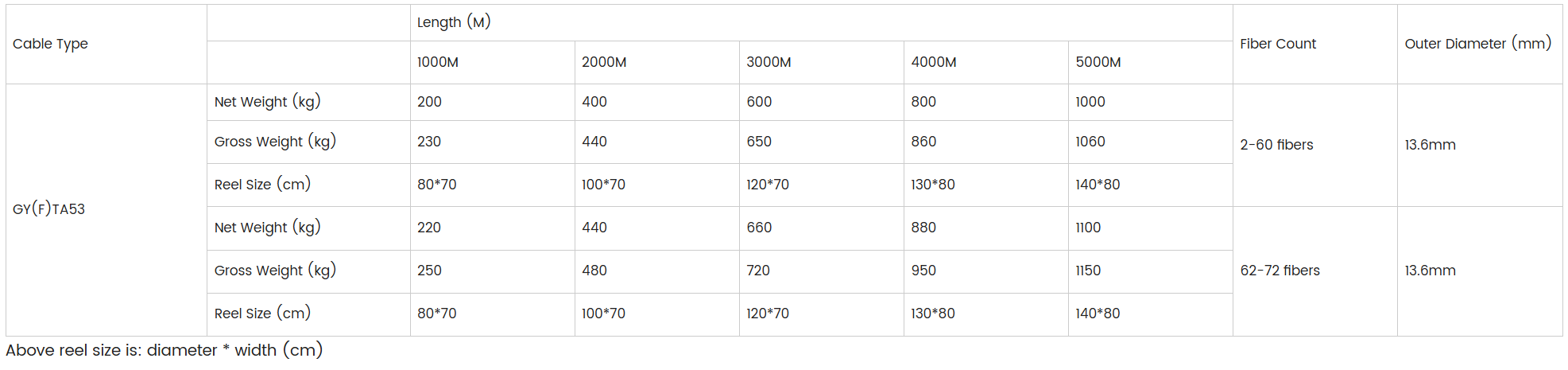

Packing & Shipping

We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
