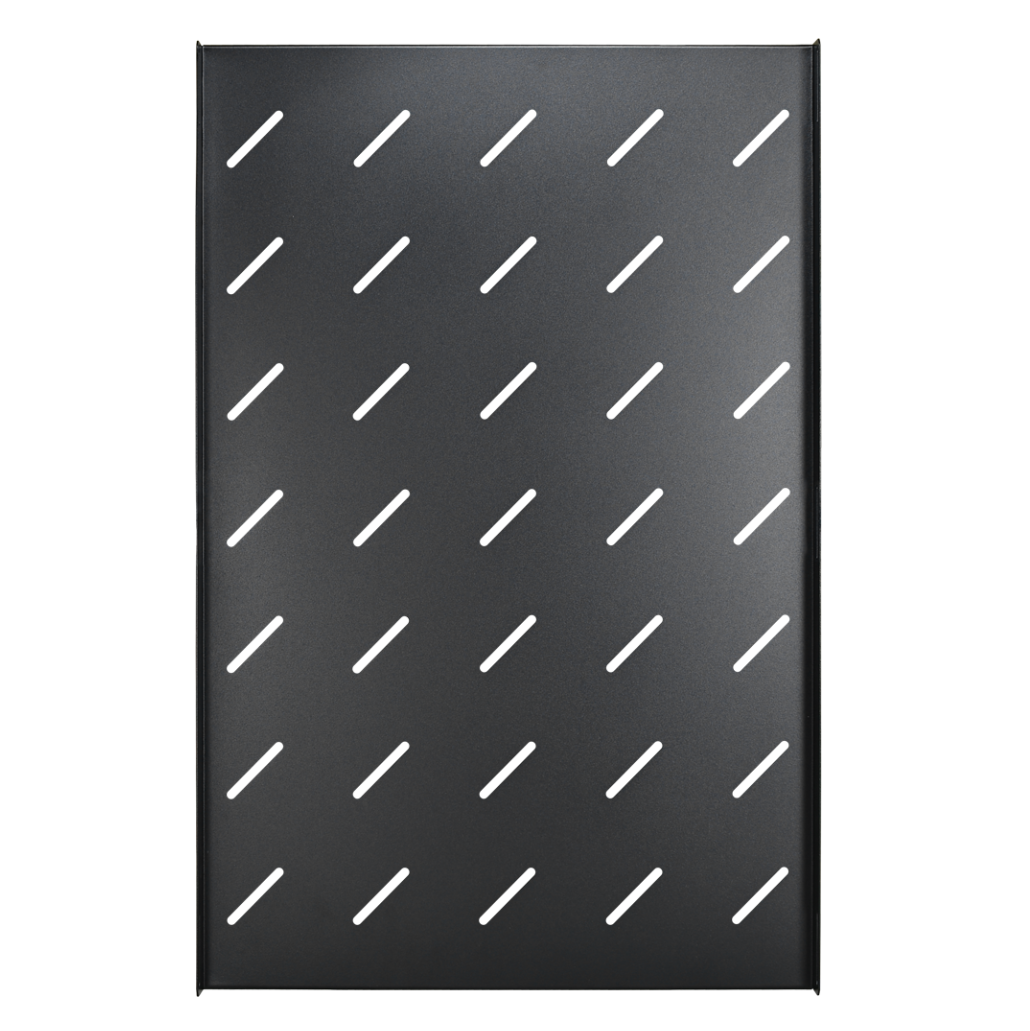

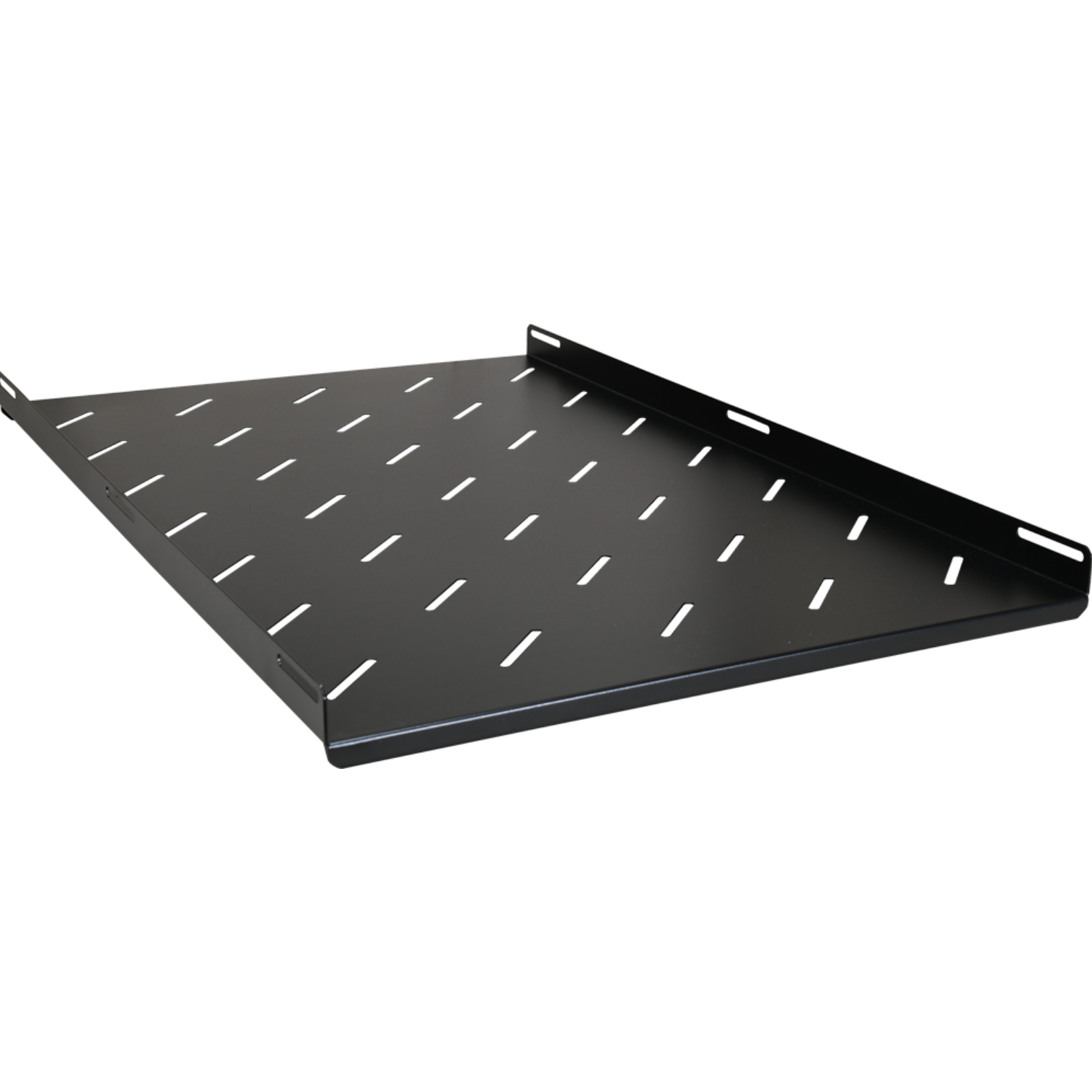

Fixed Shelf 485x750mm for 19 inch Cabinet (for 1000mm depth)
19″ Fixed Shelf are the ideal accessory for your server and network installations. Choose from four versions, suitable for every need: fixed, cantilever, heavy-duty (up to 100 kg) or sliding. Beyond that, you have flexibility with depths that range from 150 mm to 1000 mm and a choice of black (RAL 9004) or gray (RAL 7035).
Fixed Shelf 485x750mm for 19 inch Cabinet (for 1000mm depth)
(more size sheld available,pls contact with our sales team for more information)
485x285mm,485x300mm,485x350mm,485x400mm,485x475mm,485x500mm,485x550mm,
485x600mm,485x620mm,485x650mm,485x675mm,485x700mm,485x750mm,495x700mm,495x750mm
Destination：Fixed shelf is intended for a 1000mm deep RACK cabinet. Due to shelf, RACK cabinet can accommodate devices that are not housed in a RACK 19" enclosure.

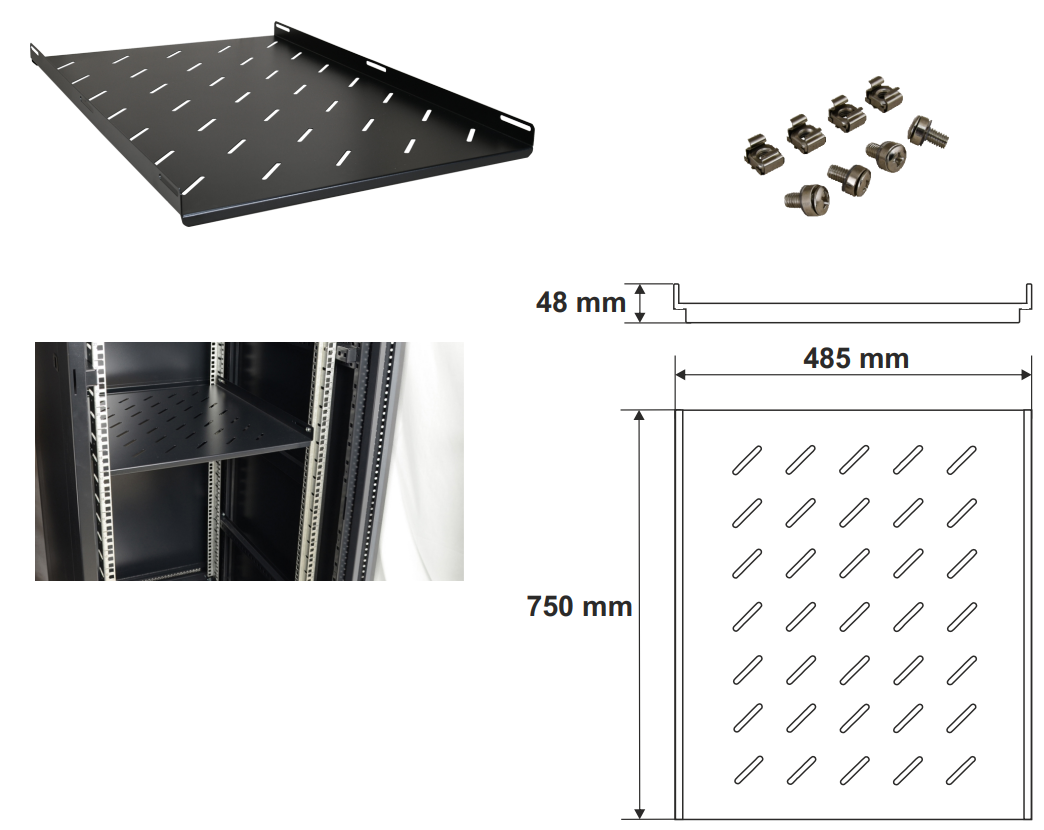

Mounting dimensions:19" x 1U x 750mm side mounting, 4 M6 screws + cage nuts included
Dimensions:485 x 48 x 750 [+/-2 mm]
Installation: 19 inch rack cabinet
Shelf: 485 x 750 [mm]
Material: cold-rolled steel SPCC, 1.2mm, RAL9004 (black), metallic
Static load: 60kg
Packaging type: Brown Box
