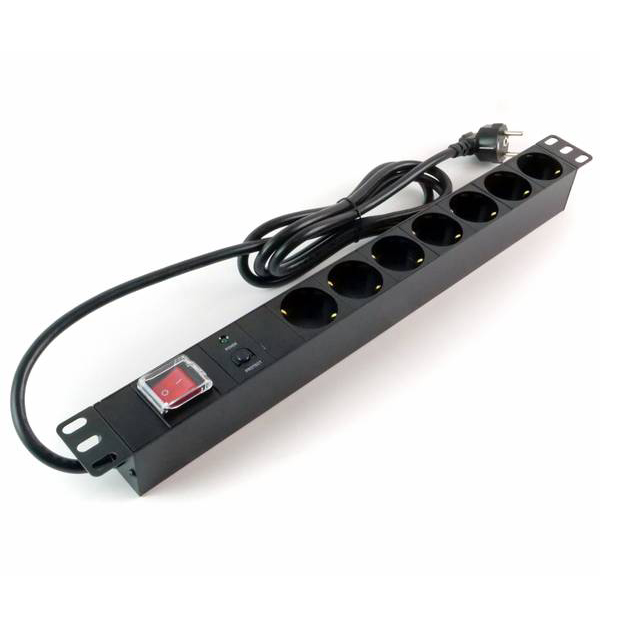

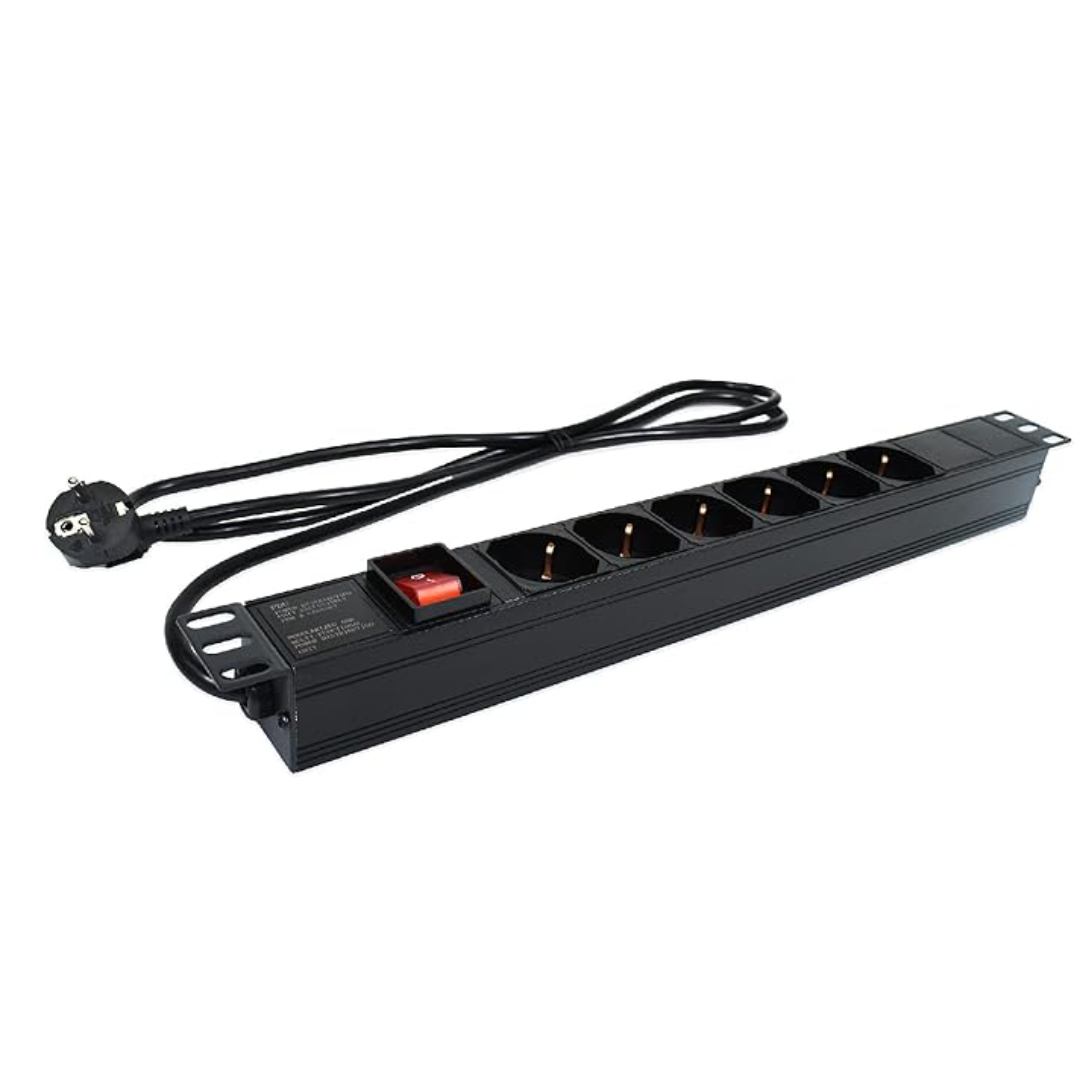

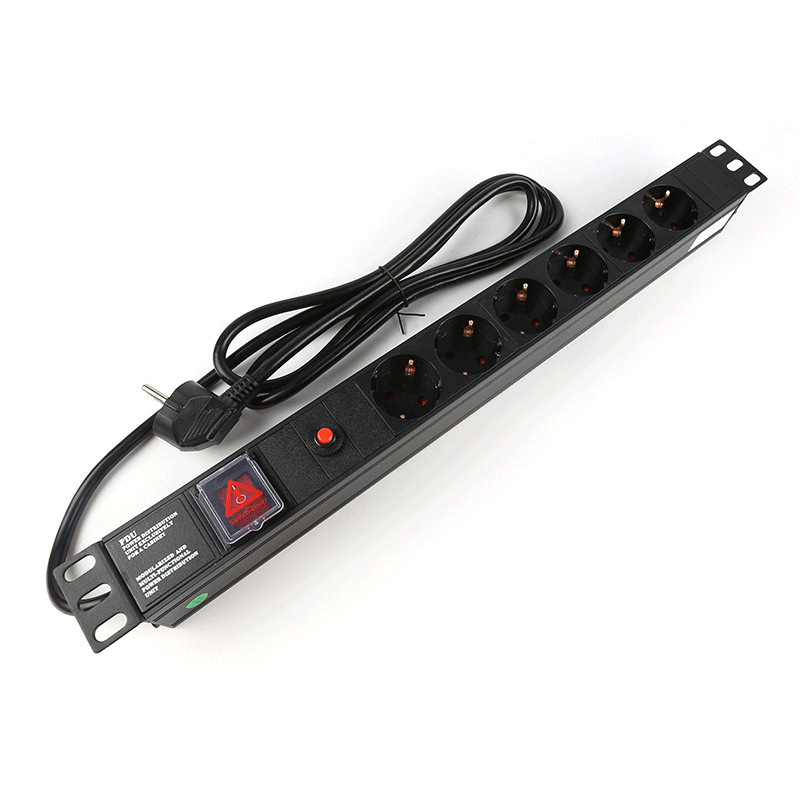

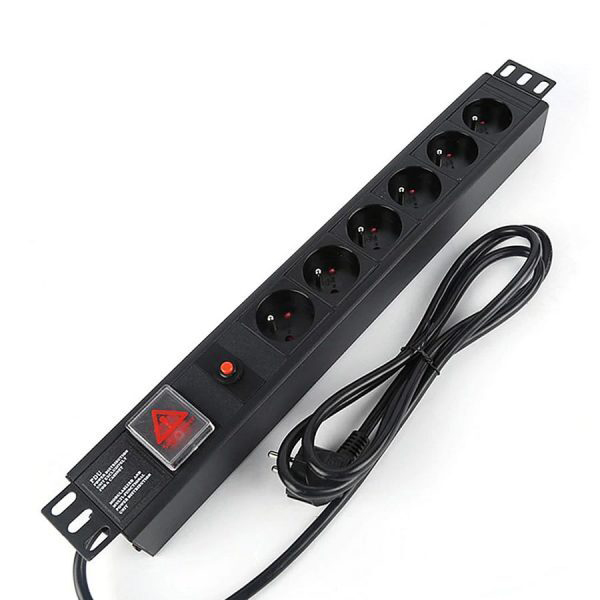

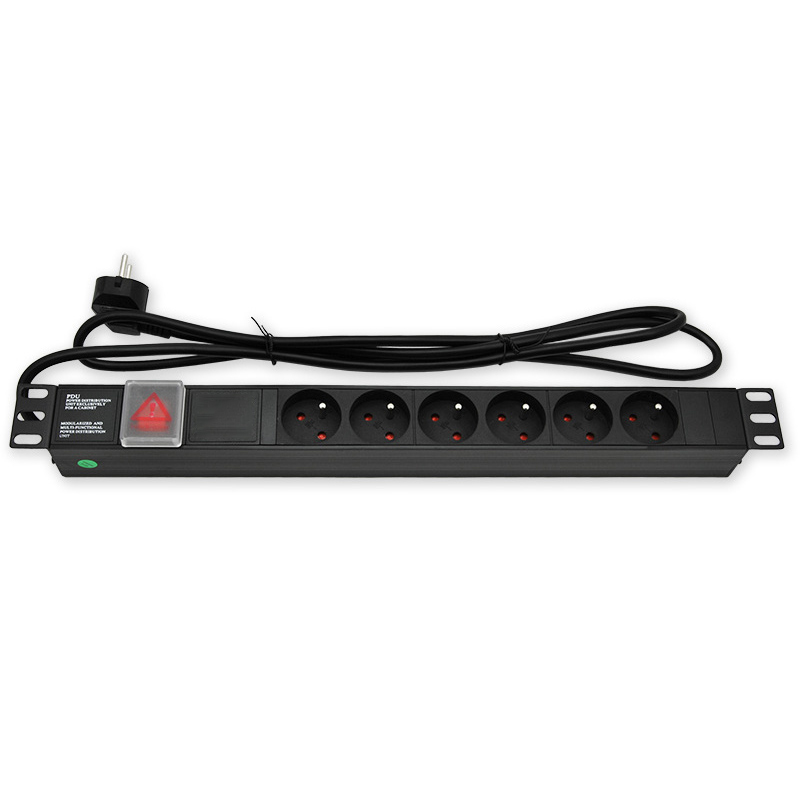

19 Inch 6 Ways German PDU Socket Outlets Rackmount

Rack mount 8-way 19" power strip - power up to six devices in your network

Product Description:

Plug your networking, telecom, surveillance, AV or other electronics into this 6-outlet 19” PDU from Creative Ruby Co.,Ltd. It is compatible with standard electrical equipment and features eight EU Type E/F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. The on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.

Feature:

6-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video

Built-in 2 m power cord with EU CEE 7/7 (Type E/F) plug

Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown

Sockets with increased touch protection through contact shutters

Horizontal 1U 19" rack-mount installation

Angled outlet orientation

Durable aluminum construction

Grounding point to protect equipment from external electrical surges

Bracket installation style: frontal

For indoor use only

Specification:

Electrical

AC input: 220.0 - 250.0 V; 50 - 60 Hz

Operating voltage: 230.0 V

Plug standard: EU CEE 7/7 (Type E/F); IEC 60884

Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884

Maximum load: 4,000.0 W

Overload protection: 16.0 A maximum load current

Physical

Dimensions (L x W x H): 45 x 483 x 45 mm

1U rack mount

Cable length: 2 m

Cable type: H05VV-F 3G 1.5 mm²

Socket angle: 35°

Net weight: 800 g

Gross weight: 900 g

Housing: aluminum
