1.5m 12 Colored Fiber Pigtail with Jacket, SC APC ,OS2 SingleMode, 12 Fibers Bunch, PVC 0.9mm, Yellow
Product Highlights

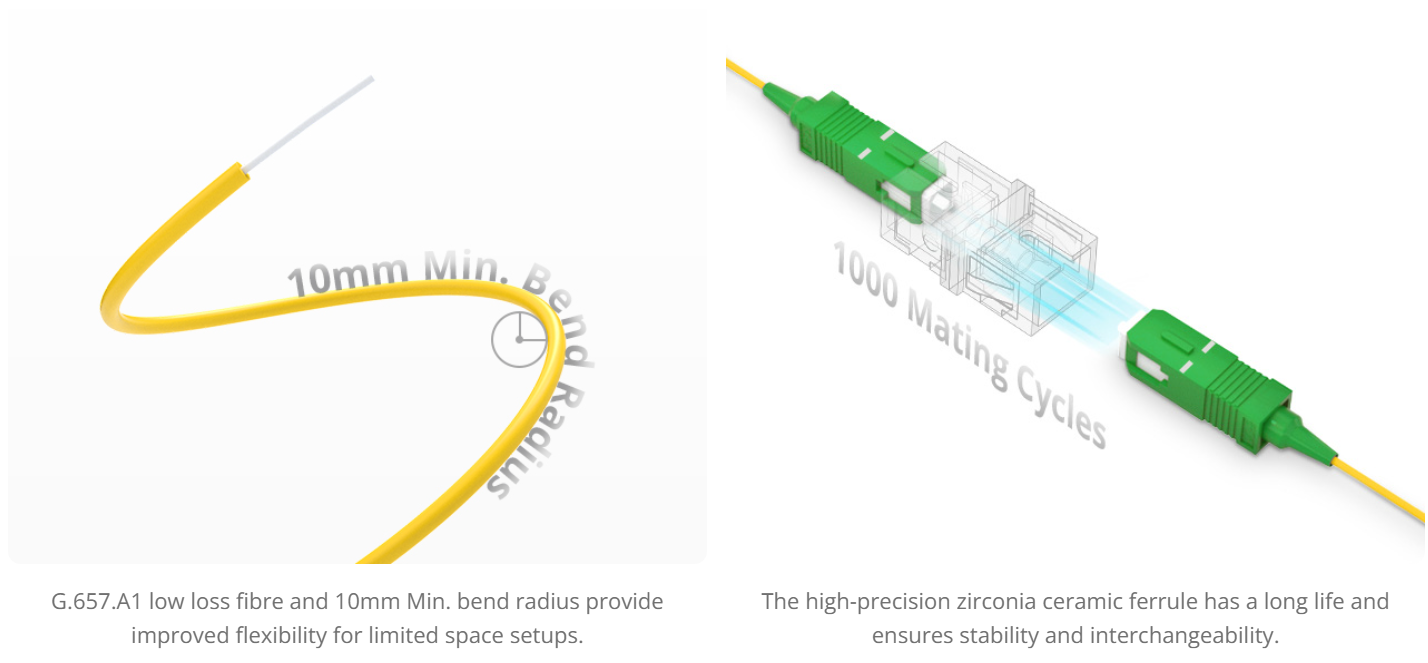

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced
Easy-strip 900µm Tight-buffered Coating

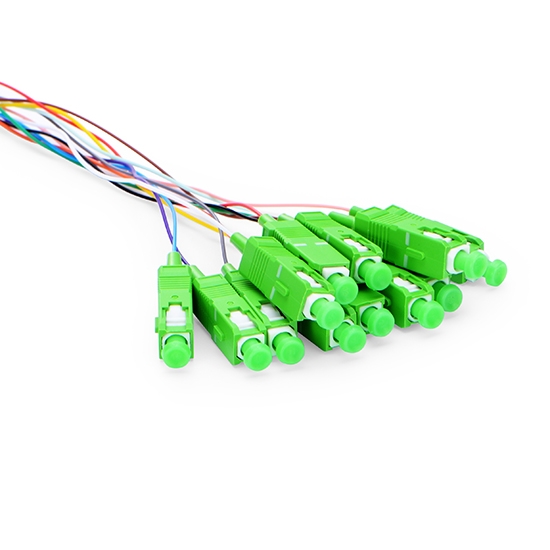

Precision Zirconia Ferrule Connectors Ensure Low Loss
Support Both Fusion and Mechanical Splicing

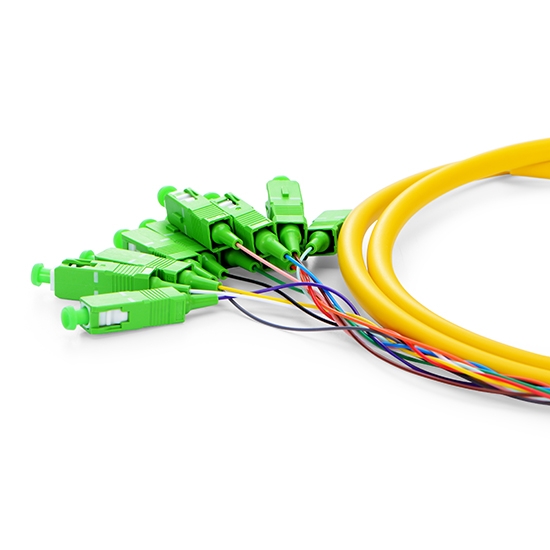

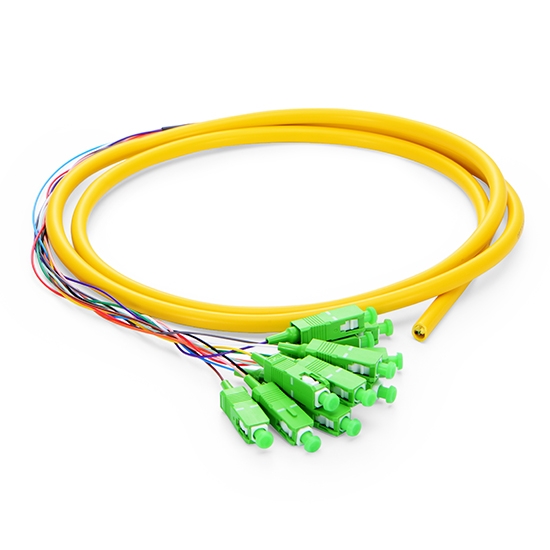

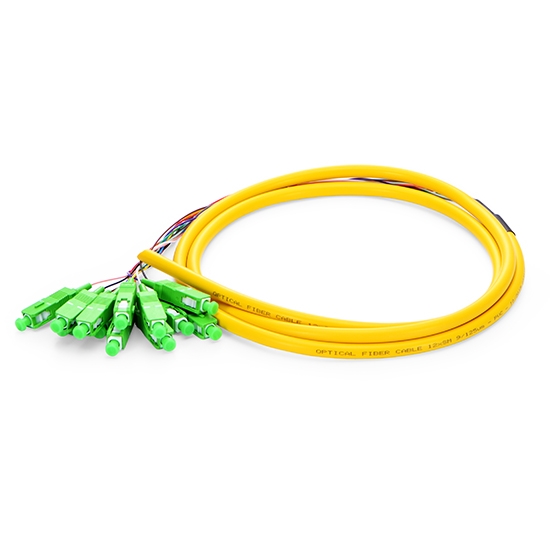

1.5m 12 Colored Fiber Pigtail with Jacket, SC APC , 12 Fibers Bunch, OS2 SingleMode, PVC 0.9mm, Yellow
12 fibres optic pigtails are ideal for fusion splicing the required fibre connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.
The OS2 bend insensitive fibre optic pigtails have less attenuation when bent or twisted compared with traditional fibre optic pigtails and this will make the installation and maintenance more efficient.
Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered fibre optic pigtail protects the fibre optic core, and is easy to strip for splicing.
High-precision Components Guarantee Reliable Transmission
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
A Variety of Applications of Different Equipments
Optical fibre pigtails can be used in optical fibre communication systems optical fibre data transmission, optical fibre CATV, optical test equipment, fibre optic sensors, etc.
How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper

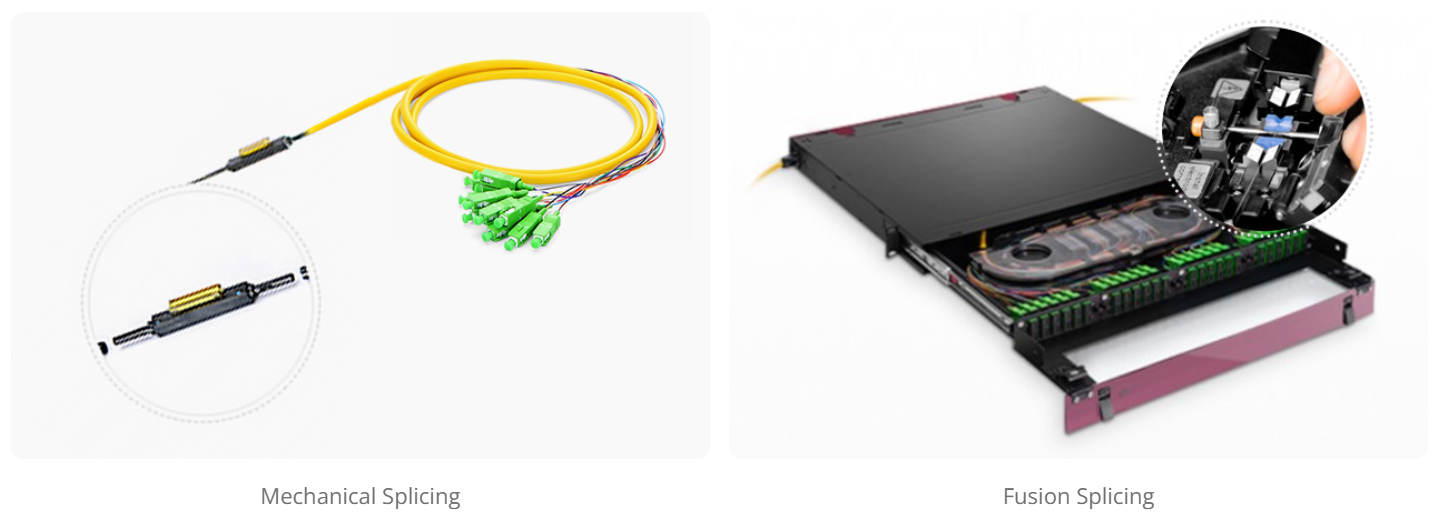

Two Important Methods for Fiber Optic Pigtail Splicing

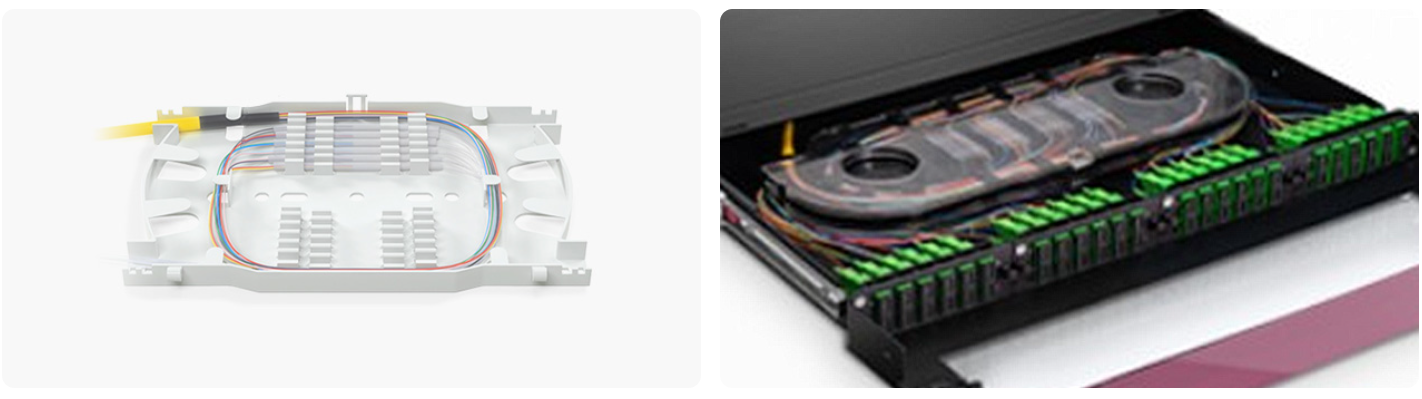

Fiber optic pigtail assemblies are utilised in terminating fibre optic cables via fusion or mechanical splicing.
