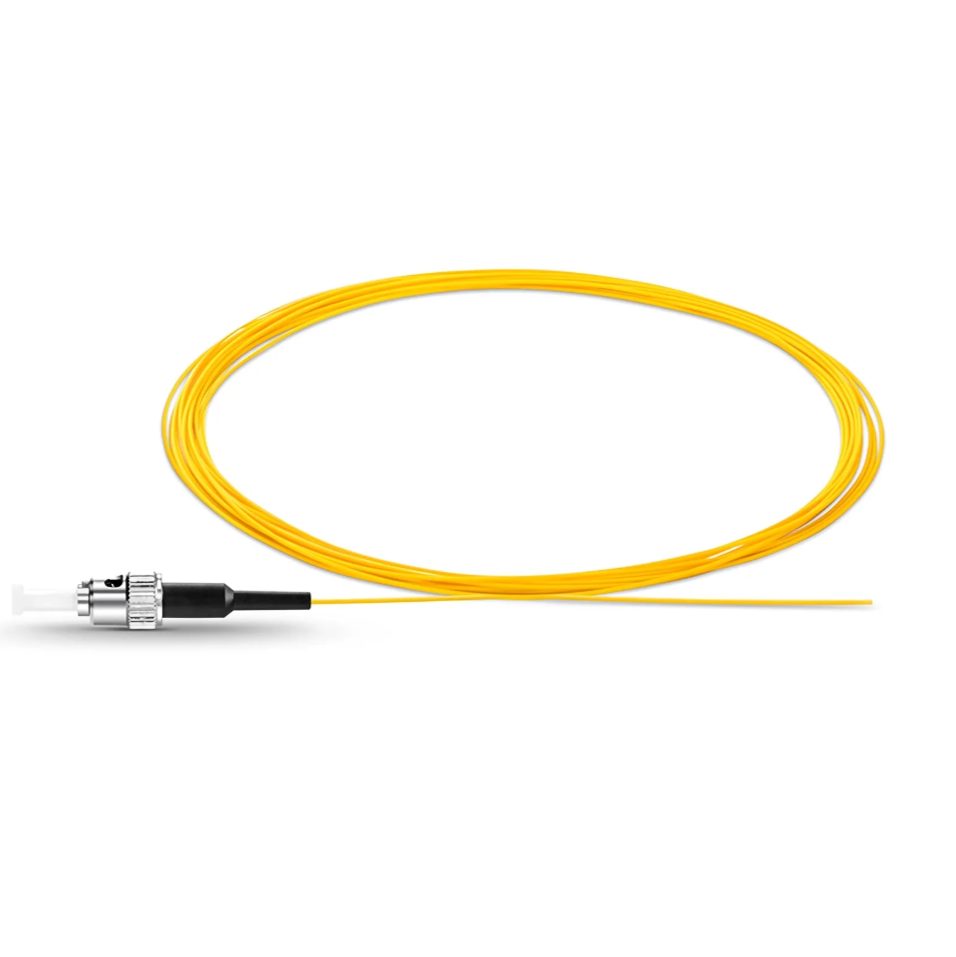

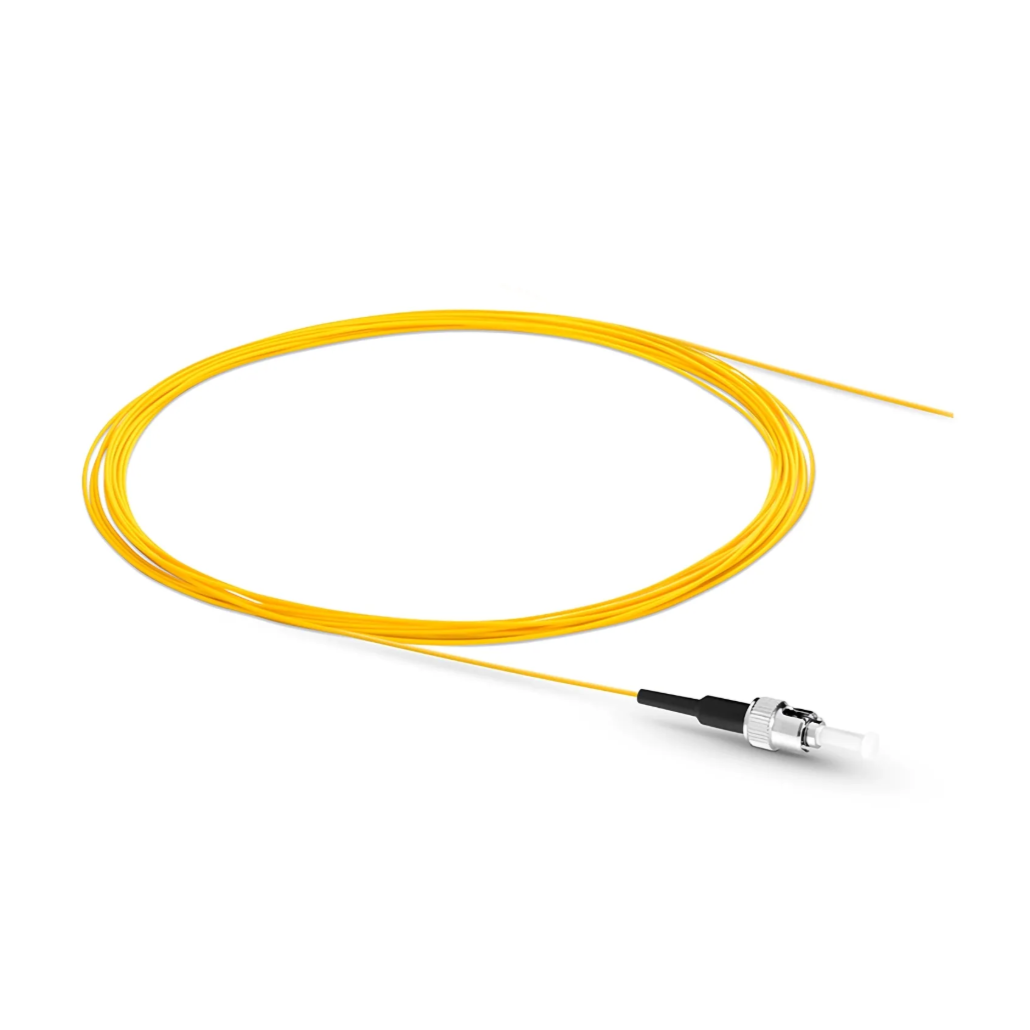

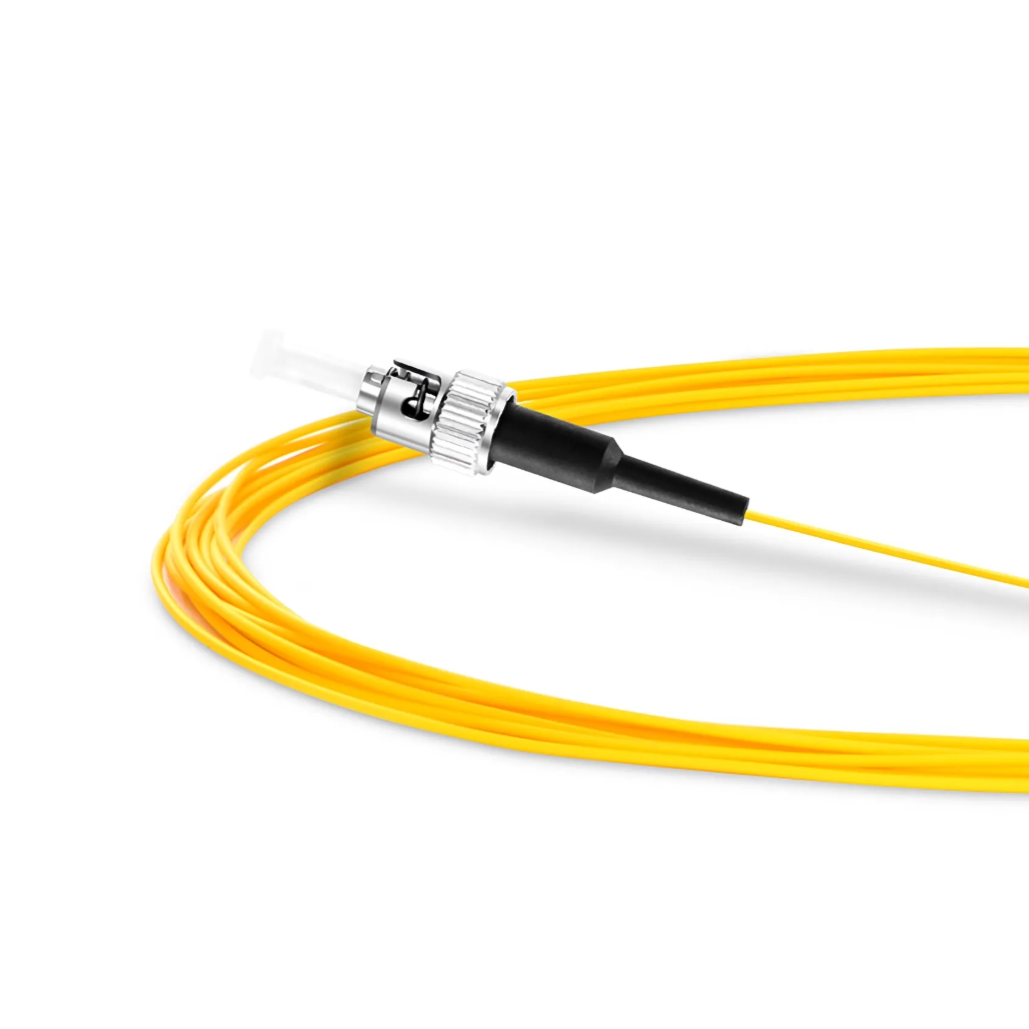

1.5m Fiber Pigtail, ST UPC, Simplex, OS2 Single Mode, PVC/LSZH, 0.9mm, Yellow
Product Highlights

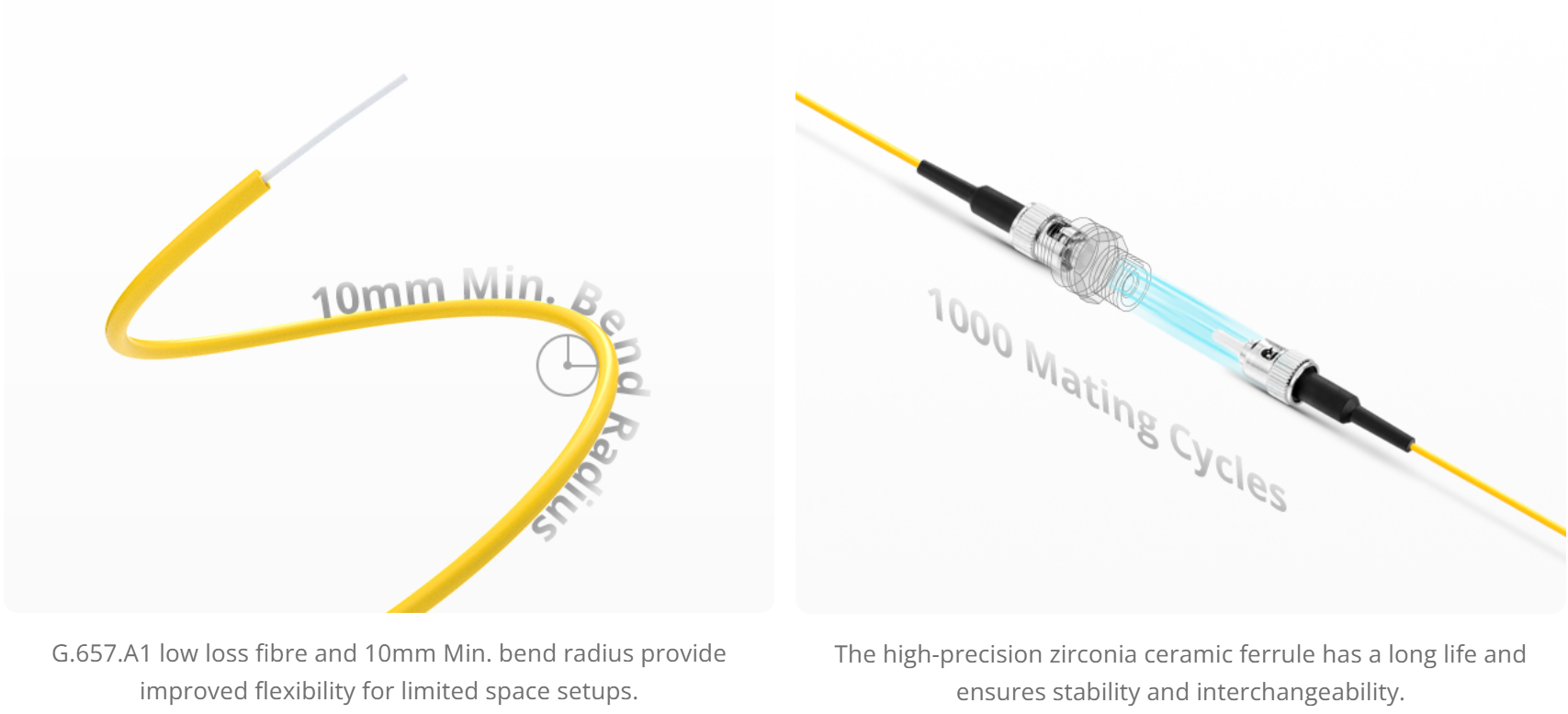

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced
Easy-strip 900µm Tight-buffered Coating

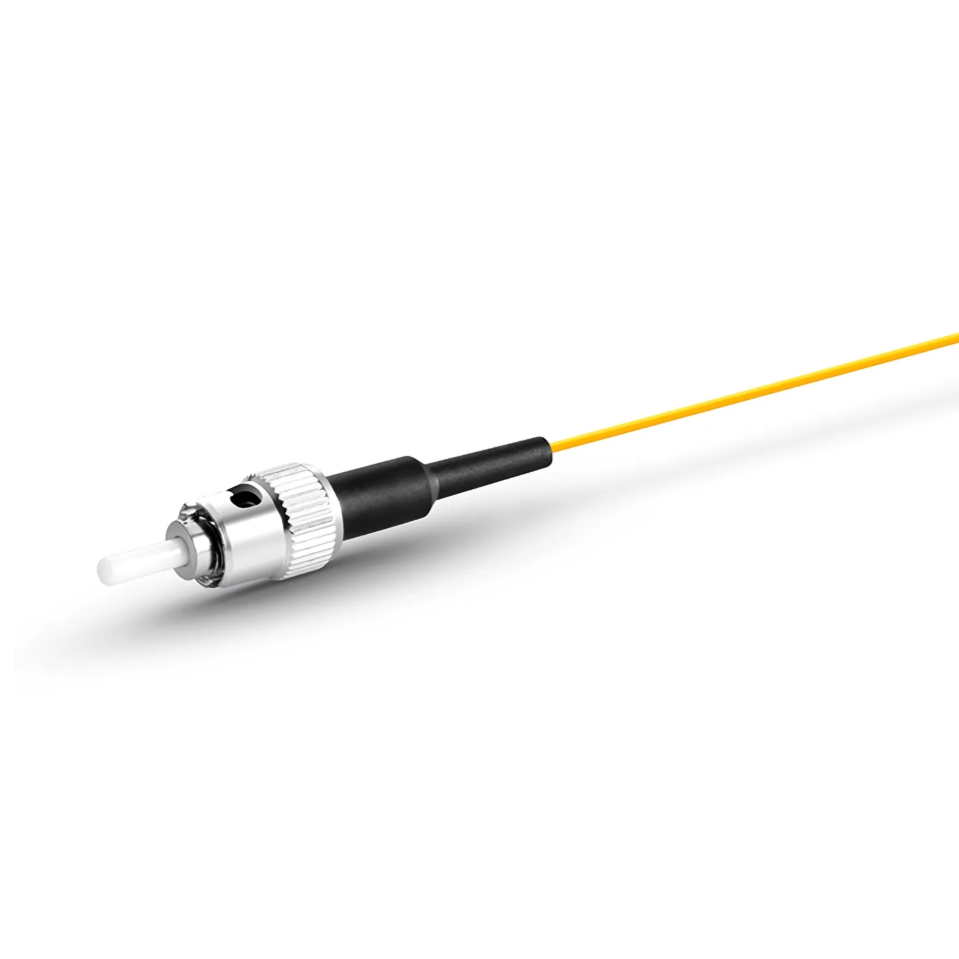

Precision Zirconia Ferrule Connectors Ensure Low Loss
Support Both Fusion and Mechanical Splicing
1.5m Fiber Pigtail, ST UPC, Simplex, OS2 Single Mode, PVC/LSZH, 0.9mm, Yellow
Fiber optic pigtails are designed to support fusion and mechanical splicing for fibre cabling systems. They provide a fast way to make communication devices in the field. The OS2 bend-insensitive fibre optic pigtails have less attenuation when bent or twisted than traditional fibre optic pigtails, making installation and maintenance more efficient.
Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered fibre optic pigtail protects the fibre optic core, and is easy to strip for splicing.
High-precision Components Guarantee Reliable Transmission
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

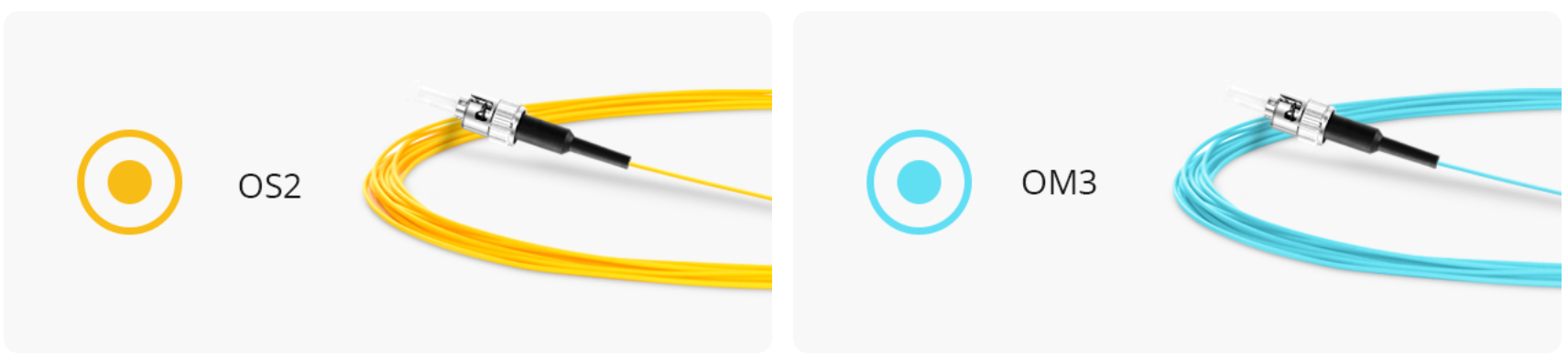

Color-Coded Cable Jacket for Easy Identification
A fibre optic pigtail's jacket colour is typically defined by the fibre type, and can differ based on mode and performance level.

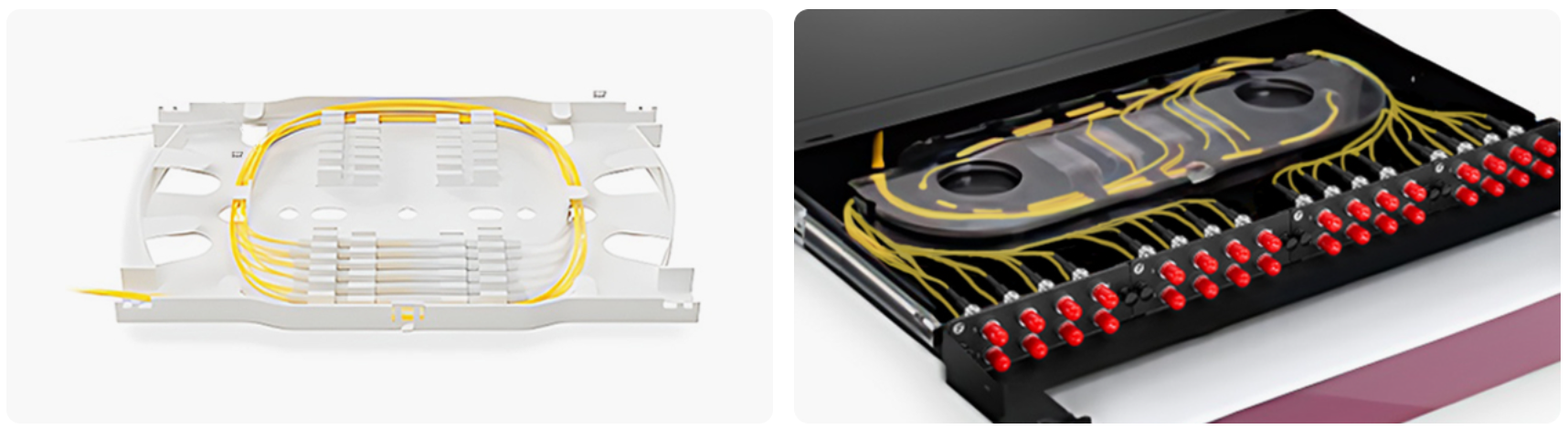

A Variety of Applications of Different Equipments
Optical fibre pigtails can be used in optical fibre communication systems optical fibre data transmission, optical fibre CATV, optical test equipment, fibre optic sensors, etc.
How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper

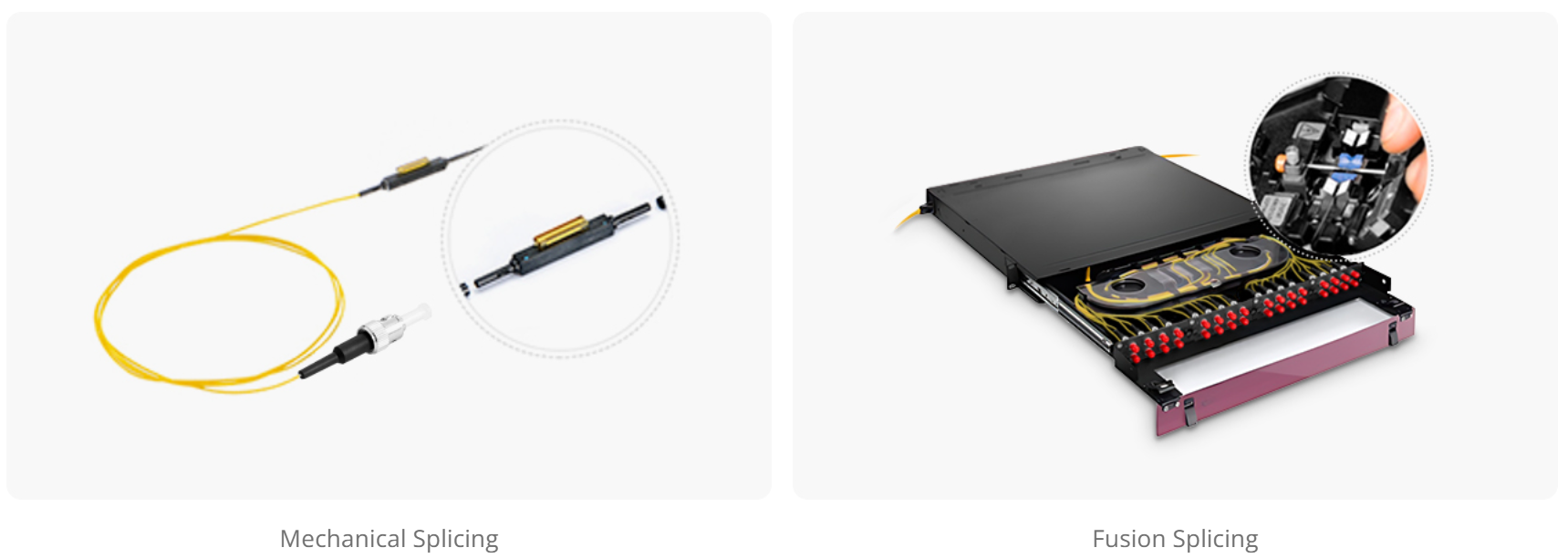

Two Important Methods for Fiber Optic Pigtail Splicing
Fiber optic pigtail assemblies are utilised in terminating fibre optic cables via fusion or mechanical splicing.
