Cisco Compatible 25GBASE-U SFP28 BiDi 1270nm-TX/1310nm-RX 40km DOM Simplex LC/UPC SMF Optical Transceiver Module (Industrial)
Product Highlights
Max. Power Consumption 1.5W
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
Double Your Bandwith by Using Only One Fiber for Transmit and Receive
High-speed Connectivity Compliant to IEEE 802.3cc
Support Real-time Configuration
Industrial Temperature Range -40°C to 85°C
Hot Pluggable SFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety
Cisco Compatible 25GBASE-BX40-U SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1270nm-TX/1310nm-RX, 40km, LC, Industrial, DOM)
This Cisco compatible SFP28 transceiver provides 25GBase-BX throughput up to 40km over single mode fibre (SMF) using a wavelength of 1270nm-TX/1310nm-RX via an LC simplex connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data centre, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Note: The FS P/N is changed from SFP28-25G-BX40-I to SFP-25G23-BX40-I, but the product is the same. Only the FS P/N has been changed.
Specifications

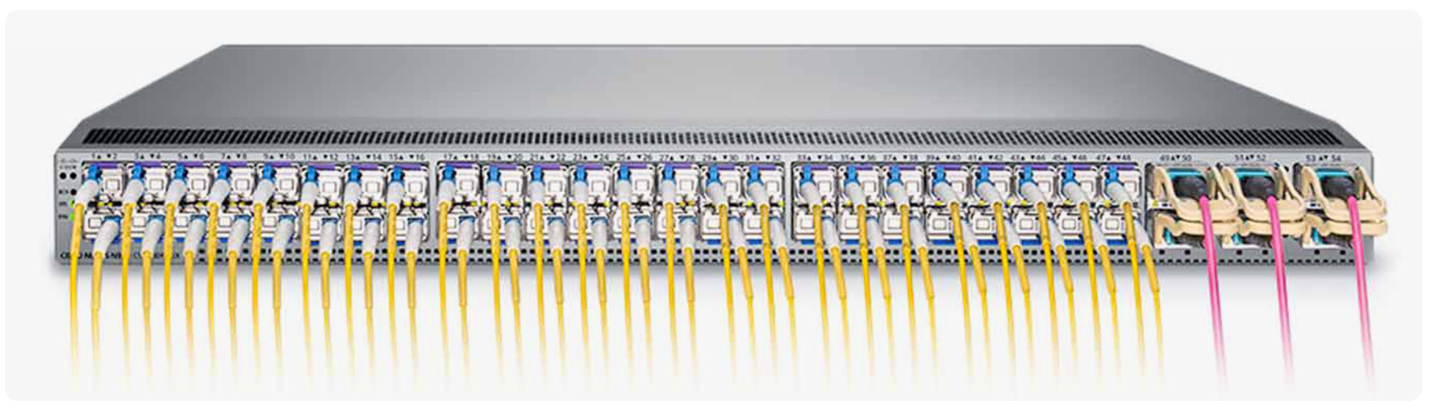

10G Connectivity for Data Center
Featured with 0.6W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.
Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Enable Seamless Connectivity for Your Network
Reconfiguring the transceiver to work with different brands
