FTTH Drop Cable GJYXFFCH Self-Support 1-12 Cores
FTTH cable has another name — fiber drop cable, which plays a crucial role in delivering high-speed internet directly to homes in Fiber to the Home (FTTH) networks. The fiber drop cable, specifically for this purpose, ensures a stable and fast connection between a central distribution point and the subscriber’s home. This cable type can easily transmit vast amounts of data, making it a perfect solution for modern-day internet demands.
FTTH Drop Cable GJYXFFCH Self-Support 1-12 Cores
Description:
GJYXFFCH cable takes the colored fiber (single mode or multi-mode fiber) as the signal transmission unit, and the two sides of the cable are respectively placed with a non-metal reinforcement to form a square structure. At the same time, the high strength aramid yarn is used as the reinforcement to play a self-supporting overhead effect, and on this basis, a flame retardant polyolefin material is extruded to form a outer sheath.

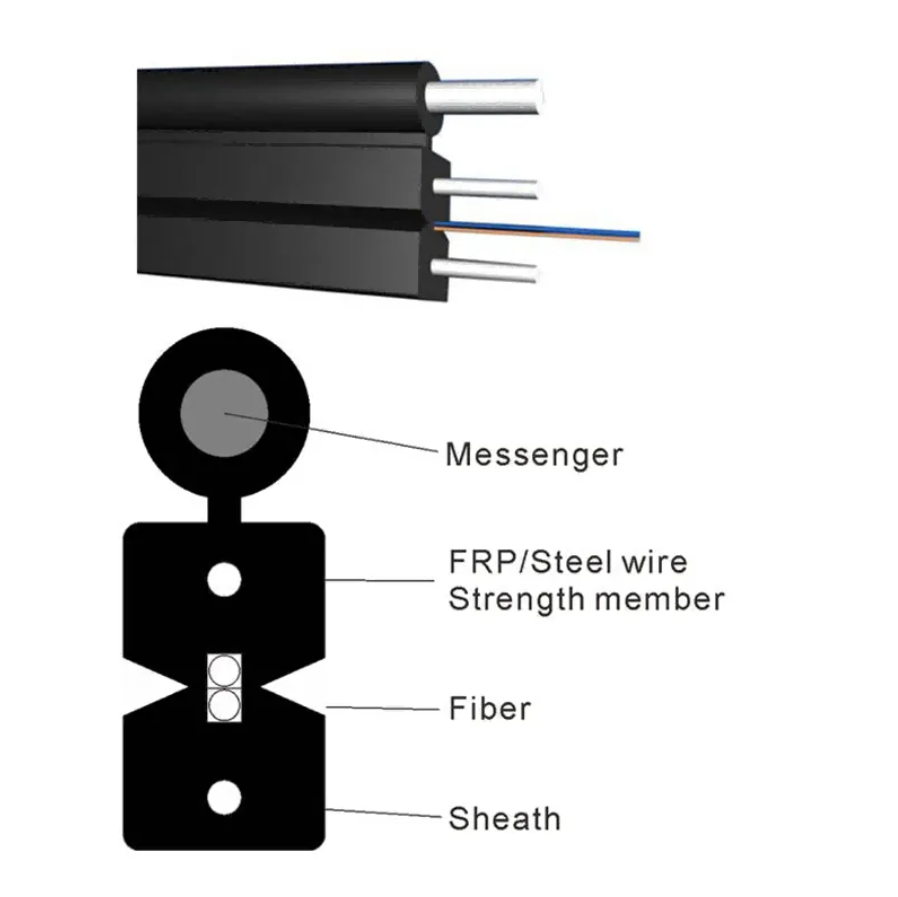

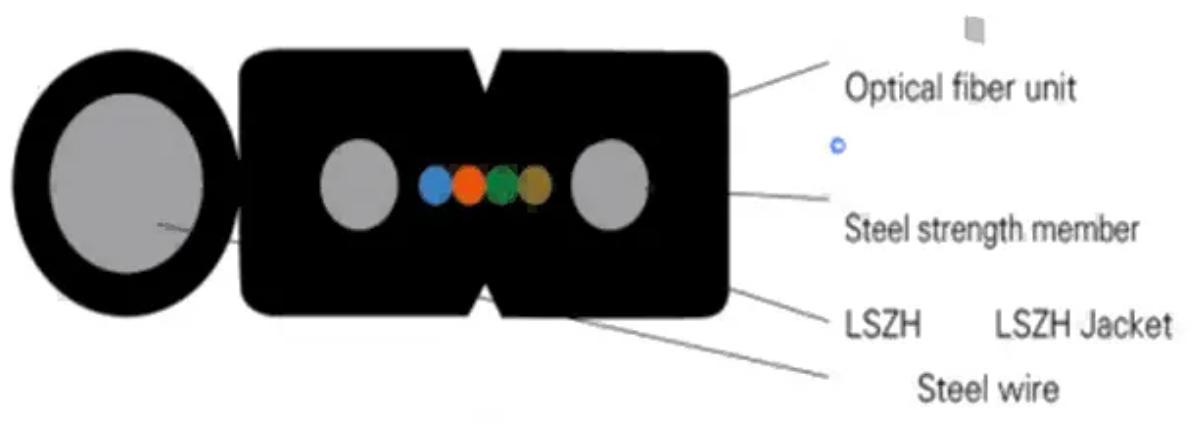

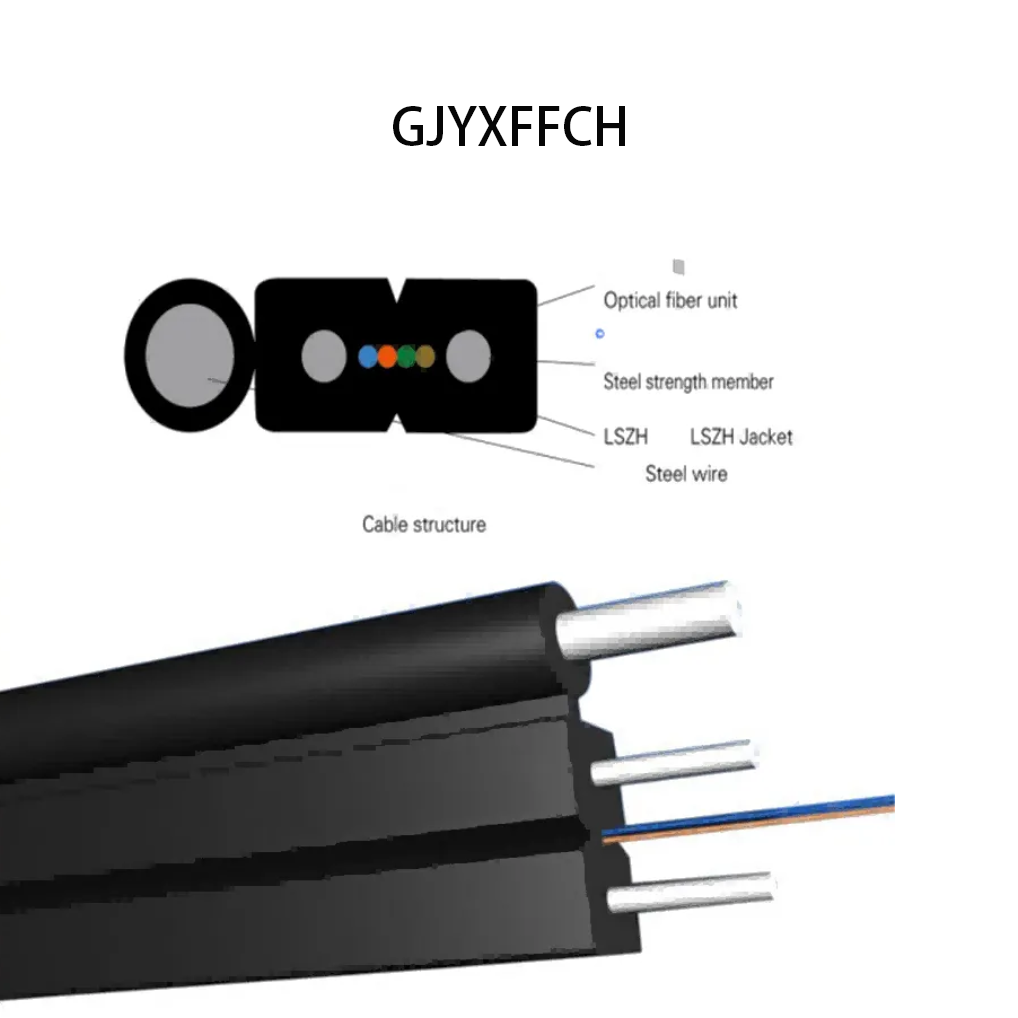

Cable Section:
Characteristics:
1. The outer diameter of the product is small. Compared with the traditional self-supporting outdoor 8-figure cable, the weight is lighter and the installation is more convenient ;
2. It has high pressure resistance and tensile resistance, and can stand a certain wind speed；
3. Specific V-shaped cable is convenient for stripping and field installation ;
4. The outer sheath is made of flame retardant material, which can meet the requirements of flame retardant grade and environmental performance of outdoor;
Application:
1. High performance optical network operating
2. High speed optical routes in buildings (FTTX)
Features:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. Inexpensive and can reduce operating costs
6. Two parallel steel wires ensure tensile strength
7. Small diameter, light weight and friendly installation
8. Long delivery length

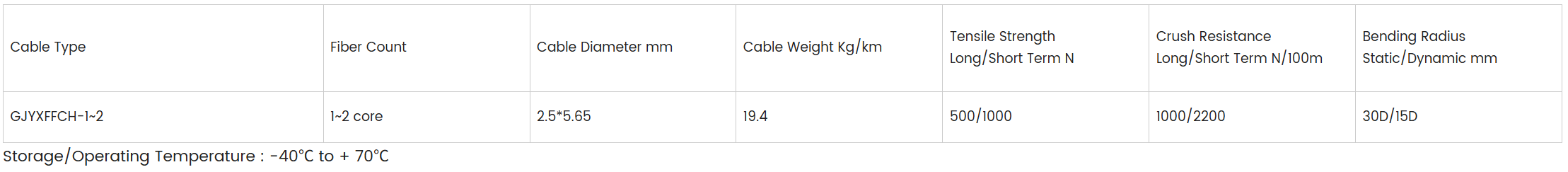

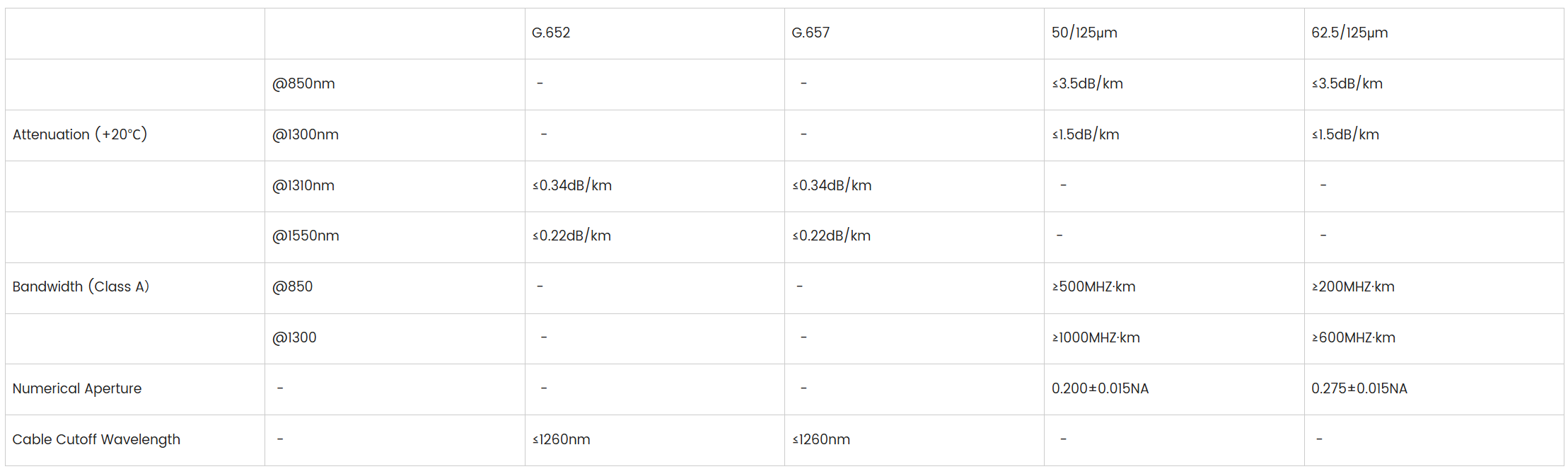

Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
*Standard length:1000m; Other length is also availabe
*The above is just advice for container loading, please consult our sales department for the specific quantity
