FTTH Drop Cable GJYXH03 2C Flat Drop Cable 1-12 Cores

FTTH Drop Cable GJYXH03   2C Flat Drop Cable 1-12 Cores

Description:

The structure of GJYXH03 optical cable takes colored fiber ( single-mode or multi-mode fiber ) as the signal transmission unit, and a metal reinforcement is placed on both sides to form a circular arc butterfly optical cable. At the same time, a metal wire is placed in the butterfly optical cable groove as the reinforcement to improve the tensile efficiency of pipeline construction. Finally, a layer of polyolefin sheath is extruded on this basis.

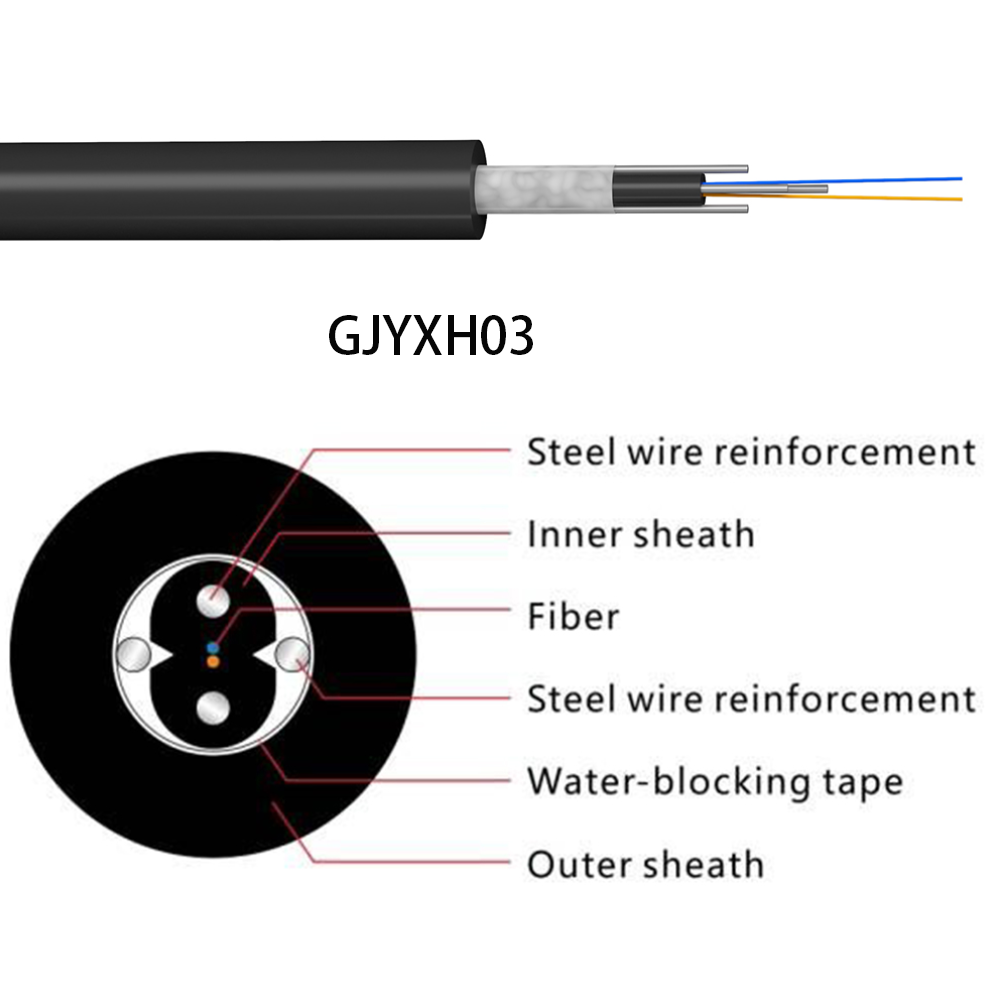

Cable Section:

Application:

Construction and maintenance of urban pipeline skin line；

Can meet a certain span rod and wire laying, compared with the ordinary self-supporting cable erection distance farther；

Products are widely used in FTTH introduction；

Features:

Compared with the traditional butterfly cable, the construction is more convenient and the friction coefficient is smaller；

Can meet the high pressure flat force and tension, and can withstand certain tension；

The specific V-shaped groove is easy to peel, and the site construction is convenient to peel；

The outer sheath adopts flame retardant materials, which can meet the requirements of flame retardant grade and environmental protection performance of outdoor optical cable.

Technical Parameters

Packing & Shipping

We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.

*Standard length:1000m; Other length is also availabe

*The above is just advice for container loading, please consult our sales department for the specific quantity
