FTTH Drop Cable GJXJH Tight Buffer Indoor Cable 1-12 Cores
FTTH cable has another name — fiber drop cable, which plays a crucial role in delivering high-speed internet directly to homes in Fiber to the Home (FTTH) networks. The fiber drop cable, specifically for this purpose, ensures a stable and fast connection between a central distribution point and the subscriber’s home. This cable type can easily transmit vast amounts of data, making it a perfect solution for modern-day internet demands.
FTTH Drop Cable GJXJH Tight Buffer Indoor Cable 1-12 Cores
Description:
The tight buffer positioned in center of cable. With parallel steel strength member at each side. The cable was struded with black or colored LSZH jacket.

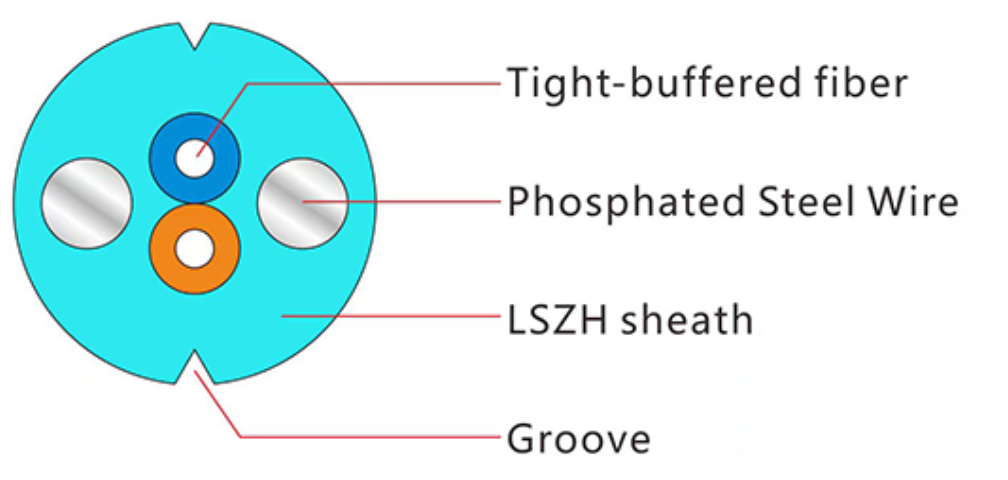

Cable Section:
Application:
Short-span electric poles are overhead, and high density building wiring and indoor wiring;
High lateral pressure resistance in temporary emergency situations;
Suitable for indoor, outdoor or indoor environment with high flame retardant grade(such as slot wiring in computer room);
The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor and outdoor environment such as computer room, complex buildings, complex and convoluted scenes and indoor wiring.
Features:
Unique bend intensive fiber makes for more widely bandwidth and stronger data transmitting
·Paralle; steel strength member for better strength tensile and protecting the fiber
·Simple cable design,light weight and useful.
·Special tube filling compound ensure a critical protection of fiber.
·Single steel wire or stranded steel wires together with the strength member , ensure good tensile properties of the fiber cable;
·Unique groove design, easy stripping, good for junction, installation and protection
·LSZH cable jacket of environmental friendly

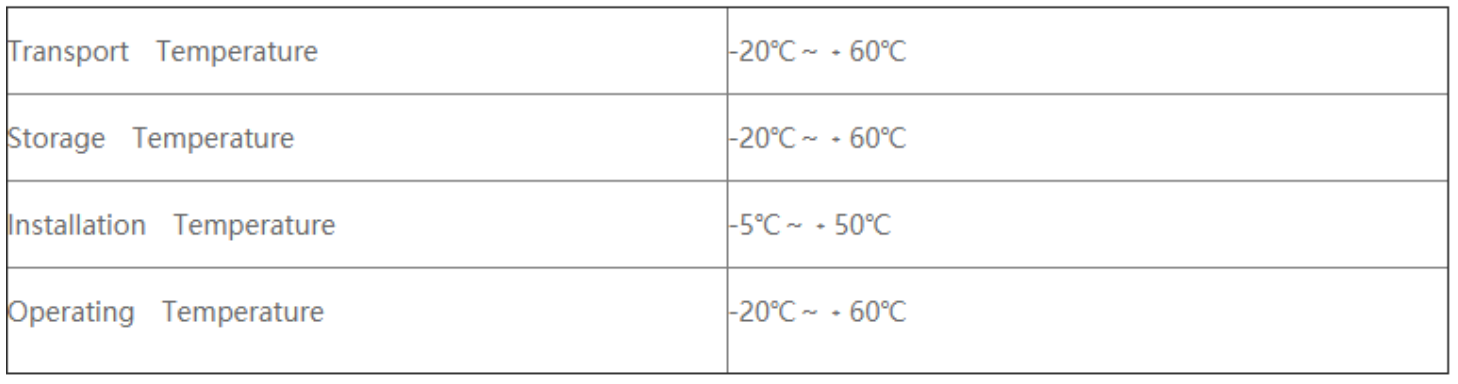

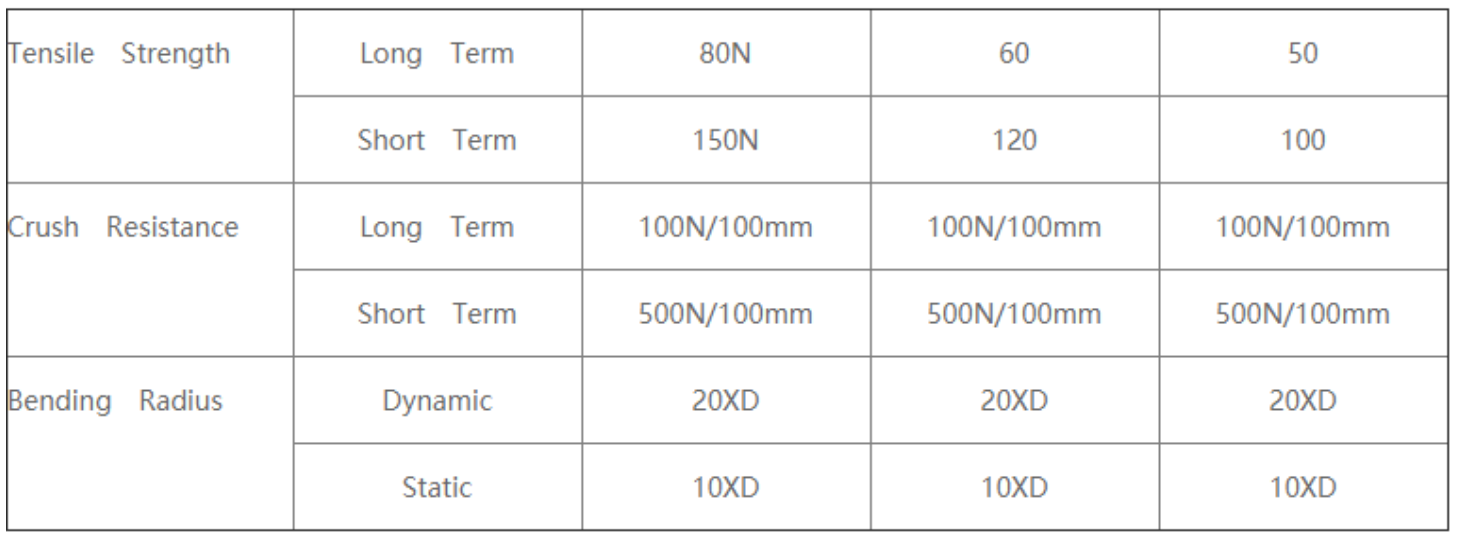

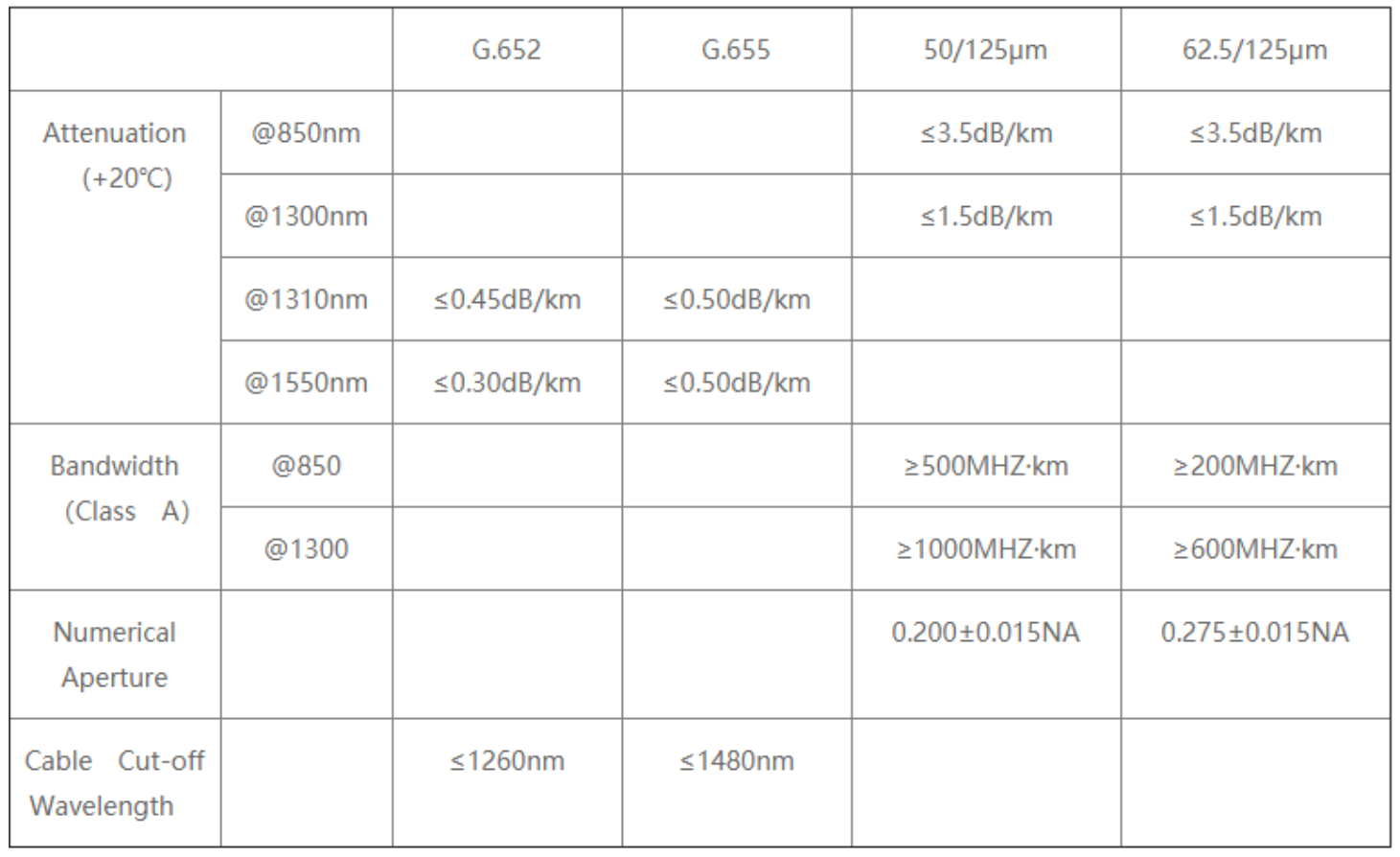

Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
*Standard length:1000m; Other length is also availabe
*The above is just advice for container loading, please consult our sales department for the specific quantity
