FTTH Drop Cable GYFXTBY Flat All Dielectric Fiber Optic Cable 1-12 Cores

FTTH Drop Cable GYFXTBY Flat All Dielectric Fiber Optic Cable 1-12 Cores

Description:

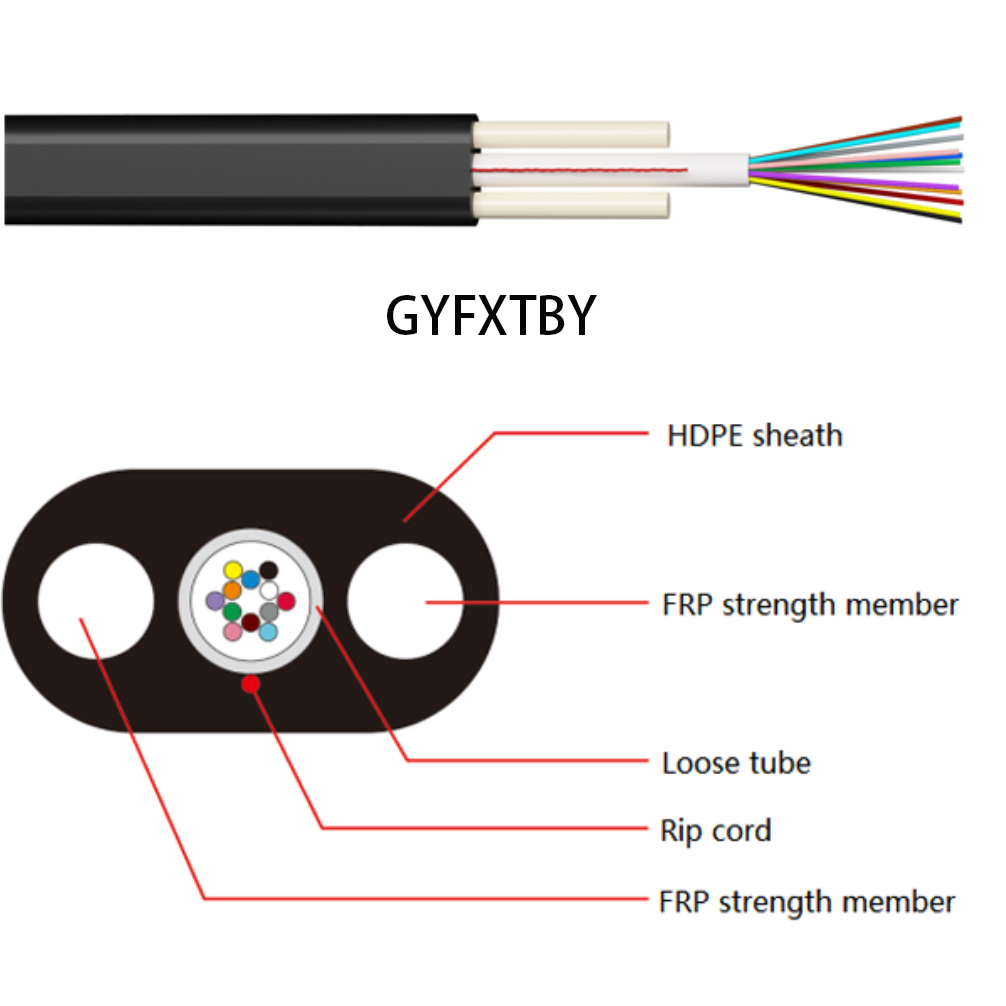

 GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250 μm colored fibers ( single-mode or multi-mode fibers ) embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

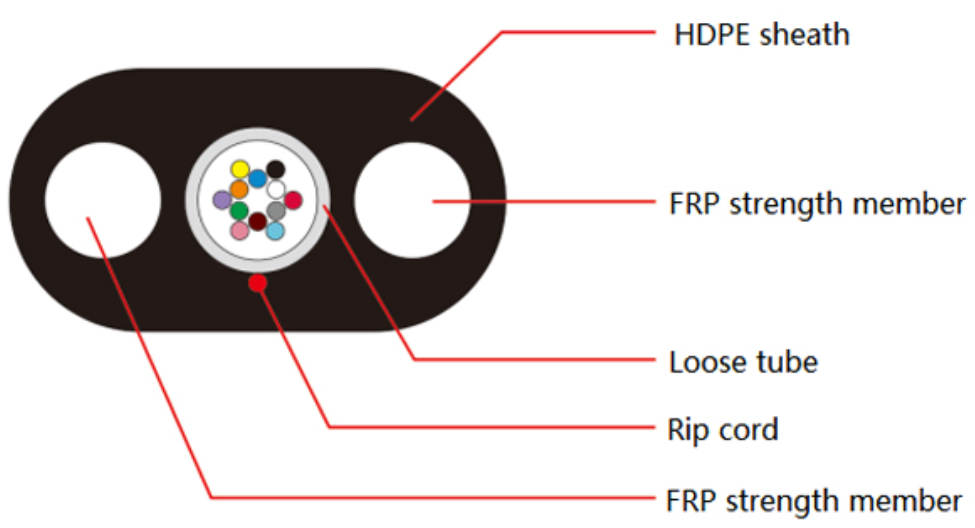

Cable Section:

Application:

End of the household access, the agricultural network lightning distribution area overhead ;

Indoor and outdoor wiring in open areas.

Features:

Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;

PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber ;

Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;

Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages ;

Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon ;

Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency ;

It has the advantages of corrosion resistance, UV protection and environmental protection.

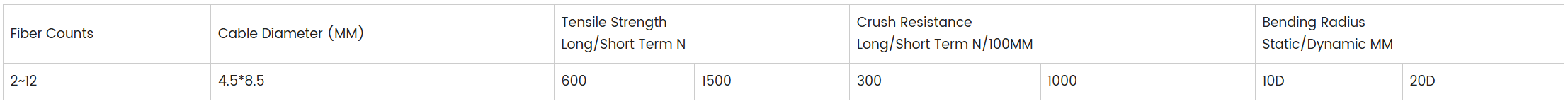

Technical Parameters

Packing & Shipping

We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.

*Standard length:1000m; Other length is also availabe

*The above is just advice for container loading, please consult our sales department for the specific quantity
