FTTH Drop Cable GYXTC8KH Self-Support 1-12 Cores
FTTH cable has another name — fiber drop cable, which plays a crucial role in delivering high-speed internet directly to homes in Fiber to the Home (FTTH) networks. The fiber drop cable, specifically for this purpose, ensures a stable and fast connection between a central distribution point and the subscriber’s home. This cable type can easily transmit vast amounts of data, making it a perfect solution for modern-day internet demands.
FTTH Drop Cable GYXTC8KH Self-Support 1-12 Cores
Description:

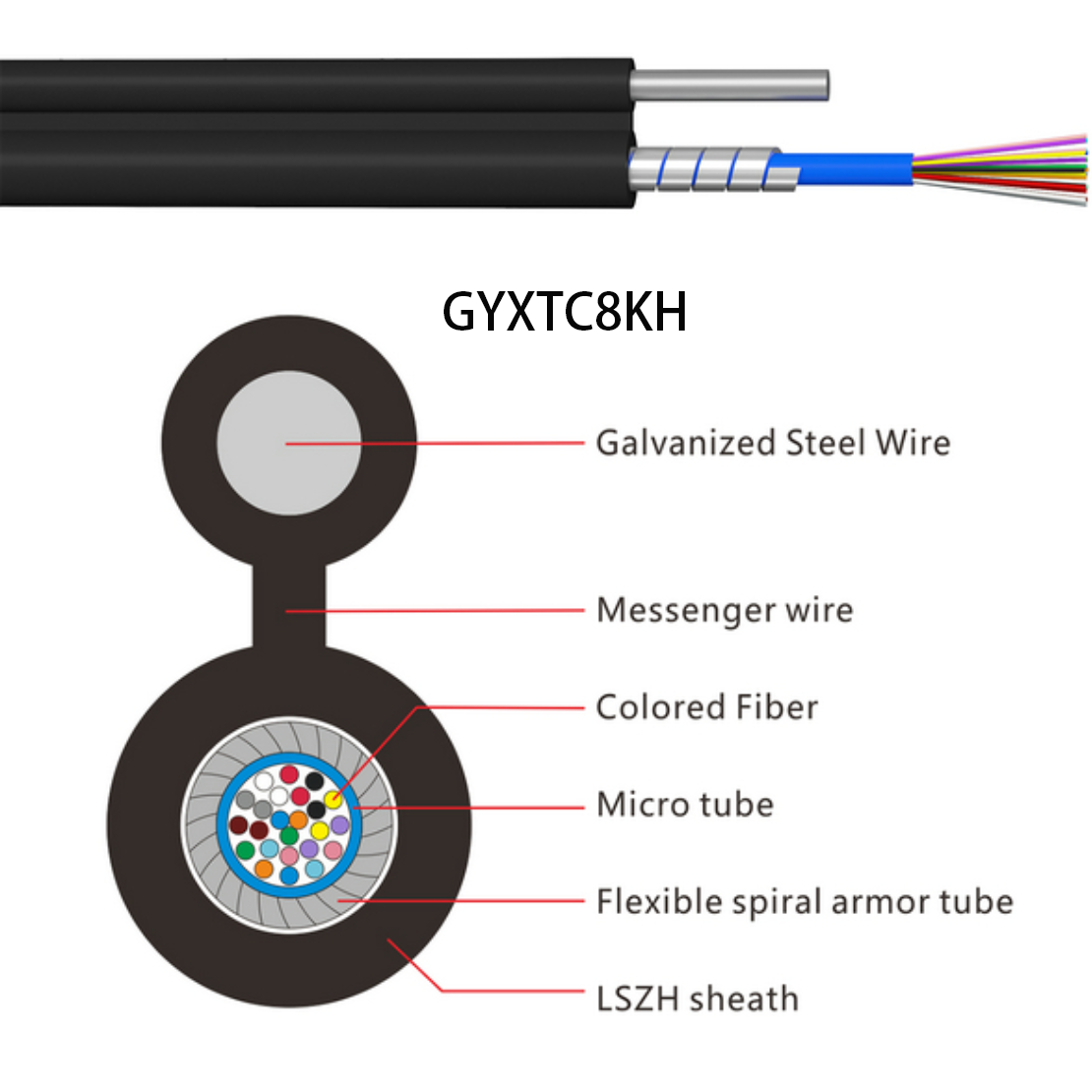

GYXTC8KH fiber optic cable is to put a number of 250μm colored fibers into a small size low-smoke halogen-free microtube, outer spiral microtube is armored with a stainless steel wire flexible armored protective layer, and spiral tube is in the center of the cable; Also, the self-supporting part is reinforced with corrosion resistant galvanized steel wire, and then extrude low-smoke halogen-free flame retardant material (or PE) into a figure eight structure cable.

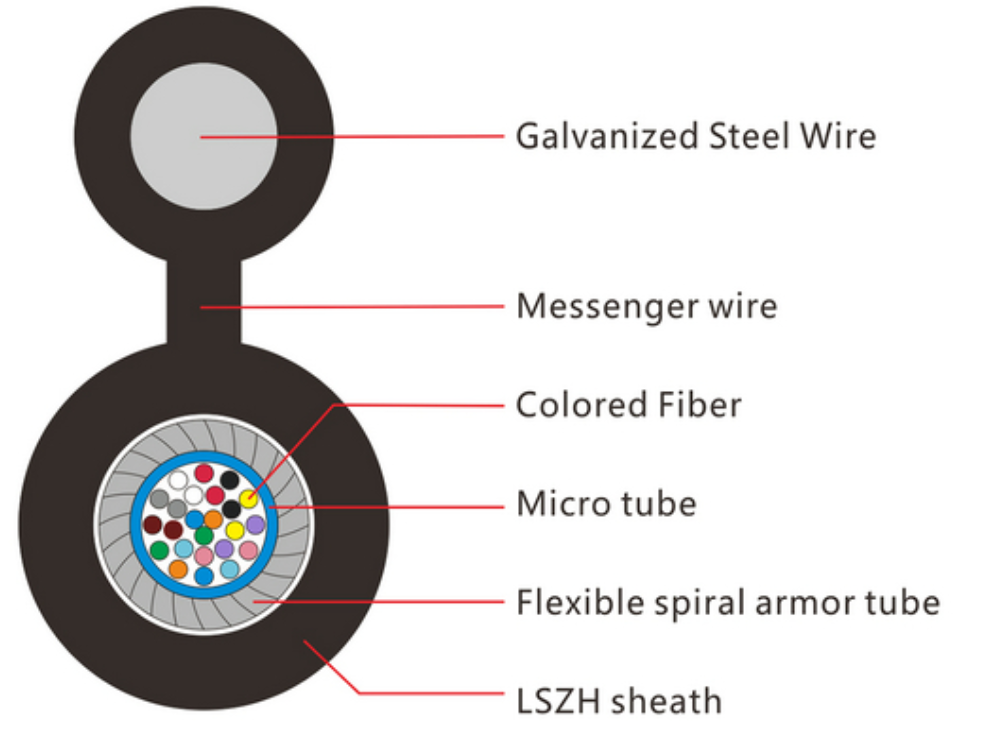

Cable Section:
Application:
Short-span electric poles are overhead, and high density building wiring and indoor wiring;
High lateral pressure resistance in temporary emergency situations;
Suitable for indoor, outdoor or indoor environment with high flame retardant grade(such as slot wiring in computer room);
The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor and outdoor environment such as computer room, complex buildings, complex and convoluted scenes and indoor wiring.
Features:
The product has miniaturized structure. Compared with ordinary butterfly optical cable, this product has high core density, which can well meet the requirements of multi-port introduction into the home;
It can be applied to mountain forest areas where a certain span of electric poles is laid overhead: Has corrosion resistance, high flame resistant , UV protection and other advantages;
Self-contained round lifting structure, excellent tensile resistance and flexible performance;
Flexible wiring for terminal access, suitable for complex and convoluted scenes; It also has good rat-proof and side-pressure resistance.
Easy to peel, pinch and melt, environmental protection, no paste, efficient continuity and other advantages;

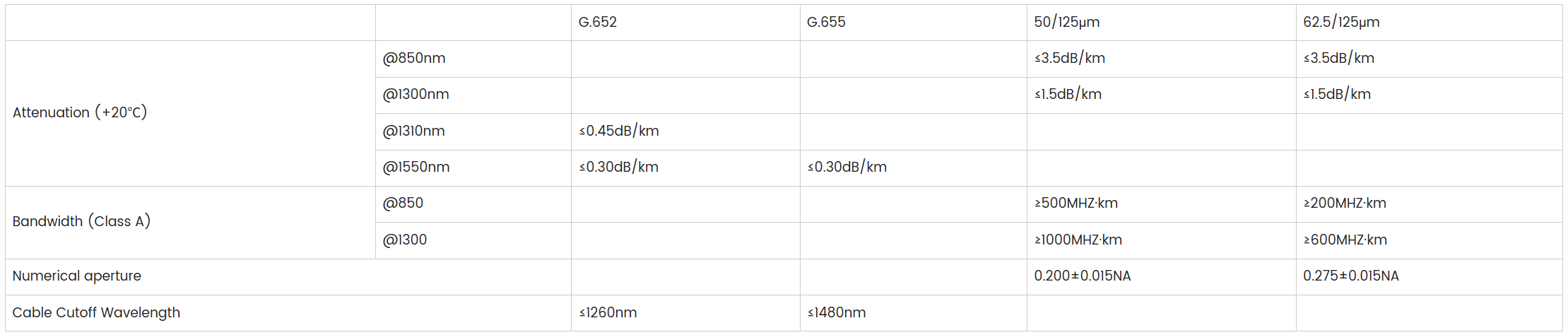

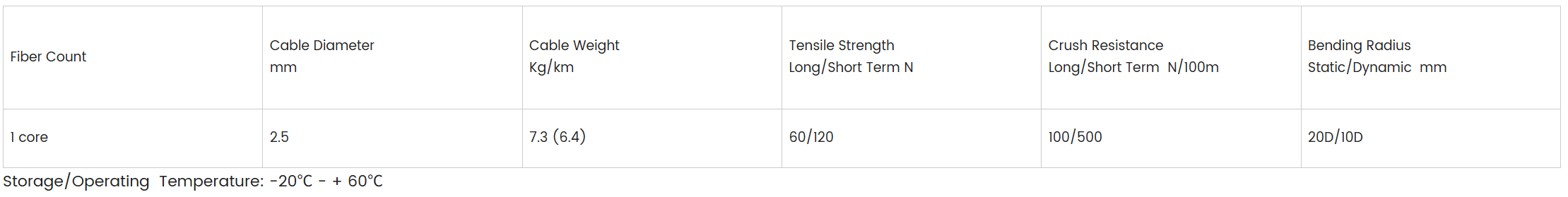

Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
*Standard length:1000m; Other length is also availabe
*The above is just advice for container loading, please consult our sales department for the specific quantity
