Description:

The GJFFJH ( V ) fiber optical cable is composed of ф250 μm natural color fiber ( single-mode or multi-mode fiber ) and aramid yarn. The thermoplastic material is extruded outside into a ф900 μm semi-loose structure, and then the aramid yarn is uniformly distributed outside the optical unit, and the PVC ( LSZH ) sheath is extruded.

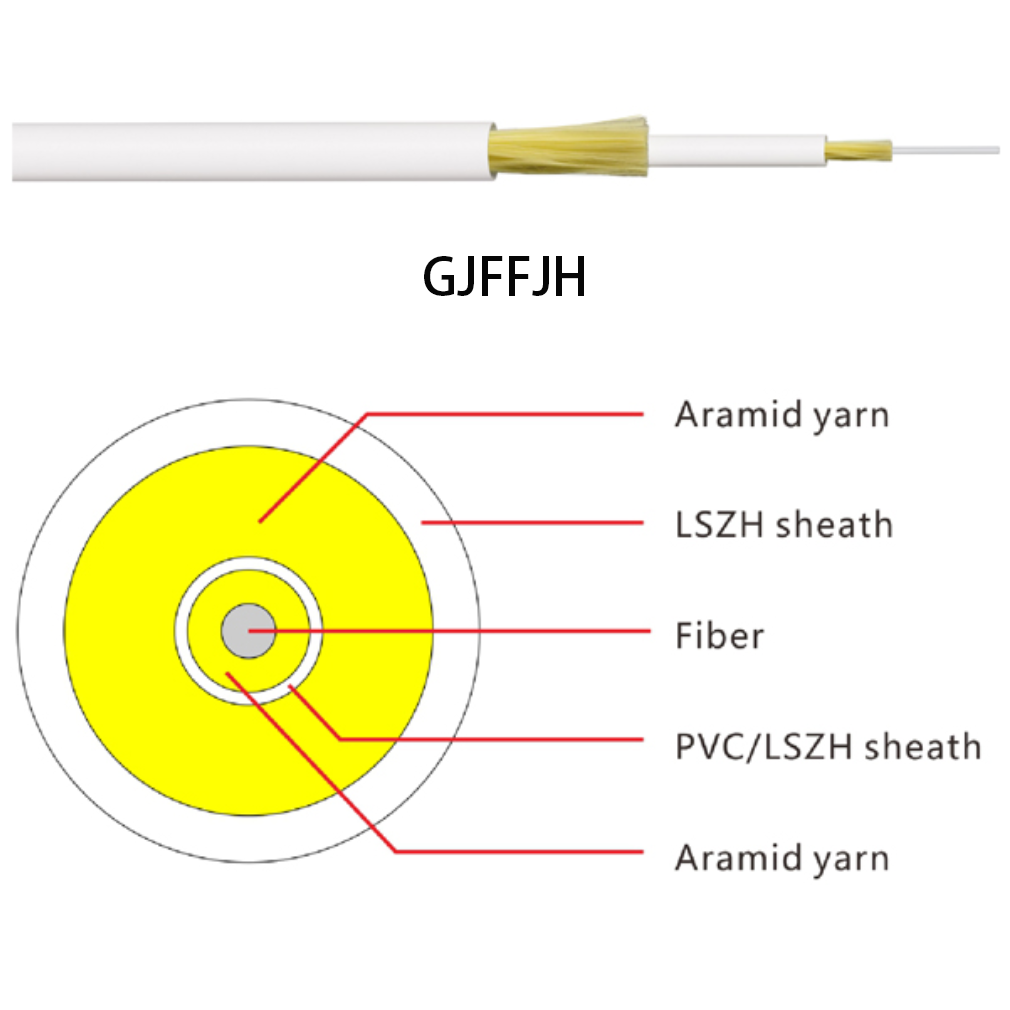

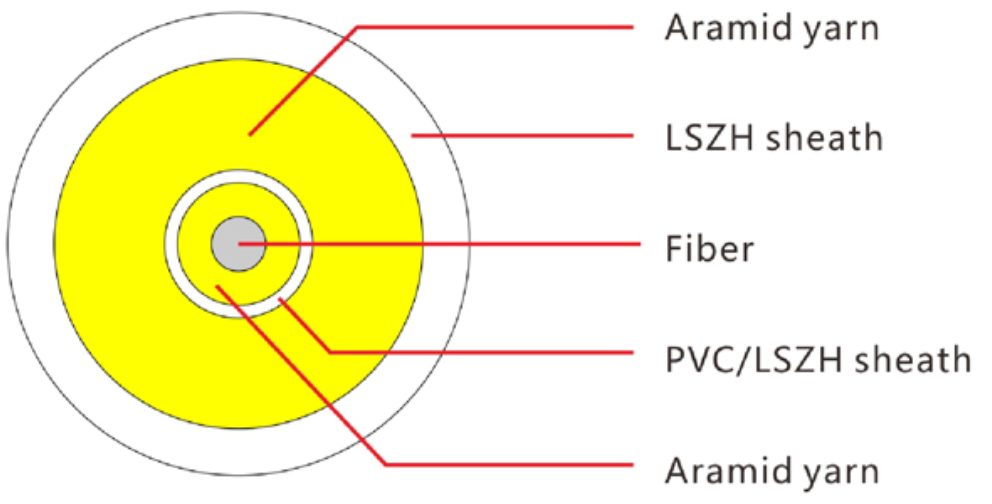

Cable Section:

Application:

·Integration, Operator Data Service Center Equipment Interconnection

·Jumper, tail fiber and indoor wiring.

Features:

·Single core optical unit contains high strength aramid yarn, the unit tube has good tensile resistance, good bend performance and high flexibility.

·The optical unit is easy to peel and connect. Compared with the traditional tight tube structure, the stripping procedure is removed and the outer sheath can be ripped by hand. The operation is simple and quick.

·The optical unit adopts semi-loose tube and fully dry structure, and there is no ointment in the tube, which is friendly to environmental and can shorten the continuous cleaning time;

·It contains evenly coated aramid yarn to fully ensure that the longitudinal tensile effect of the fiber is excellent;

·Good flame retardant performance, widely suitable for integrators, carriers and network providers server center equipment; anti-retardant and Self-extinguishing;

·Has corrosion resistance, UV protection, environmental protection and other advantages;

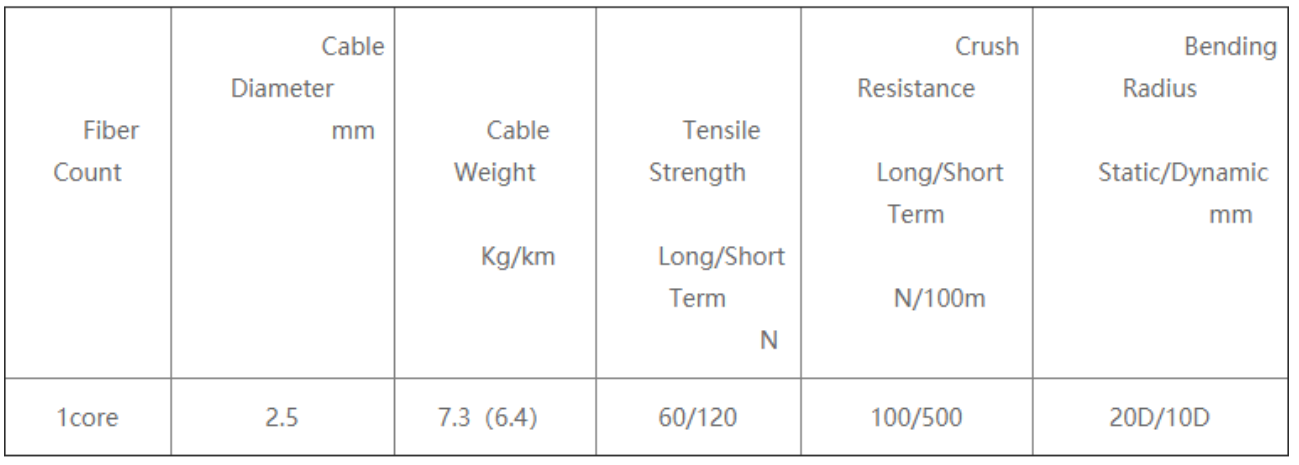

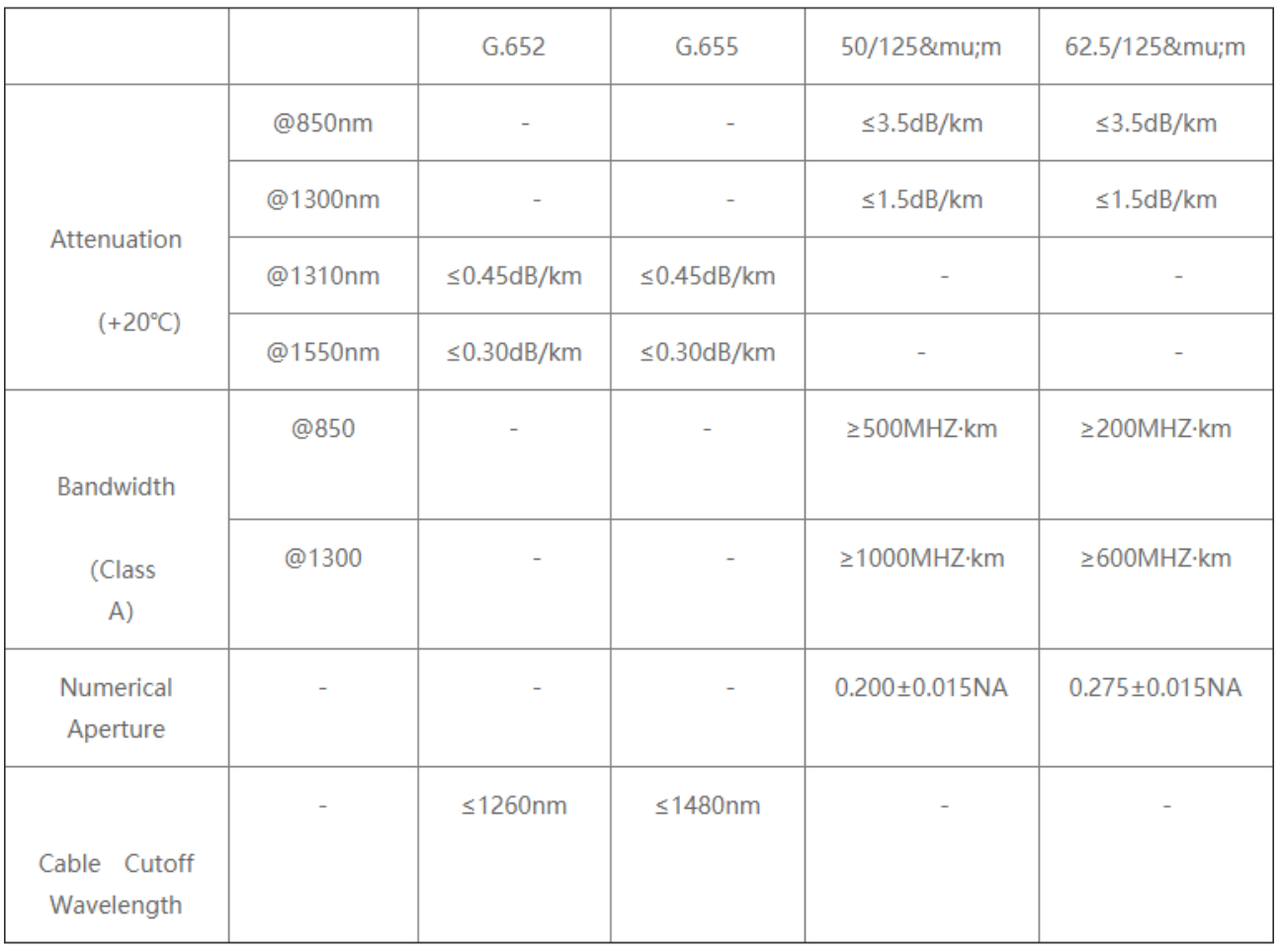

Technical Parameters

Packing & Shipping

We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.

*Standard length:1000m; Other length is also availabe

*The above is just advice for container loading, please consult our sales department for the specific quantity
