FTTH Drop Cable GJYXHA Bow-type Optical Fiber Duct Cable 1-12 Cores
Description:
The GJYXHA cable structure uses colored optical fiber ( single mode or multimode fiber ) as the signal transmission unit, and a metal reinforcement is placed on both sides to form an arc butterfly cable. At the same time, a metal steel wire is placed in the butterfly cable slot as the reinforcement element to improve the tensile efficiency of pipeline construction, and the aluminum strip shielding layer is installed for moisture proof. Finally, a layer of polyolefin sheath was extruded on this basis.
FTTH Drop Cable GJYXHA Bow-type Optical Fiber Duct Cable 1-12 Cores
Description:
The GJYXHA cable structure uses colored optical fiber ( single mode or multimode fiber ) as the signal transmission unit, and a metal reinforcement is placed on both sides to form an arc butterfly cable. At the same time, a metal steel wire is placed in the butterfly cable slot as the reinforcement element to improve the tensile efficiency of pipeline construction, and the aluminum strip shielding layer is installed for moisture proof. Finally, a layer of polyolefin sheath was extruded on this basis.

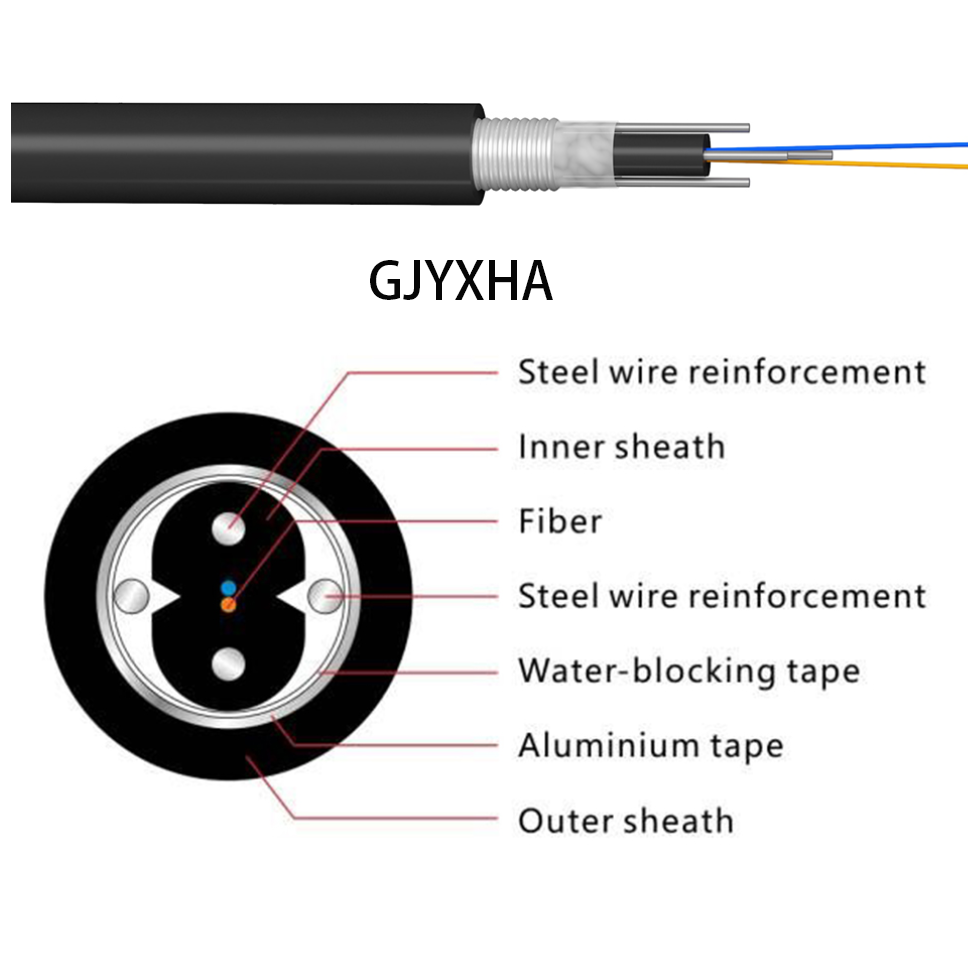

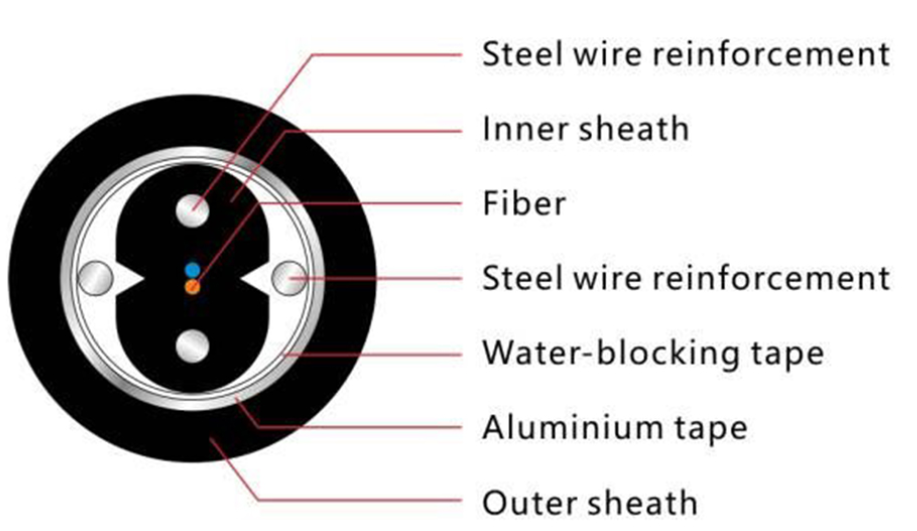

Cable Section:
Application:
Construction and maintenance of urban pipeline skin line；
Can meet a certain span rod and wire laying, compared with the ordinary self-supporting cable erection distance farther；
Products are widely used in FTTH introduction；
Features:
Compared with the traditional butterfly optical cable, it has stronger tensile resistance, more convenient construction, and smaller friction coefficient；
It has high pressure flat force and tension resistance, and can withstand certain tension；
Armoured aluminum shielding layer with good moisture proof effect；
The specific V-shaped groove is easy to peel, and the site construction is convenient to peel；

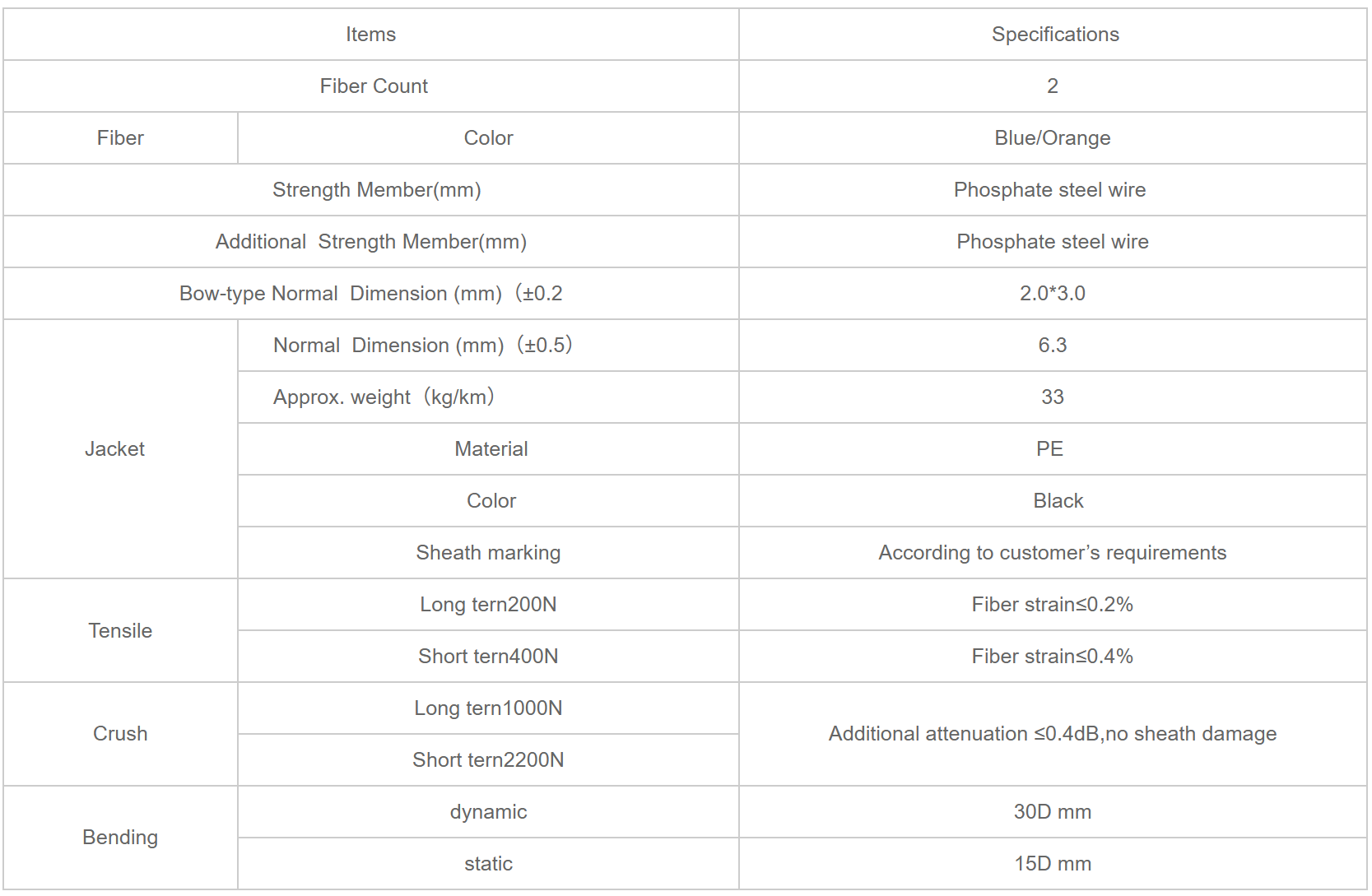

Technical Parameters
Packing & Shipping
We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.
Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.
Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.
Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.
*Standard length:1000m; Other length is also availabe
*The above is just advice for container loading, please consult our sales department for the specific quantity
