FTTH Drop Cable GJYXFJW Double Jacketed Cable 1-12 Cores

FTTH Drop Cable GJYXFJW Double jacketed cable 1-12 Cores

Description:

 The GJYXFJW cable is composed of a ф900 μm tight-buffered optical fiber ( single-mode or multi-mode fiber ) coated with aramid yarn, suspended in a LSZH sub-unit, and dragged aramid  yarn on the outer layer of the unit structure. Two parallel non-metallic reinforcements are placed on both sides ( two symmetrical rip cords are laid in the vertical direction for stripping ) ,then extruded polyethylene sheath to form cable.

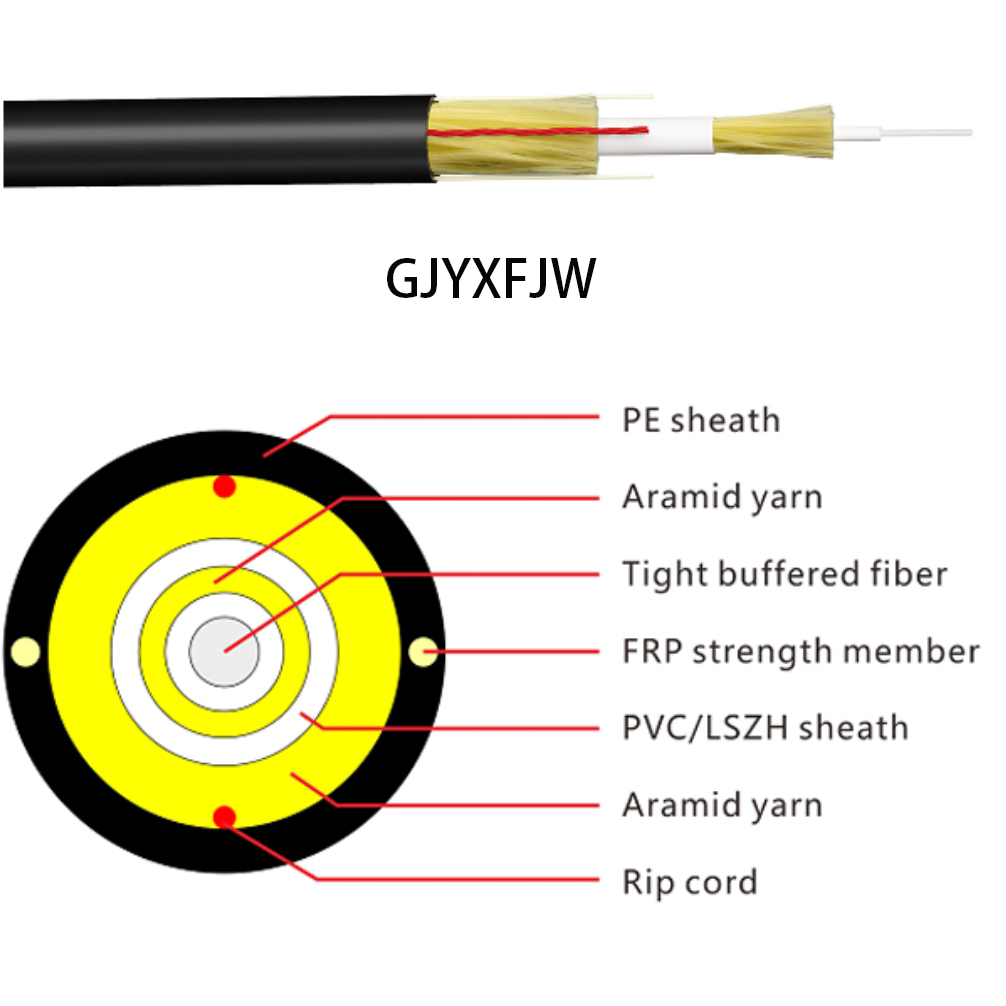

Cable Section:

Application:

 · Use of existing pipeline resources, especially for access  network and home width upgrades.

 · Can meet a certain span rod and wire laying,  compared with the traditional self-supporting cable, lightning protection and  electric shock effect is better·

 · Flexible and convenient wiring for vertical  and horizontal laying of buildings

Features:

· The product is double-jacket structure, which  plays a better anti-side pressure effect to a certain extent;

· It contains multiple strands of high  strength aramid yarn, with good bending performance and soft effect; and has  excellent tensile resistance;

· The outer diameter of the product is small, which  can well satisfy the wiring of narrow space of pipes or grooves (flexible  wiring between indoor and outdoor ;

· Two parallel FRP ensure the tensile strength of  the cable;

· The product has two symmetrical rip cords, which  greatly improves the construction efficiency and reduces the stripping time;

· Excellent flame retardant, UV radiation resistance  and friction resistance;

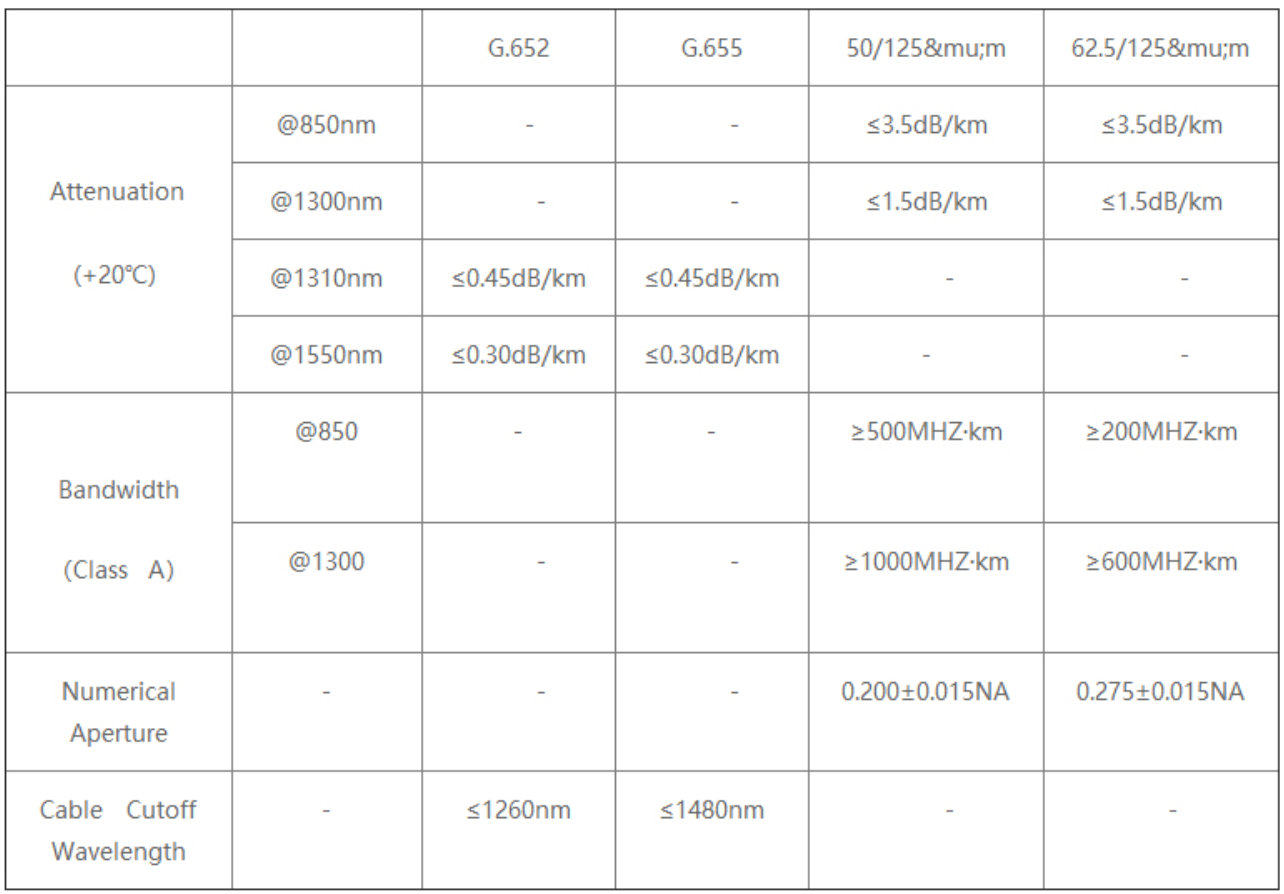

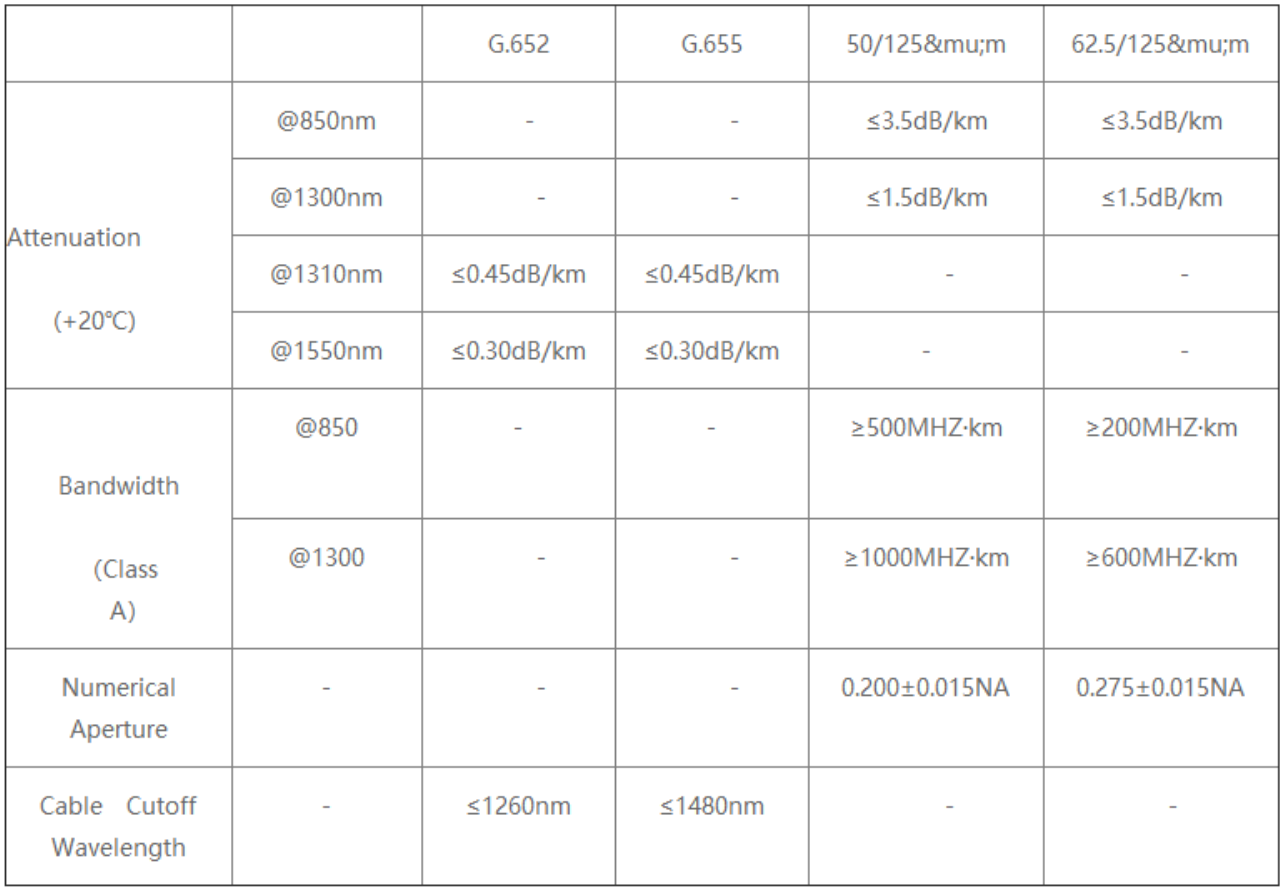

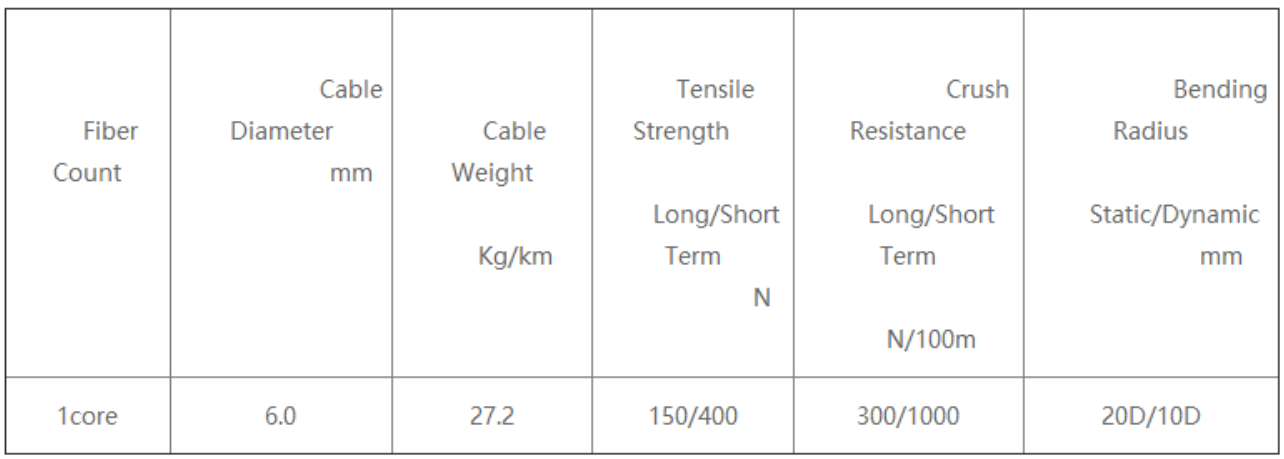

Technical Parameters

Packing & Shipping

We provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.

*Standard length:1000m; Other length is also availabe

*The above is just advice for container loading, please consult our sales department for the specific quantity
