2U Rack Mount Fiber Optic Distribution Panel, 48 Fibers SM/MM/OM3, 24 x LC UPC Duplex Adapter
Product Highlights
19-inch Standard Structure, Easy to Install

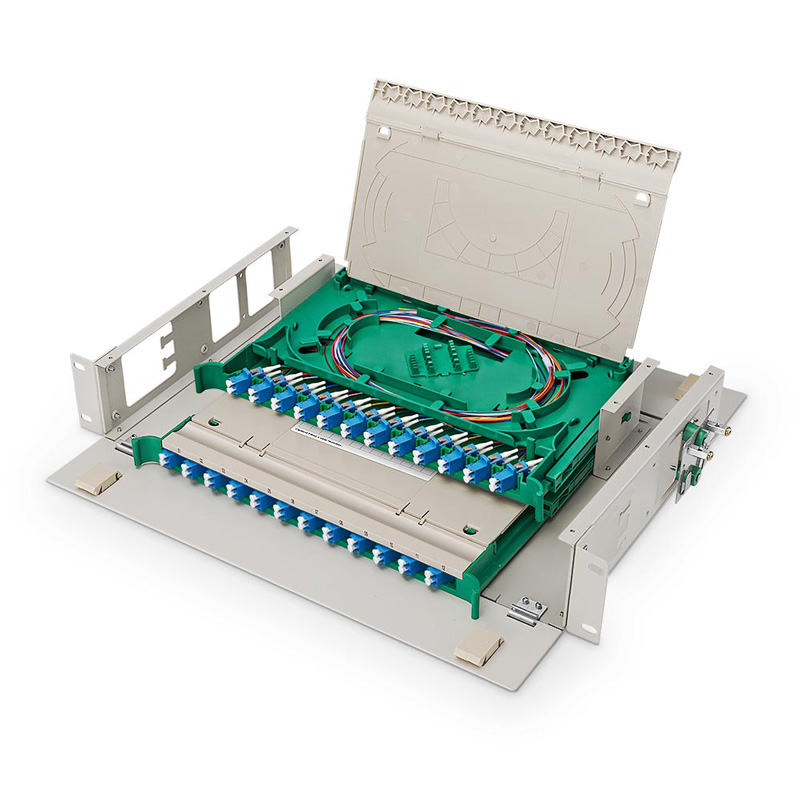

Splice Module with 24 Fibers Integrated Module, Slide-Out Design for Easy Access

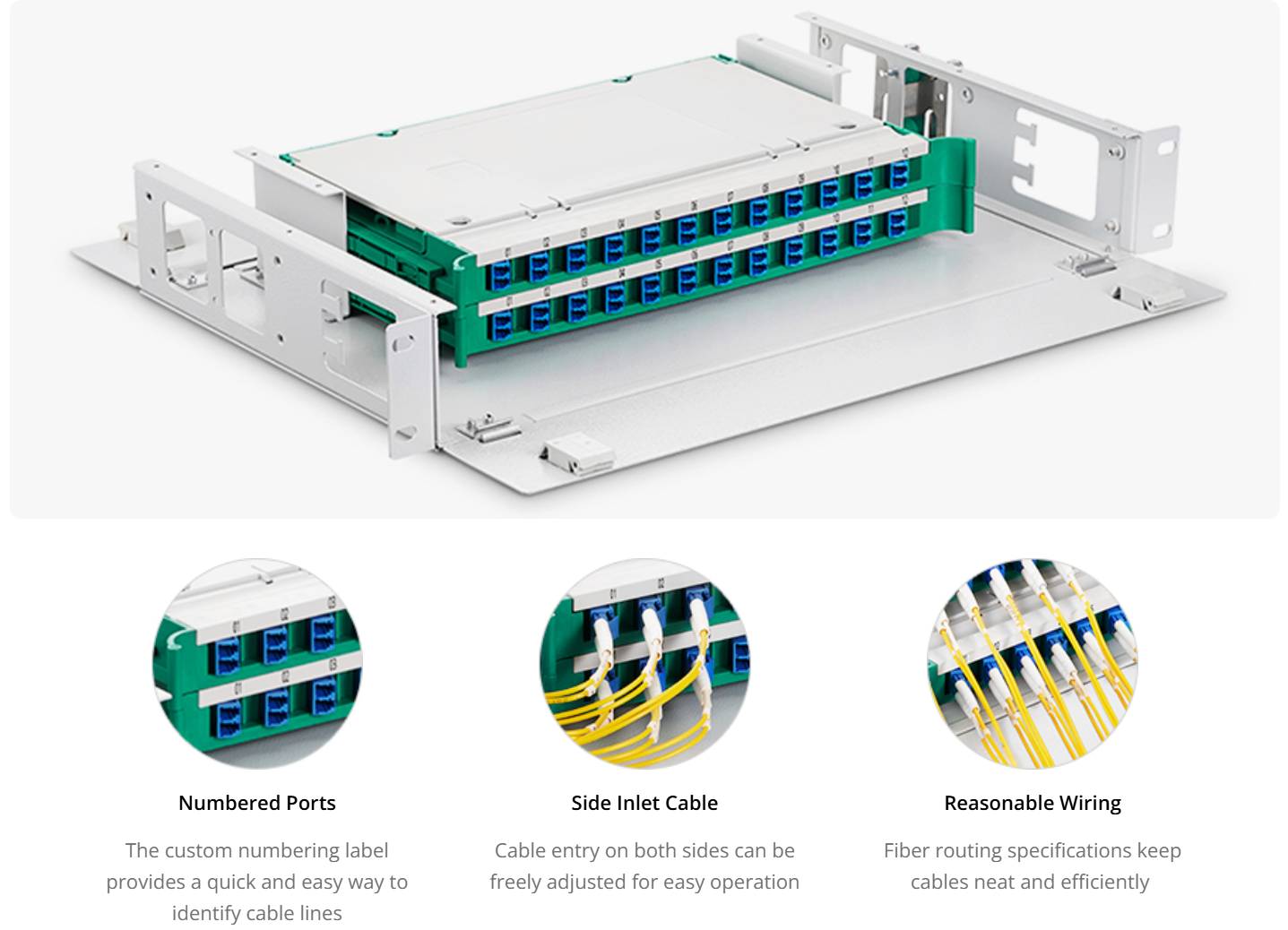

The Cables on the Left and Right Sides Can Be Freely Adjusted for Easy Operation
Designed for Use with Standard and Ribbon Fiber Cables
Clear Labeling for Precise Fiber Splicing and Distribution
2U Rack Mount Fiber Optic Distribution Panel, 48 Fibers SM/MM/OM3, 24 x LC UPC Duplex Adapter
ODF series indoor optical fibre distribution box is used in the terminal access link of FTTH system,It is a device that splices, distributes, and splits optical fibres and provides protection and management of optical fibres.ODF series are standard 19 "rack mount chassis with integrated fibre optic fusion with a unit box, they are easy to install and operate, flexible, and can adjust the position by the mounting ears to meet the front, mid, and ends installation requirements,ideal for ODN deployment applications under POL network.

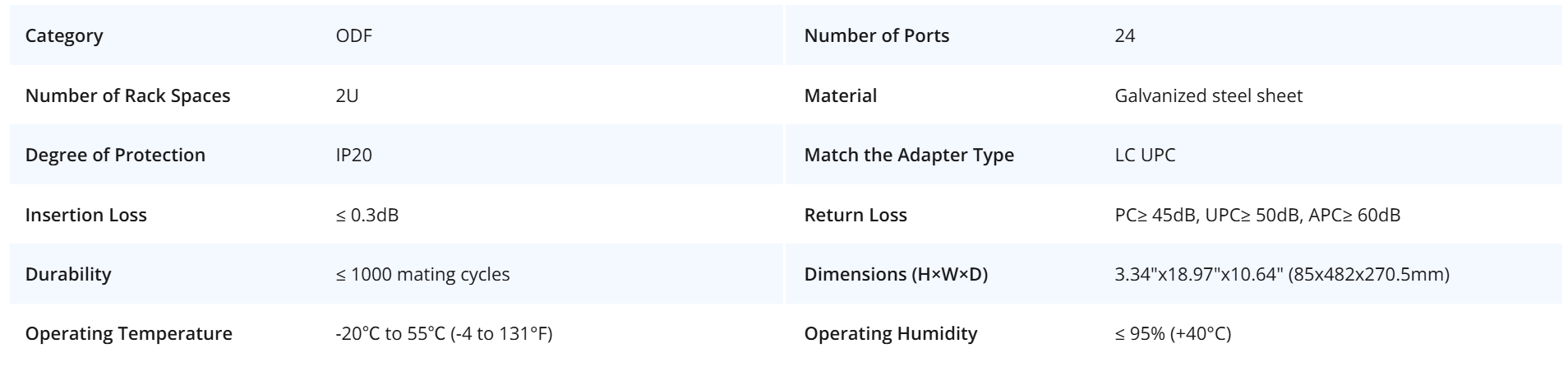

Specifications
Cleverly Designed, Sturdy and Durable
The outer shell is made of high-quality sheet metal, with good mechanical strength.The integrated welding module can be pulled out for operation, and the management is quick
19''U Standard Structure, Easy to Install
The 19'' standard cabinet installation rack is equipped with an integrated unit box for optical fibre fusion and distribution, with safe and reliable optical fibre connection.
Widely Compatible with Fiber Optic Adapters
The modular wiring unit design has strong compatibility and can install SC adapters and pigtails, which is ideal for ODN deployment under POL networks.
