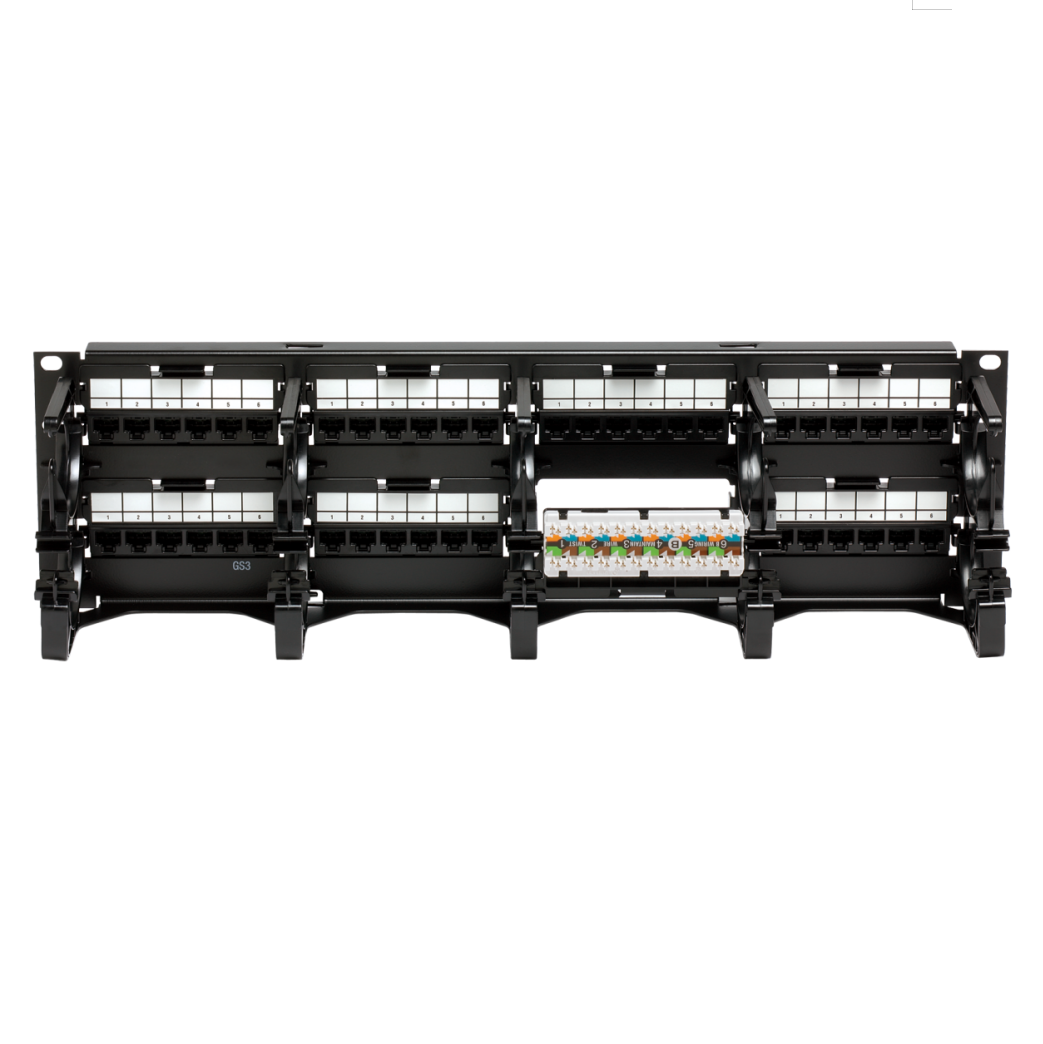

760062364 | PM-GS3-48 w/Termination Mgt. Giga SPEED XL PATCH MAX GS3 Category 6 U/UTP Copper Patch Panel, 48 Port with Termination Manager
PATCH MAX panel systems are designed for premises high speed data and voice networks. Wire terminations can be performed from the front or rear of the frame. These panels can be used for EIA-T568A or EIA-T568B wiring applications.
760062364 | PM-GS3-48 w/Termination Mgt. Giga SPEED XL PATCH MAX GS3 Category 6 U/UTP Copper Patch Panel, 48 Port with Termination Manager
PATCH MAX panel systems are designed for premises high speed data and voice networks. Wire terminations can be performed from the front or rear of the frame. These panels can be used for EIA-T568A or EIA-T568B wiring applications.
The panels use snap-in distribution modules, each with six modular jacks. Panel kits are available unpopulated
for use with separately ordered modules.
