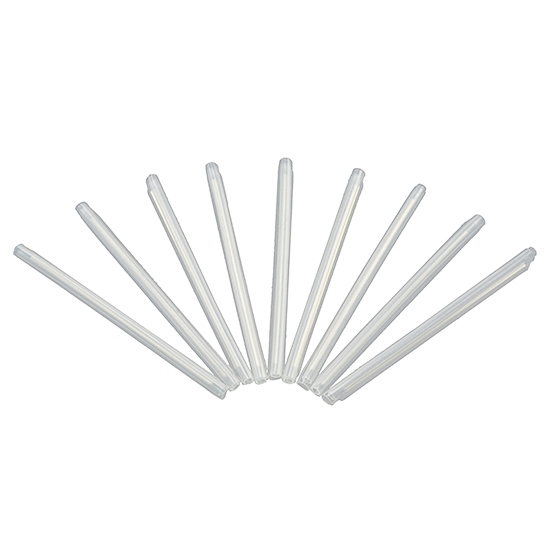

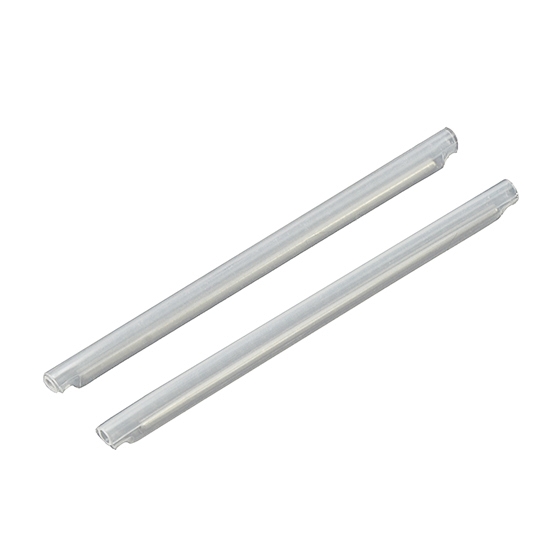

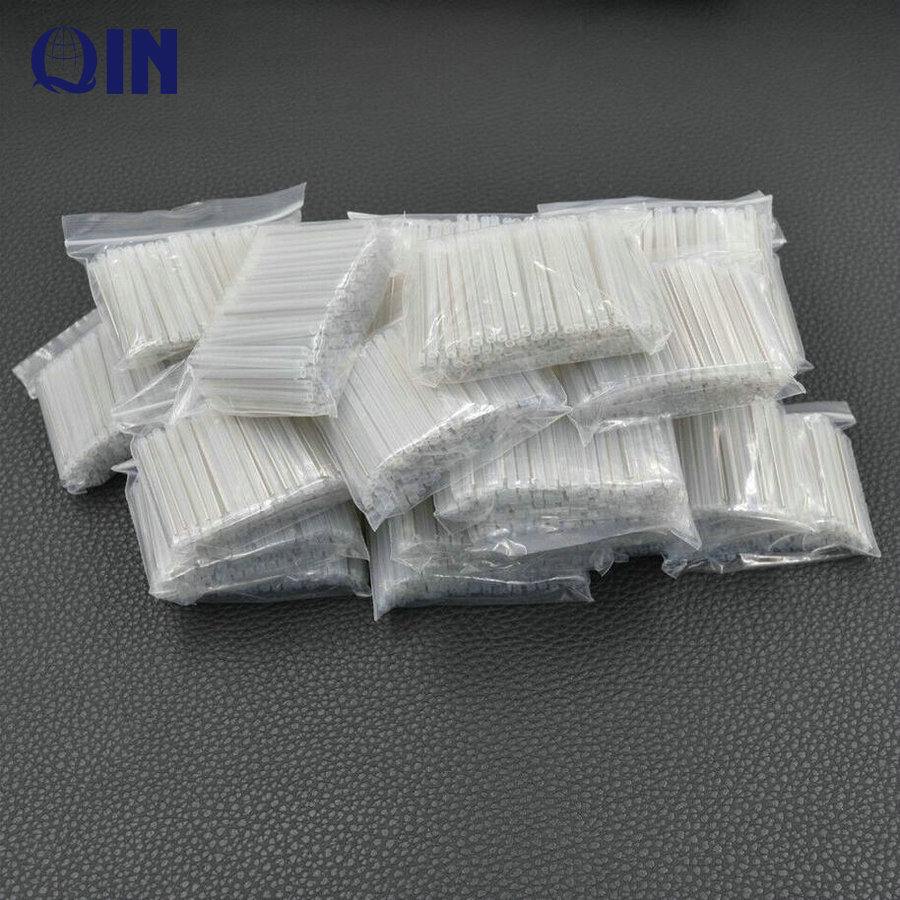

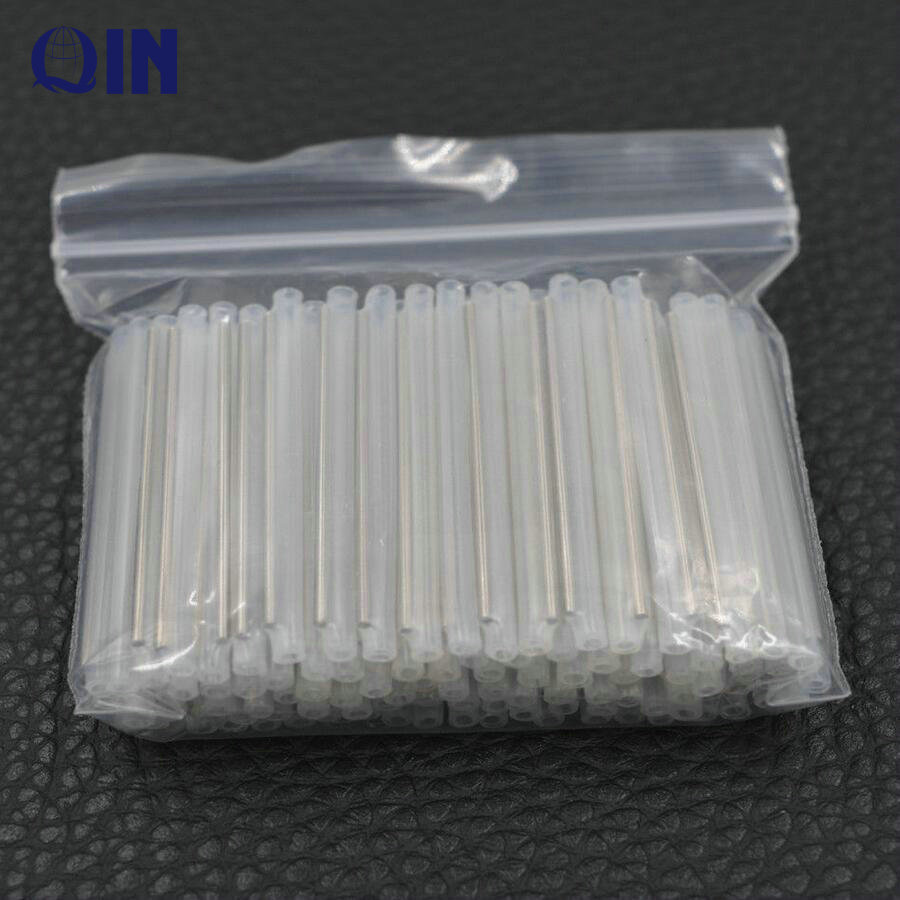

40/45/60mm Fiber Optic Splice Protection Sleeve-Single Fiber, 100pcs/pkg
Product Highlights

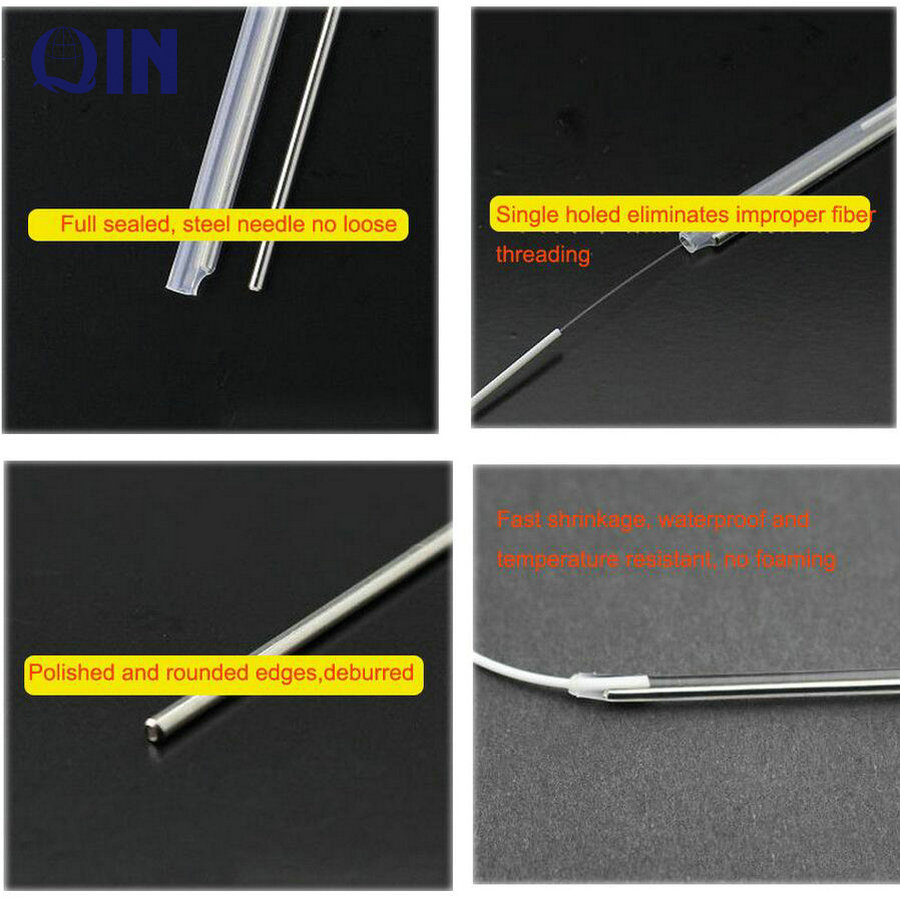

This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and Stainless steel needle. It is specifically designed for the protection of fiber optical closure.
Fiber Optic Splice Protection Sleeve-Single Fiber 1.0/1.2/1.5mmx40/45/60mm, 100pcs/pkg
This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and Stainless steel needle. It is specifically designed for the protection of fiber optical closure.
Specifications

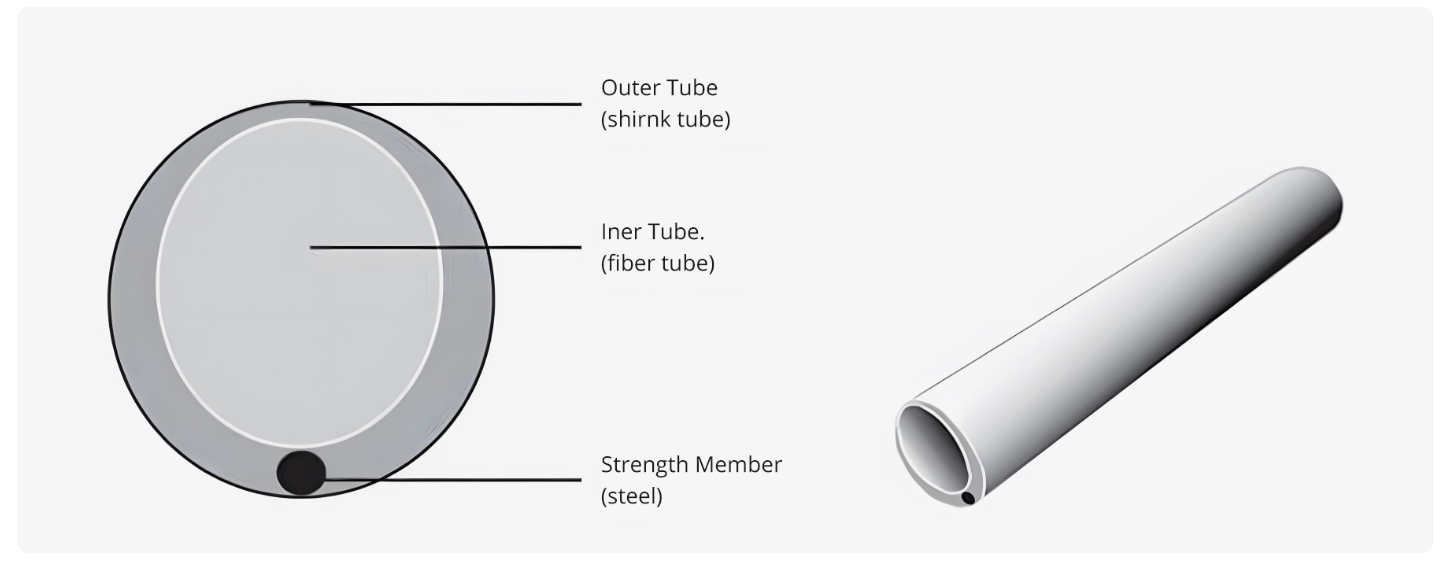

Product Structu

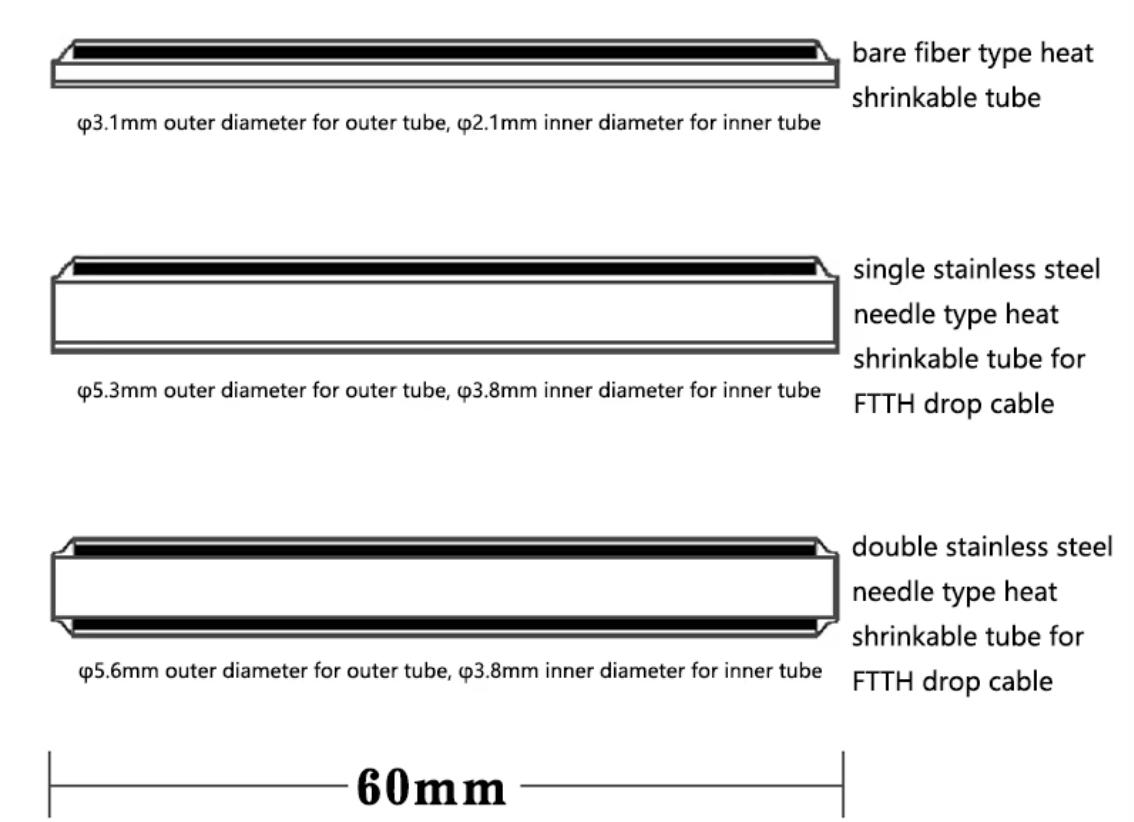

Protection Sleeves Length: 40mm, 45mm , 50mm, 55mm, 60mm,
- Protection Sleeves Diameter: φ3.55mm,
- Steel needle Diameter: φ1.2mm, φ1.5mm (Standard Single Fiber)
- Custom lengths available
- Color-coded outer tubes available
- No influence on the fiber's transmission
- Splice point protection and intensity improvement
- Easy operation and reduction of the risk of managing fiber
- External tube clearly showing the status of connection
- Airproof configuration keeping the splice point's good resistance of humidity and temperature
- Operating temperature ranging from -45℃ to 100℃
Applications:
Consist of a rod of reinforcing the splice, hot fusion tubing and cross-linked polyolefin.
To rebuild the coating of fiber to provide mechanical strength at the fusion joint area and keep optical transmission properties.

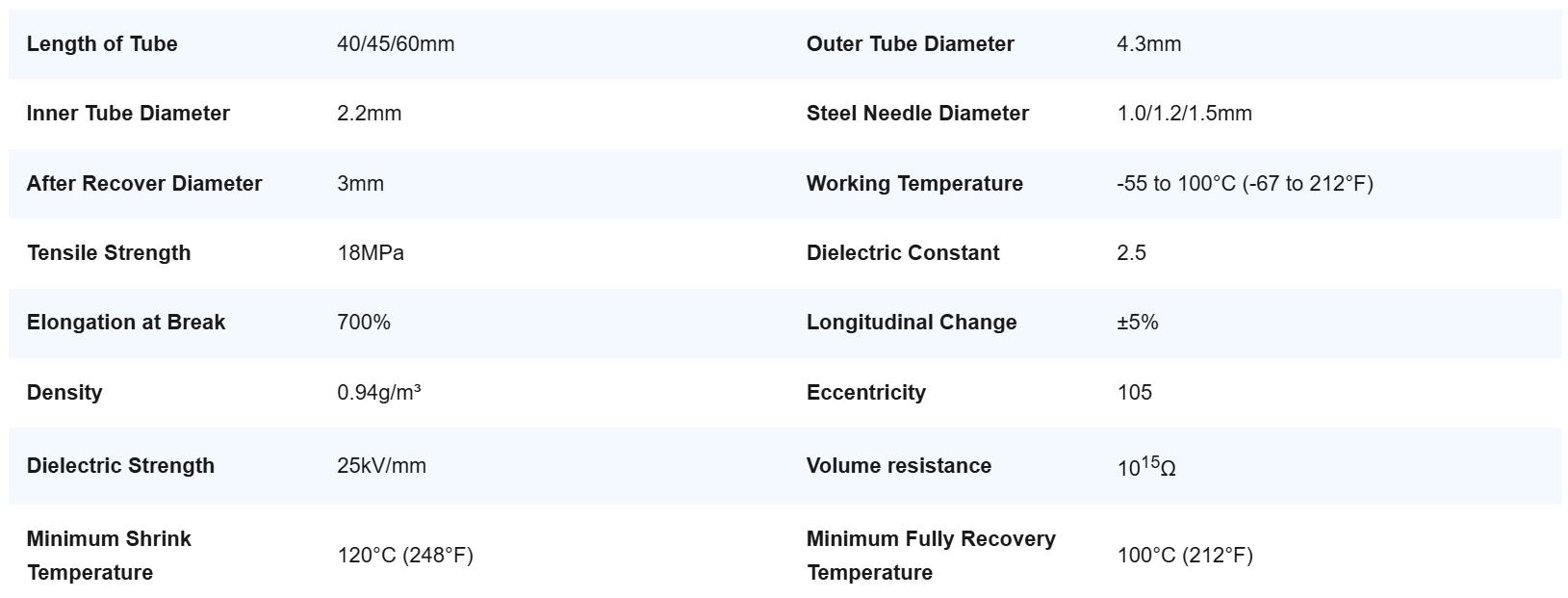

Specifications
Shrinking Temperature (°C): 110 ~ 130
Radial Shrinking Rate (%): >50
Axial Shrinking Rate (%): <10
Low Temperature Property: No crackle at -55°C lasting 4 hours
Normal Operation Temperature (°C): -55°C ~ + 135°C
Normal Operation Relative Humidity: ≤95%
Spark- over Strength (kV/mm): ≥20
Tensile Strength (Mpa): 20
Loss at -40°C: 0.03dB
Loss at +60°C RH95%: 0.02dB
