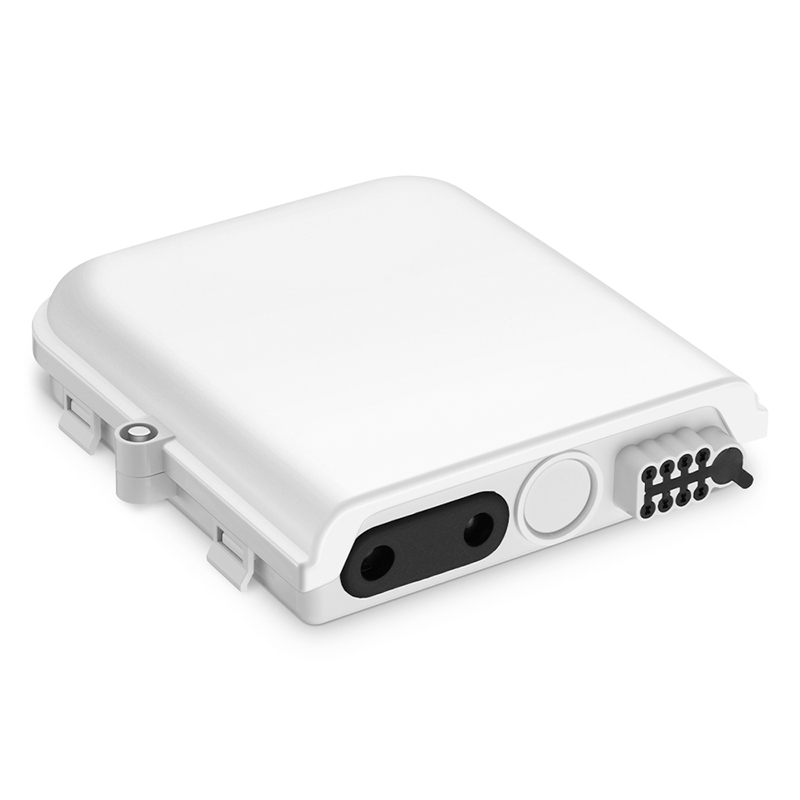

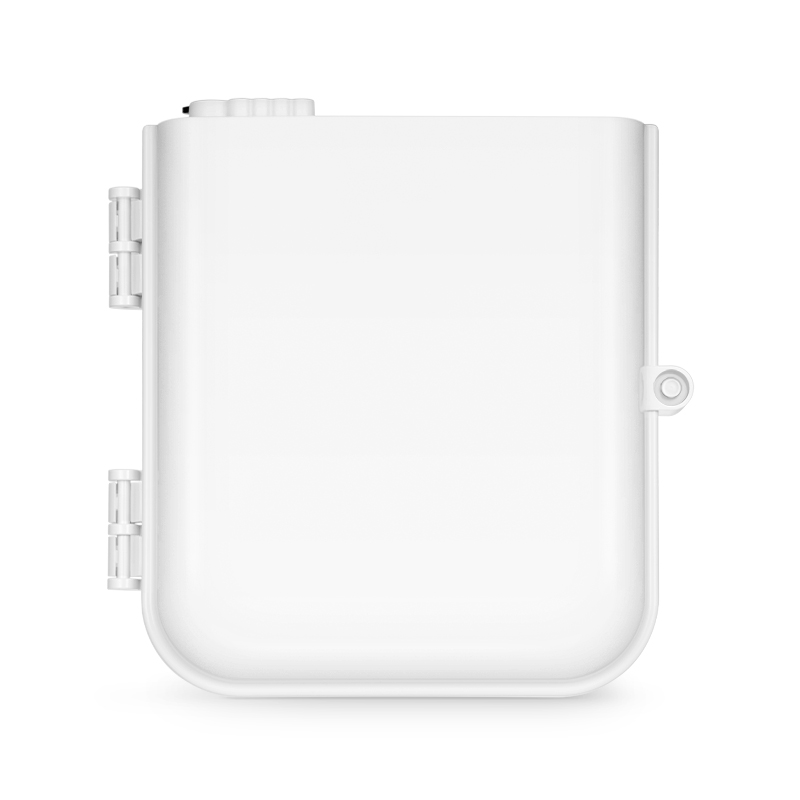

8-fibre Optic Terminal Box, SC Simplex/LC Duplex, IP55, Wall/Pole Mount, Indoor and Outdoor
Product Highlights
Meet Less Than Ф12mm Fiber Cable Diameter and 8 Figure Drop Cable Connection
8-core Splicing Tray, and The Maxmum Capacity is 8 Cores

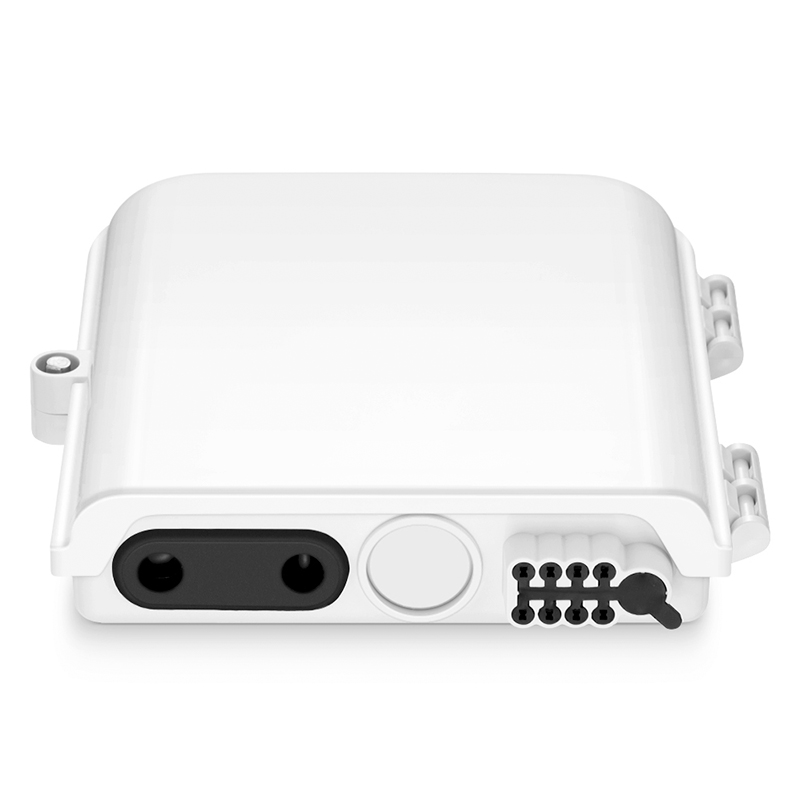

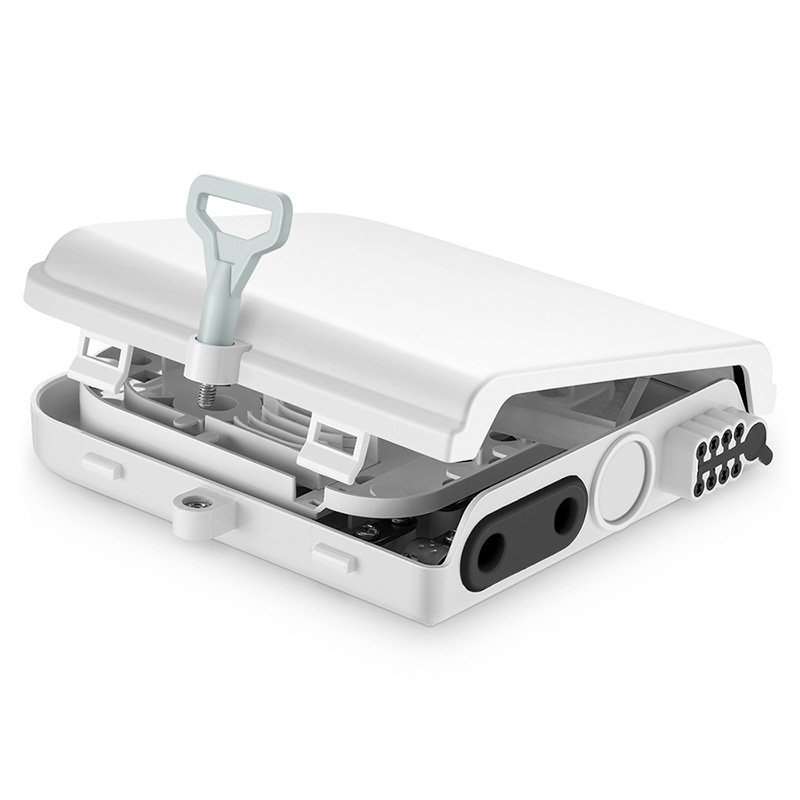

The Box Body is Mechanically Sealed, with Good Sealing Performance and Waterproof
It Supports Indoor and Outdoor Use, IP55 Protection Level
Wall-mount and Pole-mount Model
8x SC Simplex/8x LC Duplex Adapters and 1× 1:8 Mini PLC Can be Installed

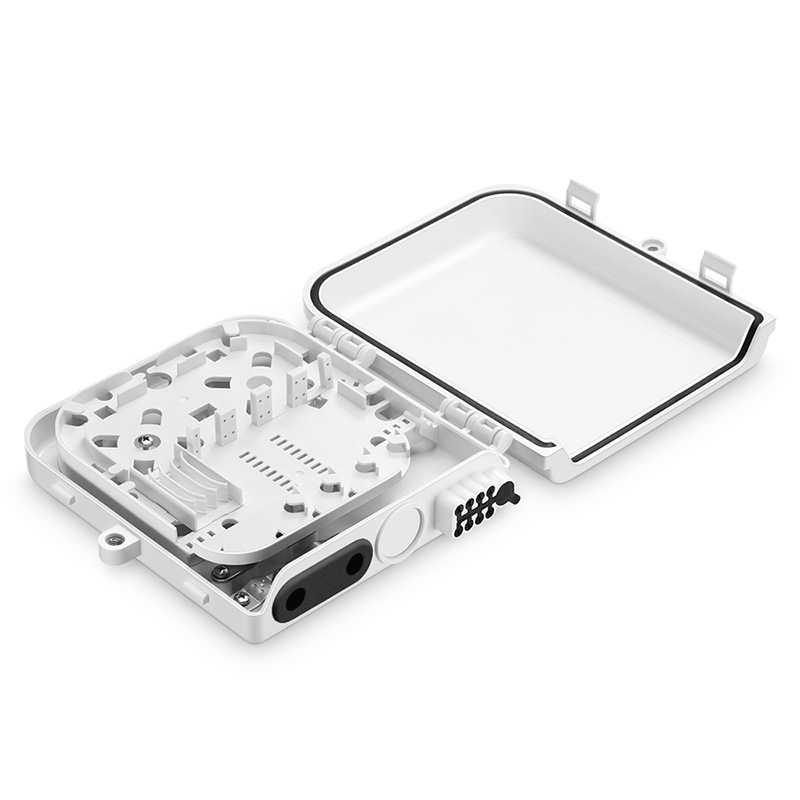

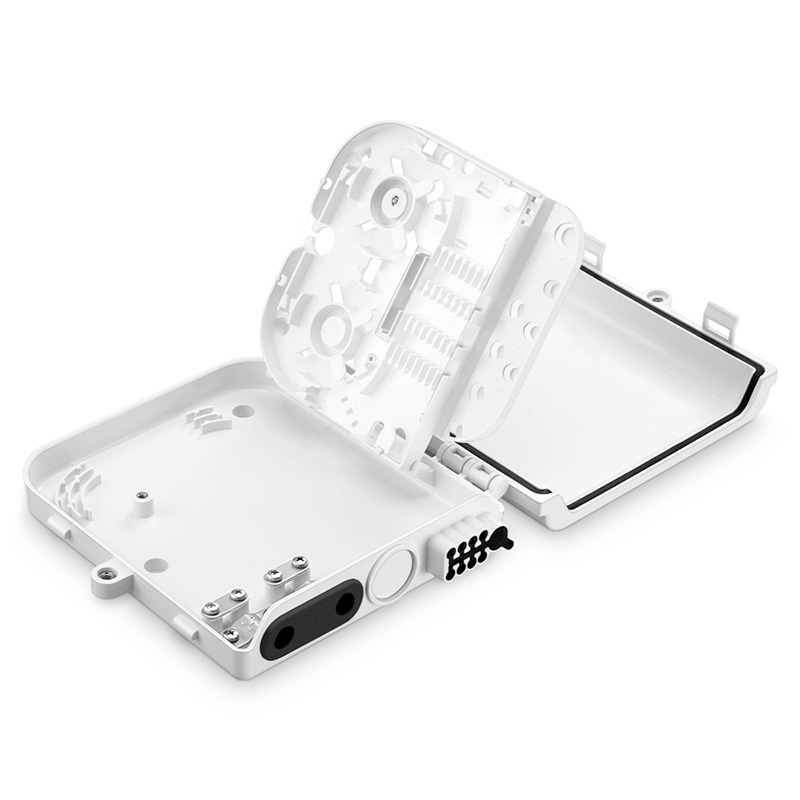

It Adopts The Combination of Fiber Disc and Flap, Which is More Practical
Supports Pulling Optical Cables, Which is Convenient and Widely Used
8-fiber Optic Terminal Box, SC Simplex/LC Duplex, IP55, Wall/Pole Mount, Indoor and Outdoor
FTB-SC8-WOPA type fiber optic terminal box is designed for FTTx application, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space. Simple with light weight in design, special snap clip close system coinvent for user, protecting the fiber to pigtail splice.

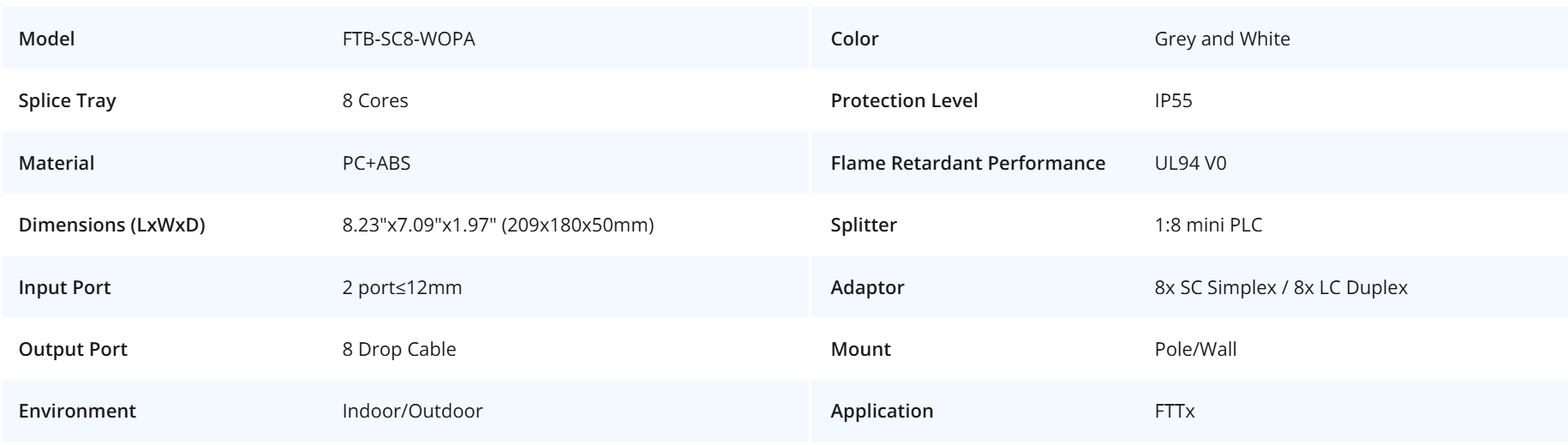

Specifications

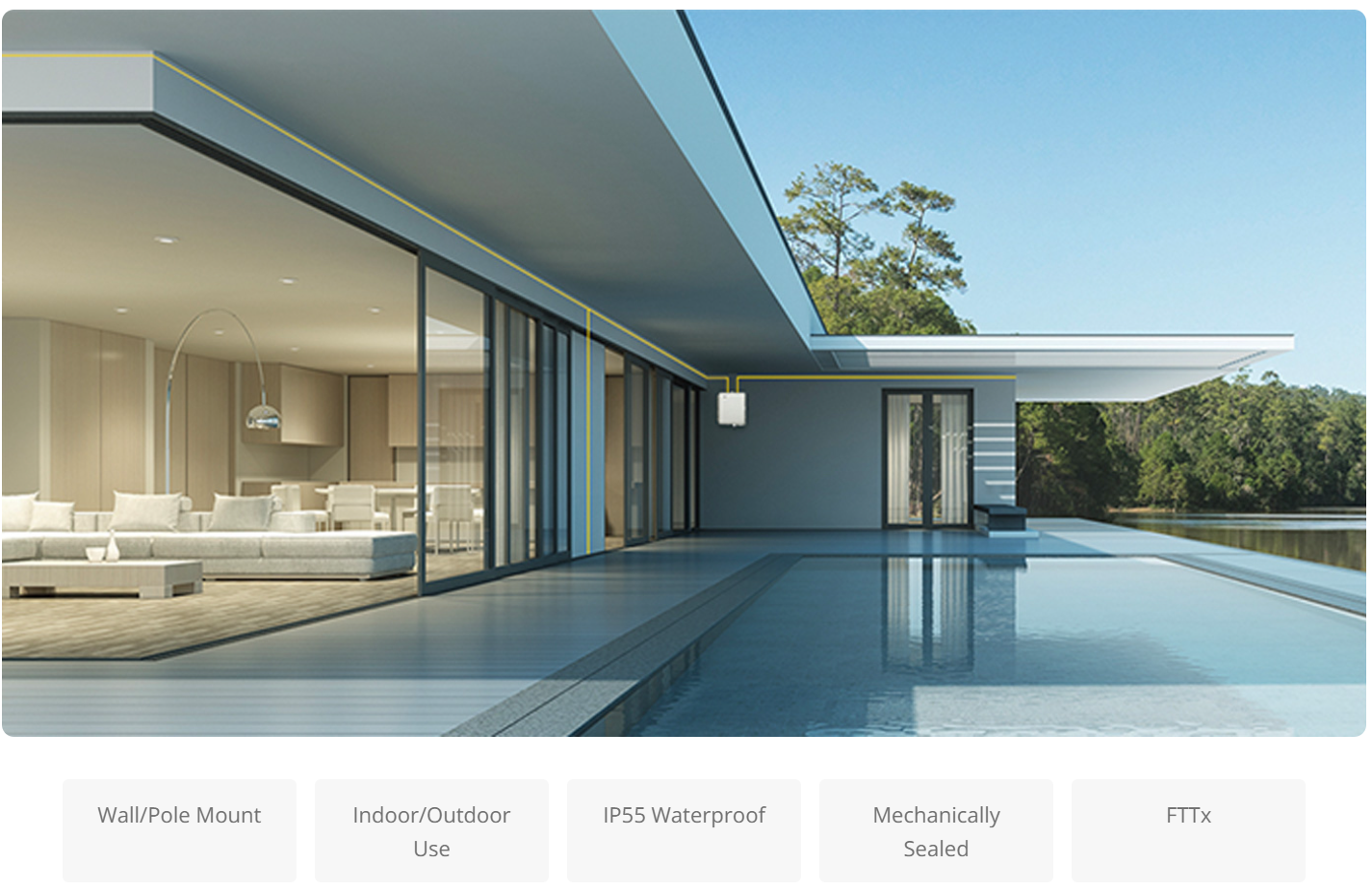

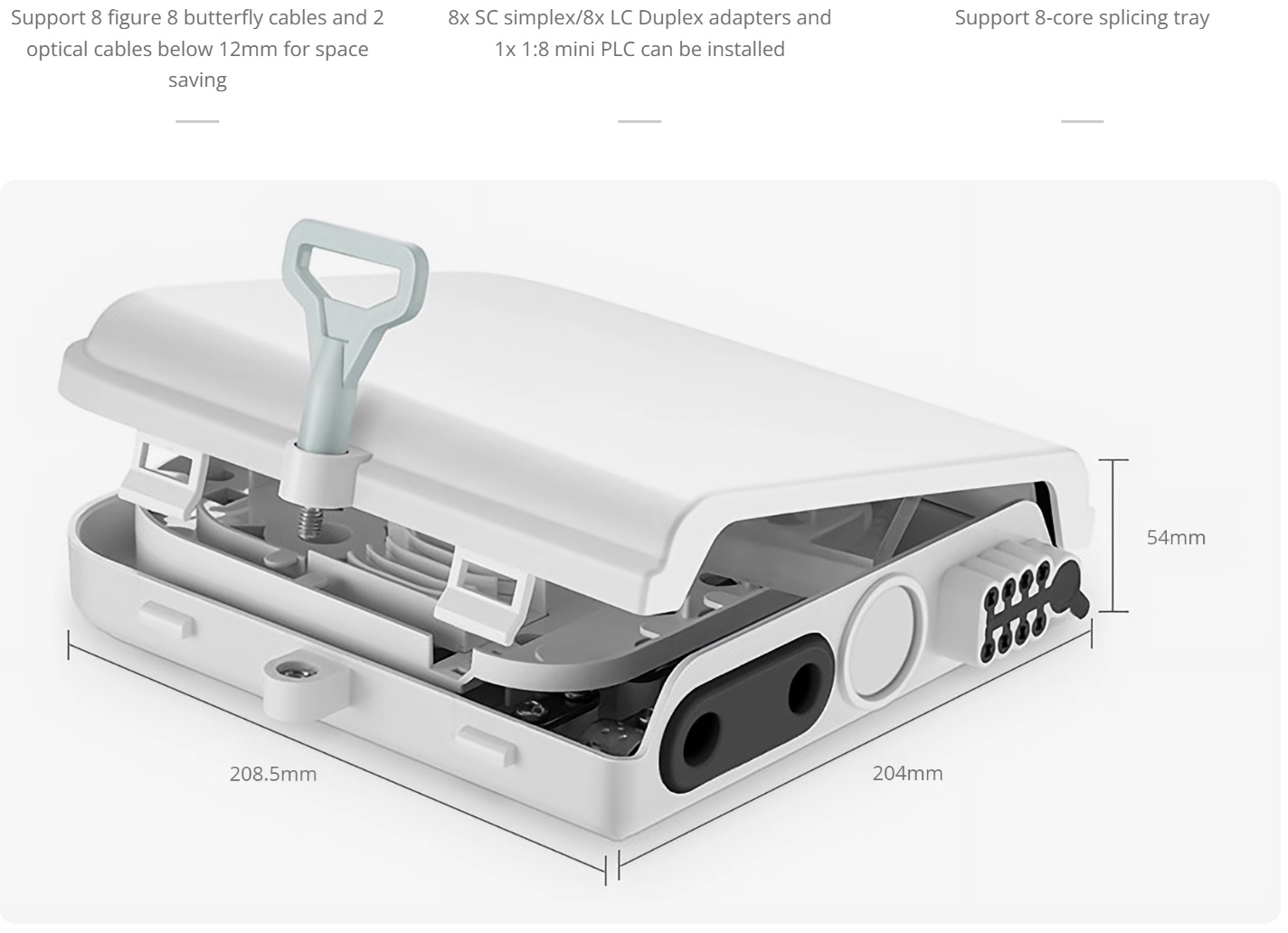

Compact Design Allows Installation in Limited Area
Fixing, Welding, Deployment, and Storage Functions in One
Fixing of optical cable terminals, a fusion of optical cables and pigtails, and accommodation and protection of remaining fibers.

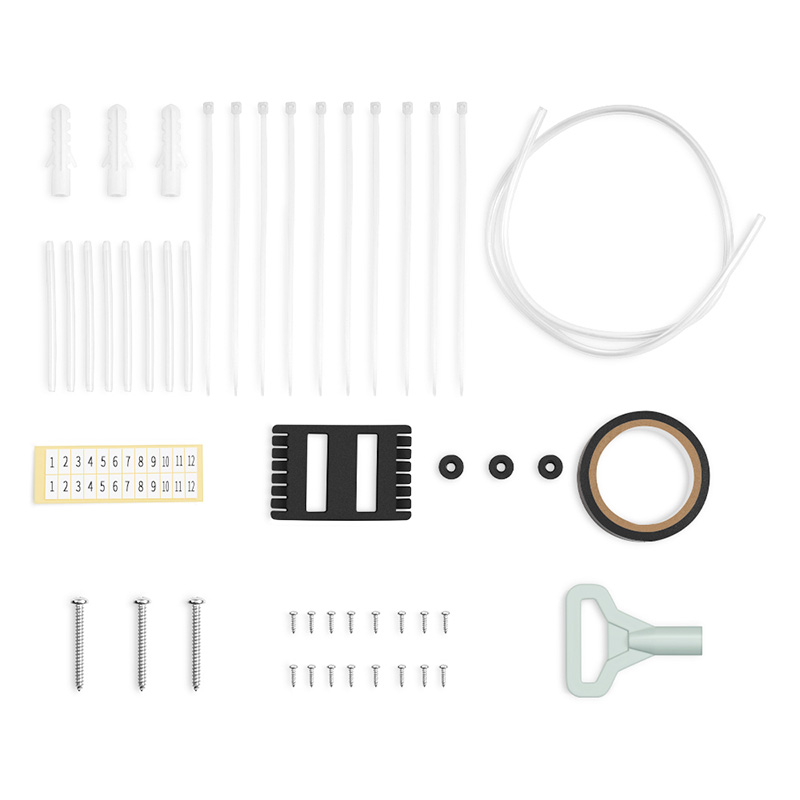

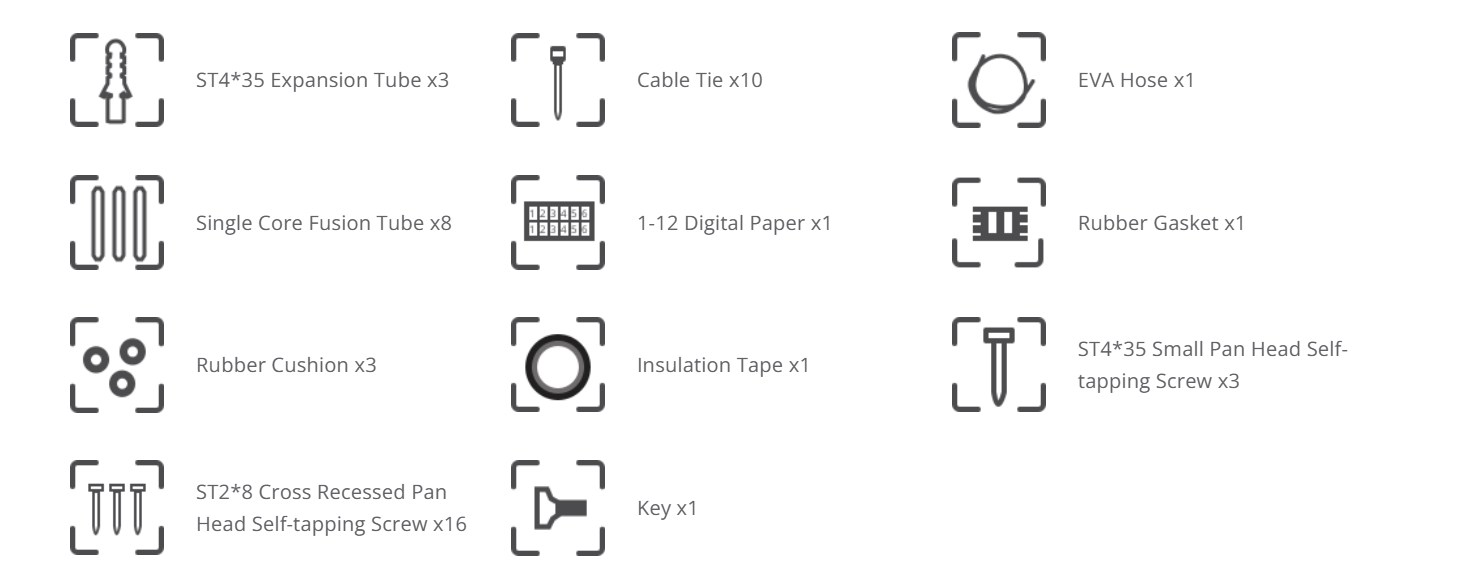

Accessories Included in Optic Terminal Box
Each Box is shipped with the accessory pack that includes mounting screws, tubes for proper installation and cable ties for cable management.
