Industry-specific attributes
| Brand Name | QIN/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | UTP Cat6a Keystone Jack |
| Certificates | CE,CCC,RoHS,TLC,ISO |

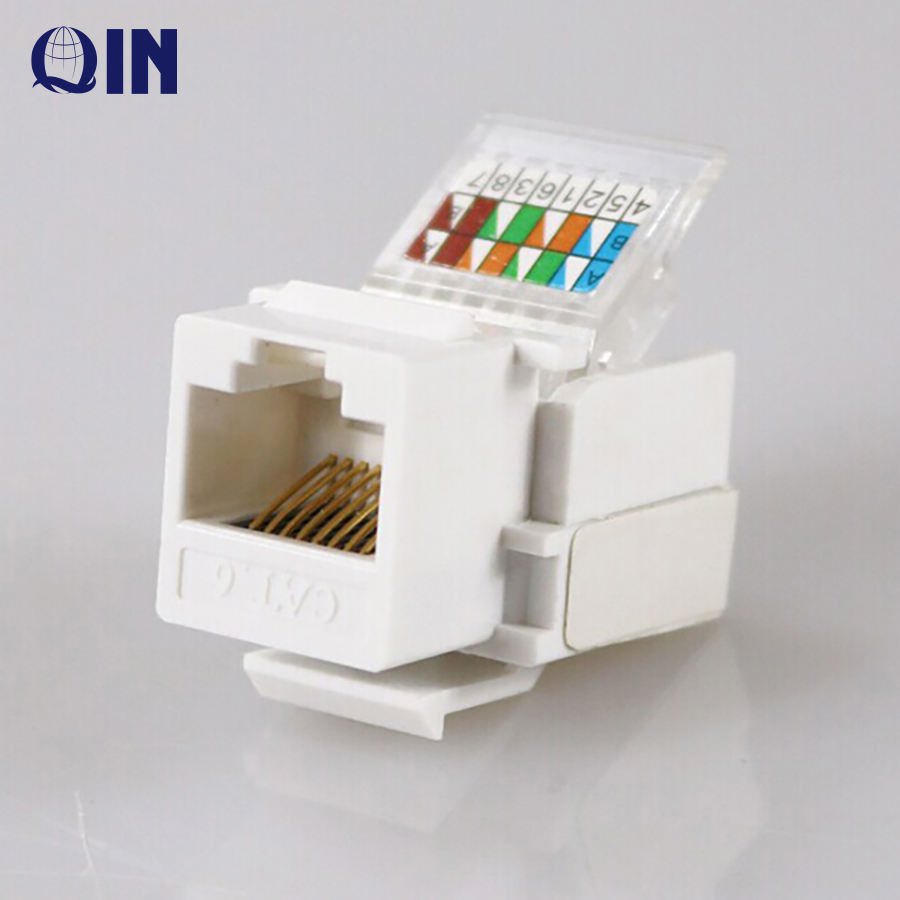

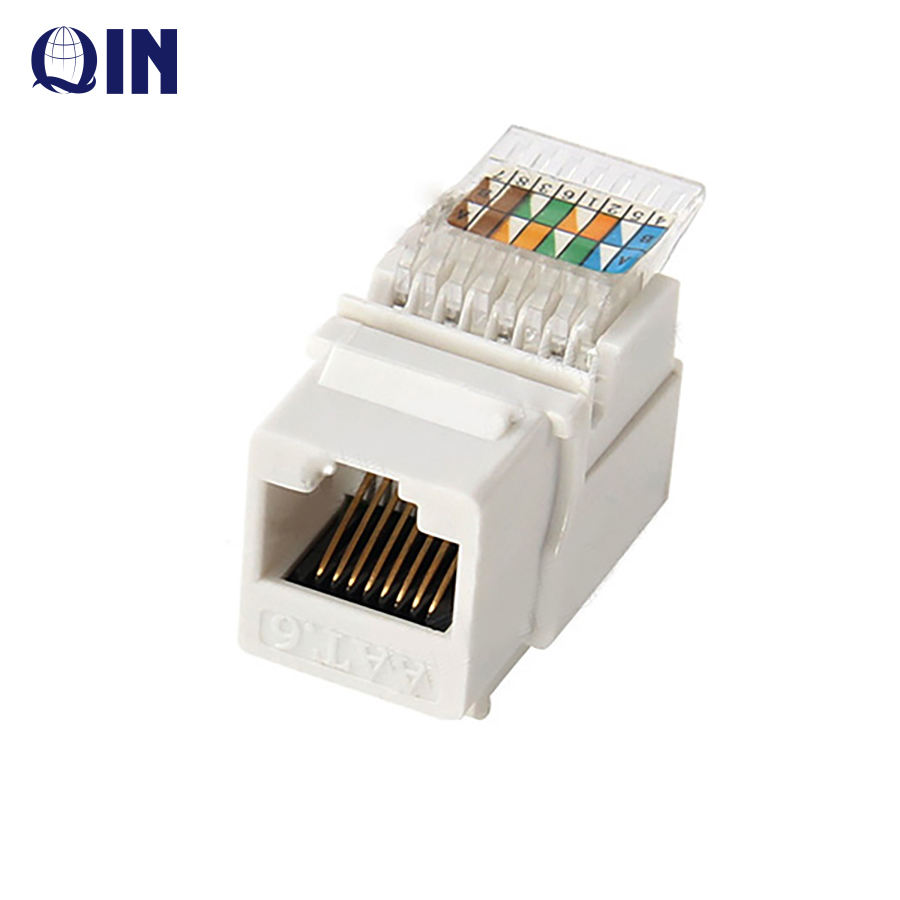

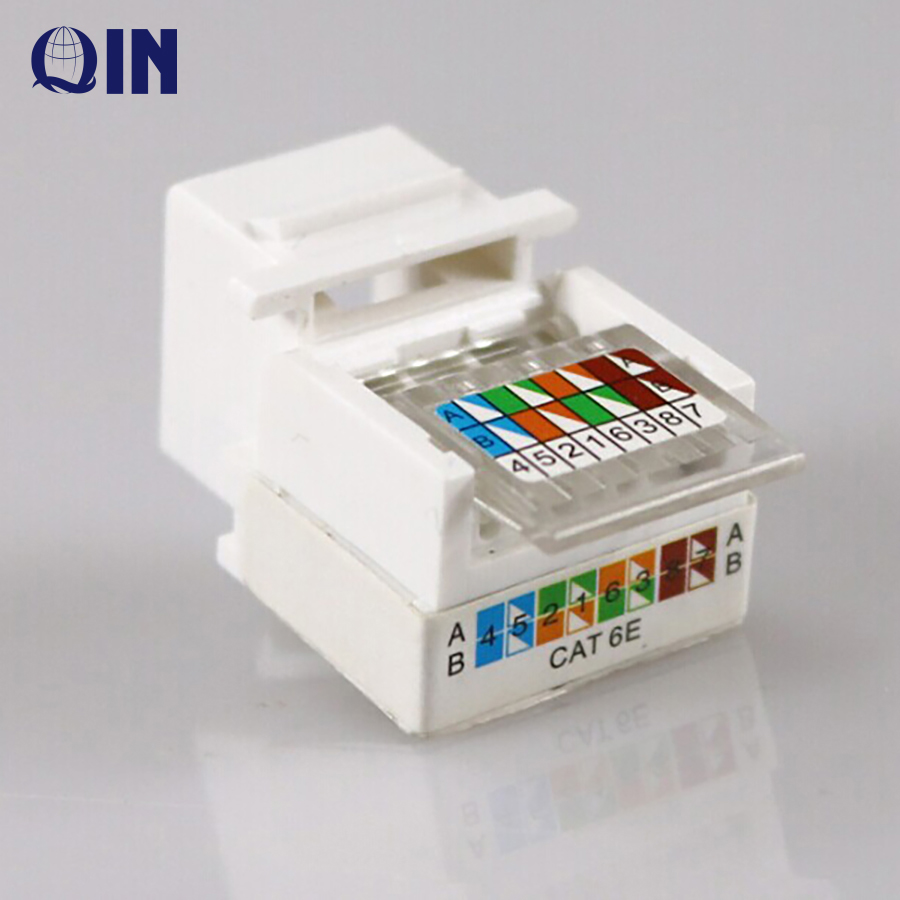

| Name | RJ45 Cat6A 90 Degree Unshielded UTP Straight Keystone Jack |
| Type | RJ45,Keystone type |
| Gender | Female |
| Color | Orange |
| Application | Networking,Telecommunication |
| Angle | 90 degree |
| Gold Plated | 50um |
| Quality standard: | 100% DTX-1800 Test Passed |
| Connector Pin | 8P8C |
The keystone coupler is designed for quick installations. It’s easy to snap into the outlets and patch panels. When requirements are changed, simply disconnect the patch cord and snap out the unneeded keystone coupler. Then snap is a new one and connect the patch cord.
SPECIFICATION
1. REACH & RoHS2 compliant.
2. Meets the ANSI/TIA-568-C.2 transmission requirements for Augmented Category 6 Channel and Permanent Link.
3. Meets Amendment 1 to ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 transmission requirements for Augmented Class E Channel and Permanent Link.
4. Meets ANSI/TIA-1096-A (FCC Part 68) and IEC 60603-7-5 requirements for RJ45 8-way connector.
5. Meets UL-1863 Safety Standard.
6. Fully automatic production of PCB assembly to ensure production consistency.
| PART NO. | DESCRIPTION |
| 1 | 90 Degree Cat6A Unshielded Straight Keystone Jack |
| 2 | 90 Degree Cat6 Unshielded Straight Keystone Jack |
| 3 | 90 Degree Cat5e Unshielded Straight Keystone Jack |
