RJ45 Connector T568A Standard

The T568A standard is a fundamental wiring specification for RJ45 connectors in Ethernet networking, offering an alternative to the more commonly used T568B standard. While T568B has become the de facto standard in many modern network installations, understanding the T568A standard is essential for technicians, network administrators, and enthusiasts, as it provides unique advantages and is crucial in certain networking scenarios.

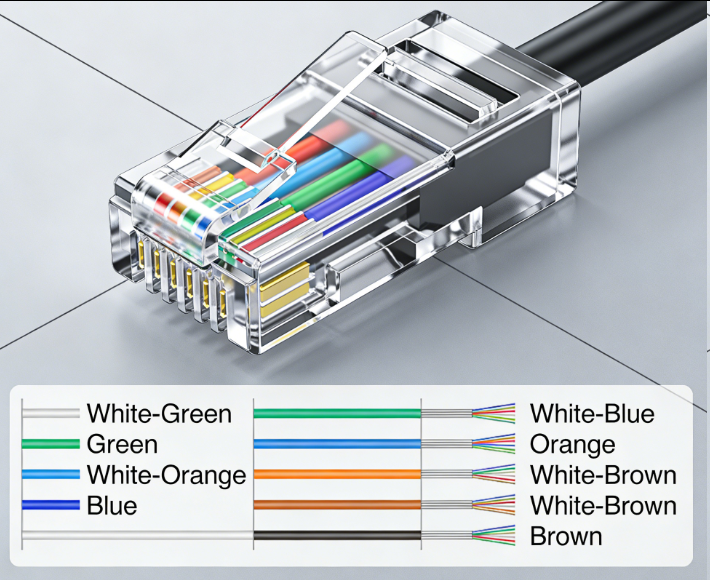

Under the T568A standard, when looking at an RJ45 connector with the clip facing down, the wire - to - pin mapping is as follows: pin 1 is connected to the white - green wire, pin 2 to the green wire, pin 3 to the white - orange wire, pin 4 to the blue wire, pin 5 to the white - blue wire, pin 6 to the orange wire, pin 7 to the white - brown wire, and pin 8 to the brown wire. This specific arrangement was initially developed with the intention of providing better compatibility with older telephone wiring systems. In traditional telephone setups, the green pair of wires is often associated with voice communication. By aligning the green pair with pins 1 and 2 in the T568A standard, it becomes easier to integrate Ethernet and telephone wiring in environments where such convergence is required.

One of the significant applications of the T568A standard is in the creation of cross - over cables. A cross - over cable is used to directly connect two like - devices, such as two computers, two switches, or two routers, without the need for an intermediate hub or switch. To make a cross - over cable, T568A is used on one end of the cable, and T568B is used on the other end. This reversal of the wire order effectively swaps the transmit and receive pairs between the two ends. For example, when two computers need to communicate directly for file sharing or peer - to - peer networking, a cross - over cable with T568A and T568B terminations enables the proper exchange of data signals, allowing the devices to establish a connection and transfer information.

In addition to cross - over cable applications, the T568A standard is also preferred in some network environments where future - proofing or integration with existing infrastructure is a concern. Some older buildings or facilities may have pre - installed wiring that follows a scheme more compatible with T568A. In such cases, using the T568A standard for new Ethernet installations can simplify the process of integrating the new network with the existing setup, reducing the need for extensive rewiring.

Moreover, while T568A and T568B are different wiring standards, they are both designed to meet the requirements of Ethernet networking and ensure reliable data transmission. As long as the wiring is consistent throughout a network segment, either standard can be used effectively. However, it's important to note that mixing the two standards within a single straight - through cable (where both ends should have the same wiring) will result in connectivity issues. Overall, the T568A standard for RJ45 connectors offers a valuable option in Ethernet networking, providing flexibility in cable construction and facilitating integration with diverse network setups.
