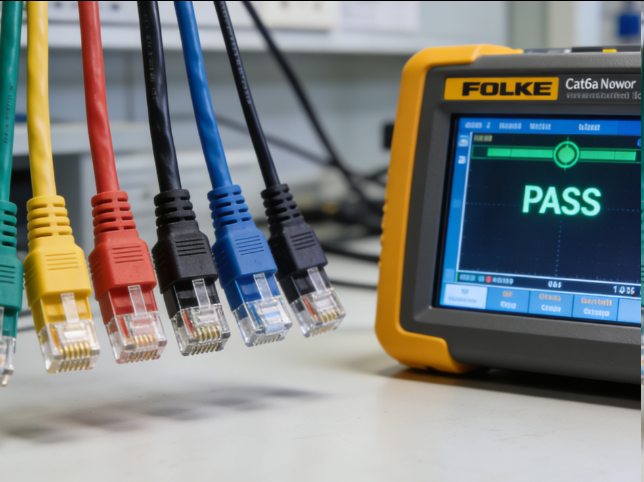

cat6a patch codes pass fluke test

1.   Mandatory Compliance Standards & Wiring Codes

　　Standards: TIA/EIA-568.2-D (North America), ISO/IEC 11801:2017 (International, Class E Augmented)

　　Wiring Codes (Critical for Wire Map Pass):

　　Adopt either T568A or T568B wiring standard (must be identical at both cable ends)

　　No crossed pairs, reversed conductors, opens, or shorts—strictly follow pin-to-pin matching

　　2. Non-Negotiable Cable & Component Requirements

　　Conductor: Pure copper (≥23 AWG/0.57mm); CCA (Copper-Clad Aluminum) is prohibited

　　Twist Ratio: Uniform for 4 pairs (Pair 1-2: ~19mm, 3-6: ~15mm, 4-5: ~21mm, 7-8: ~25mm)

　　Connectors: Cat6a-specific 8P8C RJ45 plugs (gold-plated contacts ≥50μm); shielded/unshielded must match the cable

　　Length: 1-5m (optimal); max ≤10m (exceeding causes IL/Delay Skew failure)

　　3. Termination Best Practices (Avoids 80% of Failures)

　　Strip jacket length ≤15mm; untwist pairs ≤6mm (excessive untwisting fails NEXT)

　　Use torque-controlled Cat6a crimping tools for tight conductor-plug contact

　　Shielded plugs: Ensure shielding layer contacts plug’s metal shell (effective grounding)

　　4. Core Fluke Test Parameters to Monitor

　　Insertion Loss (IL): ≤24.0 dB/100m (500MHz)

　　Return Loss (RL): ≥12.0 dB (500MHz)

　　Near-End Crosstalk (NEXT): ≥39.9 dB (500MHz)

　　Alien Crosstalk (AXT): ≥35.3 dB (500MHz, unshielded)

　　Delay Skew: ≤50 ns; Wire Map: No errors

　　5. Step-by-Step Fluke Test Workflow

　　Calibrate tester with factory reference cables

　　Inspect cable (no jacket damage/plug deformation); verify wiring code with a basic tester

　　Connect cable to test main unit + remote unit; select "Cat6a → Patch Cable → Target Standard"

　　Run test (~30s); confirm all parameters are green (Pass)

　　Save report (PDF/CSV) with cable ID, test date, and parameter values

　　6. Quick Fixes for Common Failures

　　Wire Map Error: Re-terminate per T568A/B; replace damaged plugs

　　NEXT Failure: Reduce pair untwisting to ≤6mm; use cable with uniform twist ratio

　　AXT Exceedance: Use shielded Cat6a (STP/SFTP); test cables individually (no bundling)

　　RL Failure: Replace low-quality plugs; clean contacts (remove dust/oxidation)
