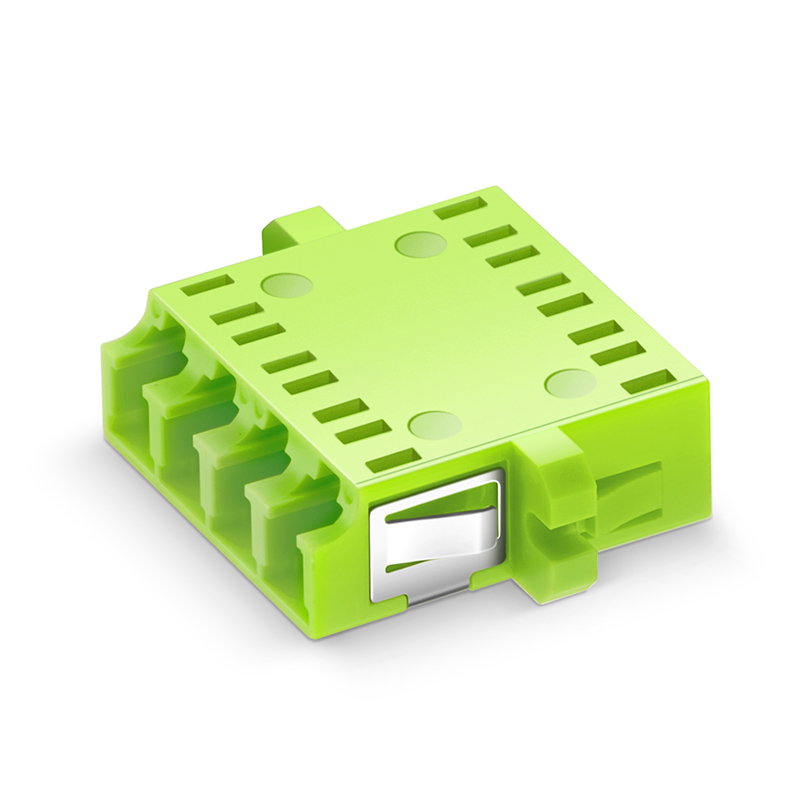

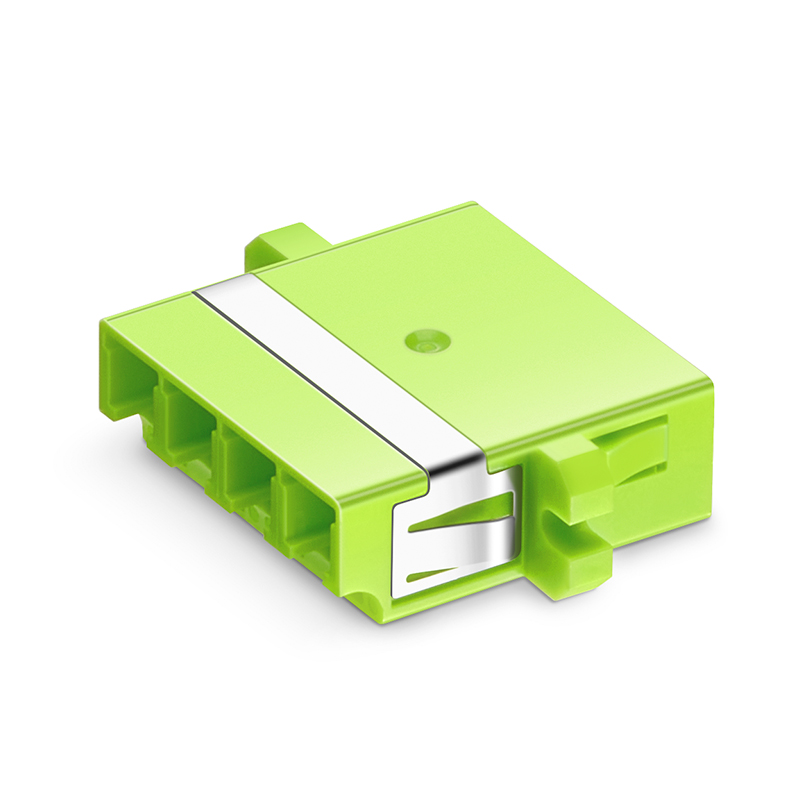

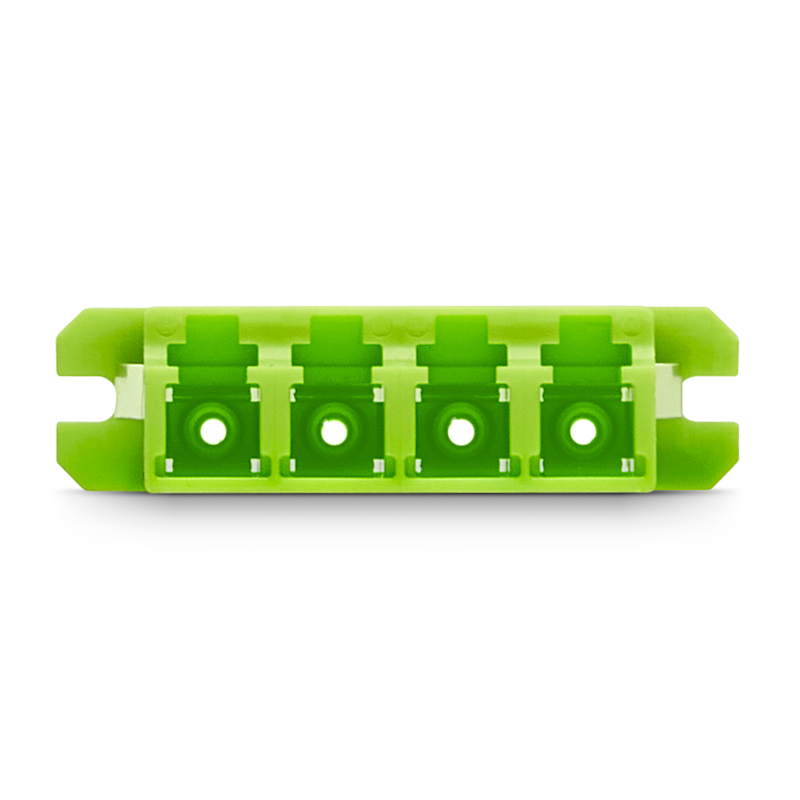

LC/UPC to LC/UPC Quad OM5 Multimode SC Footprint Plastic Fiber Optic Adapter/Coupler with Flange
Product Highlights

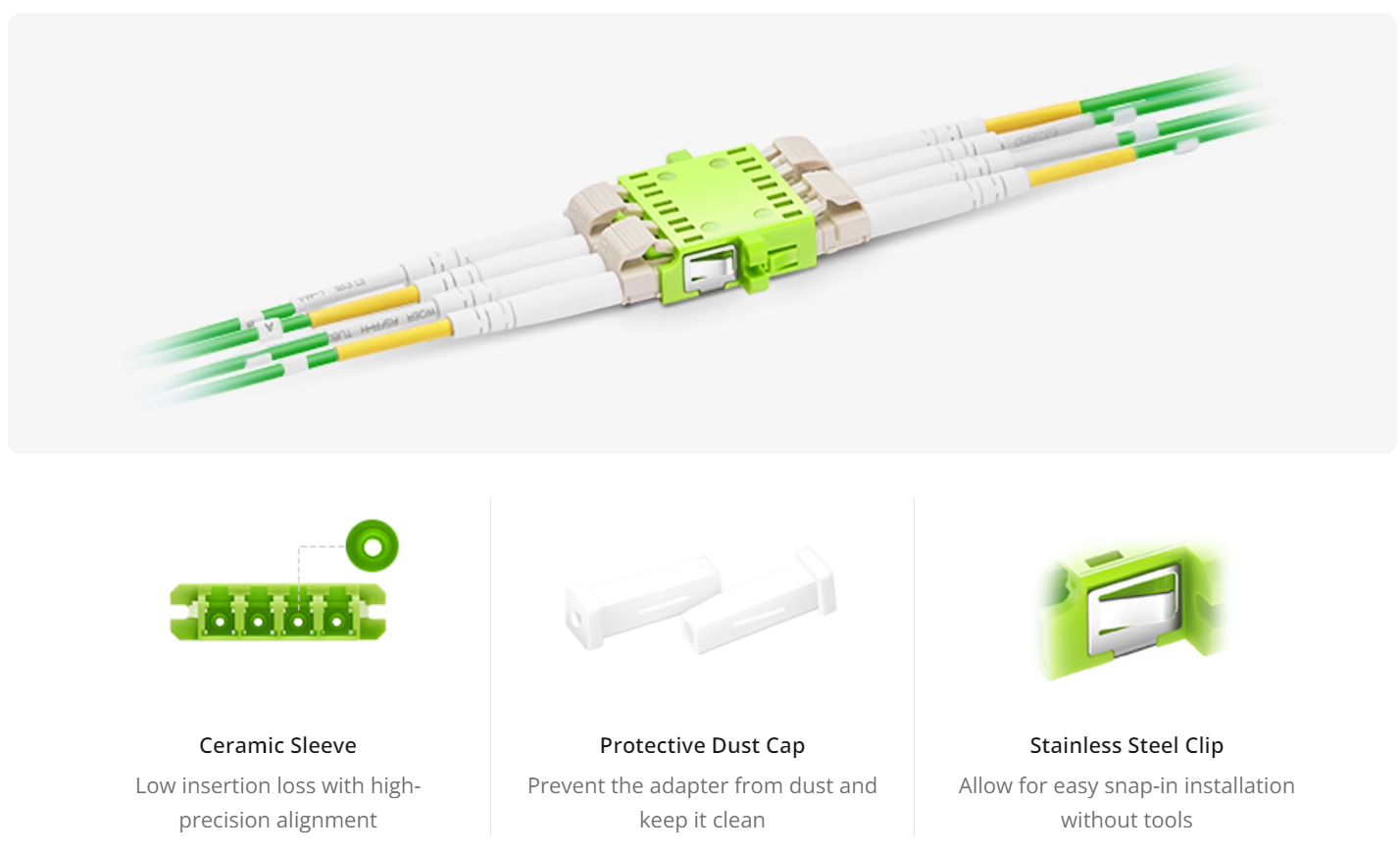

≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management

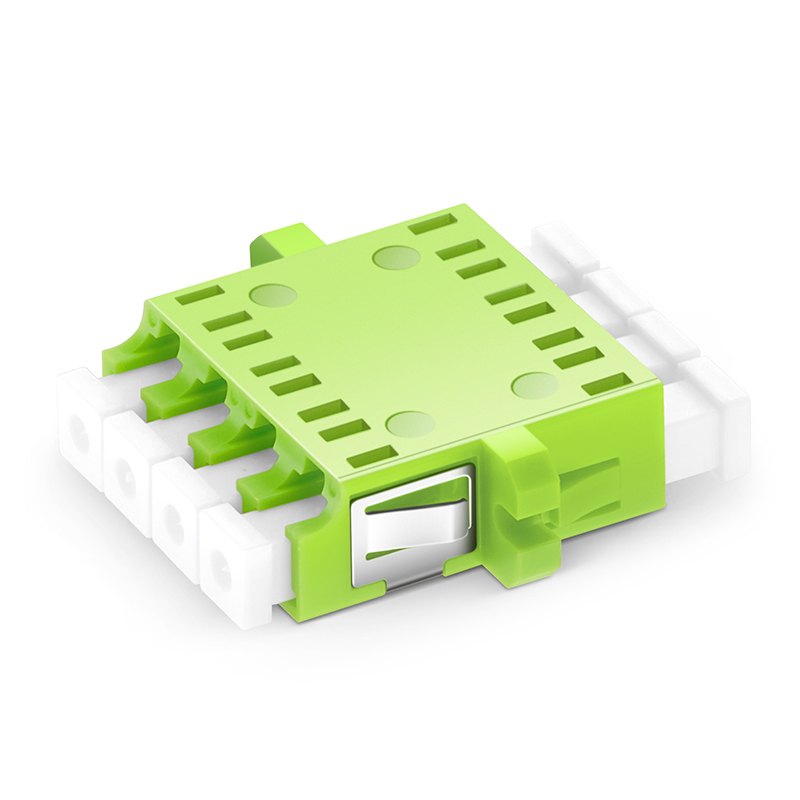

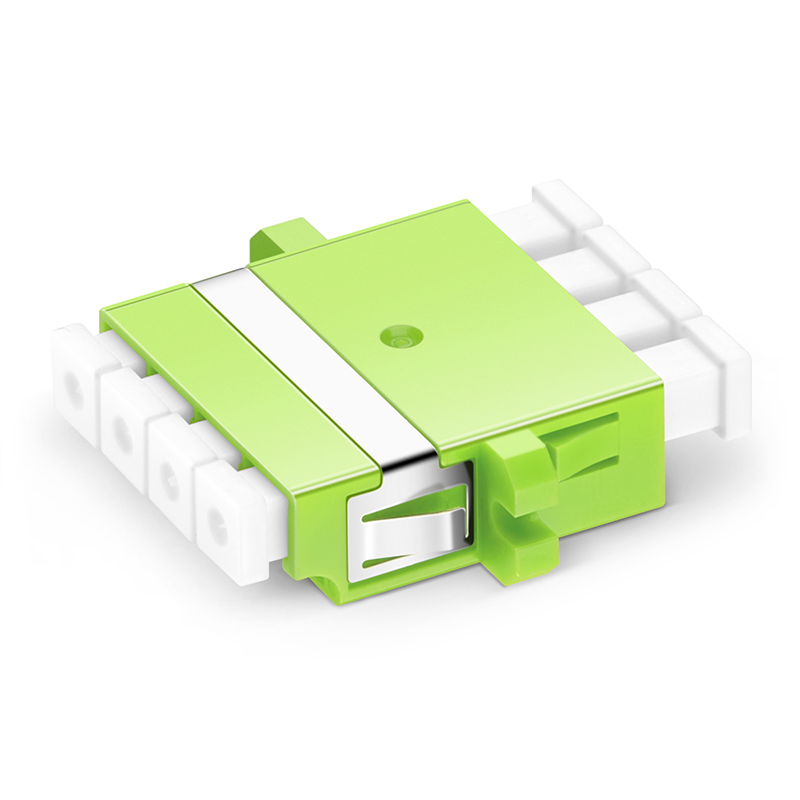

2x Duplex Dust Cap Keeps Adapter’s Interior Clean from Dust
Stainless Steel Clips for Tool-less Snap-in Installation
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
LC/UPC to LC/UPC OM5 Multimode Quad Plastic Fiber Optic Adapter, 0.2dB Insertion Loss
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. QIN supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

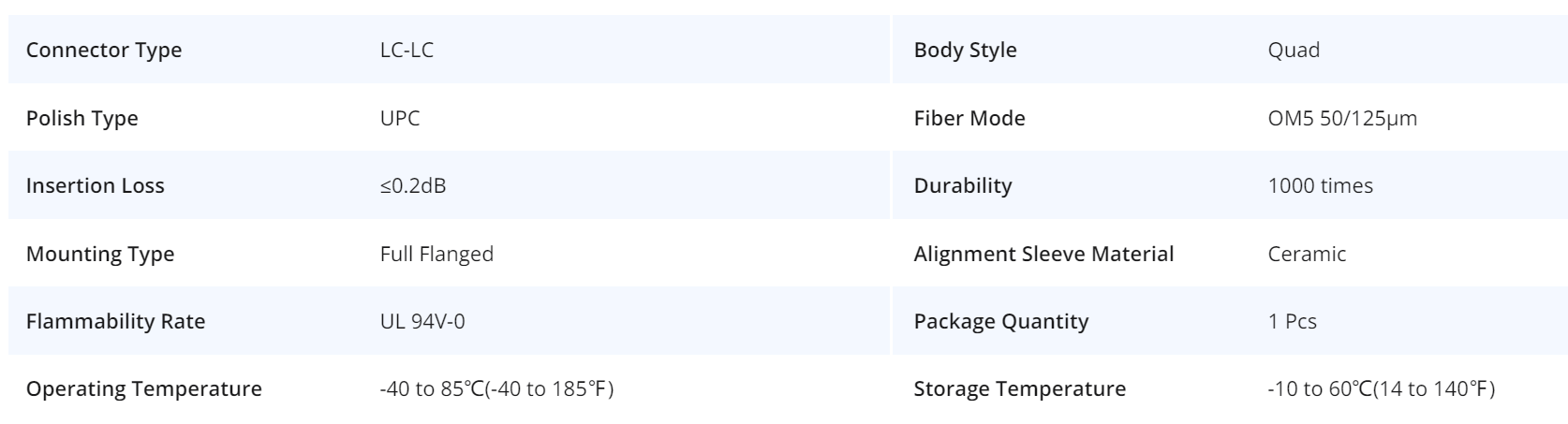

Specifications

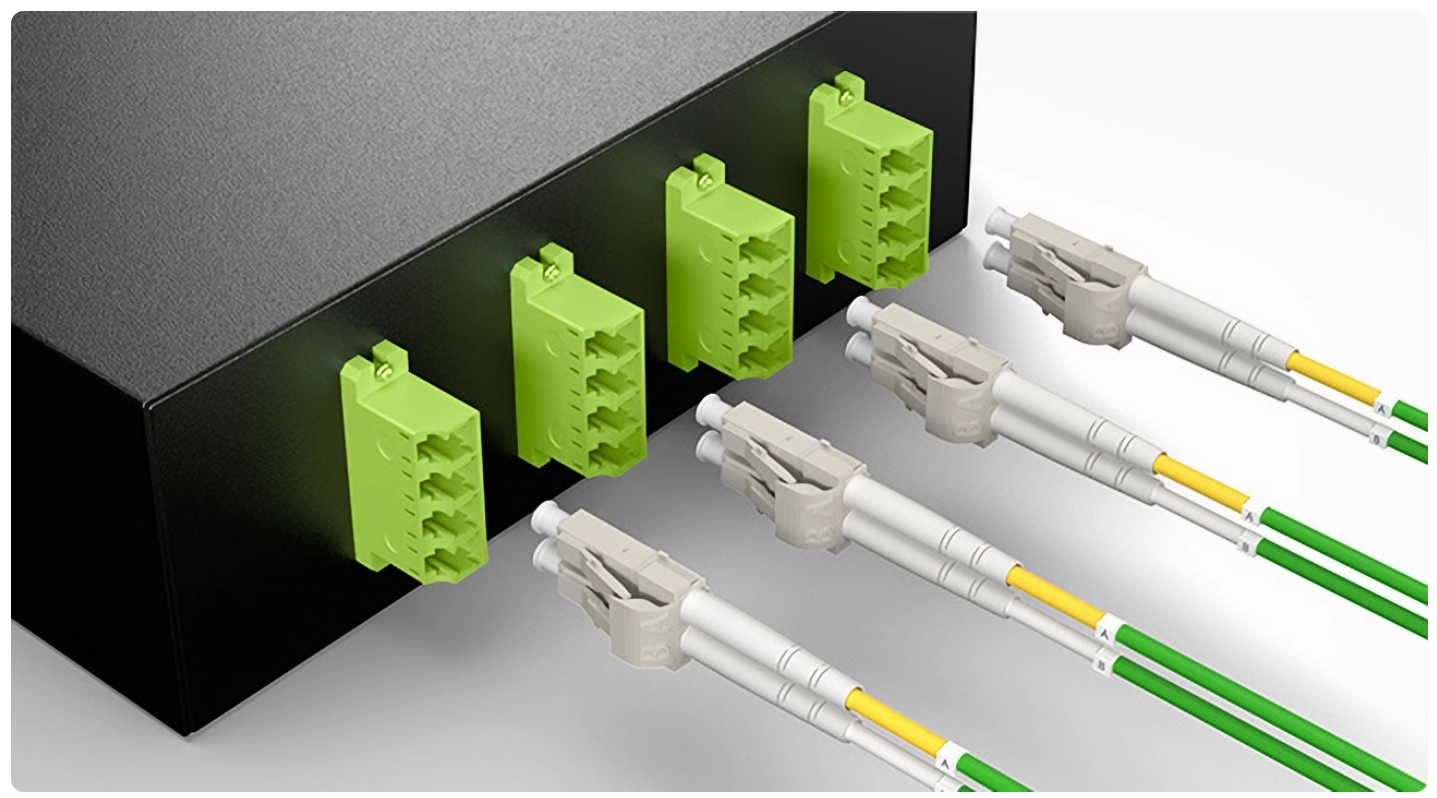

Extending Fiber Connection with Adapters
With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.
Ideal Choice for Upgrading Network Systems

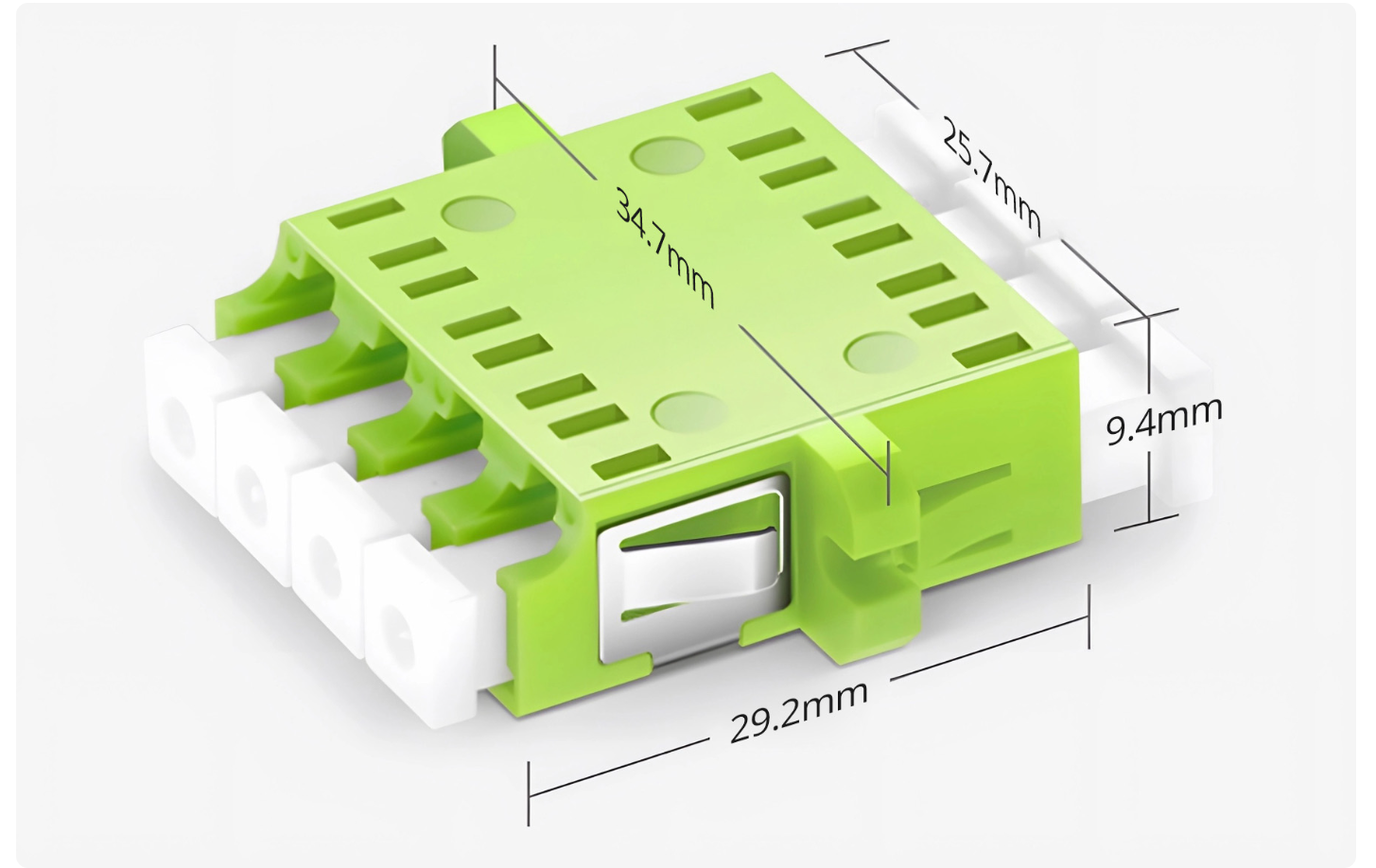

The SC footprint LC quad adapter is designed to fit legacy hardware incorporating an SC duplex cut-out to upgrade systems to higher density without redesigning panels or hardware.
Simple Mounting, High Stability
The adapter with flange can be fixed by M2 screws on fiber cassette, which can be plugged and unplugged 1000 times, with good repeatability and high stability.
Color-coded Adapters Simplify Fiber Management
The adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme, effectively helping technicians make better cable management and reduce human errors.
Application for Optical Fiber Connection
It is mostly applied for optical fiber communication system, optical fiber access network, fiber optic data transmission, fiber optic CATV, LAN, test equipment, and commercial applications.
