24~96 Fibers 2In-2Out In-Line Fiber Optic Splice Closure, Mechanical Seal, with 1 Pre-installed Fusion Splice Tray
Product Highlights
IP68-Rated Mechanical Seal for Superior Waterproof and Dustproof Protection
Pre-installed with 1x 24F Tray, Expandable to 4 Trays for up to 96 Fibers
Supports 10–20mm Diameter Range, Compatible with Various Cable Types
Compact, Rugged PP+GF Design Ensures Durable Environmental Protection
Flexible Deployment for Wall-Mounting, Aerial, Underground, and Handhole Installation
24~96 Fibers 2In-2Out In-Line Fiber Optic Splice Closure, Mechanical Seal, with 1 Pre-installed Fusion Splice Tray
96 Fibers In-Line Splice Closure is a versatile and reliable fiber management solution engineered for splicing, branching, and protecting fiber connections in FTTx, backbone, and access networks. The product comes with one pre-installed 24-fiber splice tray and supports up to 4 trays, enabling a maximum splice capacity of 96 fibers. It features 4 round ports compatible with loose tube, and SZ stranded cables with outer diameters ranging from Φ10 to 20mm. Ideal for aerial, duct, handhole, direct burial, and wall-mounted deployments, it offers broad application adaptability across various installation environments.
Constructed with a rugged PP+GF housing, the closure delivers exceptional resistance to UV radiation, moisture, corrosion, and mechanical impact. The reinforced inner structure enhances durability and maintains fiber integrity under harsh outdoor conditions. Featuring a tool-less sealing design and integrated cable management system, it ensures fast, secure installation and convenient maintenance. Compliant with industry standards, this closure guarantees long-term reliability and superior performance in demanding scenarios.
Specifications
Reliable and Flexible Fiber Cable Splicing Solution
Durable IP68-rated enclosure designed for reliable splicing and sealing across FTTx backbone and access deployments.
IP68-Rated Protection for Harsh Environments
Constructed from durable PP+GF and sealed with a robust mechanical system, the closure ensures IP68 protection against water, dust, and corrosion, withstanding repeated opening in harsh outdoor environments.

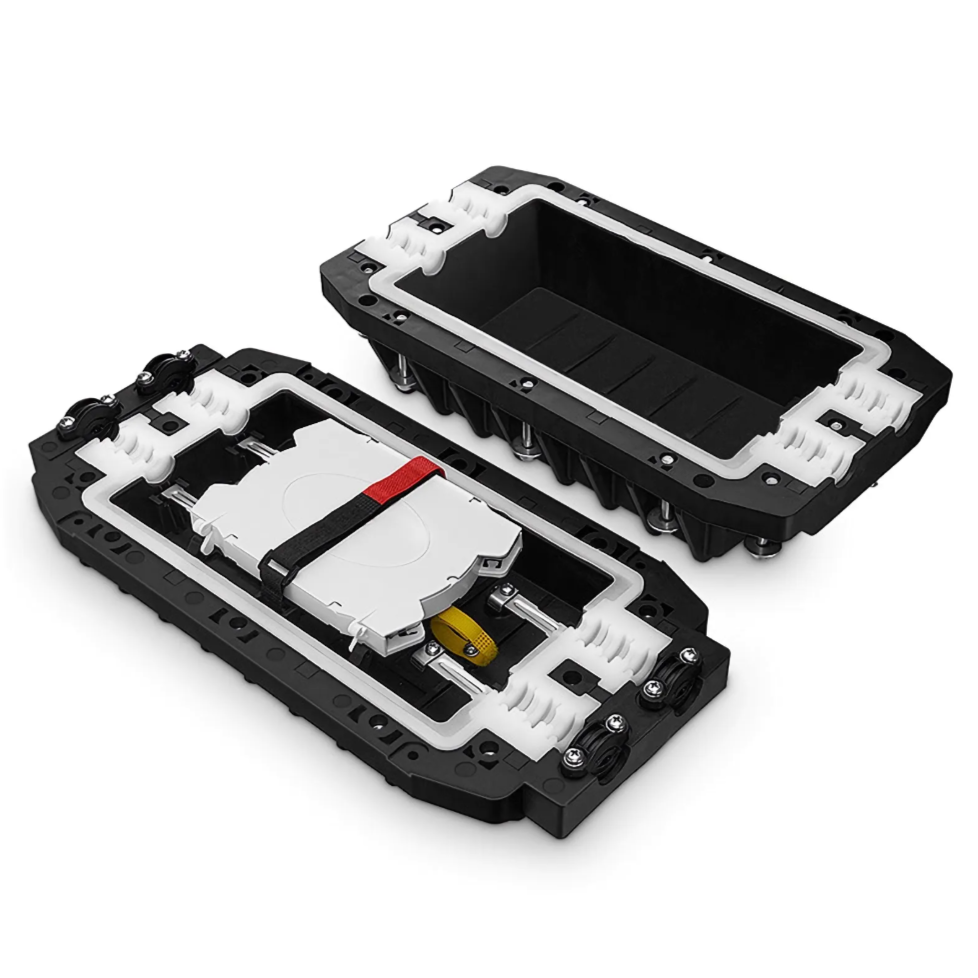

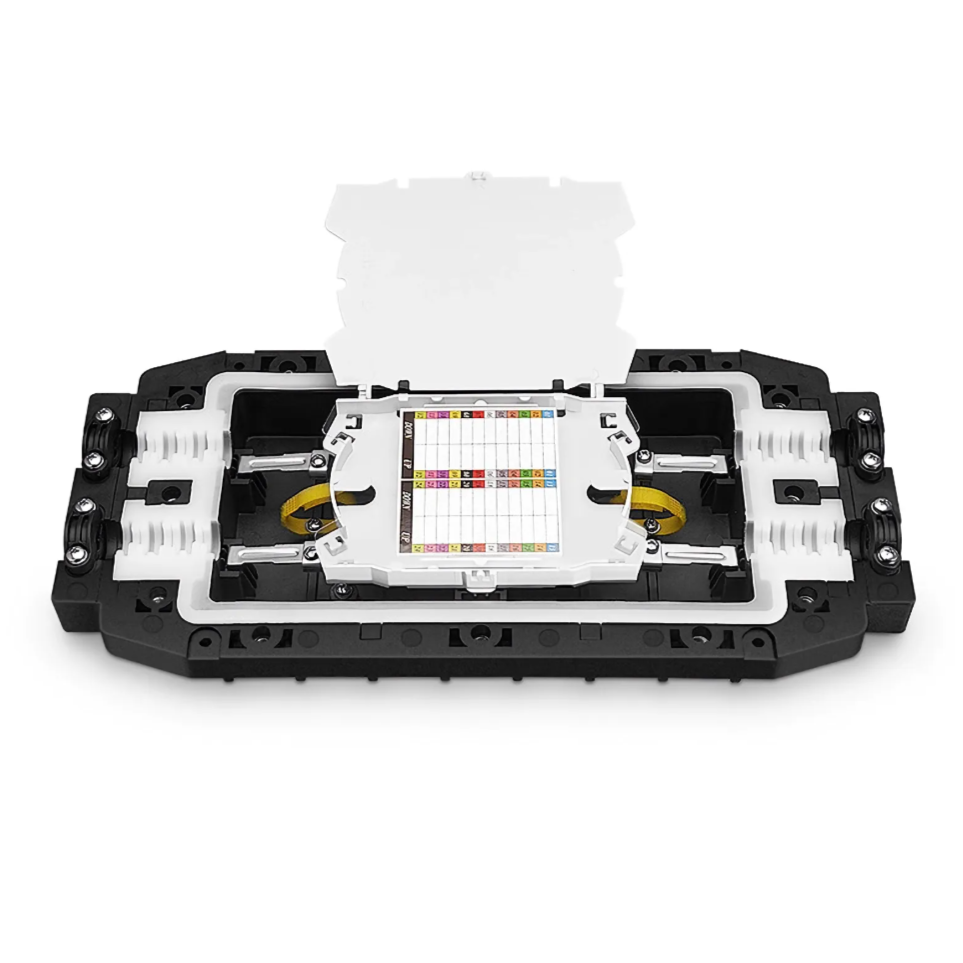

Smart Tray System for High-Density Networks
Up to four stackable, flip-up 24F trays provide 96-fiber capacity, combining dense splicing with easy maintenance access. With broad cable compatibility and adaptable 10–20mm ports, it ensures flexible deployment in complex network environments.

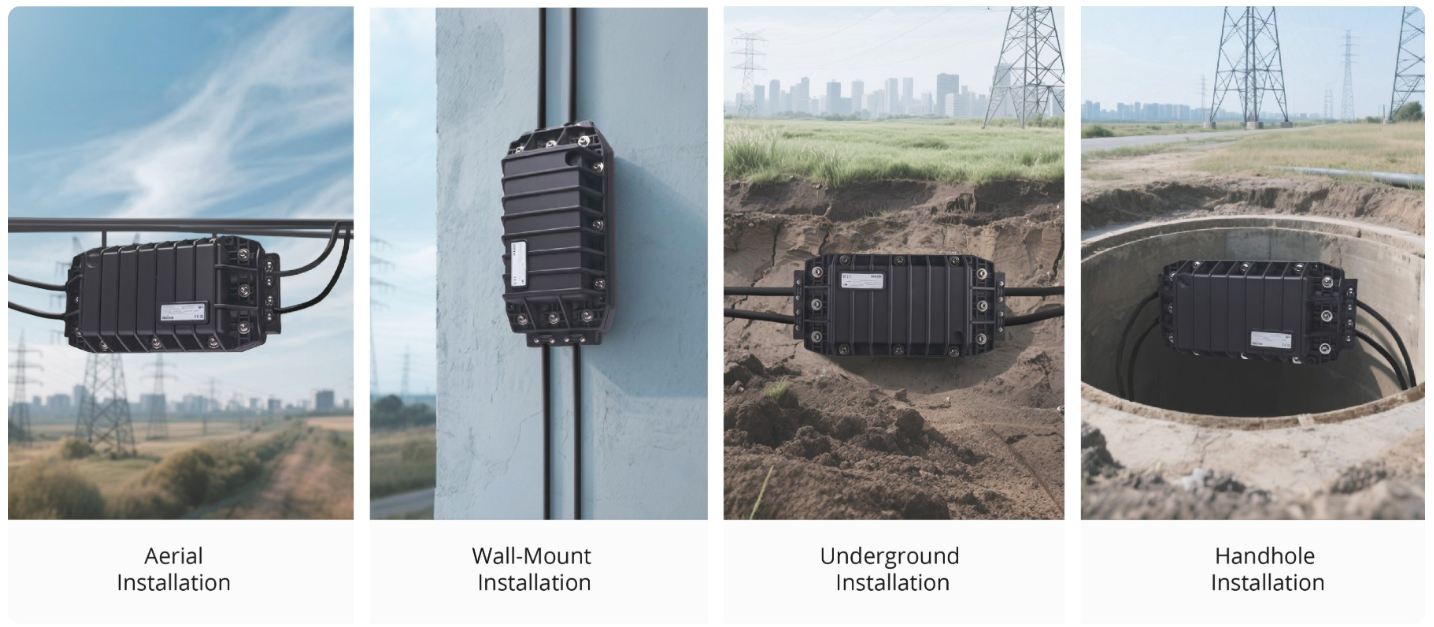

Versatile Mounting Options for Easy Deployment
Supports wall-mount, aerial, pole, and underground installation for rapid deployment across diverse scenarios.

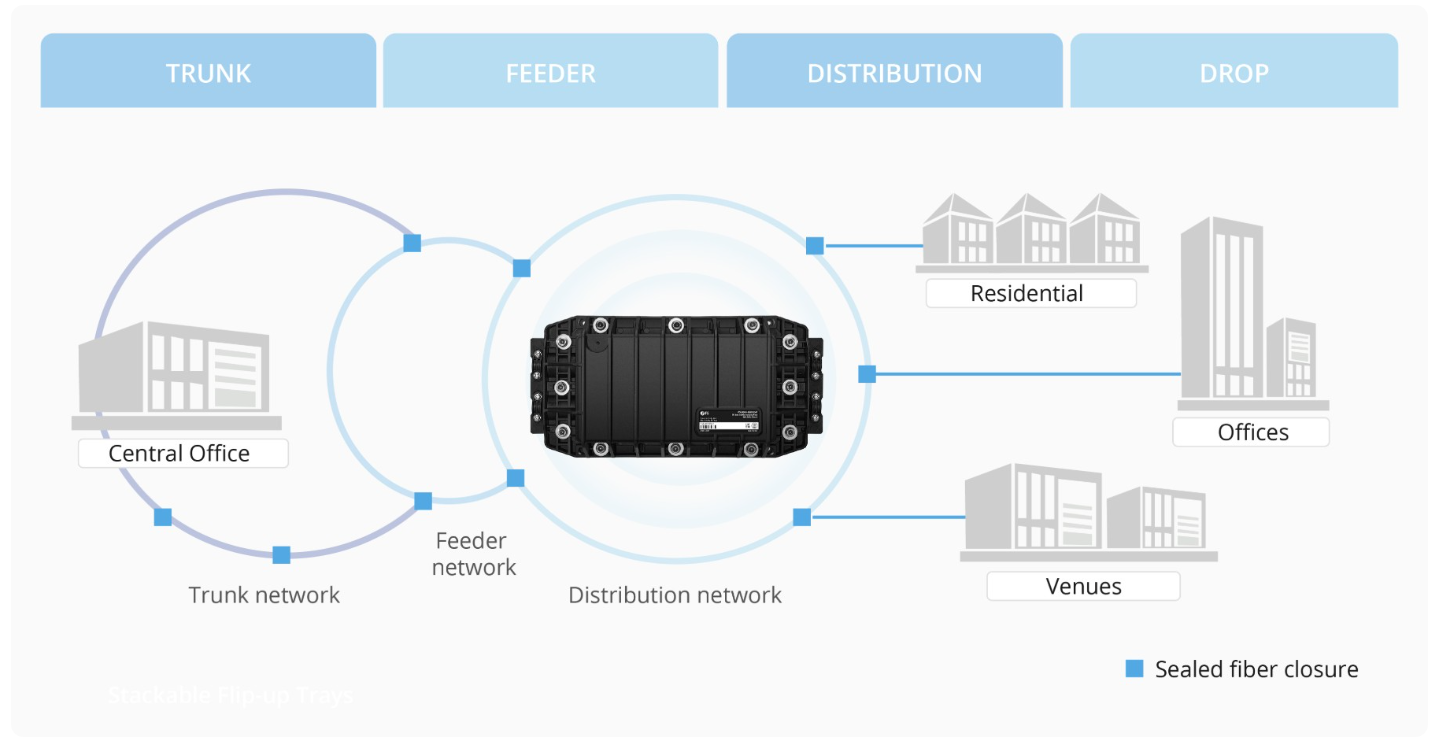

Designed for Diverse FTTH Networks
Ideal for FTTx access, metropolitan area networks, and enterprise campuses, enabling efficient network expansion and reliable performance.
