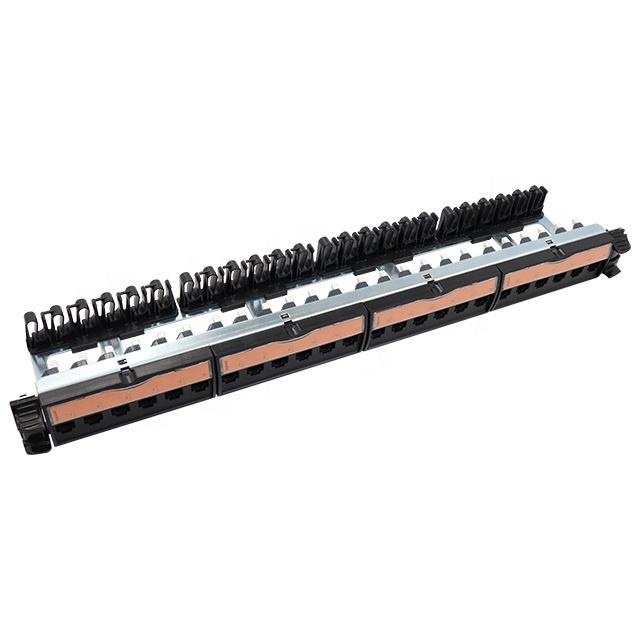

33561 Leg French Type Full Loaded CAT6 UTP 24 Ports Patch Panel Toolless
19" patch panels equipped with 4 patch units of CAT6 RJ45 sockets.
Suitable for small commercial installations.

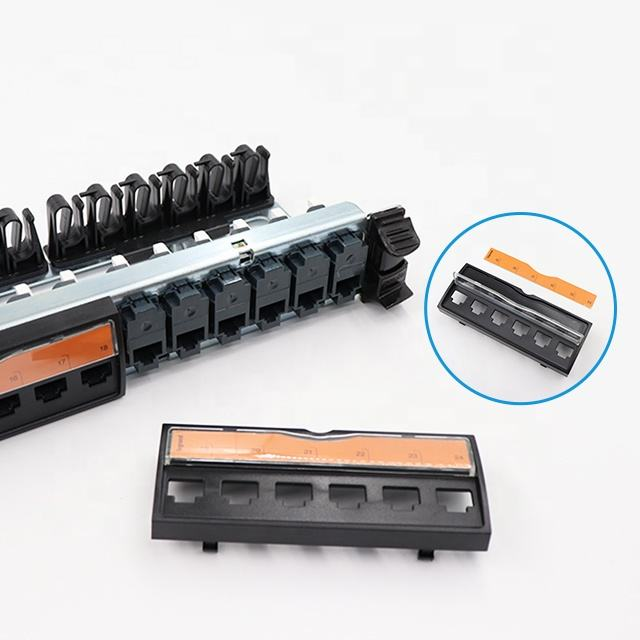

Supplied with captive screws, universal cage nuts, label holder and coloured lables.
Automatic earthing with Legrand enclosures.
Suitable design and ergonomic features of RJ45 connectors.
33561 Leg French Type Full Loaded CAT6 UTP 24 Ports Patch Panel Toolless
The new patch panels have been designed to optimise installation and maintenance: each connector connects individually to a front panel installation. cable management is also made easier by a cable guide.

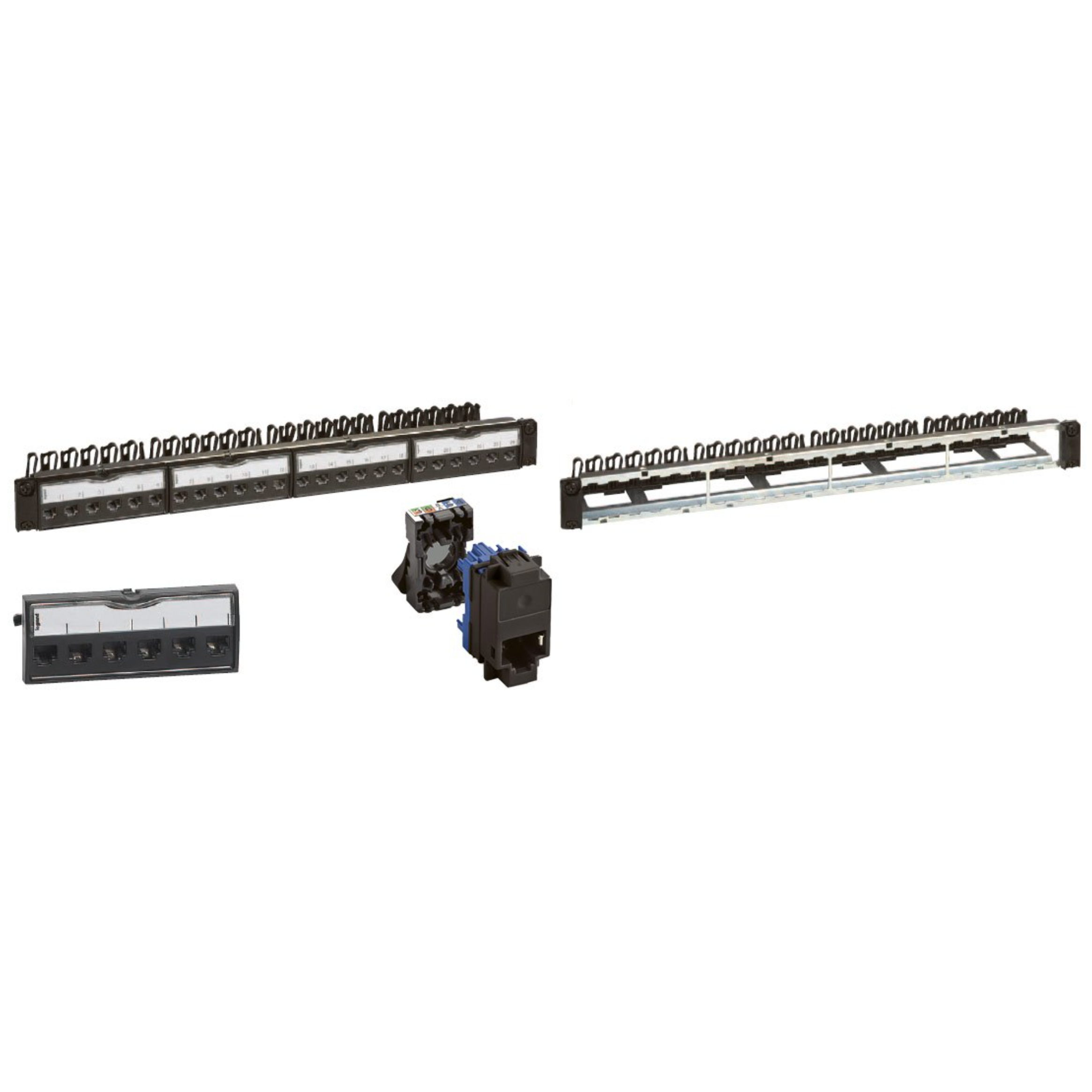

The panels are available in their complete versions in cat. 6A STP, cat. 6 UTP, FTP and STP and cat. 5e UTP and FTP, and modular versions with units of six RJ45 connectors. The new Quick-FIX system reduces installation times as no screws are required.
Connectors for workstations
The connectors have the colour codes defined in the standards, according to which a structured cabling system can be installed. These colours are the same as those on 4-pair cables.
A standard installation, which uses 4-pair copper cables, must always be wired with the same sequence of colour codes, irrespective of the application and the type of service for which they are to be used (telephony or data transmission).
We offers TOOLLESS connectors (do not require a connection tool)

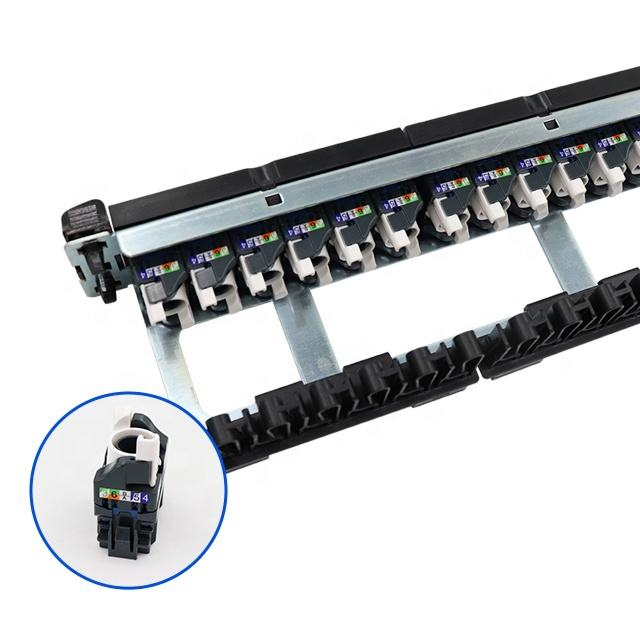

Toolless connection
The new TOOLLESS connector is at the heart of the performance of the LcS2 system. A perfect connection can be
obtained in just a few seconds, giving a link providing excellent performance levels, from the patch panel through to the
workstation.
