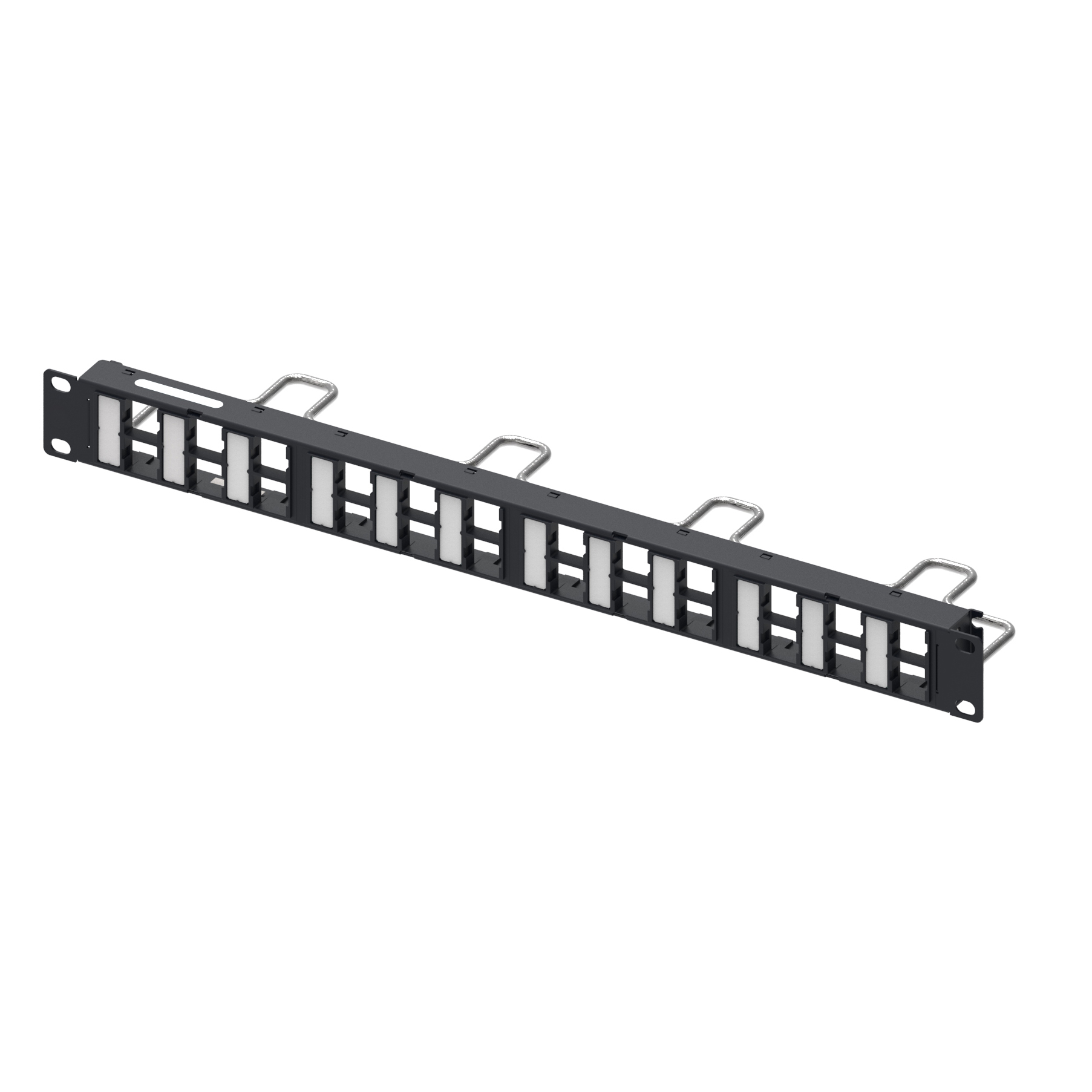

M2000 760207274 | CPP-UDDM-M-1U-24 Unshielded Discrete Distribution Module Panel, M-series, 1U, 24 port, Black
Supports PowerSUM, GigaSPEED XL and GigaSPEED X10D installations
Available in 24-port configuration
Labeling and identification for each port
M2000 760207274 | CPP-UDDM-M-1U-24 Unshielded Discrete Distribution Module Panel, M-series, 1U, 24 port, Black

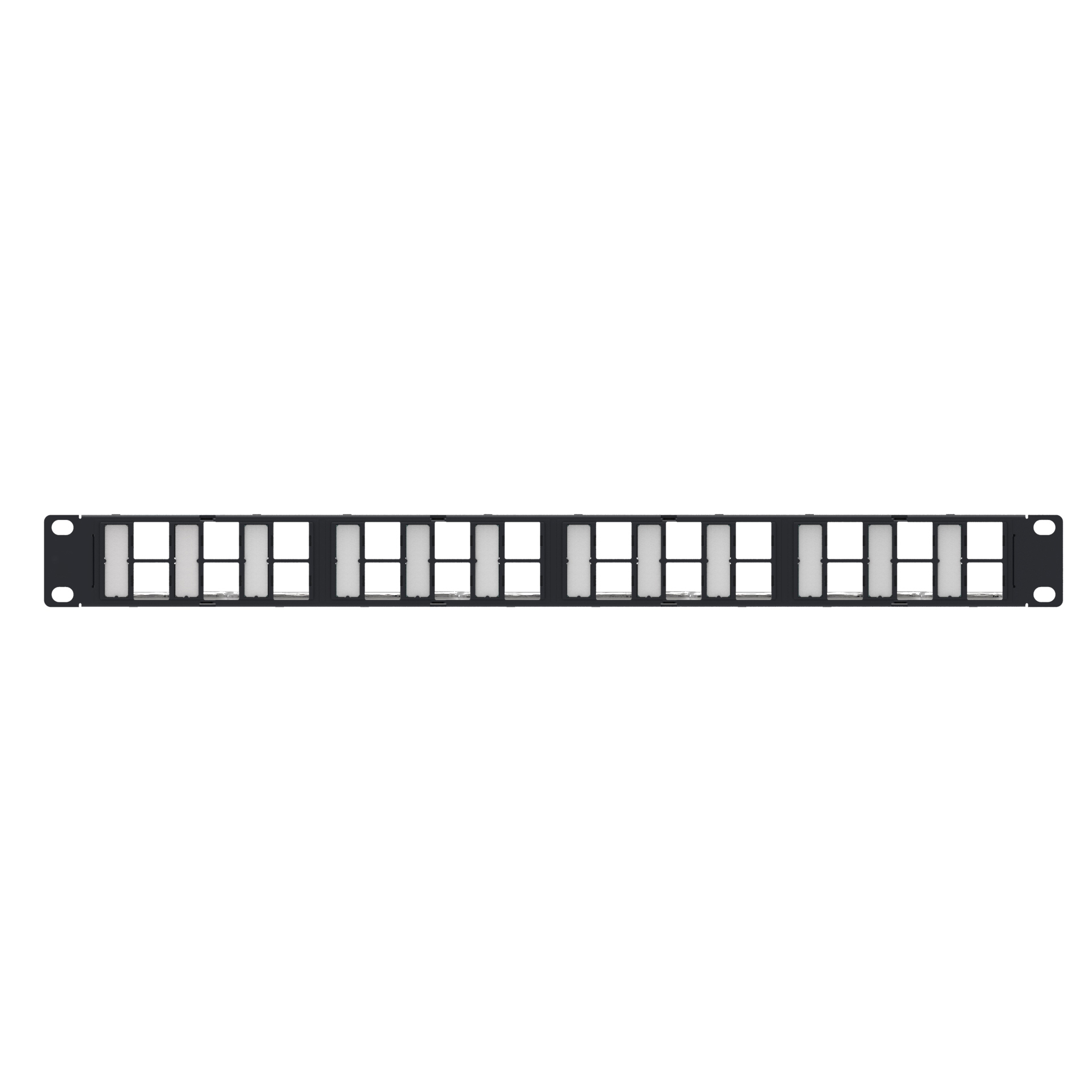

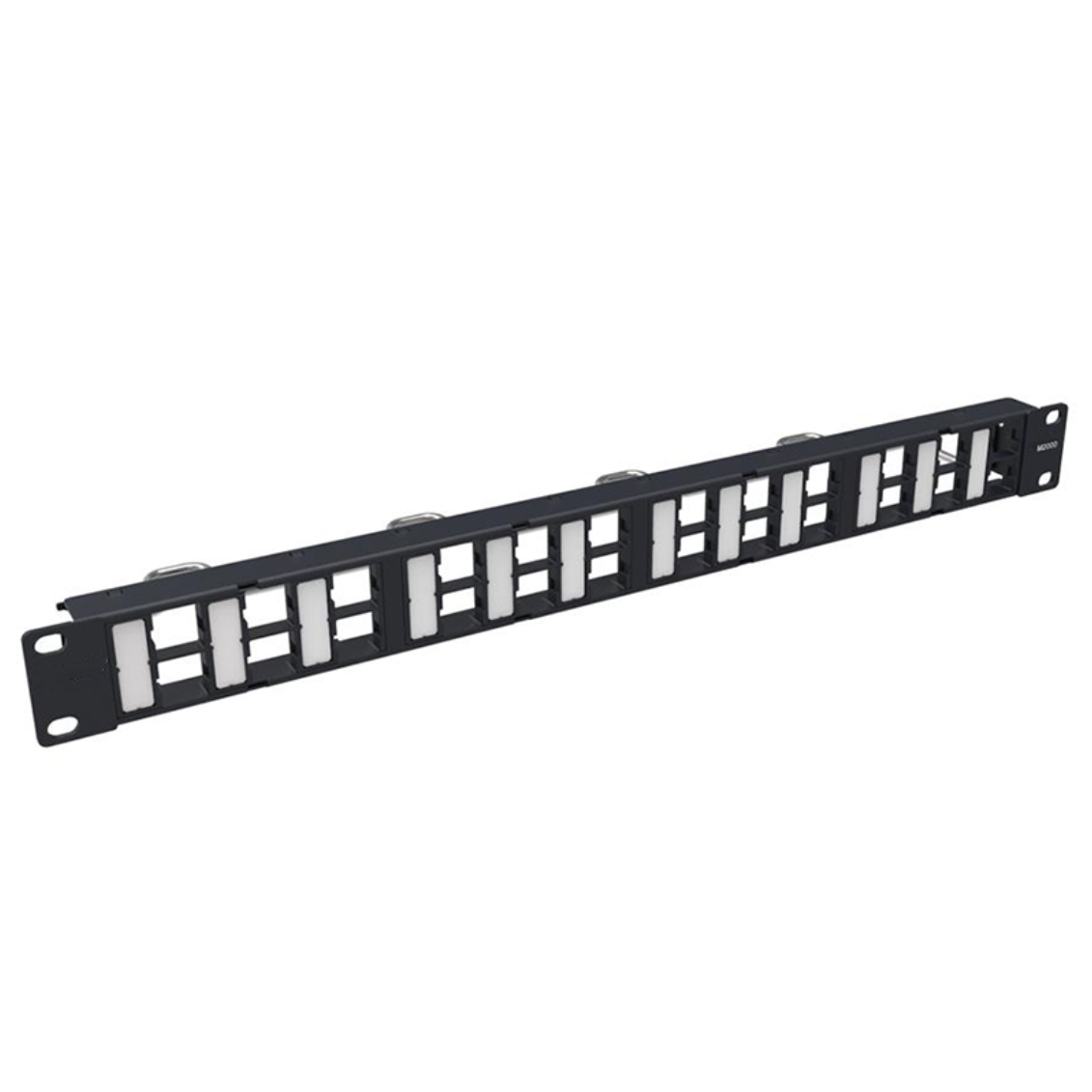

The M2000 Modular Patch Panel is a 1U 24 Port Patch Panel. It is designed for Mseries outlets that can be configured for copper, fiber, or both. The M2000-1U panel mounts in a 19-inch (483 mm) rack with universal hole spacing.
The M2000-1U Panel includes M2000 Cable Organizers. The M2000 Cable Organizer is a molded plastic design that is mounted to each 6-port bezel. The M2000 24 port 1U panel includes 4 cable organizers. The six 4-pair cables from each bezel are routed and positioned to the cable organizer.
The M2000-1U includes a label sheet and clear label holders. A label area is provided to the left of each port. Port designations can be printed on the label sheet and individual port labels are trimmed from the label sheet and placed in the label area and secured by the clear label holder. If adhesive labeling is desired, adhesive labels can be applied to the label holder. The M2000-1U Panel now includes M2000 Cable Organizers. The M2000 Cable Organizer is a molded plastic design that is snapped into each 6-port bezel.
Also available and sold separately are M2000 1U Patch Cord Managers. These patch cord managers are metal rings that mount to the front of the panel. 5 patch cord managers are used for each 24 port 1U panel.
