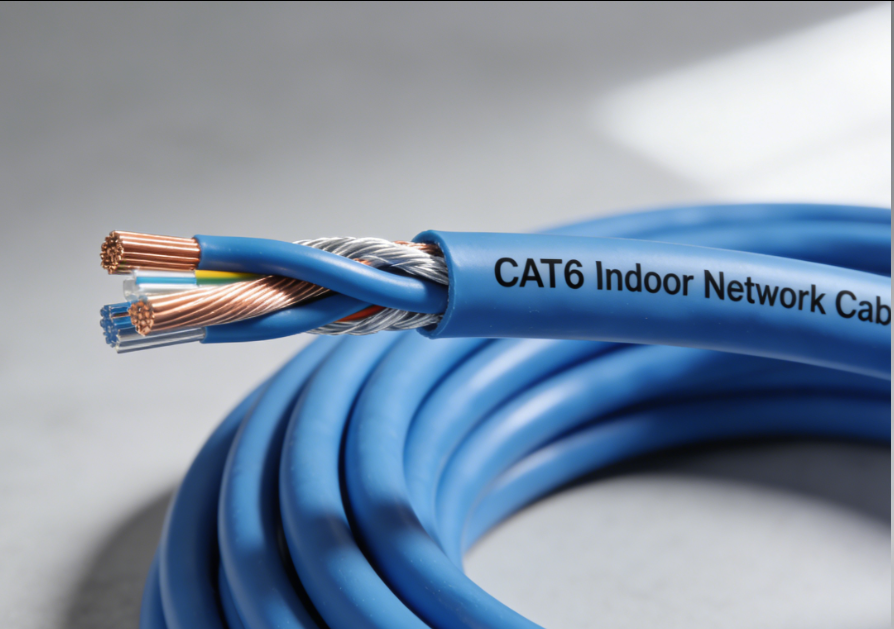

CAT6 Indoor Network Cable

CAT6 indoor network cable is a widely used structured cabling solution for indoor environments such as homes, offices, data centers, and commercial buildings, designed to meet the high-bandwidth needs of modern network applications while ensuring easy installation and cost-effectiveness. It follows the CAT6 standard, which exceeds the performance requirements specified by TIA-568-C.2 and ISO/IEC11801-2nd-Edition, offering superior signal quality and anti-interference capabilities compared to lower-category cables like CAT5e. The cable structure typically includes 4 pairs of twisted copper conductors (usually 23AWG solid copper for permanent wiring or stranded copper for patch cords), insulated with HDPE material, and an outer sheath made of PVC, LSZH, or PE, which meets different flame-retardant requirements for indoor use. The nominal diameter of the cable is about 6.3mm, making it flexible and easy to route through walls, ceilings, and cable ducts without damaging the sheath.

In terms of electrical performance, CAT6 indoor cables have a characteristic impedance of 100±15Ω, a maximum conductor resistance of less than 9.38Ω/100m, and a delay skew of less than 45ns, which effectively reduces crosstalk (NEXT, PSNEXT) and signal attenuation, ensuring stable data transmission at speeds up to 10Gbps over short distances (up to 55 meters) and 1Gbps over longer distances (up to 100 meters). They are compatible with a variety of network devices, including computers, servers, switches, routers, and IP cameras, supporting applications such as VoIP, ISDN, analog and digital video, and ATM services. The sheath material is non-toxic and flame-retardant, making it safe for use in confined indoor spaces. Whether for new building cabling or existing network upgrades, CAT6 indoor network cable is a cost-effective choice that balances performance, reliability, and ease of installation.
