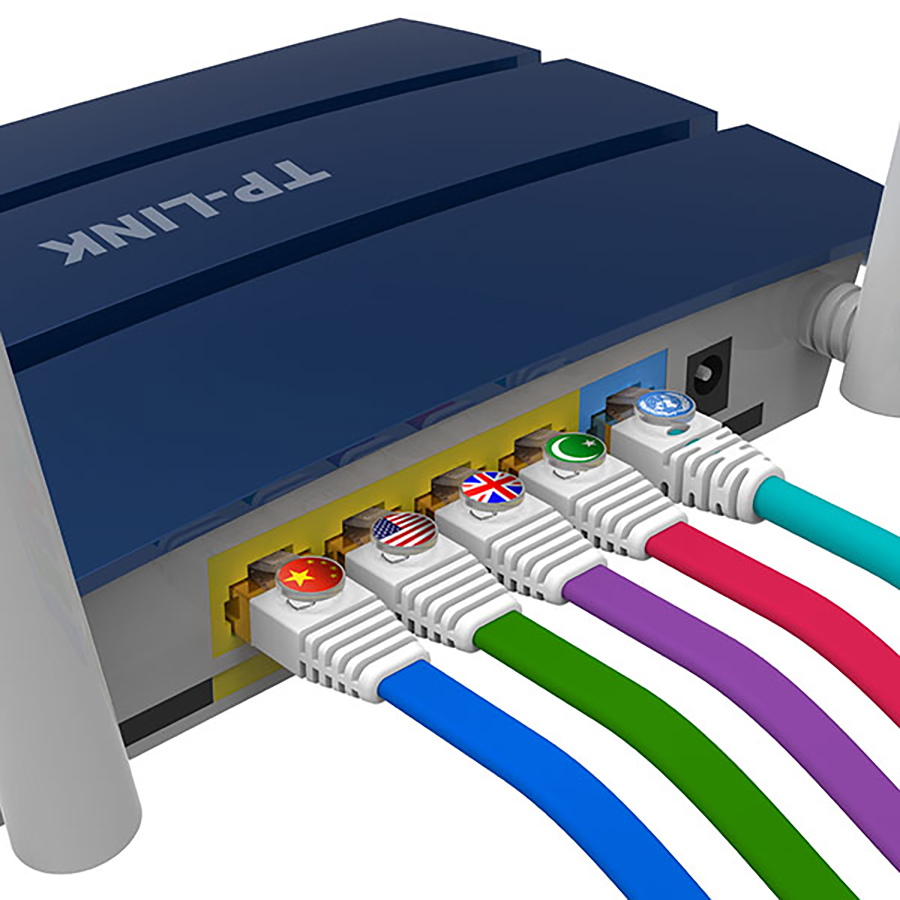

Cat6 Shielded FTP Network Patch Cord

The Cat6 shielded FTP (Foil Twisted Pair) network patch cord is engineered to meet the demands of high - speed networking while minimizing the impact of electromagnetic interference (EMI) and radio frequency interference (RFI). Unlike unshielded Cat5e or even standard Cat6 cables, the FTP design features a thin layer of aluminum foil wrapped around the four twisted pairs of copper conductors. This foil shielding acts as a barrier, preventing external interference from disrupting signal transmission and reducing the amount of crosstalk (signal leakage between adjacent pairs) within the cable.

This patch cord supports data transfer speeds of up to 10 Gbps at a bandwidth of 250 MHz—significantly higher than Cat5e—making it suitable for bandwidth - intensive applications such as data centers, server rooms, video conferencing systems, and large enterprise networks. The shielding is particularly valuable in environments where multiple cables are routed close together (e.g., in server racks) or where there are sources of strong interference, such as power lines, industrial machinery, or wireless access points.

In addition to its shielding capabilities, the Cat6 FTP patch cord maintains a compact design that allows for easy installation in dense cabling environments. The copper conductors (usually 23 - AWG or 24 - AWG) are twisted more tightly than those in Cat5e cables, further reducing crosstalk and improving signal quality over distances of up to 55 meters for 10 Gbps transmission (and 100 meters for lower speeds). It also complies with TIA/EIA standards, ensuring compatibility with a wide range of networking equipment. While the shielding adds a small amount of cost and weight compared to unshielded cables, the enhanced performance and reliability it provides make it an essential choice for organizations that require consistent, high - speed connectivity in challenging interference conditions.
